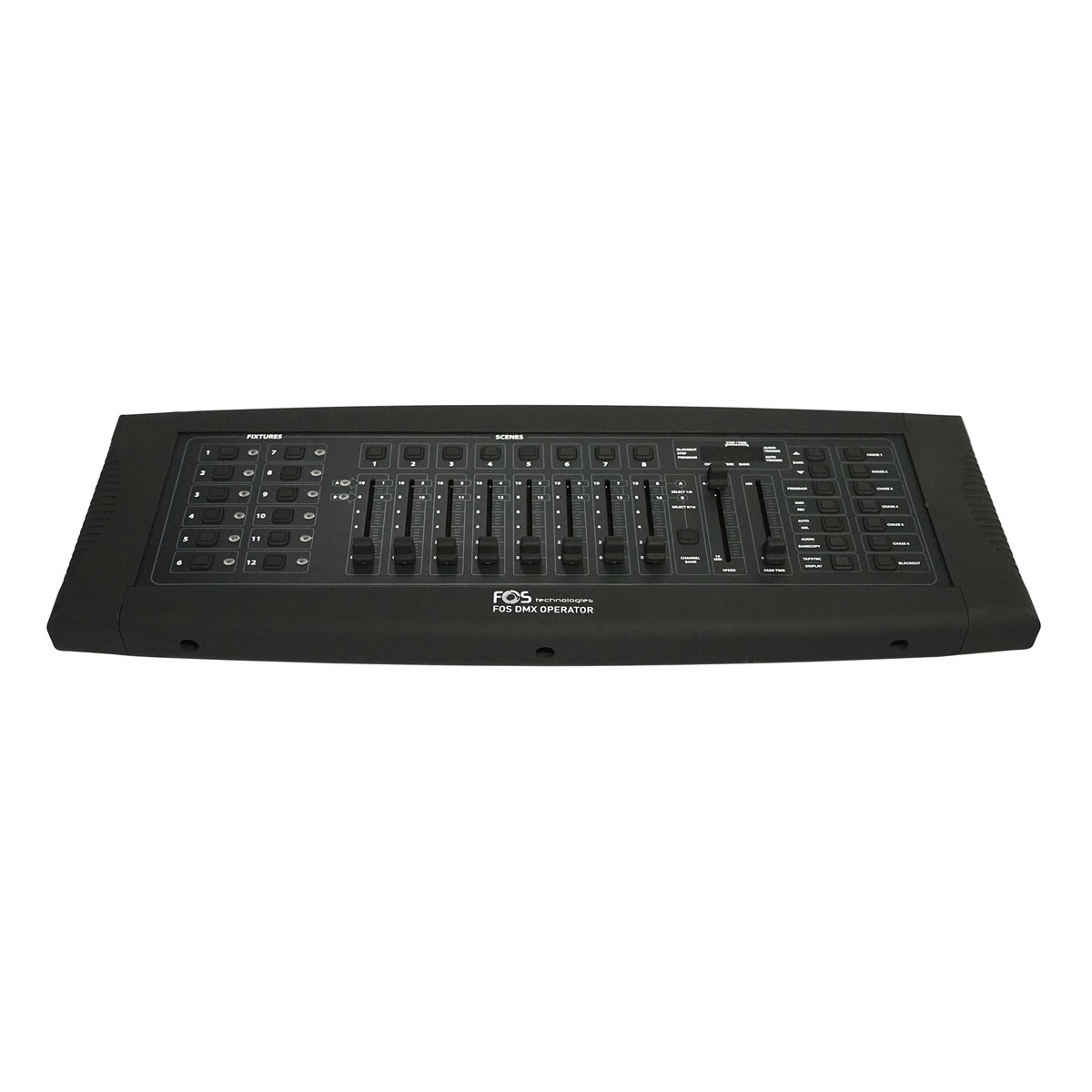

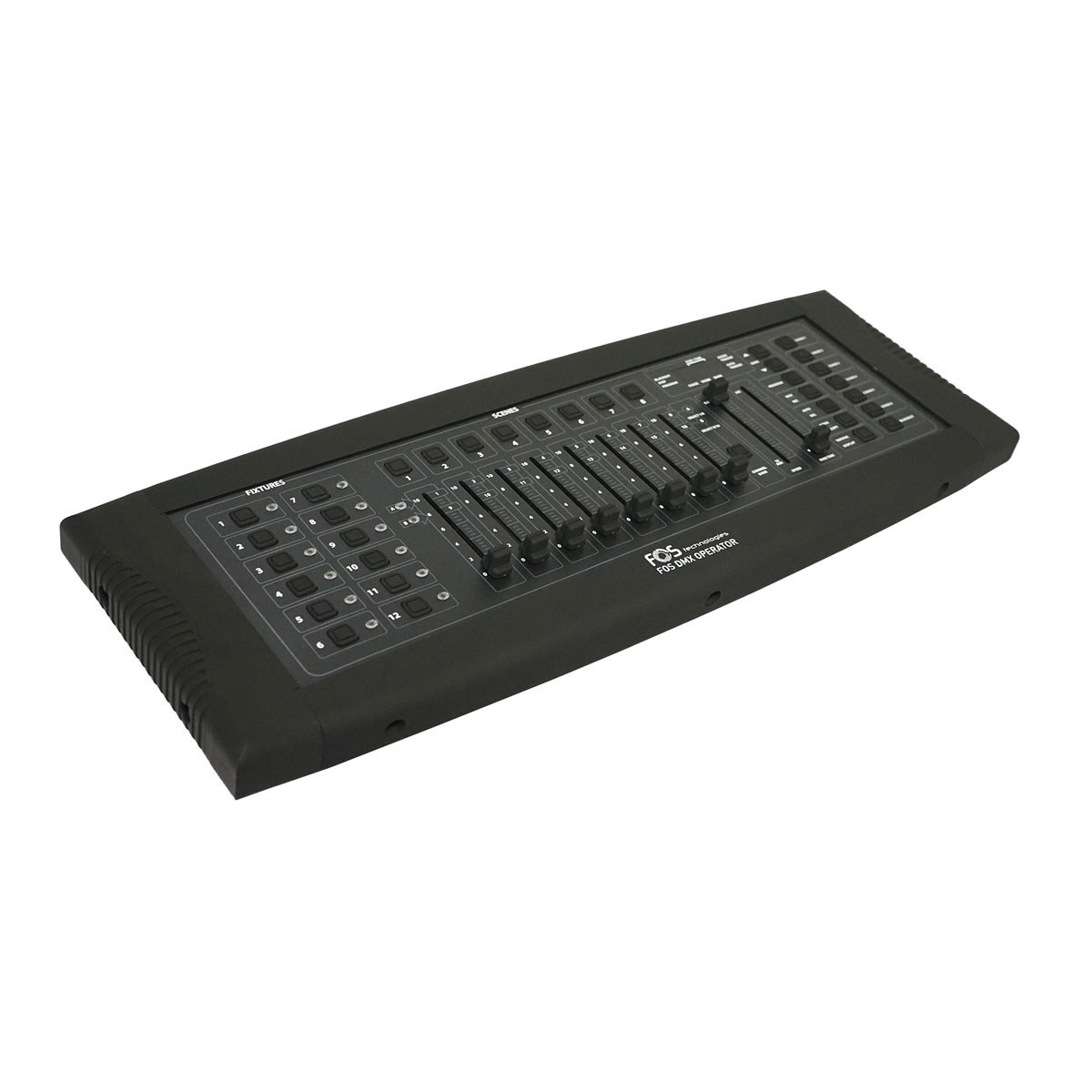

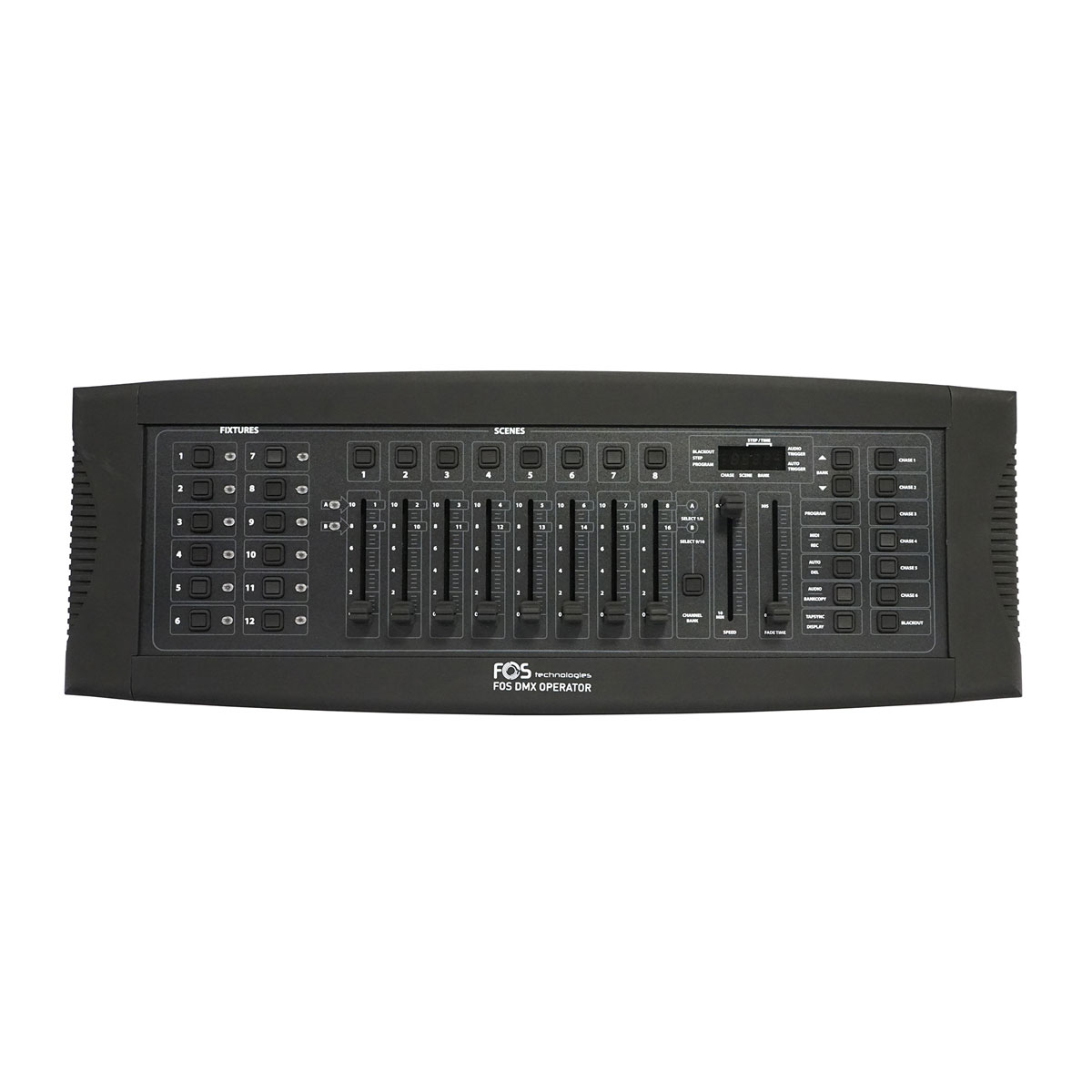

Dmx lighting desk

Control up to 192 DMX Channels

Control up to 12 Separate DMX intelligent lights with up to 16 DMX channels per fixture

Record up to 6 chases with separate fade times and step speeds

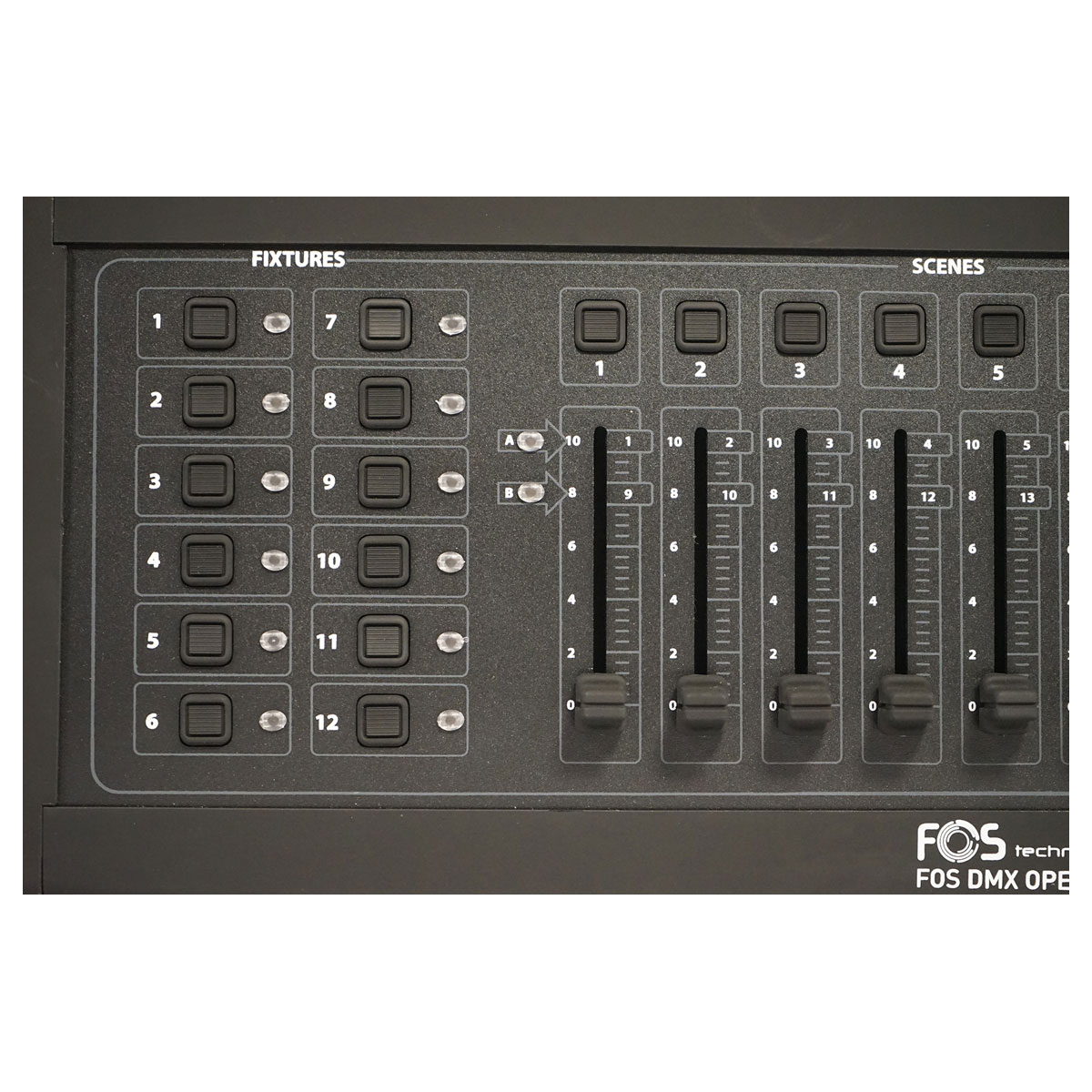

8 individual faders

Χαρακτηριστικά

• Pro DMX + LED Player + Studio DMX compatible
• 30 minutes loop of Audio and Video Timeline with Pro DMX
• 1 ARTNET Universe
• Windows, MAC Os X (10.6 and +) and Linux (64) compatible
• 2x512 Out PC and Stand Alone channels (using no PC)
• Splitter mode 2x512 out
• DMX in record and DMX in triggers (PC)
• DMX merging signal in Stand Alone (in/out mode)
• 16 bits and fine channel management in Stand Alone
• Automatic Scene Recovery if the power is accidently cut off
• Cross Fade time between scenes in Stand Alone
• Scene Speed, manual color (RGBW), page, Dimmer modes
• 8 trigger buttons with blue LED
• 4 buttons for Mode, valid, + and -
• 7 contact triggers to 5V (On, On/Off, Release or Restart scenes)
• Real Time Clock triggers for scenes (Day, Week, Month, Year)
• RS232 triggers in PC and Stand Alone
• Master/Slave mode to interconnect and synchronize up to 32 interfaces in Stand Alone (32768 dmx channels without pc use)
• Infrared Triggers via an external module + IR remote (Optional)
• 4 Mb of internal memory (min. capacity: 6,000 steps/512 ch)
• Power input of 9 to 36V. (standard DC connector)
• Black housing with 4 mounting holes, ABS Plastic
• Mini USB 2.0 - 5V. DC
• 3 Pins XLR (XLR5 optional)
• RJ45 connectors for I/O and triggers
• Dimensions: 4 x 14 x 9 cm
• Weight: 0.2 Kgs
• Operating temperatures: -25 to +70 Cº
• Certifications: CE, RoHS
