Χαρακτηριστικά

• Type

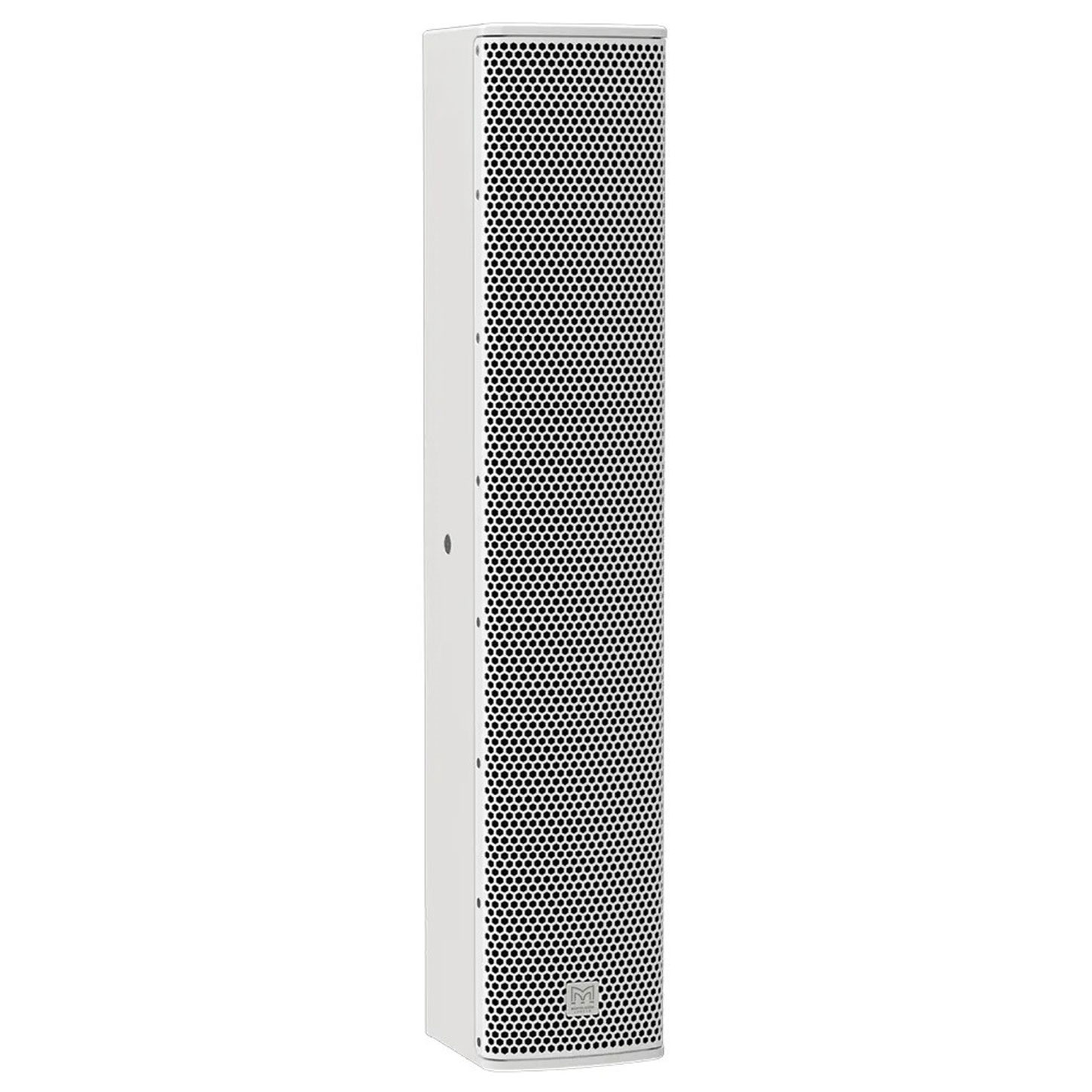

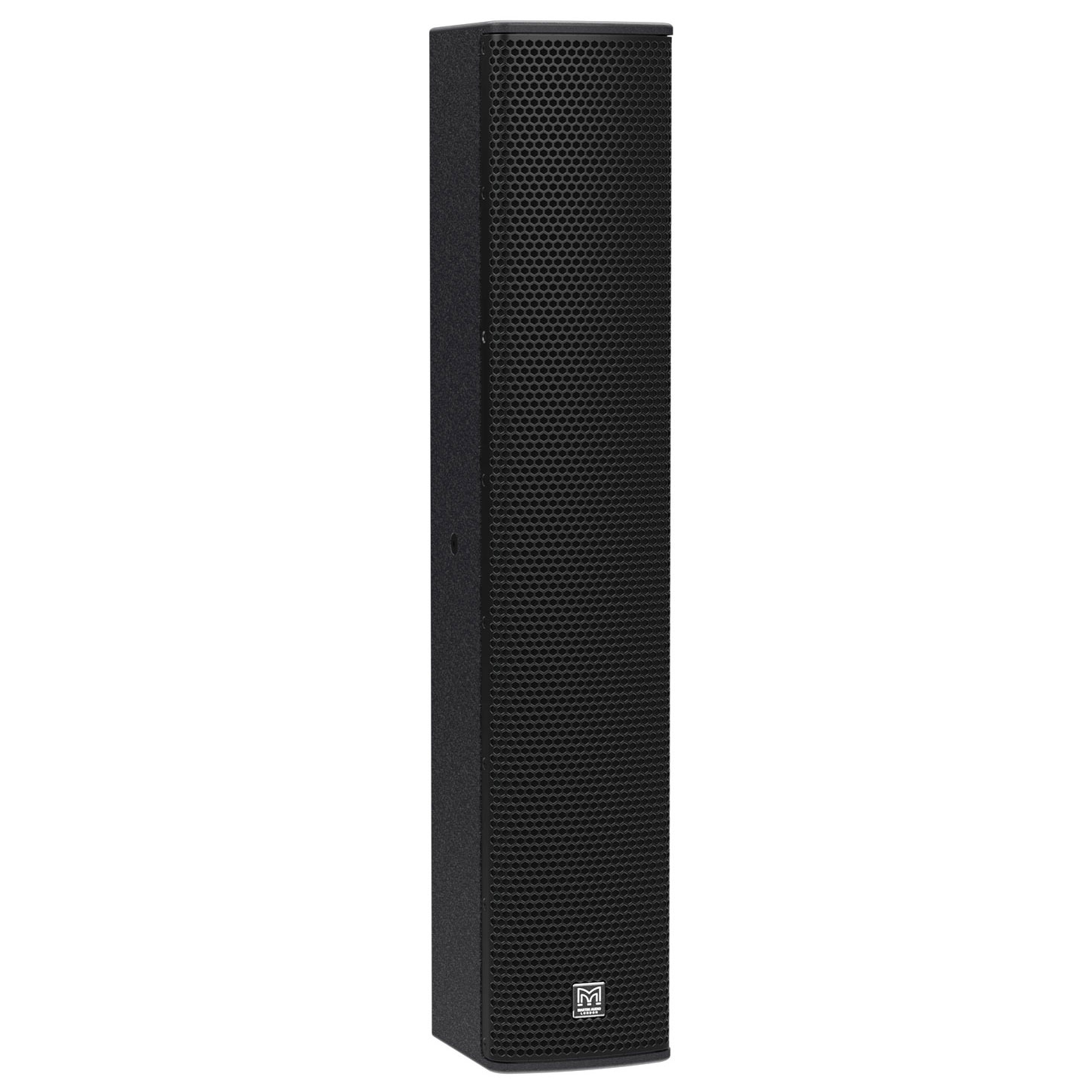

  Passive two-way compact column loudspeaker
• Frequency response [1]
  82 Hz – 17 kHz ± 3 dB, -10 dB @ 63 Hz
• Driver (LF)
  Four 4” (100 mm) with 1” (25 mm) voice coil, ferrite motor system
• Driver (HF)
  1" (25 mm) exit compression driver with 1" (25 mm) voice coil, PETP dome
• Rated power [2]
  200 W AES, 800 W peak
• Required electronics
  Processor and amplifier, or a combined amplifier-processor unit
• Recommended electronics
  DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
• Sensitivity [3]
  90 dB
• Maximum SPL [3]
  113 dB continuous, 119 dB peak, 125 dB peak with crest factor 4
• Nominal impedance
  8 ohm
• Dispersion
  100°–120° (horizontal) × 40° (vertical)
• Crossover
  2.4 kHz passive
• Enclosure
  Durable plywood
• Finish
  Black or white textured paint
• Protective grille
  Black or white perforated steel grille with scrim cloth backing
• Connectors
  1 x NL4 connector
• Pin connections (input)
  1+/1–
• Pin connections (link)
  NA
• Fittings
  3 x M8 inserts, 1 x M6 insert, 4 x M6 inserts for wall bracket
• Handle
  1 x pocket handle made from recycled ABS
• Pole-mount socket
  With removable cover
• Dimensions
  (W) 150 mm × (H) 800 mm × (D) 187 mm
• Dimensions (imperial)
  (W) 5.9 in × (H) 31.5 in × (D) 7.3 in
• Weight
  7.5 kg (16.5 lbs)
