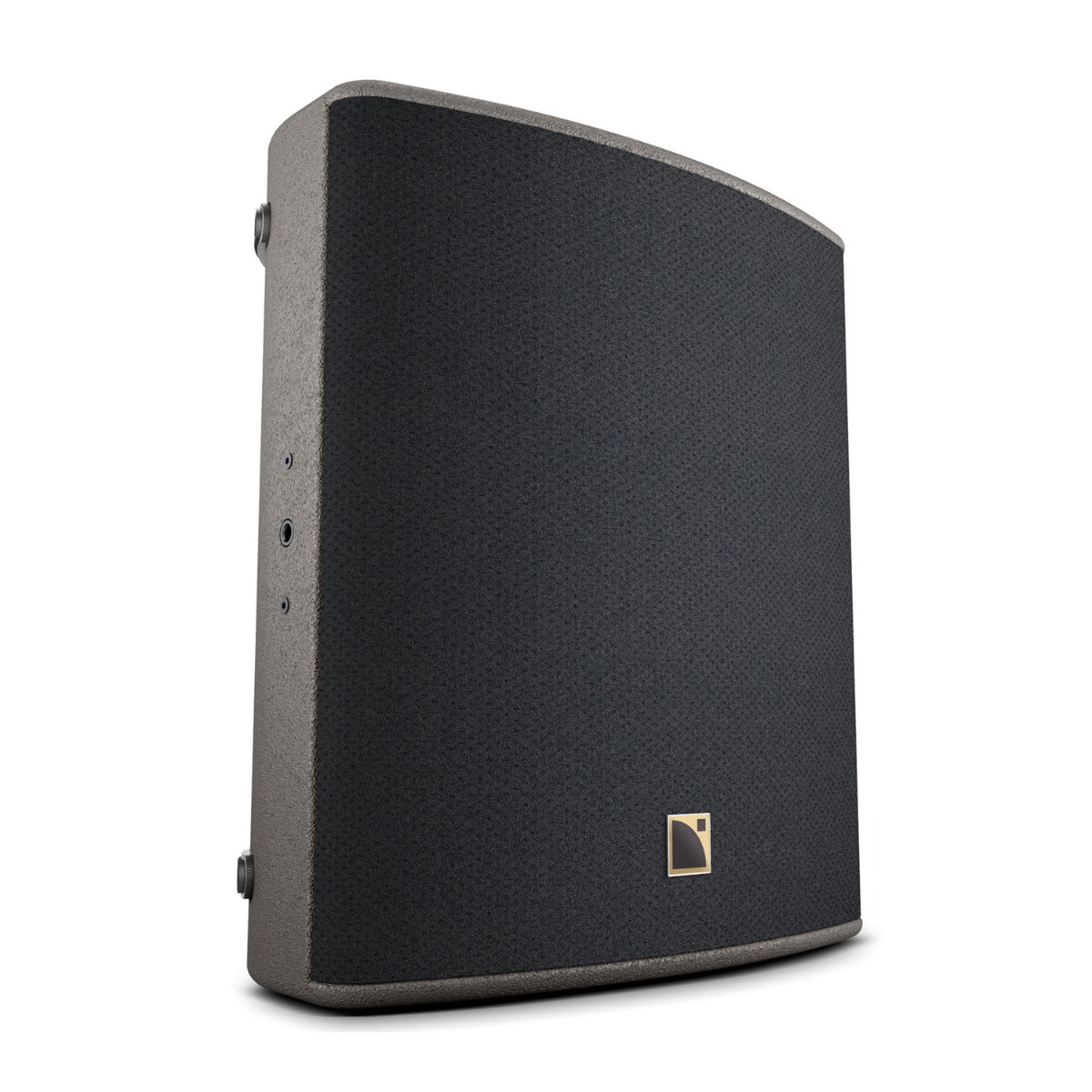

Παθητικό Ομοαξονικό Ηχείο 12'', 2 δρόμων

Χαρακτηριστικά

Electroacoustic Specs

• Usable bandwidth (-10 dB): 59 Hz – 20 kHz ([X12])
• Maximum SPL1: 136 dB ([X12])
• Nominal directivity (-6 dB): Vertical: 90° symmetric / Horizontal: 60° symmetric
• Monitor angle: Without risers: 35° / With risers: 55°
• Transducers: LF: 1 × 12″ cone driver / HF: 1 × 3″ diaphragm compression driver, neodymium
• Acoustical load: Load bass-reflex, L-Vents, ellipsoidal waveguide
• Nominal impedance: 8 Ω

Physical Specs

• Connectors: IN: 1 × 4-point speakON / LINK: 1 × 4-point speakON
• Rigging and handling: 2 × handles / DIN580-compatible M8 threaded insert / 4 M10 threaded inserts / 1X35 mm pole socket
• Weight (net): 20 kg / 44.1 lb
• Cabinet: Premium grade Baltic beech and birch plywood
• Front: Steel with anti-corrosion coating / acoustically neutral 3D fabric
• Finish: Dark grey brown Pantone 426 C
• IP: IP43
