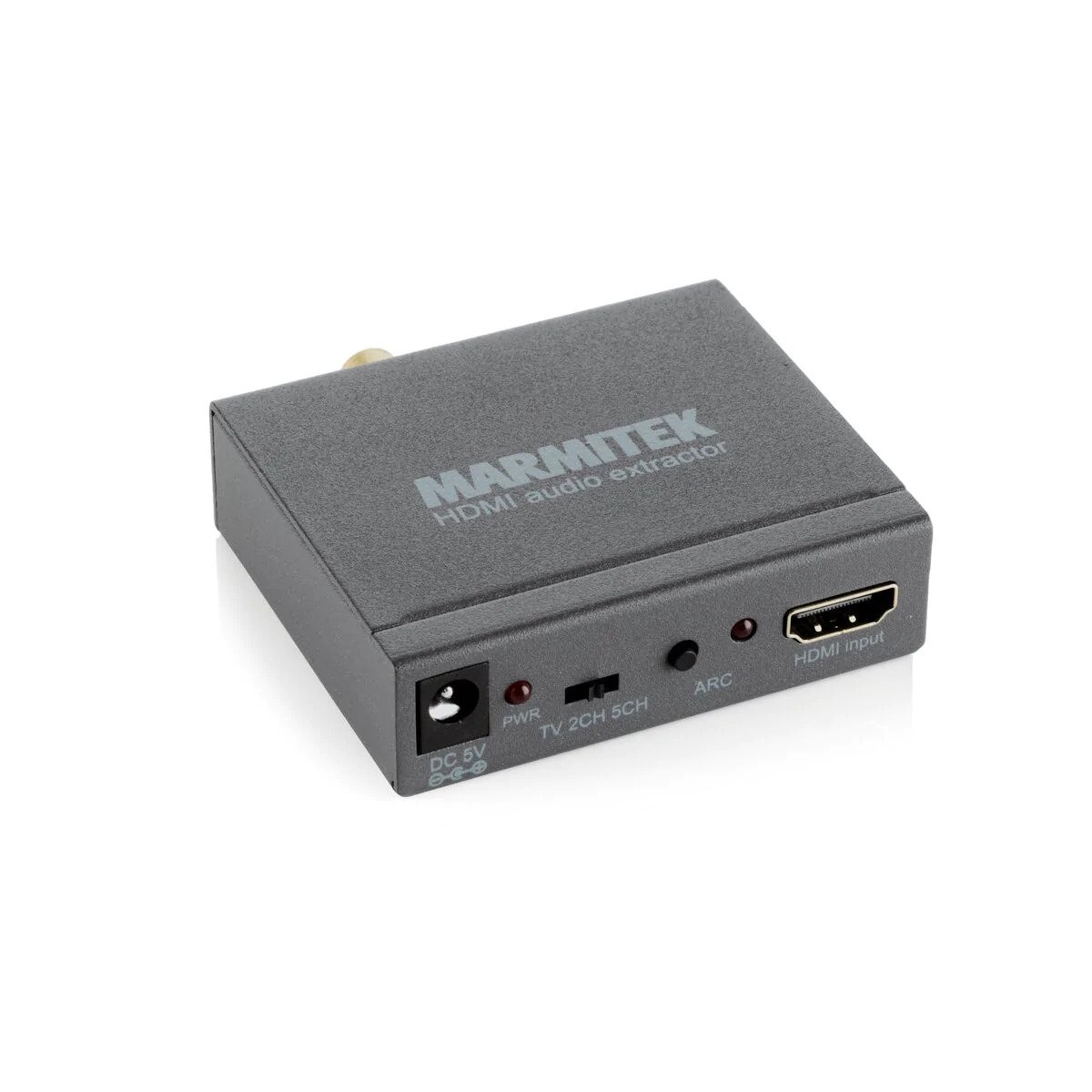

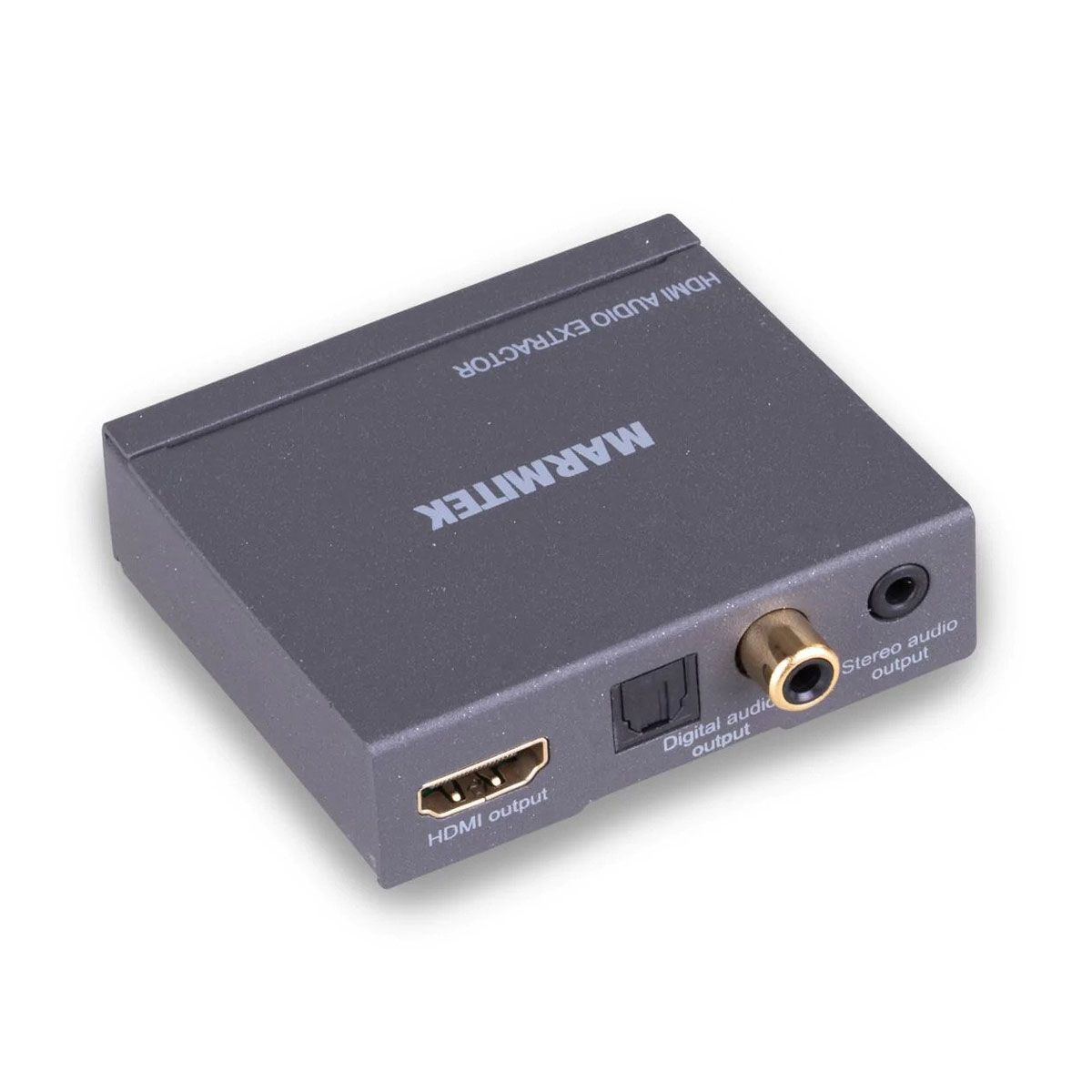

Marmitek Connect AE14
Marmitek Connect AE14
- AV input: 1 x HDMI | AV output: 1 x HDMI
- Digital audio output: 1 x Toslink (optical), 1x coaxial | Analogue audio output: 1 x stereo 3.5 mm jack
- Video Supported resolution: Max. 2160@30Hz
- Digital audio output: DTS 5.1, Dolby Digital/AC3 and PCM 2.0 CH | Analogue audio output: 2.0 CH
- Dimensions (h x w x d): 20 x 70 x 68 mm | Weight: 130 grams
Έχεις απορίες ή θες να κάνεις τηλεφωνική παραγγελία;
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Σχετικά Προϊόντα
HDMI audio extractor 4K30 - ARC
Connect devices without an available audio output to your audio equipment

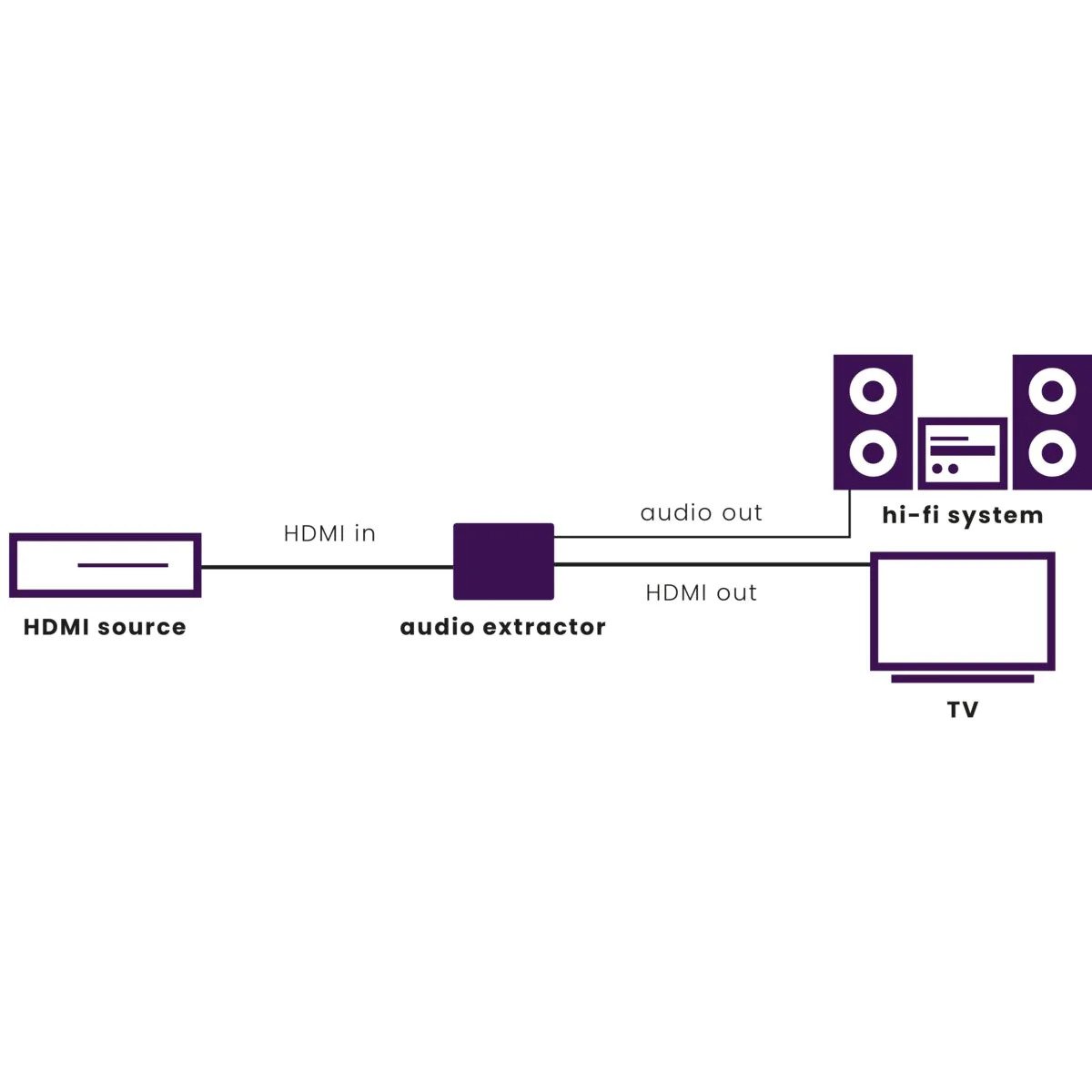

Connect HDMI sources to your audio equipment, even if they lack a dedicated audio output (Apple TV 4, Chromecast, Wii U, media players)
Listen to music (MP3, audio streams, radio channels) without requiring the TV being turned on
Versatile problem solver when connecting your audio equipment to your TV, monitor or projector

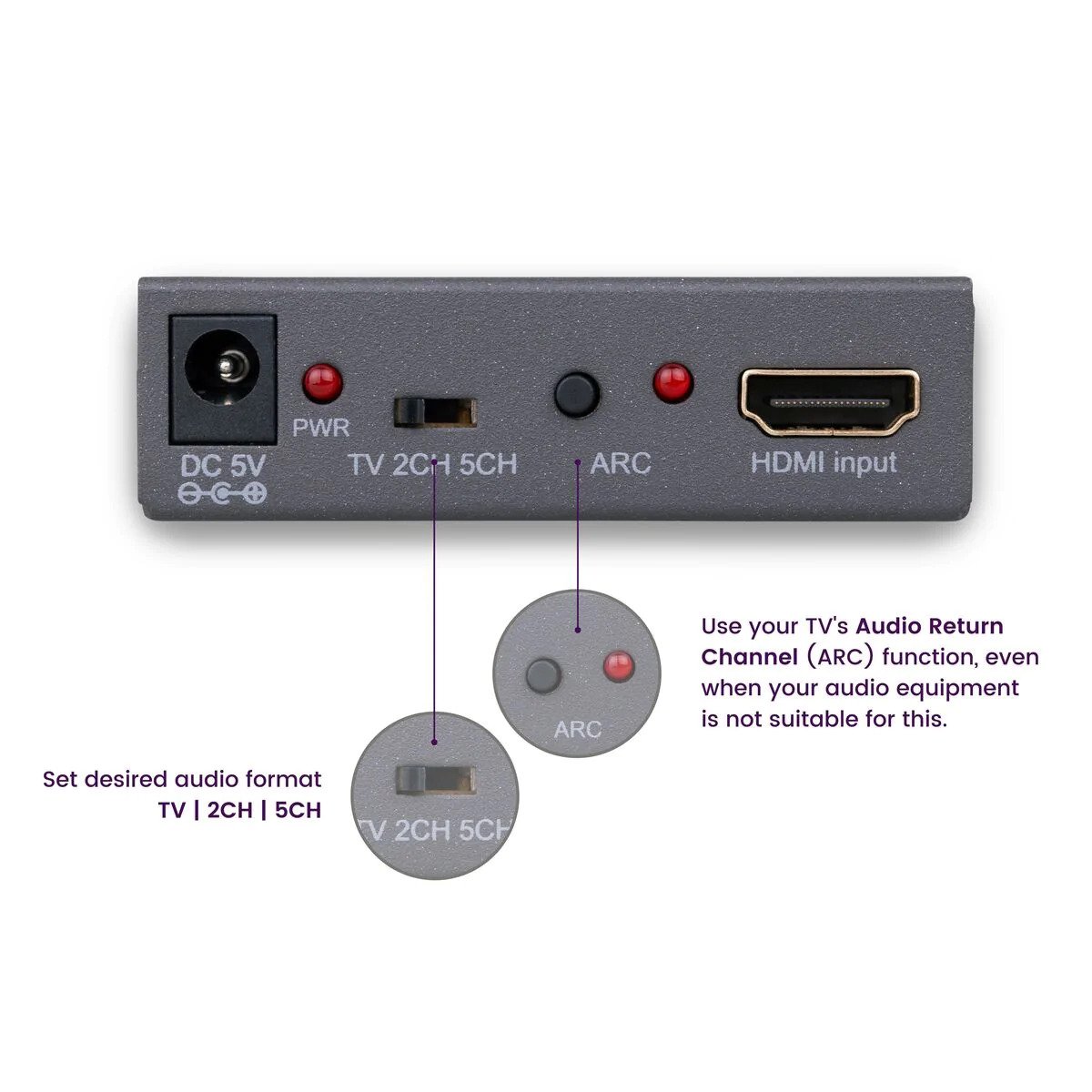

Determine your desired audio format using the unique EDID switch
Play the audio from your Smart TV applications (Netflix, YouTube) or built-in TV decoder on your home cinema set, audio amplifier or soundbar
Use your TV's Audio Return Channel (ARC) function, even when your audio equipment is not suitable for this
Still want to connect your Apple TV 4, Google Chromecast or TV without an audio output to your audio equipment? You can with the Connect AE14
Χαρακτηριστικά

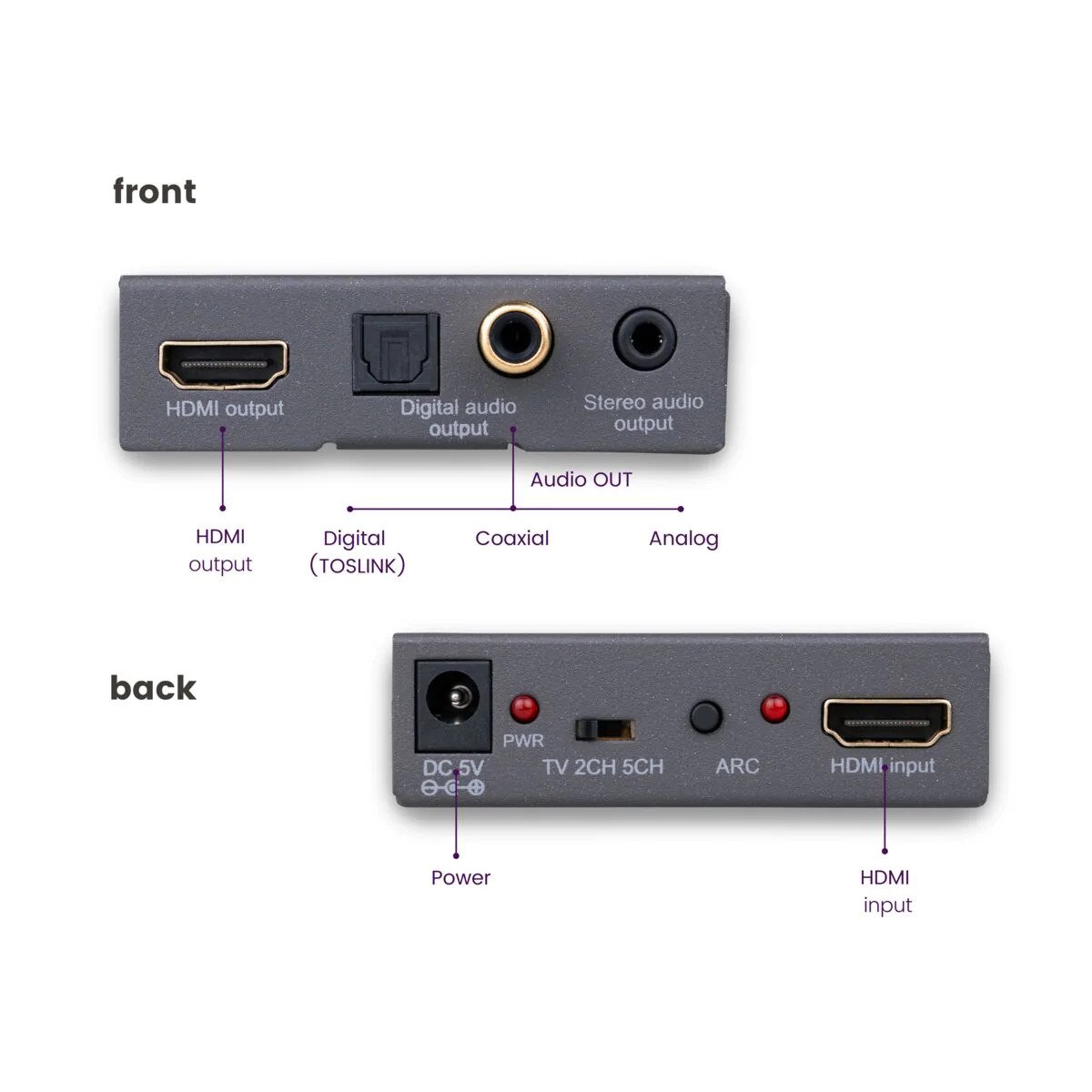

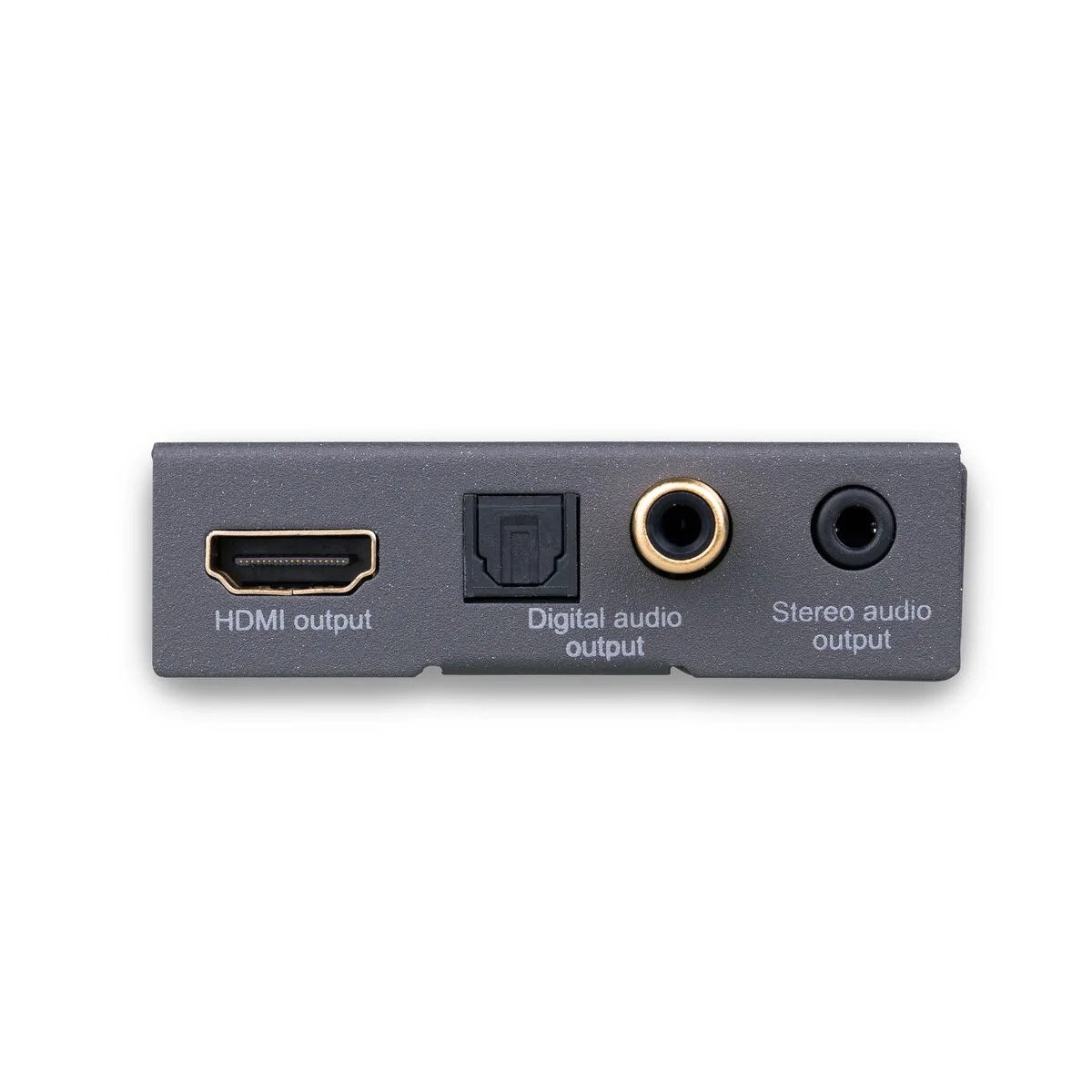

Connections

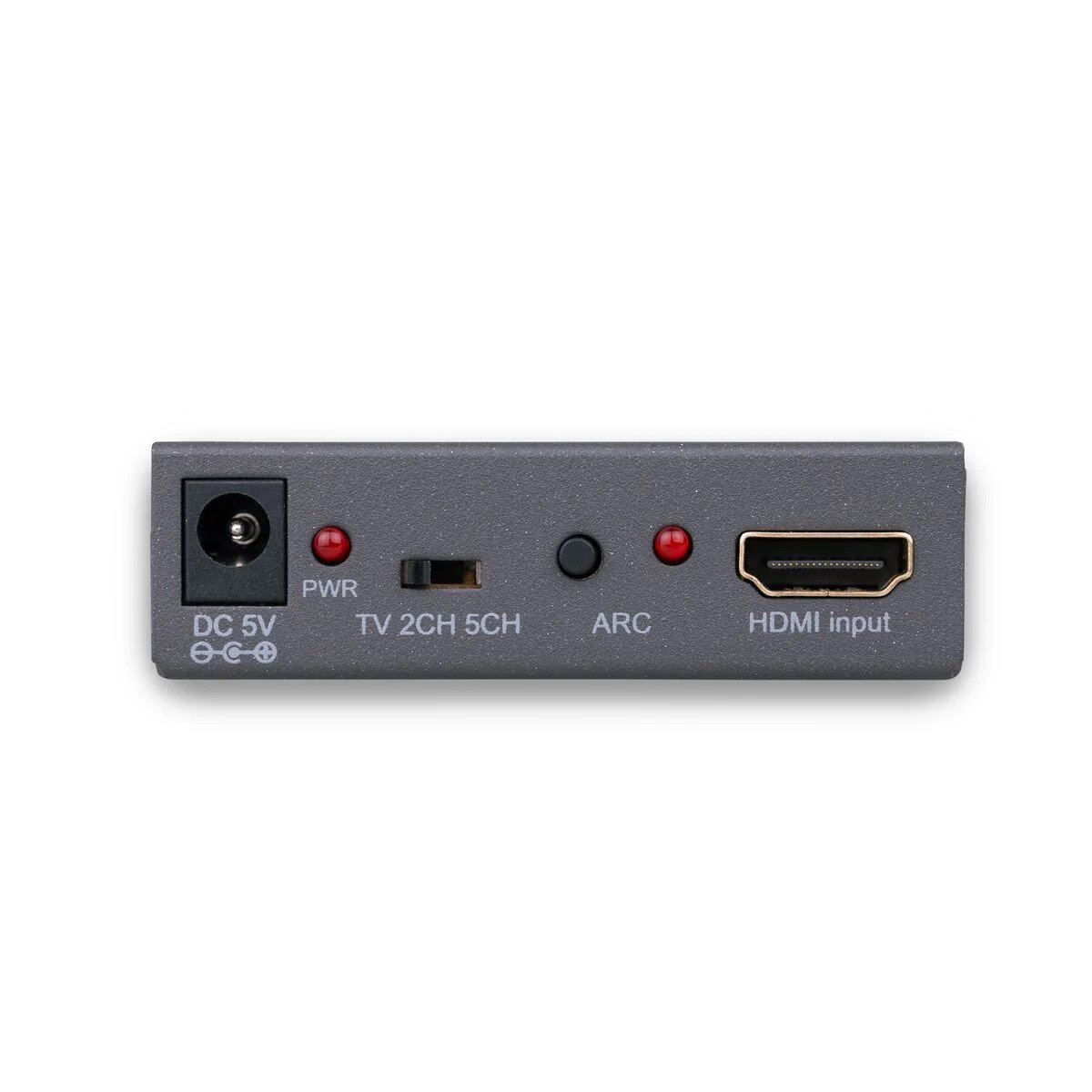

- AV input: 1 x HDMI
- AV output: 1 x HDMI
- HDMI cable length: 15 metres (max.)

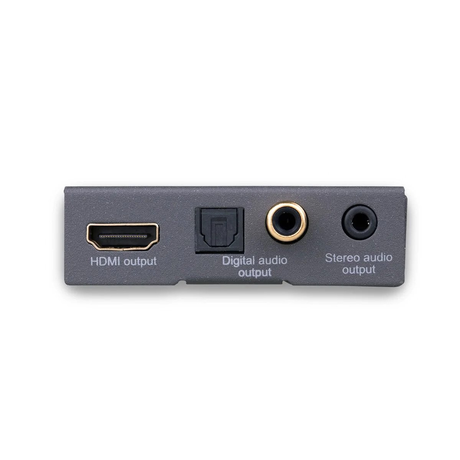

- Digital audio output: 1 x Toslink (optical), 1x coaxial
- Analogue audio output: 1 x stereo 3.5 mm jack
Video
- Supported resolution: Max. 2160@30Hz
- HDMI standards: HDMI 1.4, HDCP, CEC, ARC, EDID, DVI, Deep Color 36-bit, 3D formats and x.v. Colour
- Video bandwidth: 10.2 Gbps
- Clock frequency: 300 MHz
- HDCP standards: HDCP 1.4/2.2
- Colour formats: RGB and YCbCr 4:4:4, 4:2:0 of 4:2:2
- Colour depth: Max. 36-bit
Audio
- Digital audio output: DTS 5.1, Dolby Digital/AC3 and PCM 2.0 CH
- Analogue audio output: 2.0 CH
General
- Dimensions (h x w x d): 20 x 70 x 68 mm
- Weight: 130 grams
- Ambient temperature: +0 to +70 °C
- Humidity: 10% to 85%
- Power: 100-240 VAC 50/60 Hz, 5 VDC adapter
-
ΚατασκευαστήςMarmitek
