Specifications

• Frequency Response @ -6 dB
  57 Hz - 20 kHz
• Sensitivity 1W@1m
  108 dB SPL Nominal
• Peak SPL @1m
  139 dB Peak (Passive Mode) / 141 dB Peak (Active Mode)
• Operating Voltage
  55 Vrms (180 Vpeak)

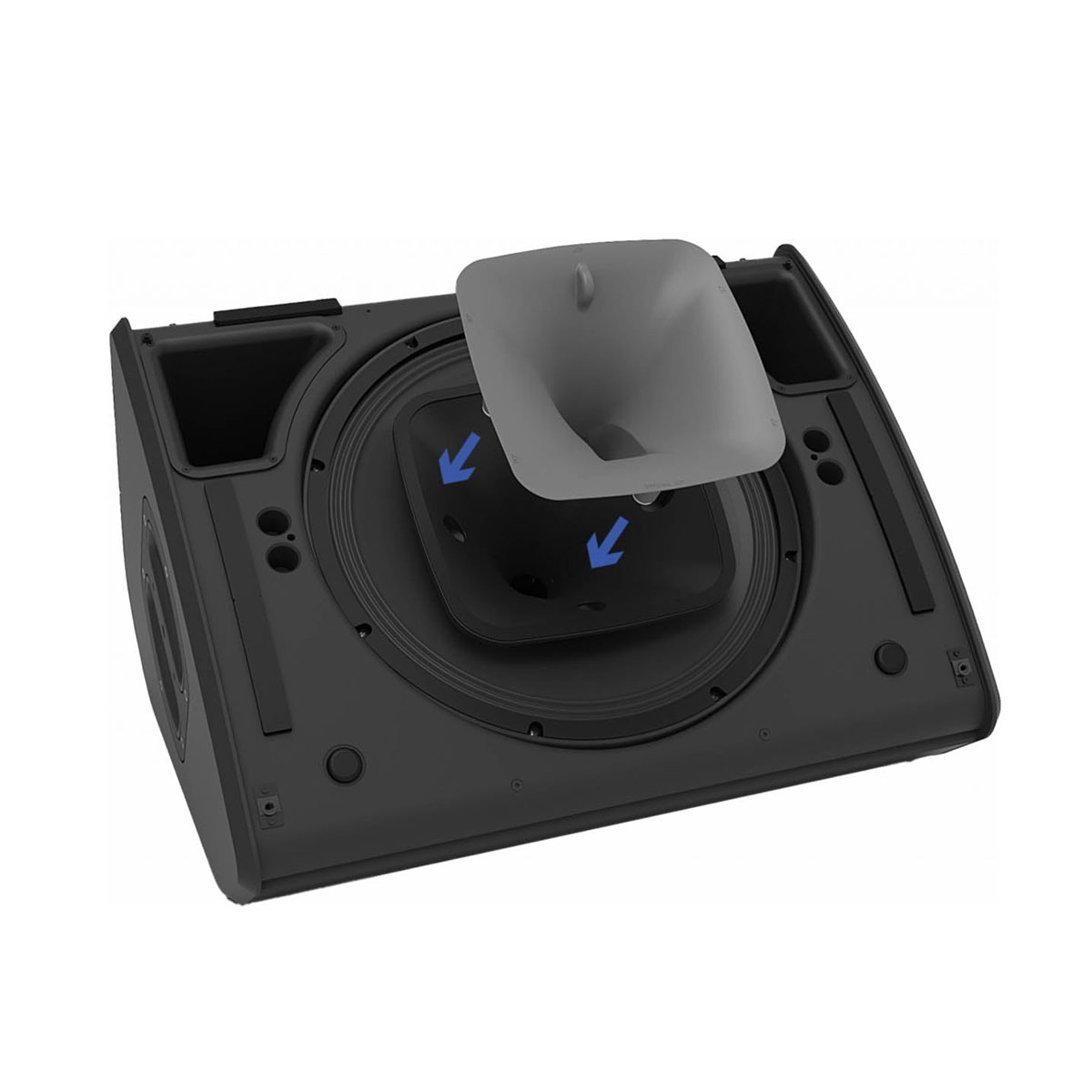

• HF Dispersion (According to Flanges)
  60° x 60° (Default) - 90° x 40° (with 90x40 flange) - 50°~90° x 40° (with PS flange)
• Crossover Frequency
  57 Hz, 85 Hz, 120 Hz
• Nominal Impedance
  Active Mode (8 Ω LF + 8 Ω HF) / Passive Mode
• Recommended Power
  Active

Features

• Components
  1 x Coaxial Neodymium LF 15” 8 Ohms long excursion & HF 3” 8 Ohms
• Number of Ways (Touring Version)
  2-Way Passive (2+/2- P15) or 2-Way Active (1+/1- LF, 2+/2- HF), Switchable
• Number of Ways (Install Version)
  2-Way Passive
• Connectors (Touring Version)
  4 x NL4, 4-Pole Connectors (1 per handle + 2 at the back)
• Connectors (Install Version)
  1 x Cable Gland with 2-Core Cable
• Rigging Points
  1 x Universal Accessory Fit on Each Side + 1 x on the Bottom
• Material
  Custom-Made Bent Plywood of Baltic Birch and Poplar
• Finish
  Black or White Structural Paint

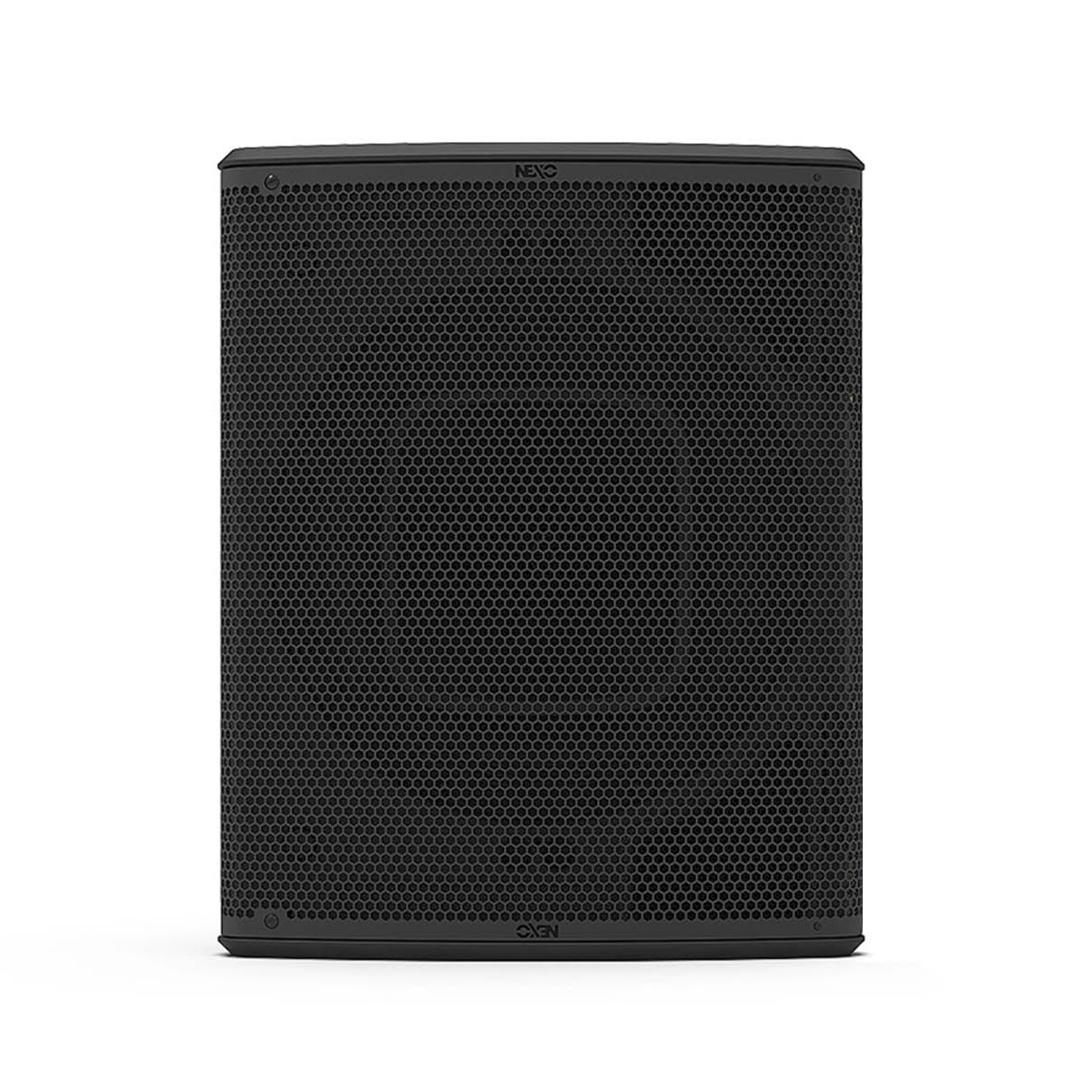

• Front Finish (Touring Version)
  Steel Front Grille + Rear Mesh
• Front Finish (Install Version)
  Acoustic Fabric Fitted Front Grille
• Net Weight
  23 kg
• Dimensions (H x W x D)
  600 x 483 x 352 mm
• Operating Temperature Range
  0°C to 40°C
• Storage Temperature Range
  -20°C to 60°C

System Operation

• Recommended Powering Solution
  NXAMP4x2mk2 Powered TDcontroller
• Optional Powering Solution
  DTDcontroller + DTDAMP4x0.7 (1 x P15 per Channel)
• Optional Powering Solution
  NXAMP4x1mk2 Powered TDcontroller (up to 2 x P15 per Channel)
• Optional Powering Solution
  NXAMP4x4mk2 Powered TDcontroller (up to 4 x P15 per Channel)
