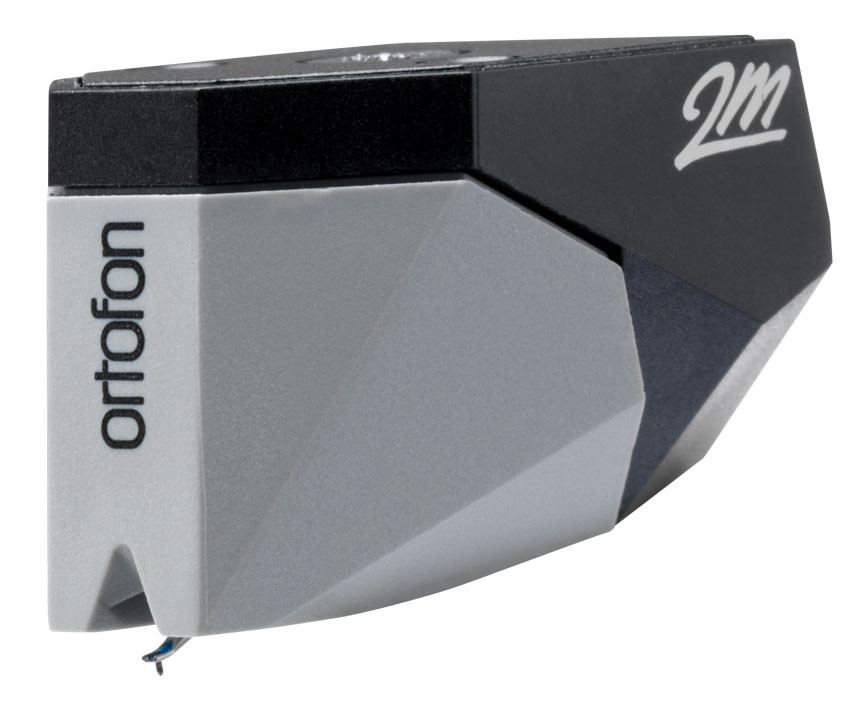

Ελλειπτική κεφαλή πικάπ

Χαρακτηριστικά

• Output voltage at 1000 Hz, 5cm/sec. - 4 mV
• Frequency range at - 3dB - 20-20.000 Hz
• Frequency response - 20-20.000 Hz + 3 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force - 70 µm
• Compliance, dynamic, lateral - 18 µm/mN
• Stylus type - Spherical
• Stylus tip radius - R 65 µm
• Tracking force range - 1.6-2.0g (16-20 mN)
• Tracking force, recommended - 1.8 g (18 mN)
• Internal impedance, DC resistance - 700 Ohm
• Internal inductance - 350 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 150-300 pF
• Tracking angle - 20°
• Cartridge colour, body/stylus - Black/Grey
• Cartridge weight without screws - 7.2 g

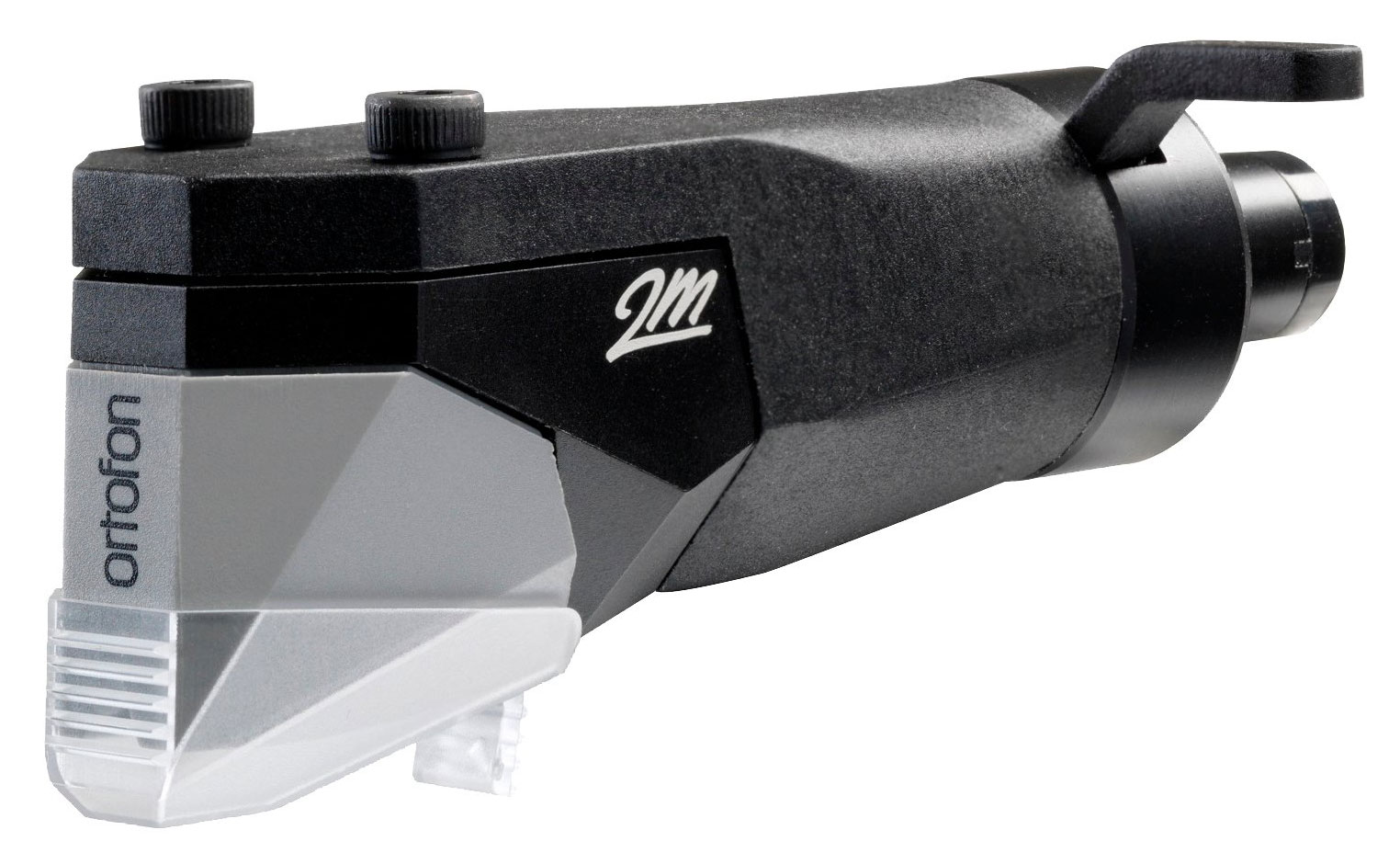

• 2M PnP MkII cartridge with integrated headshell weight - 20 g
• 2M PnP MkII cartridge with integrated headshell length - 52 mm
• Replacement stylus unit - 2M 78 (interchangeable with 2M Mono)
• Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance
