Upgrade Your Home Entertainment Experience with ATC’s Elegant and Versatile Full-Motion TV Wall Mounts

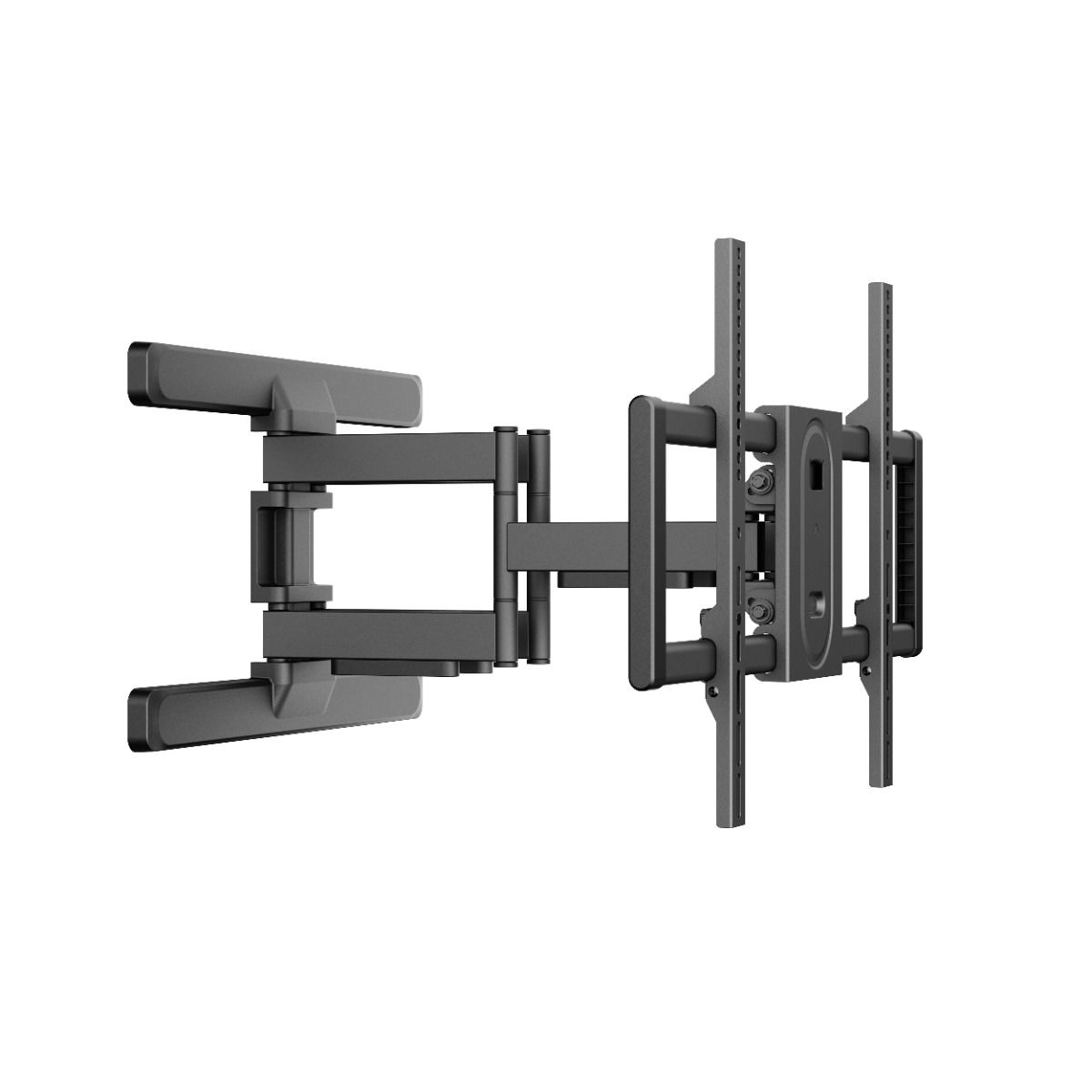

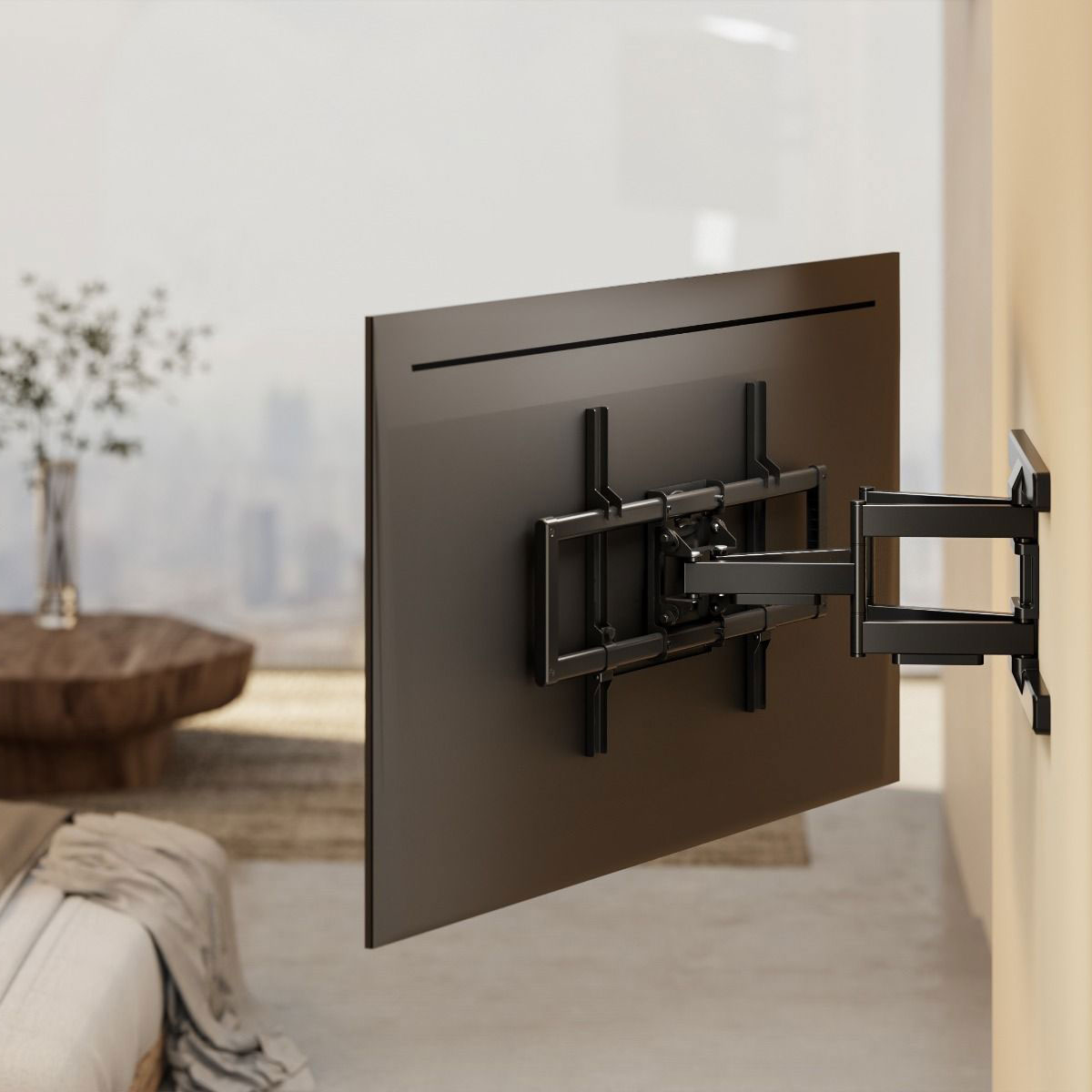

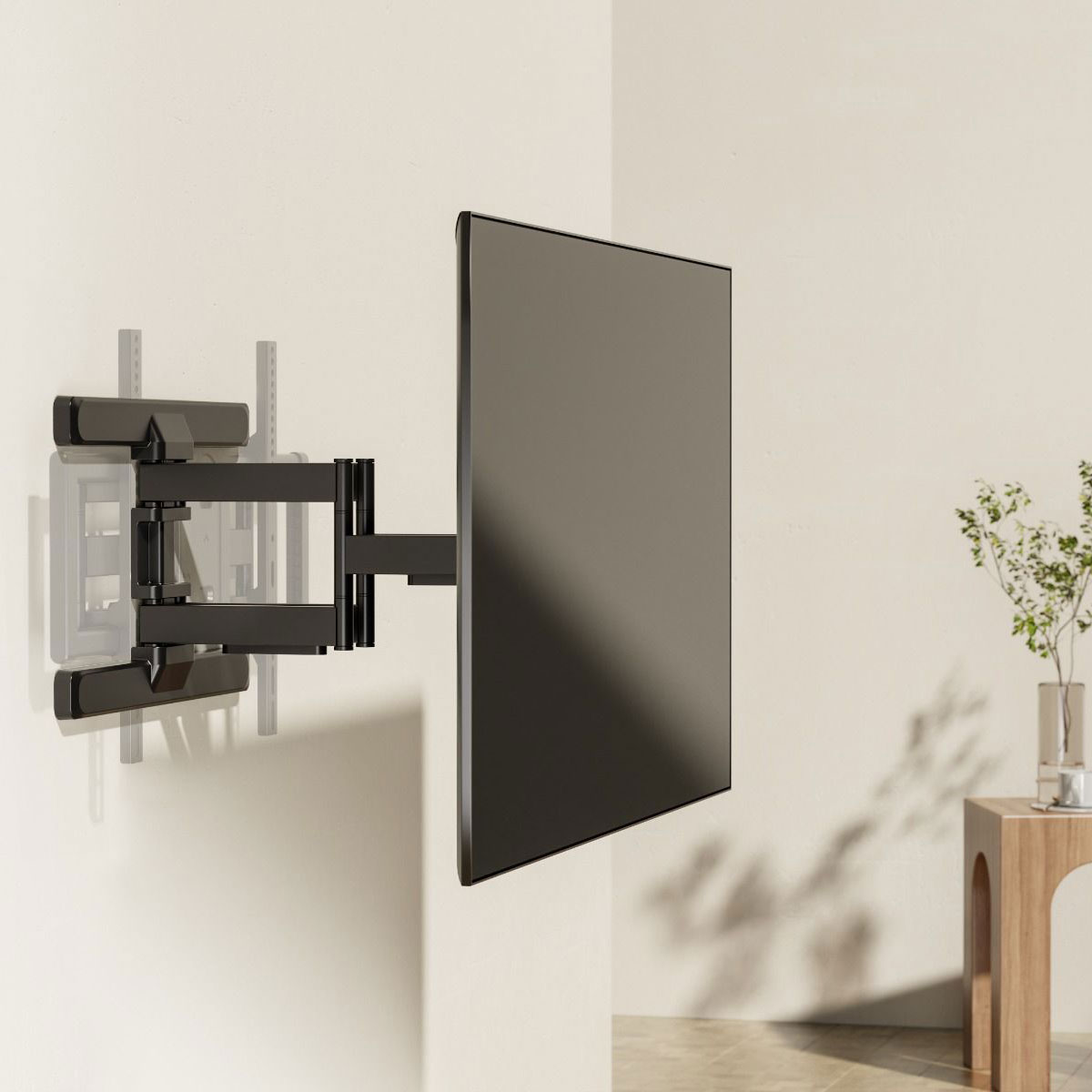

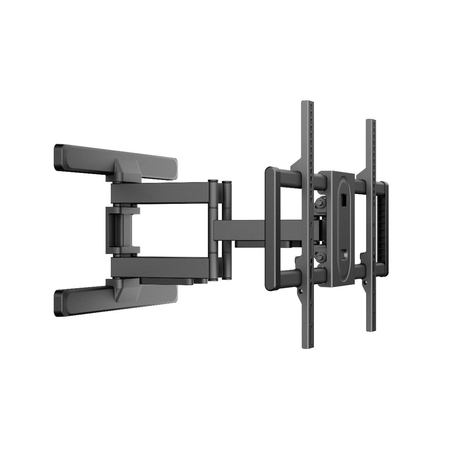

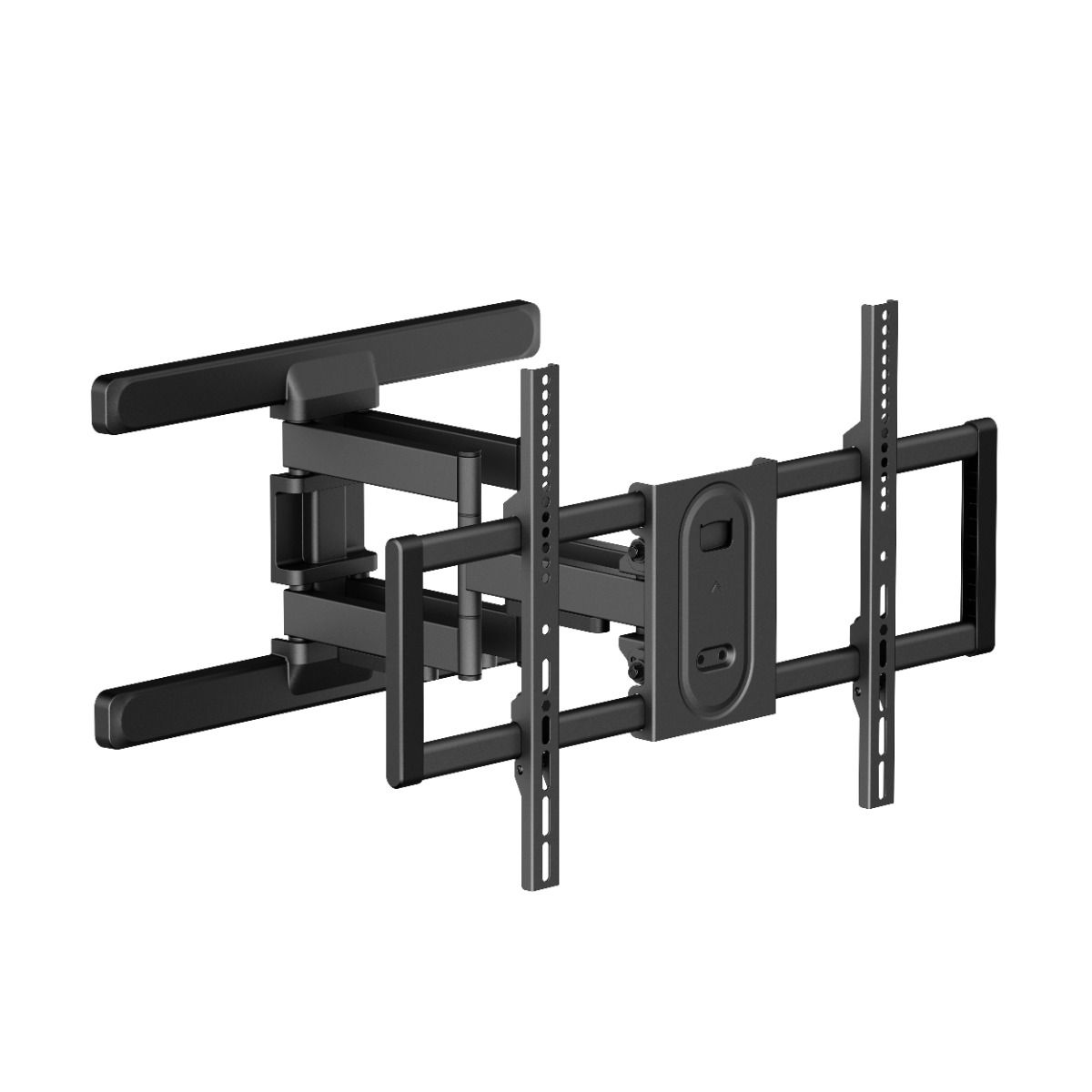

With swivel, tilt, and extension capabilities, the ATC-8146 Full-Motion TV Wall Mount offers the perfect viewing angle from any point in the room. Smooth motion ensures effortless and comfortable adjustment. Decorative covers provide a clean and elegant look, while cable management keeps your space neat and organized. Installation is also quick and easy.

Specifications

• Material: Steel, Plastic
• Metal Sheet Thickness: Arm 1.5 mm (cold-rolled), VESA Plate 1.8 mm (cold-rolled), Wall Plate 3 mm (pickling)
• Tube Diameter: 40×20×1.5 mm (Square Steel Tube)
• Surface Finish: Electrostatic Powder Coating
• Color: Black with fine texture
• Dimensions: 480×706×430 mm (18.9″×27.8″×16.9″)
• Screen Size Compatibility: 37″–86″
• Curved TV Compatible: Yes
• Mounting Hole Type: VESA & Universal
• VESA Compatibility: 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400
• Max Mounting Hole Pattern: 600×400 mm
• Max Load Capacity: 60 kg (132 lbs)
• Strength Test: Approved for 4× rated load
• Profile: 65–480 mm (2.6″–18.9″)
• Tilt Range: +5° ~ –10°
• Swivel Range: +60° ~ –60°
• Level Adjustment: +3° ~ –3°
• Free-Tilt Design: Yes
• Installation: Solid Wall, Double Stud (406 mm / 450 mm)
• Panel Type: Detachable
• Wall Plate Type: Fixed

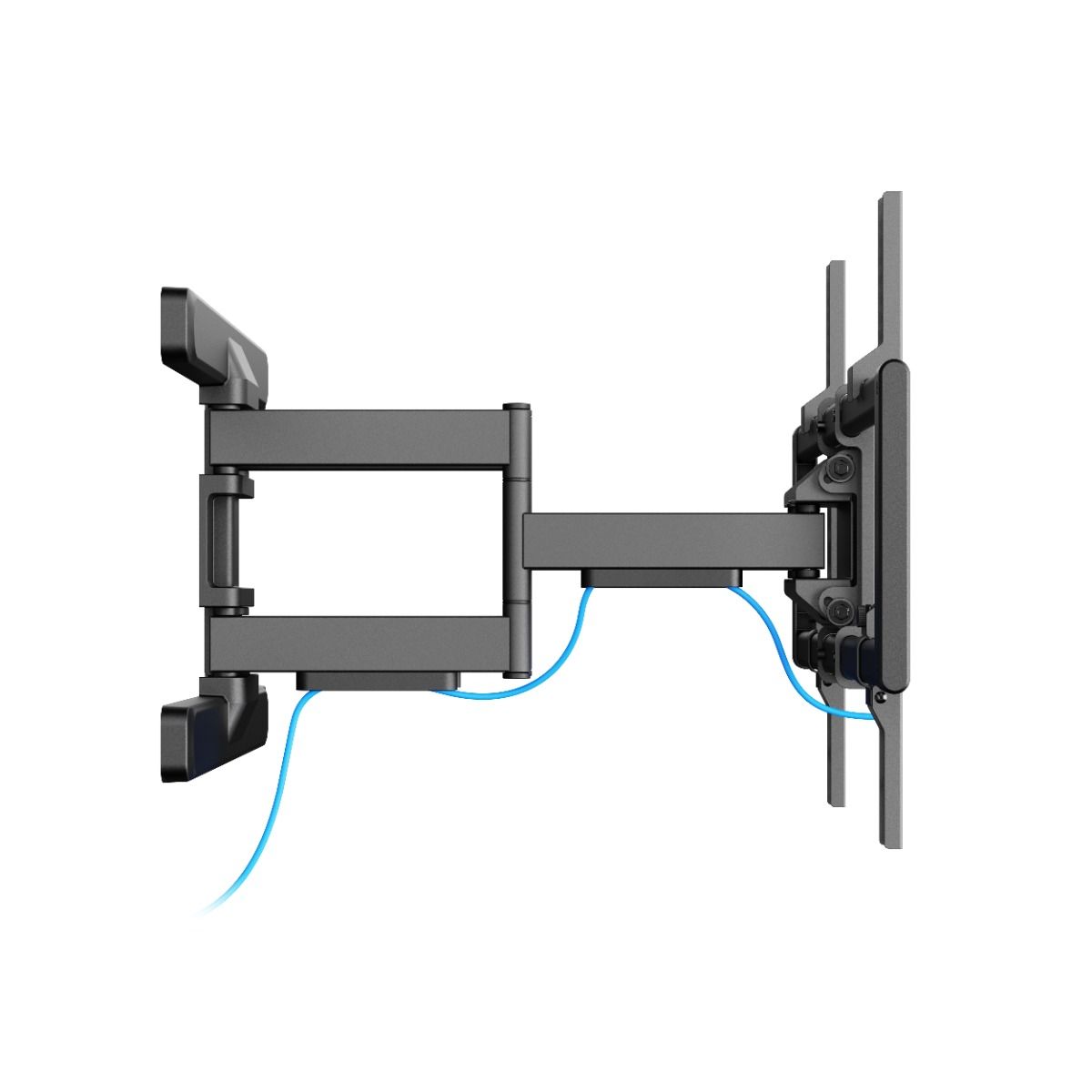

• Cable Management: Yes
• Anti-Theft Feature: No
• Bubble Level: No
• Accessory Pack: Standard / Polybag with compartments
• User Manual: Included
• Samsung Screw Kit: Not Included
• Function: Full-Motion
