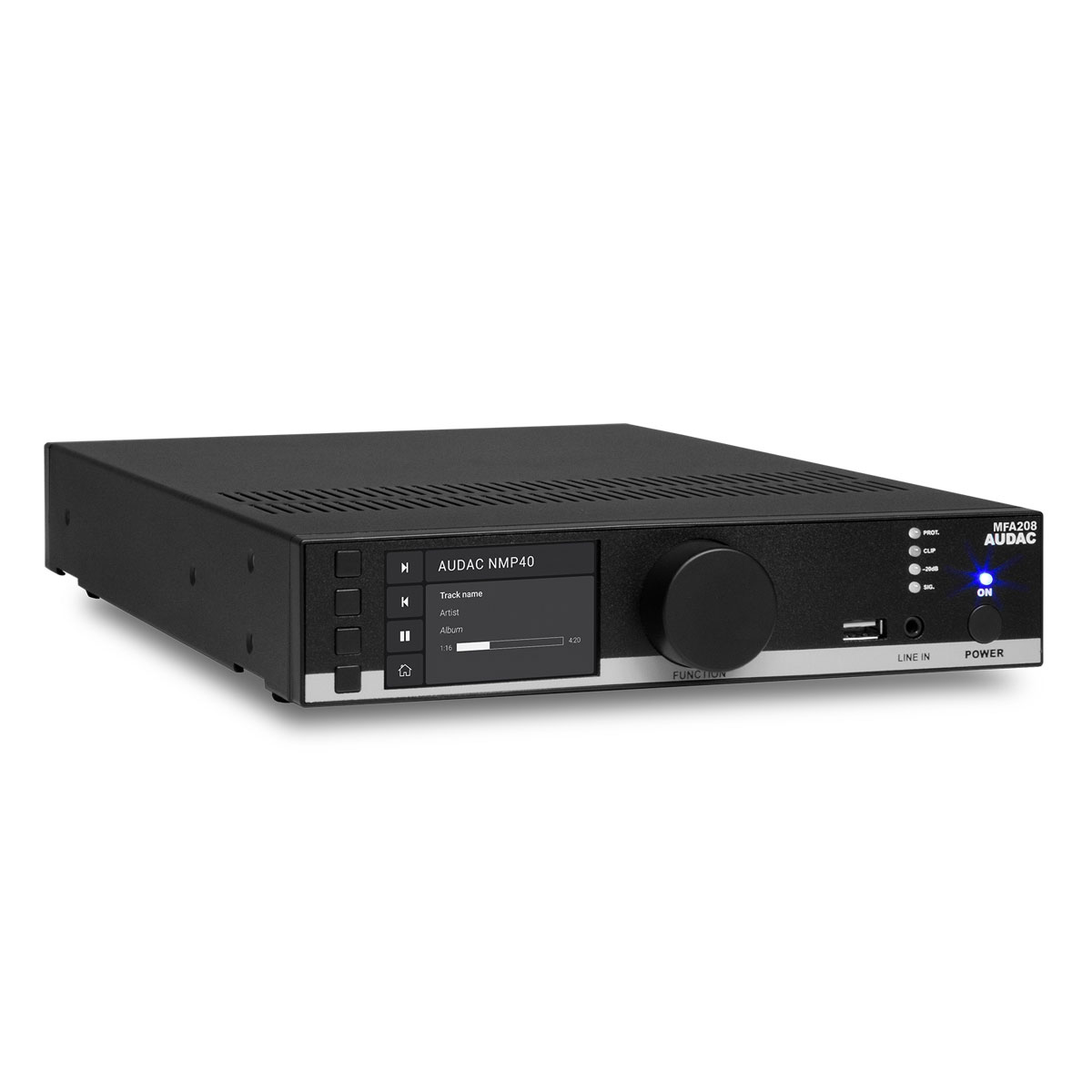

Class D Two-Channel Amplifier

It can power low-impedance systems with a maximum output of 2 x 40 Watt, or in bridged mode, it can power constant voltage systems (70V or 100V) with a maximum output of 80 Watt. The included power supply allows the main voltages to vary according to the system's needs

It features a SourceCon™ module slot, allowing you to choose any module that suits your specific needs, an additional stereo line input for external audio sources, a microphone/line input with phantom power, and a priority switch for pre-recorded messages or the microphone, along with a priority mute function

The MFA series is controlled via RS232, RS485, and TCP/IP, so using the free available AUDAC Touch™ 2 app, control and configuration can be done from any portable or stationary device, from any location, at any time

Specifications

System specifications

• RMS/AES power handling
• @ 4 Ω Stereo: 2 x 40 W
• @ 8 Ω Stereo: 2 x 40 W
• @ 16 Ω Stereo: 2 x 40 W
• @ 70/100 V Bridge: 1 x 80 W
• Frequency Response (± 3 dB): 20 Hz - 20 kHz
• Signal / Noise: > 90 dB
• THD+N (@ 1 kHz): < 0.05%
• Technology: Class-D

Inputs

• Balanced Mic./Line
• Type: 1 x Balanced Microphone and Line Input
• Connector: Euro Terminal Block
• Unbalanced Stereo
• Connector: RCA / 3.5 mm Jack
• Type: 1 x Stereo Unbalanced Line
• Type
• 1 x SourceCon™ interface card slots
• 4 x Dante™/AES67 (Optional module)
• Other
• Type: Priority mute contact

Outputs

• Type
• 1 x Line output
• 1 x 70/100V (Bridged)
• 4 x Dante™/AES67 (Optional module)

Power

• Supply Operating: 100 ~ 240 V AC / 50 ~ 60 Hz

Product Features

• Dimensions: 217.5 x 43.7 x 300 mm (W x H x D)
• Weight: 2.20 kg
• Mounting: 1/2 19” / 1 HE or tabletop
• Construction: Steel
• Accessories (Optional): 19” Rackmount adapter, Wall Controller (MWX45), ANI44XT - Dante™/AES67 audio network interface

Recommended applications

• Bars & Restaurants
• Retail
• Corporate
