Audio Technica ATW-3255
Audio Technica ATW-3255
- Suitable for live, theatre and broadcast applications
- Stereo audio with >90 dB dynamic range
- Up to 90 m operating range
- Up to 49 simultaneous channels per band
- Selectable RF output power: 10 / 50 mW
- Transmitter with 2 × XLR and 2 × 6.3 mm TRS
- 100BASE-T RJ-45 networking
- Includes ATH-E40 in-ear headphones
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products

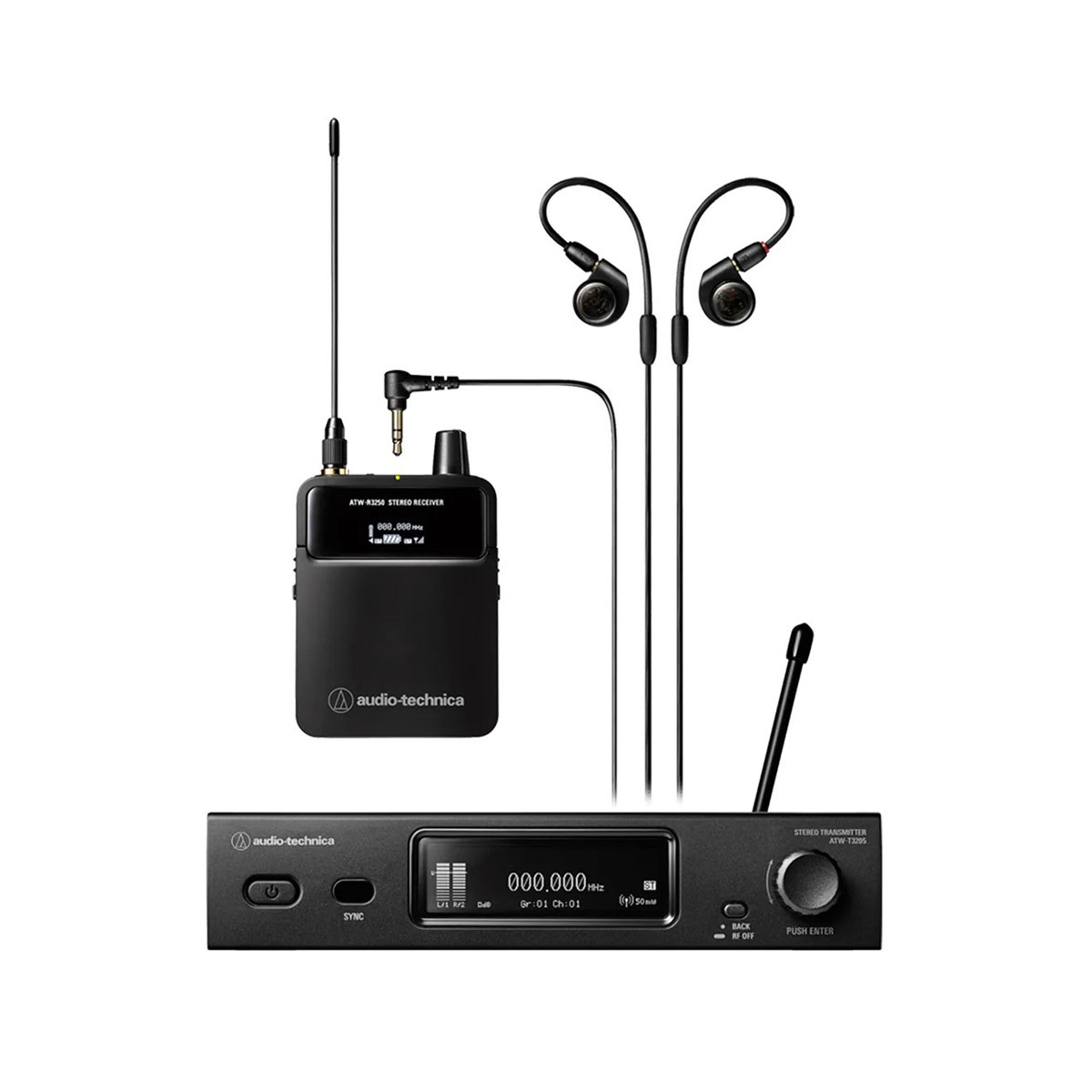

The Audio-Technica ATW-3255 is a professional UHF wireless In-Ear Monitor System designed for stable and reliable wireless stereo audio transmission in live performances, concerts, theatre productions and broadcast applications. It offers an operating range of up to 90 m in an open-field environment without interfering signals, a dynamic range of more than 90 dB and 75 dB stereo separation.
The system features an IEM transmitter with two XLR inputs, two 6.3 mm TRS outputs and a 100BASE-T RJ-45 network port, while RF output power can be switched between 10 and 50 mW. It supports up to 49 simultaneous channels per frequency band and provides EQ and attenuation functions on the receiver for flexible sound adjustment.
The compact receiver operates on two AA batteries and provides 4–6 hours of battery life with alkaline batteries. ATH-E40 in-ear headphones are included for immediate use of the system.
Specifications
- Type: UHF Wireless In-Ear Monitor System
- Frequency Bands: DF2: 470.125–607.875 MHz / EG2: 580.000–713.850 MHz
- Frequency Step: 25 kHz
- Modulation: FM
- Frequency Deviation: ±34 kHz nominal / ±45 kHz peak
- Frequency Response: 40 Hz–14,100 Hz
- Stereo Separation: 75 dB
- Operating Range: Up to 90 m in open-field environment without interfering signals
- Dynamic Range: >90 dB, A-weighted
- THD: <0.2% at 1 kHz, +4 dBu input
- Maximum Simultaneous Usage: 49 channels per band

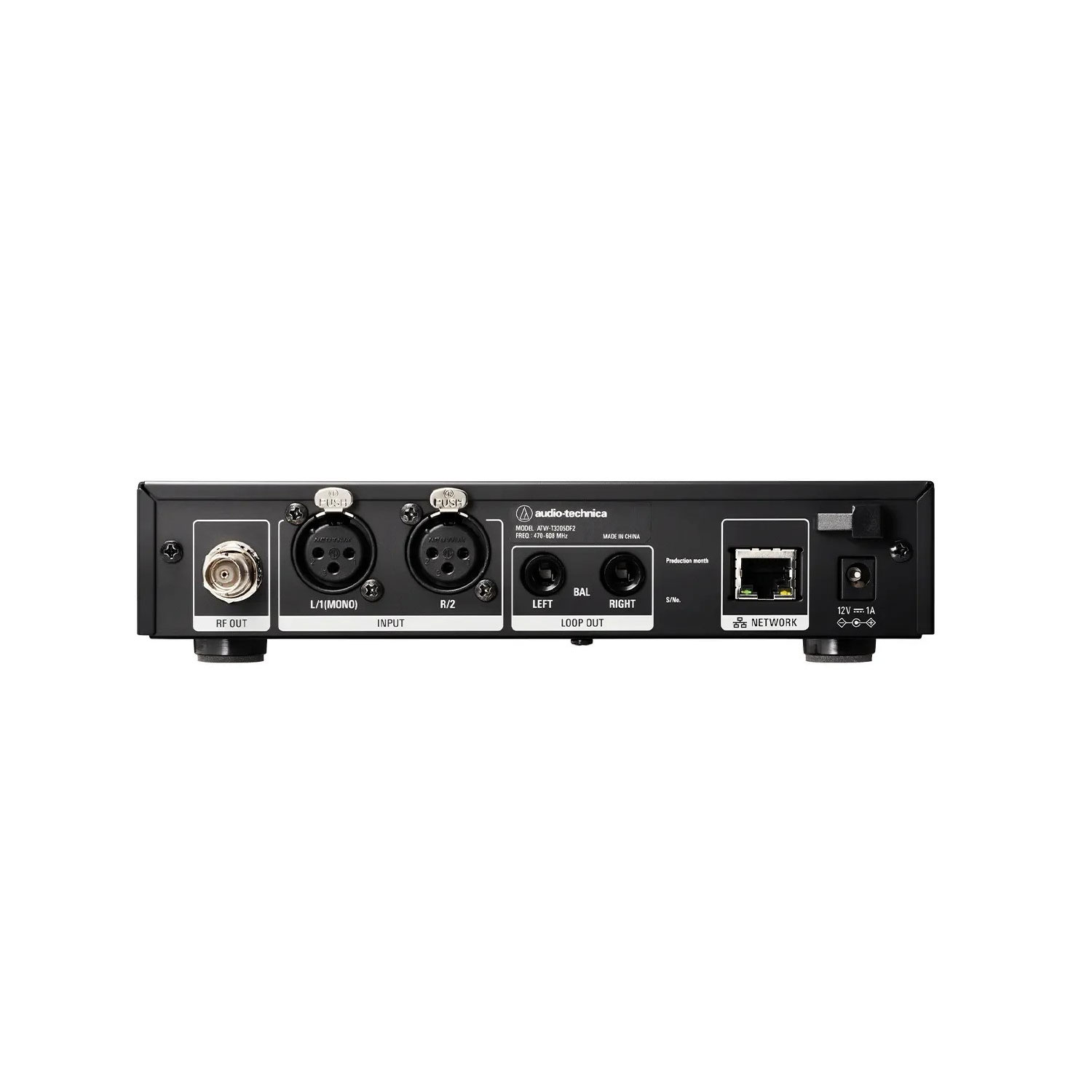

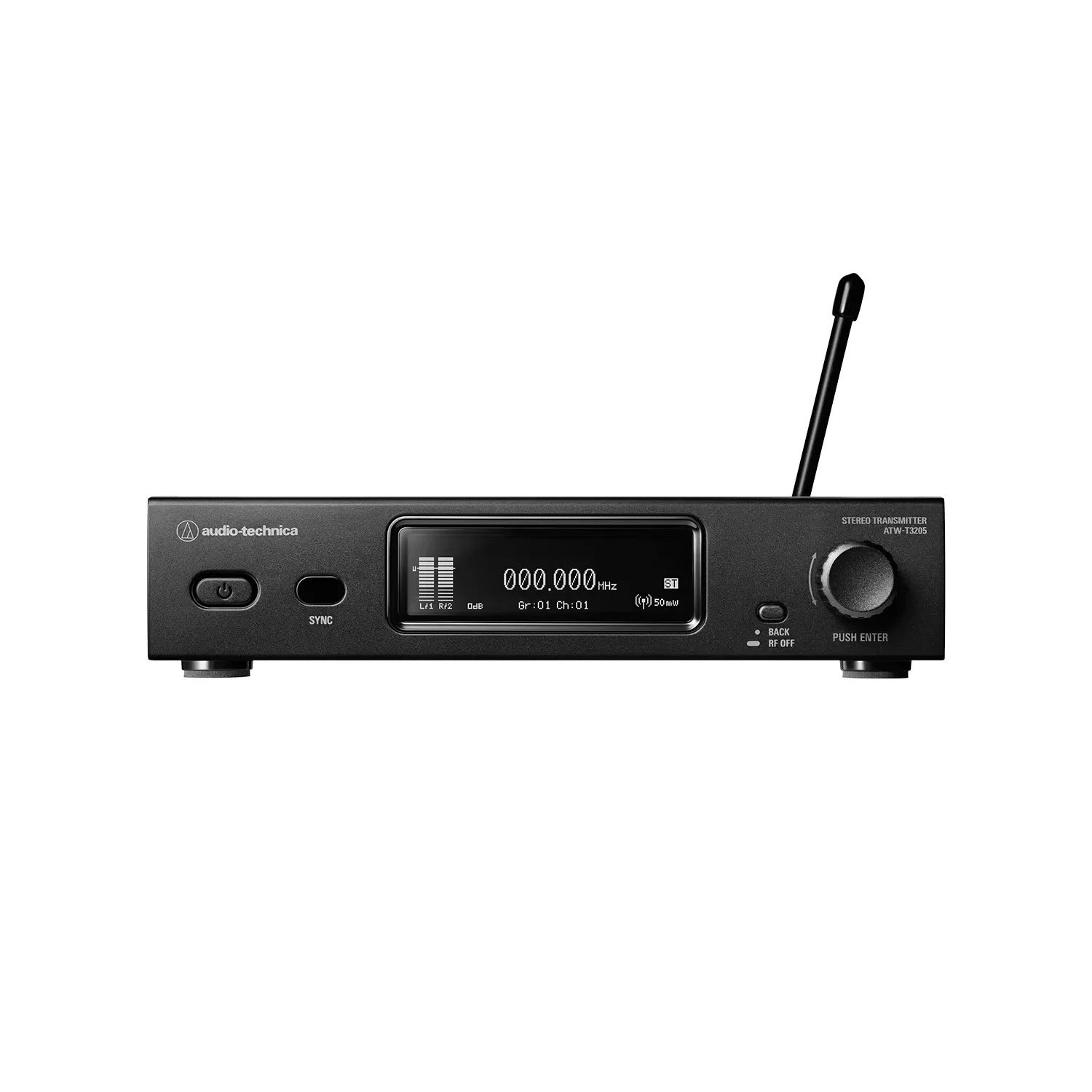

Transmitter
- IEM Transmitter – RF Output Power: 10 / 50 mW, selectable
- IEM Transmitter – Inputs: 2 × XLR-F
- IEM Transmitter – Outputs: 2 × 6.3 mm TRS
- IEM Transmitter – Network: 100BASE-T RJ-45
- IEM Transmitter – Power Supply: 100–240 V AC, 50/60 Hz / 12 V DC, 1 A
- IEM Transmitter – Antenna Output: BNC, 50 Ω
- IEM Transmitter – Dimensions: 210 × 191 × 43.4 mm
- IEM Transmitter – Weight: 1,100 g

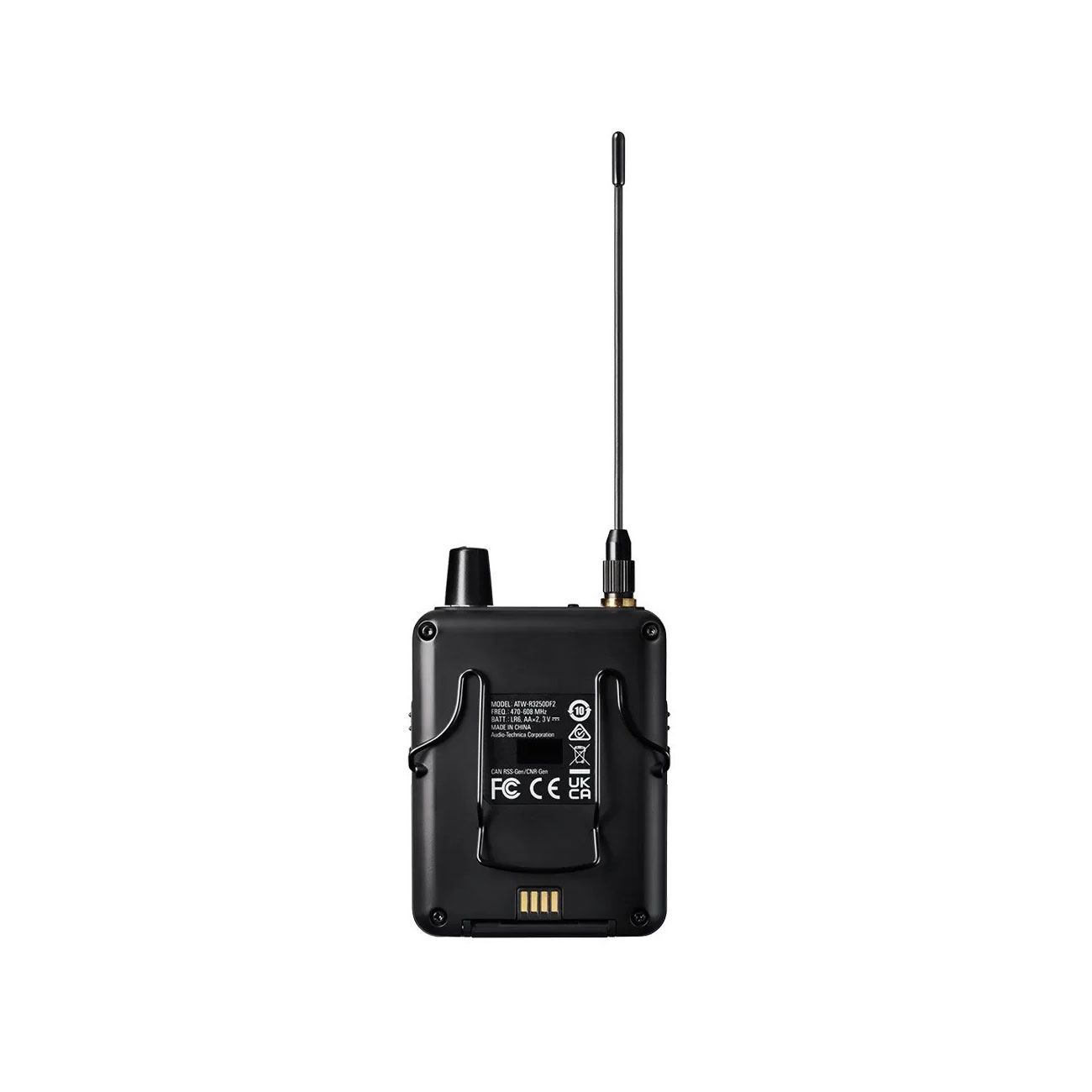

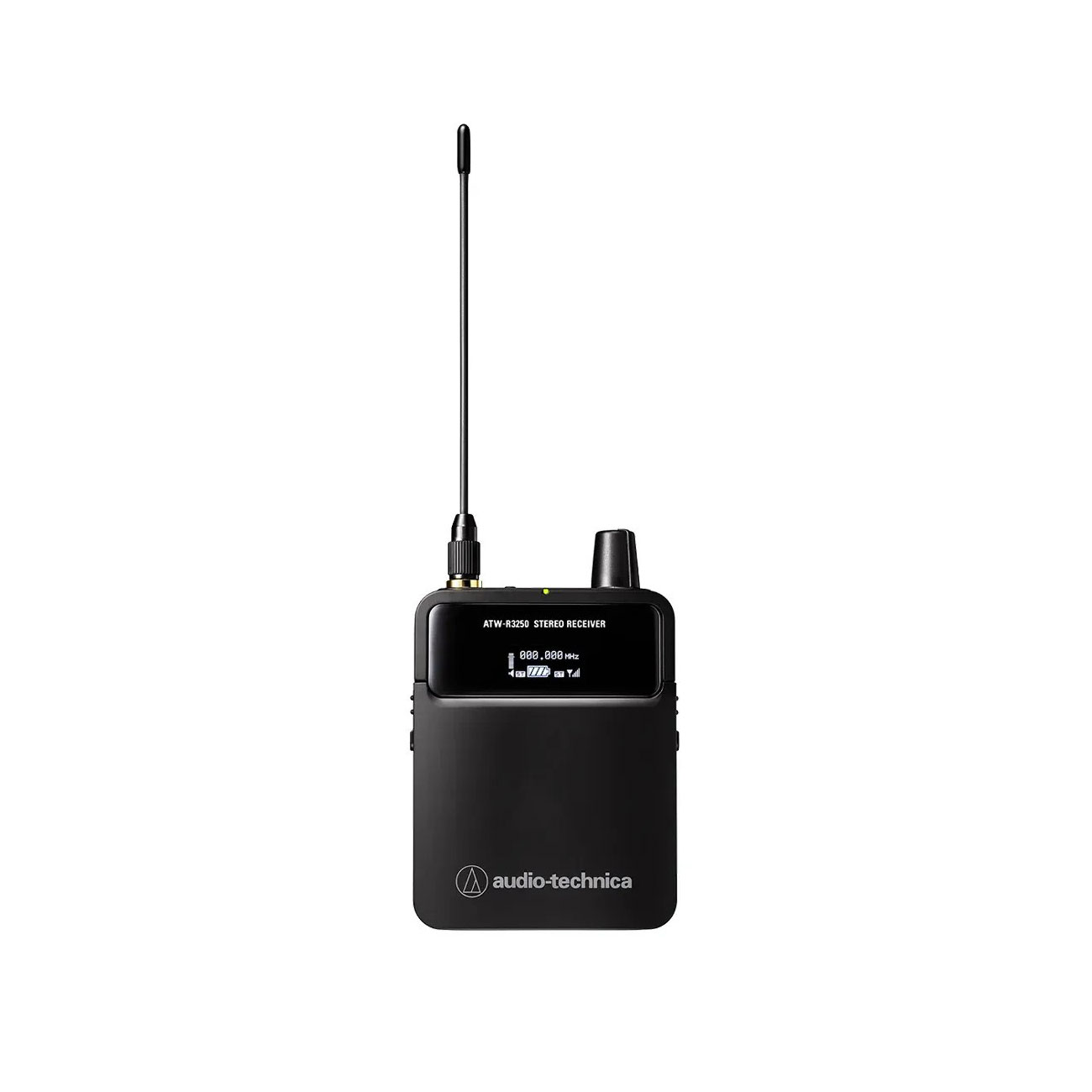

Receiver
- Receiver – Antenna Input: SMA, 50 Ω
- Receiver – Headphone Output: 3.5 mm stereo mini TRS
- Receiver – Headphone Output Power: 40 mW at 12 Ω
- Receiver – Low EQ: 80 / 160 / 320 Hz, ±9 dB in 3 dB steps
- Receiver – High EQ: 6 / 8 / 10 kHz, ±9 dB in 3 dB steps
- Receiver – Attenuation: -30 dB to OFF, in 6 dB steps
- Receiver – Operating Temperature: -5 °C to +45 °C
- Receiver – Dimensions: 64 × 23 × 82 mm
- Receiver – Weight: 102 g without batteries
- Receiver – Battery Type: 2 × AA 1.5 V, 3 V DC
- Receiver – Battery Life: 4–6 hours with alkaline / 5–7 hours with Ni-MH 1,900 mAh / 11–13 hours with lithium
Included Accessories: ATH-E40
