ATC Electronics ATC-CHF20
ATC Electronics ATC-CHF20

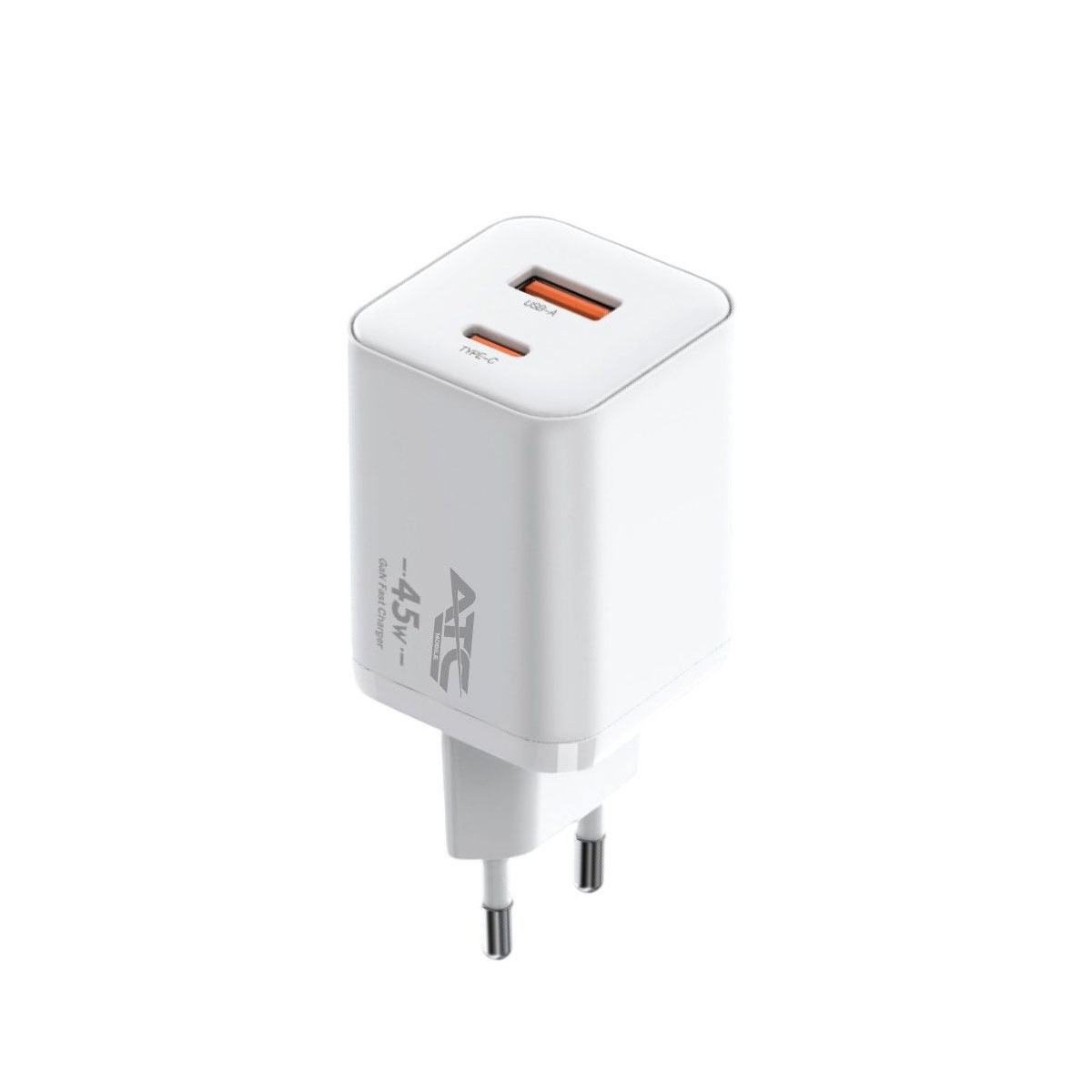

45W GaN PD Fast Charger
- GaN technology for fast and efficient charging
- Up to 45W output via USB-C
- USB-C with Power Delivery (PD) and PPS
- USB-A output up to 30W
- Two ports for simultaneous device charging
- AC 100–240V input
- Up to 15W combined output when both ports are used
Code: 29121
Warranty:
1 Year
Available in 4 - 10 days
10,63€
Quantity:
Add to cart
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Products
Related Products
The ATC Electronics ATC-CHF20 is a 45W fast charger featuring GaN technology, ideal for smartphones, tablets, laptops and other compatible devices.
It features one USB-C port with Power Delivery (PD) and PPS support up to 45W, plus one USB-A port delivering up to 30W, providing flexible charging for different devices.
With a 100–240V AC input and compact design, it is a practical choice for home, office and travel use. When both ports are used simultaneously, the maximum combined output is 15W.
Specifications
- Model: ATC-CHF20
- Type: 45W GaN Fast Charger
- Maximum Power: 45 W
- Input: AC 100–240 V, 50/60 Hz, 0.9 A
- Output Ports: USB-C, USB-A
- USB-C Output: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/2.25 A
- USB-C Maximum Power: 45 W
- USB-C: PD/PPS
- USB-A Output: 5 V/3 A, 9 V/3 A, 12 V/2.5 A, 20 V/1.5 A
- USB-A Maximum Power: 30 W
- Simultaneous Use: USB-C + USB-A
- Combined Power: 15 W
Specifications
-
ModelATC-CHF20
-
Type45W GaN Fast Charger
-
Maximum Power45 W
-
InputAC 100–240 V, 50/60 Hz, 0.9 A
-
Output PortsUSB-C, USB-A
-
USB-C Output5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/2.25 A
-
USB-C Maximum Power45 W
-
USB-CPD/PPS
-
USB-A Output5 V/3 A, 9 V/3 A, 12 V/2.5 A, 20 V/1.5 A
-
USB-A Maximum Power30 W
-
Simultaneous UseUSB-C + USB-A
-
Combined Power15 W
