BeamZPro NUKE1
BeamZPro NUKE1
- Hybrid high-power moving strobe / beam fixture
- 96x10W Cool White LEDs divided into 12 controllable sections
- 14x40W RGBW high-power LEDs divided into 14 controllable sections
- Output: 97,675 lx @ 1m (strobe up to 115,940 lx @ 0.5m)
- Motorized 180° tilt with pixel-mapping control
- 110° beam & 6° pixel beam with 16-bit dimming
- DMX / Art-Net control with multiple modes
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products

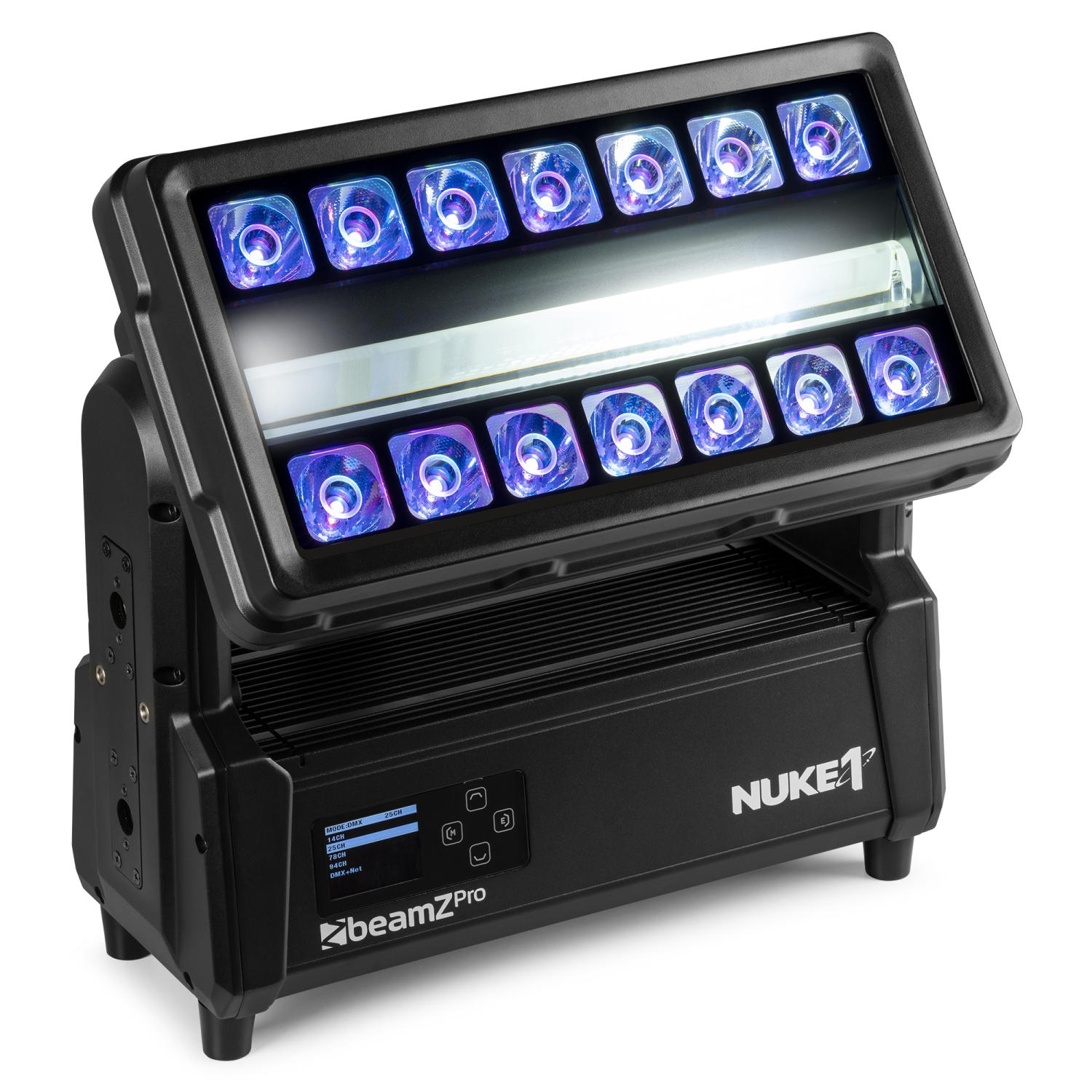

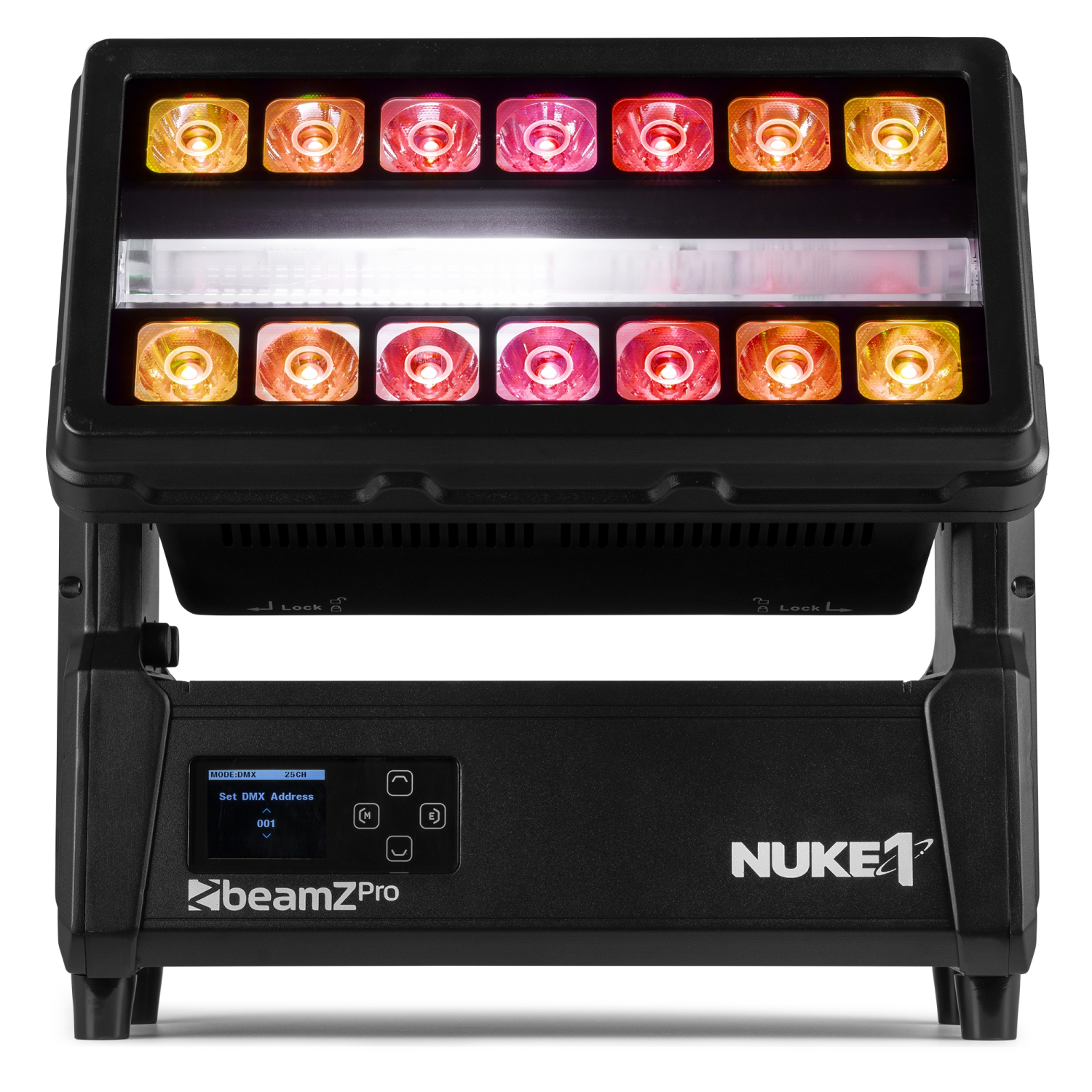

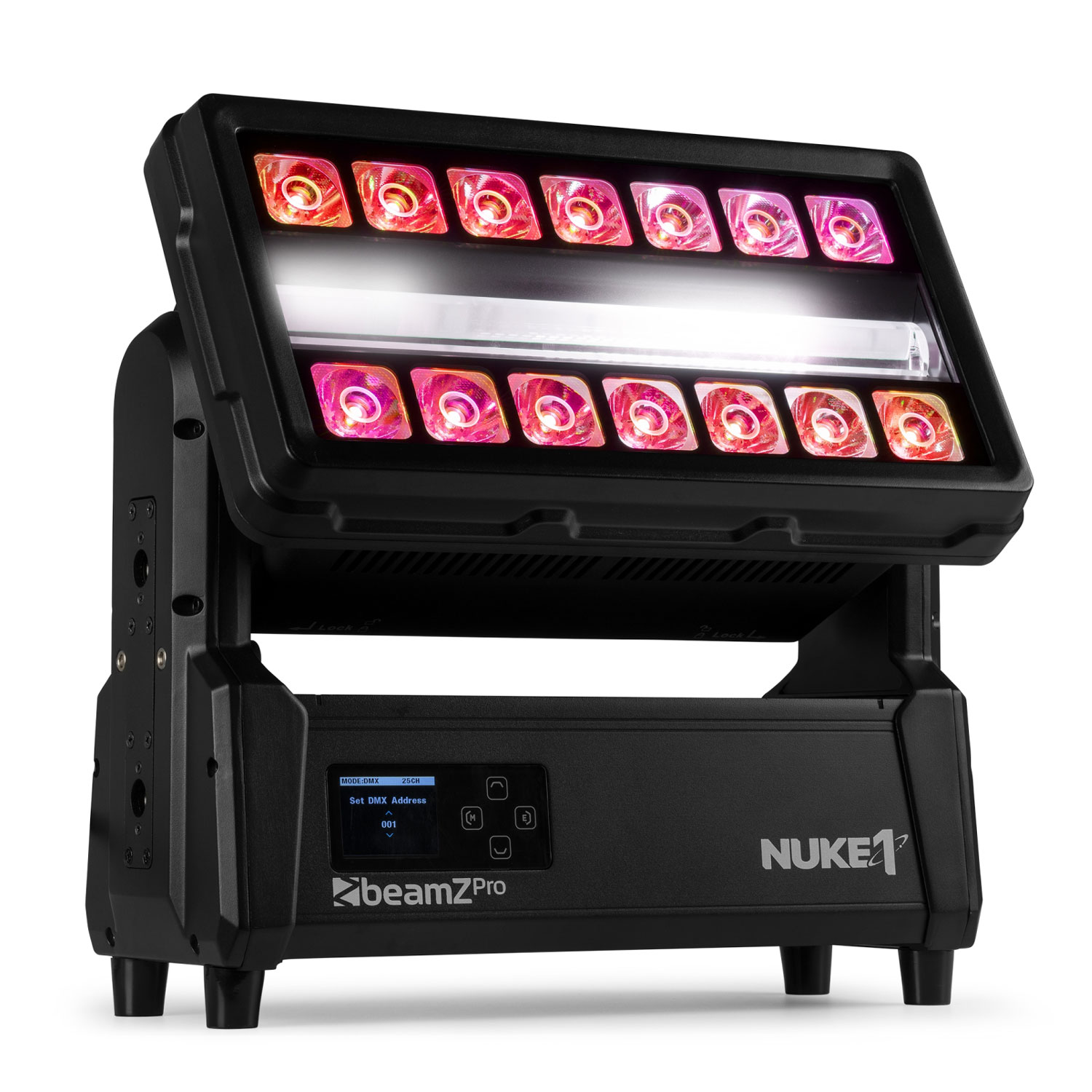

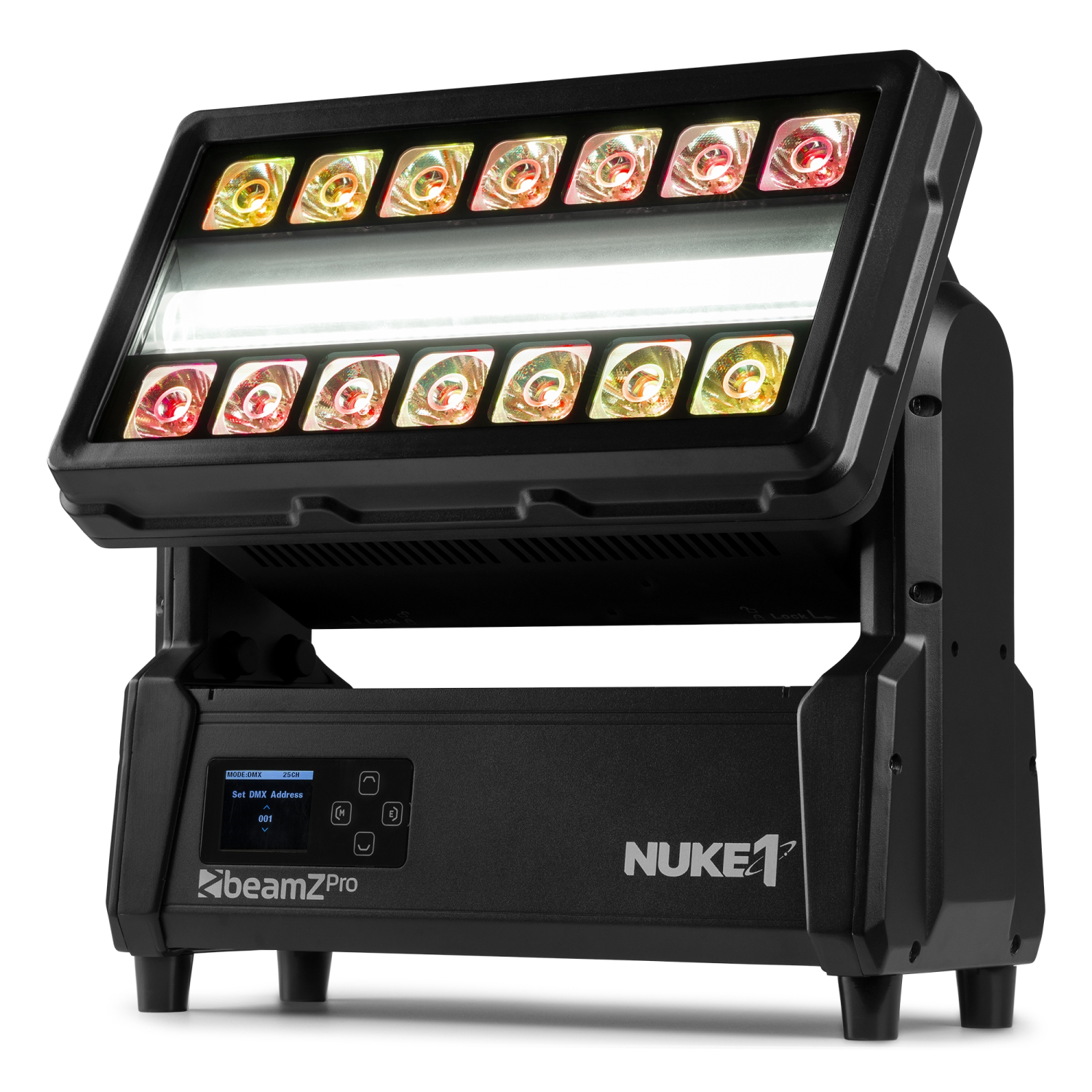

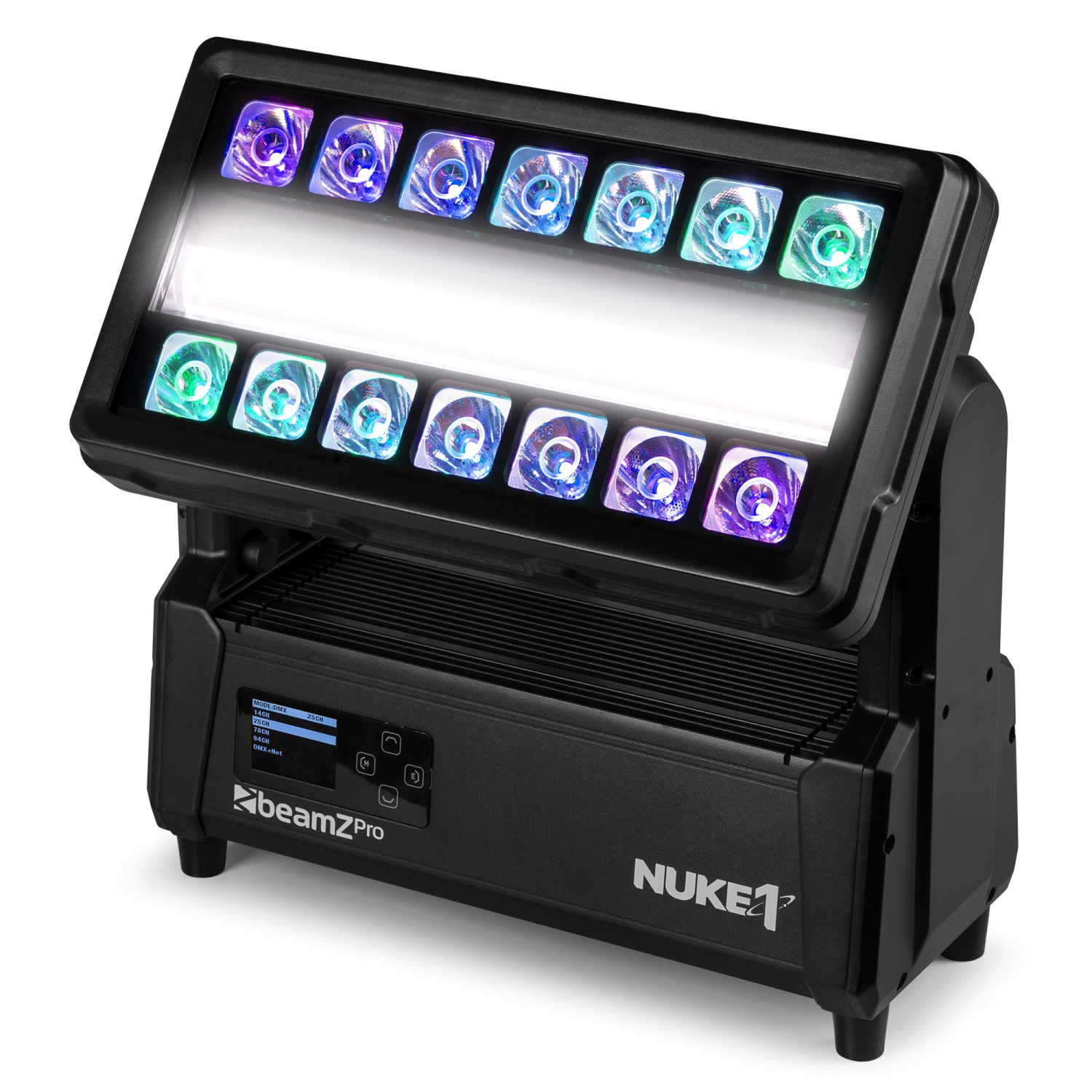

The BeamZPro NUKE1 is a professional IP65 hybrid moving strobe / beam fixture designed for demanding applications in concerts, festivals, and large-scale stage productions. It combines extremely high output with dynamic effects and full pixel control, delivering powerful visual impact in any show environment.
It features 96x 10W Cool White LEDs divided into 12 zones for intense strobe effects, along with 14x 40W RGBW high-power LEDs arranged in 14 zones for dynamic beam and color effects. The unit delivers up to 97,675 lux @ 1m and 115,940 lux @ 0.5m in strobe mode, ensuring outstanding brightness and punch.
The fixture offers a 110° beam angle and a 6° pixel beam mode, with smooth 16-bit dimming from 0–100% for precise intensity control. Its pixel-mapping capability enables advanced chase and animation effects across the entire fixture.
A motorized 180° tilt adds dynamic movement, enhancing stage presence and visual impact. RGBW + Cool White color mixing provides a wide range of vivid colors and clean white strobe effects.
With IP65 protection, the NUKE1 is fully suitable for outdoor use in all weather conditions. It supports Auto, Master/Slave, and DMX control modes with multiple channel options (14, 25, 78, 94), as well as professional connectivity via ART-Net, 3-pin XLR, 5-pin XLR, and RJ45.
Features
- IP65 hybrid moving strobe / beam fixture
- 96x 10W Cool White LEDs (12-zone strobe control)
- 14x 40W RGBW LEDs (14-zone beam & color effects)
- Up to 115,940 lux @ 0.5m output
- Motorized 180° tilt for dynamic movement
- 110° beam angle & 6° pixel beam mode
- 16-bit 0–100% smooth dimming & pixel mapping
- RGBW + Cool White color mixing
- DMX / ART-Net / Auto / Master-Slave modes
- 14 / 25 / 78 / 94 DMX channels
- IP65 outdoor-rated construction
- Weight: 21.85 kg | 2-year warranty
Specifications
-
Product colourBlack
-
Light sourceSingle colour LED, 4-in-1 LED
-
LED coloursRed, Green, Blue, White, Cool White
-
LED power (single LED)40W
-
Quantity of LEDs14
-
LED power (strobe)10W
-
Quantity of strobe LEDs96
-
Beam angleBeam 110°, Pixel 6°
-
Illuminance97.675 lx @ 1m (Strobe 115.940 lx @ 0,5m)
-
IP ratingIP65
-
DMX channels14, 25, 78, 94
-

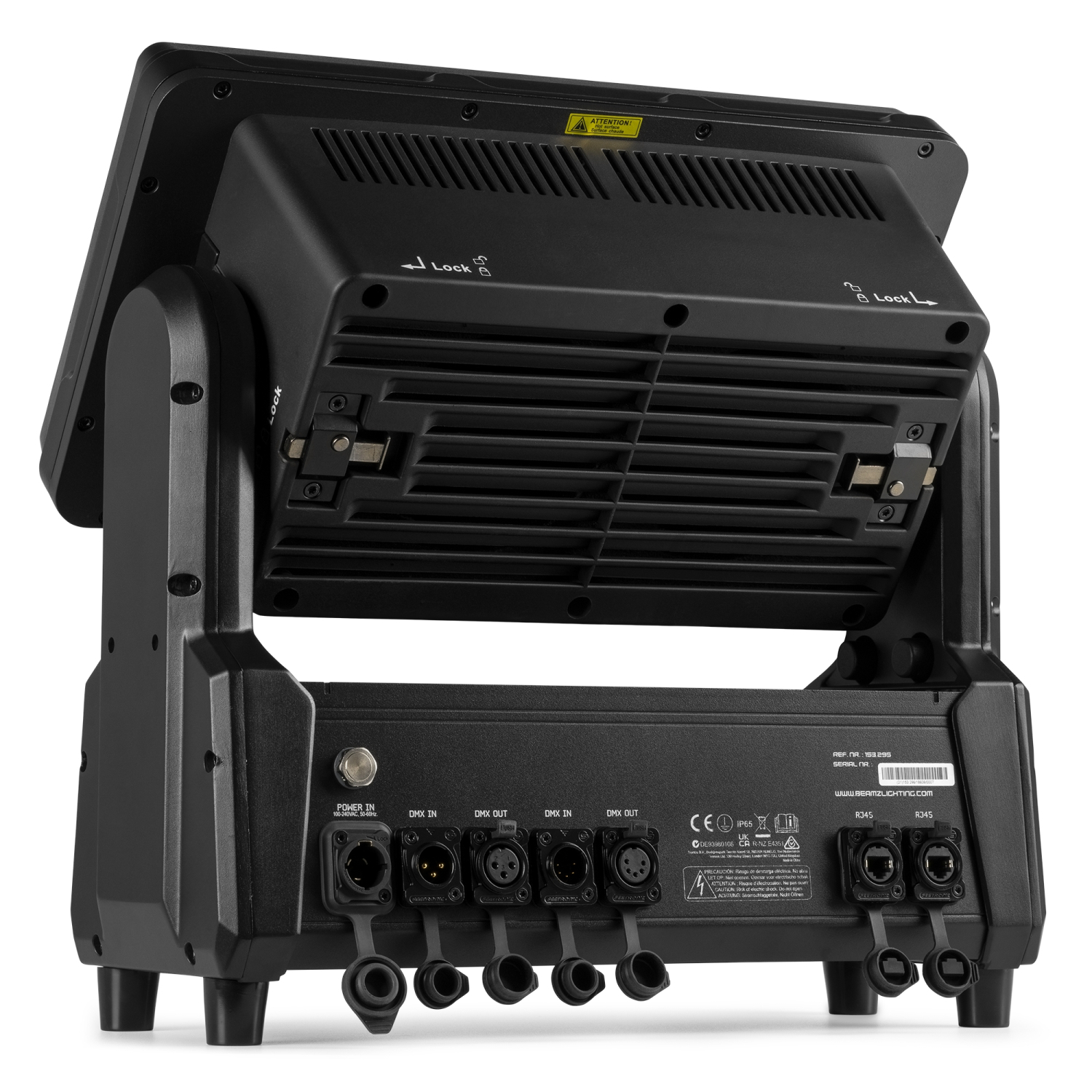

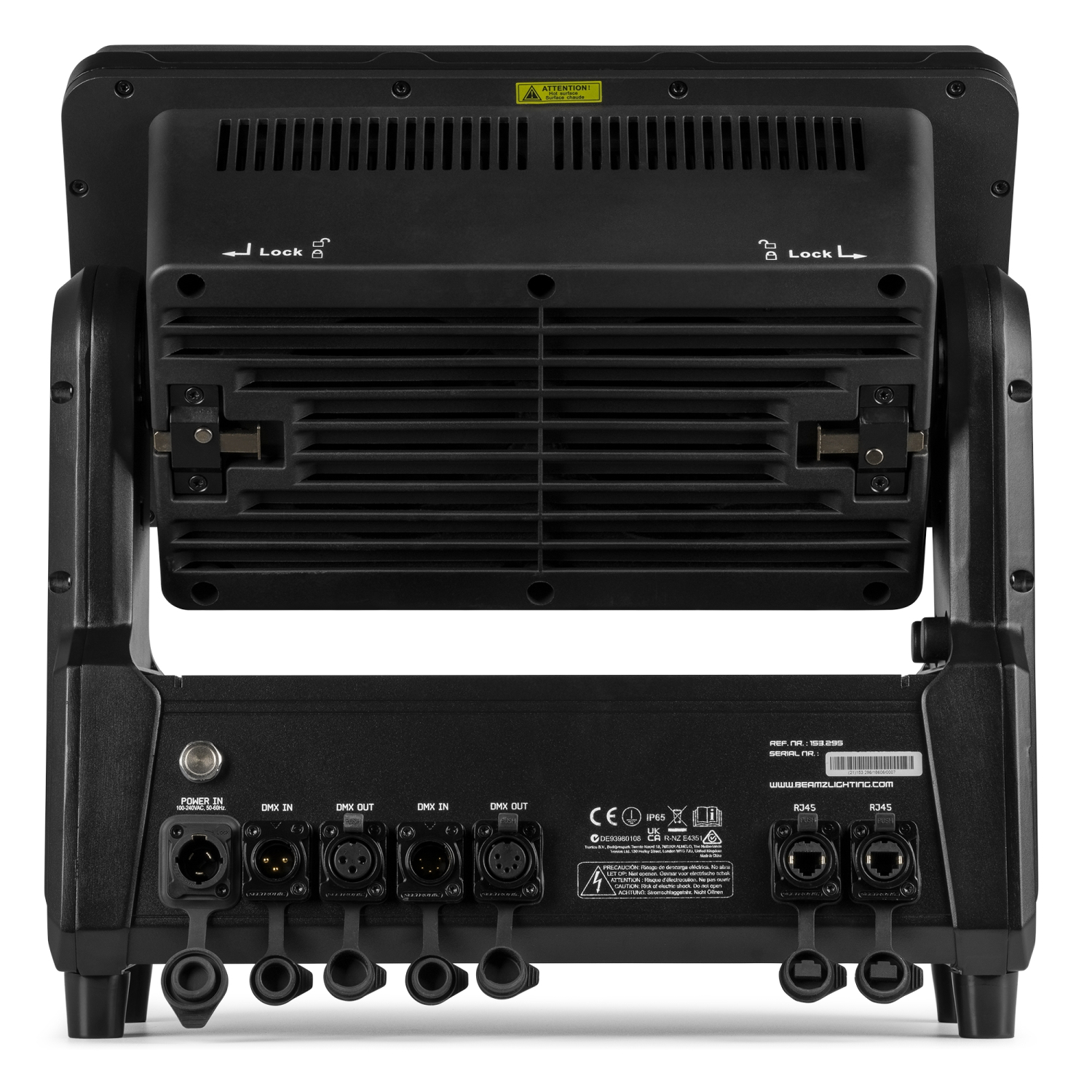

DMX connectionART-Net, 3-pin XLR, 5-pin XLR, RJ45
-
Flash rate per second1–31 Hz
-

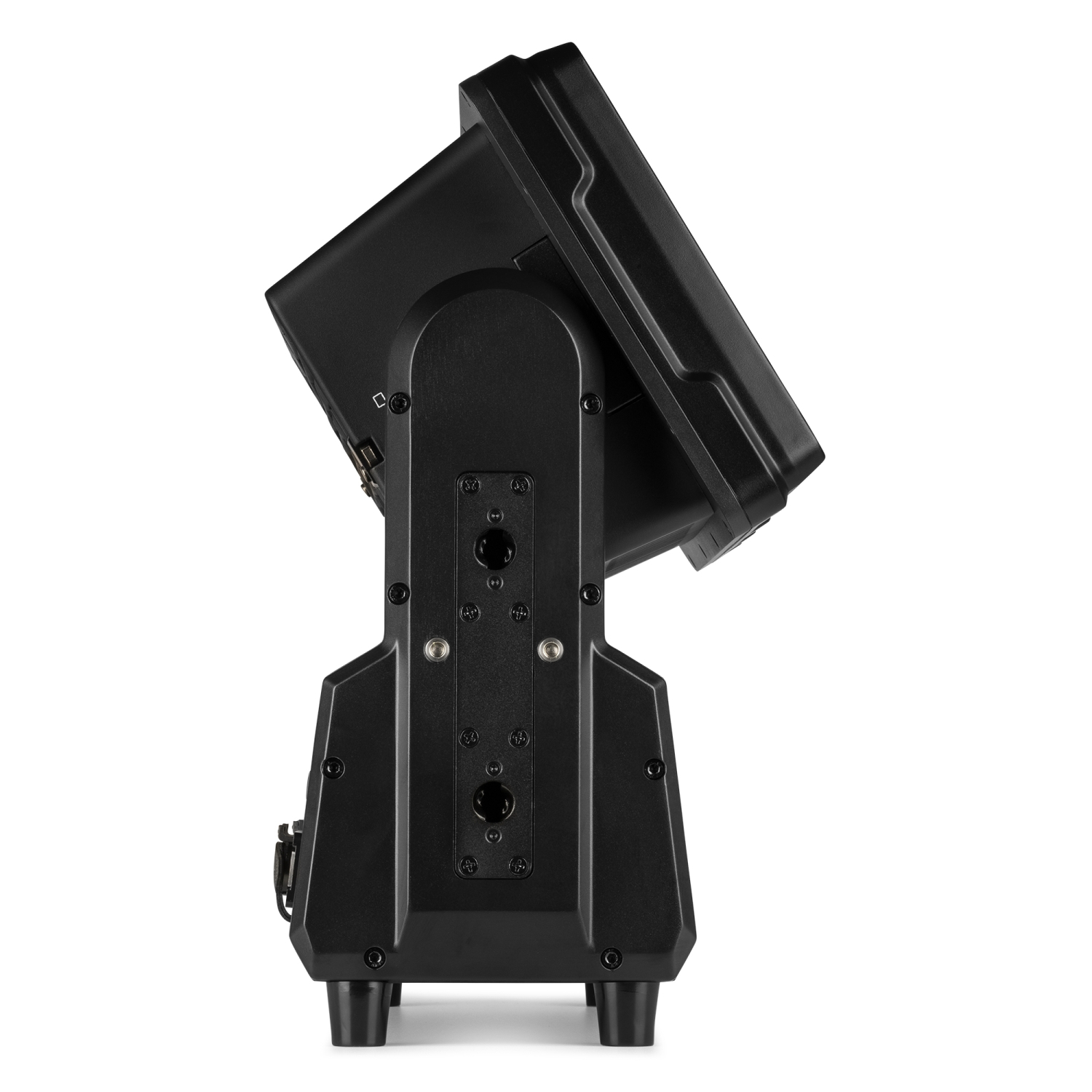

Head movementTilt 180°
-
ModesAutomatic programs, DMX, Master/Slave, RDM
-
Power consumption6.38–3.03A
-
Power supply100–240V AC 50/60Hz
-

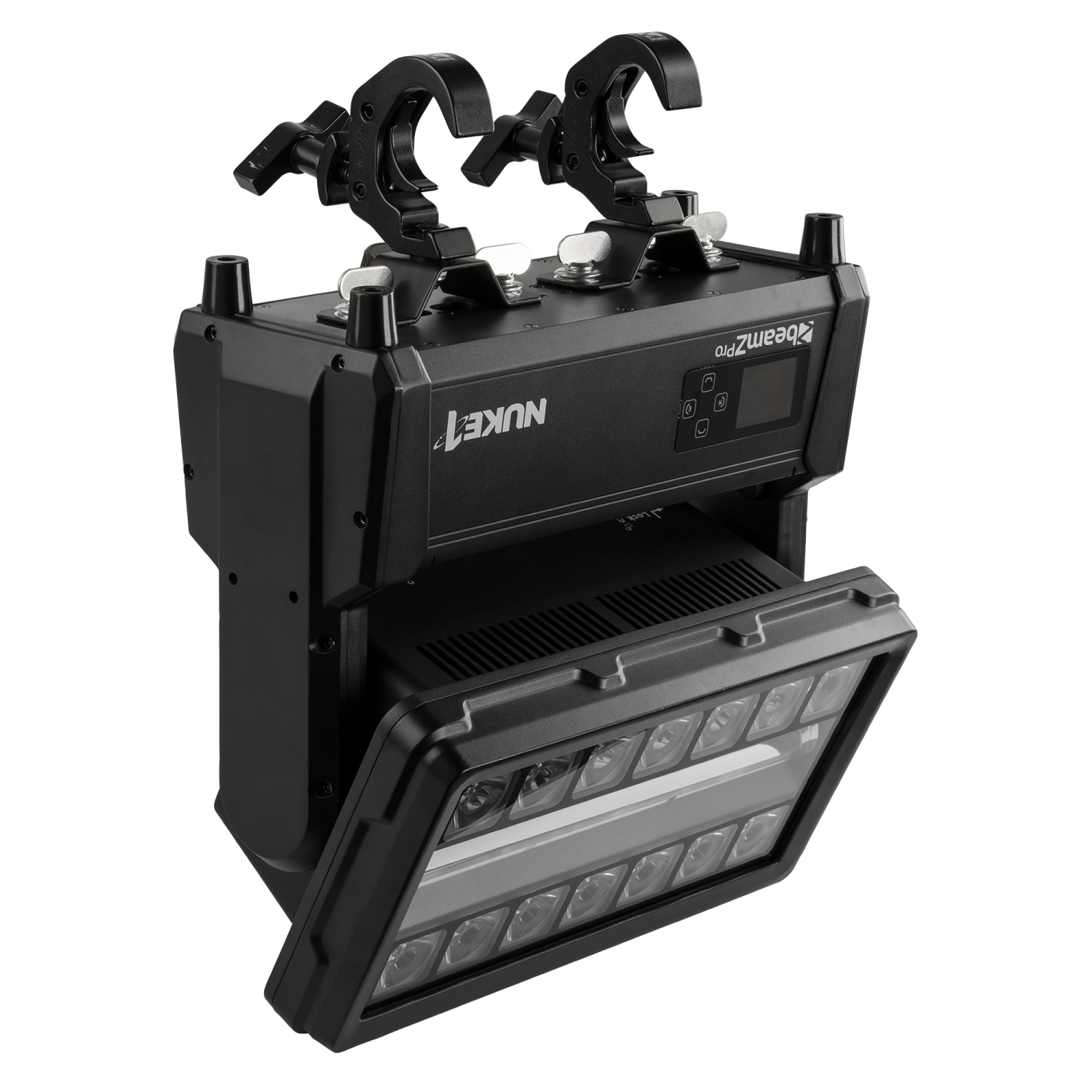

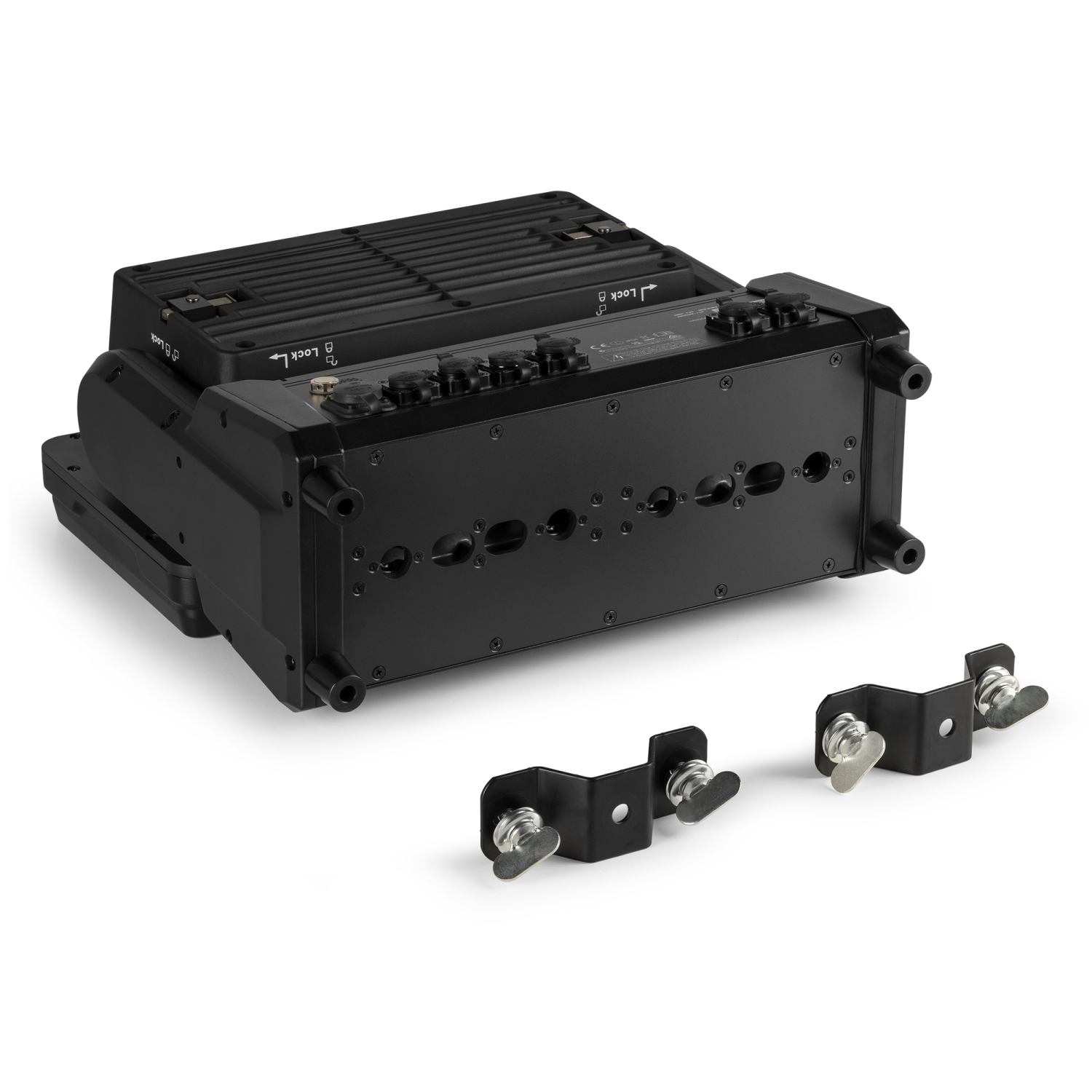

Included accessoriesMounting bracket
-
Dimensions (L x W x H)185 × 420 × 390 mm
-
Weight21.85 kg
