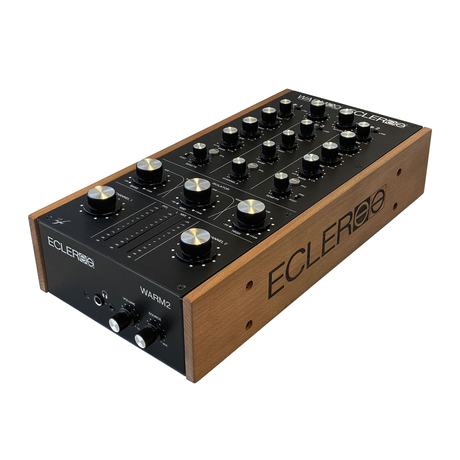

The WARM2 is a professional Analog Rotary DJ Mixer with two channels, designed and manufactured by ECLER in Barcelona

It features two phono/line channels and one micro/line channel, classic filters, a 4th-order isolator, and a portable format

It delivers a warm and crystal-clear analog sound

Specifications

• 2+1 Mixing channels
• 1 MICRO input
• 2 PHONO inputs
• 3 LINE inputs

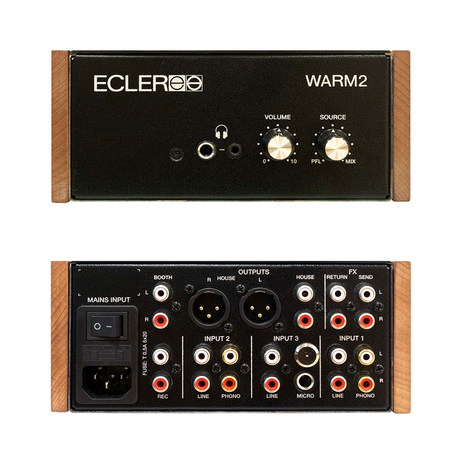

• Master Output (HOUSE) on XLR and RCA connectors
• Booth Output on RCA connectors
• 6.3mm Jack and 3.5mm mini-jack Headphone Monitor Outputs
• 3 band full cut EQ for main channels and 2 band full cut EQ for MICRO/LINE channel
• 3 bands isolator (300Hz and 4KHz, -∞/+12dB, 4th order 24dB/oct )
• Maximum Output without distortions: 21dBV (23dBu)
• Mechanized from a solid block of aluminum knob, without visible screw. Ecler Unique design
• Alps Blue Velvet Potentiometers
• FX Send control and Pre/Post fader selector
• Screen-printed faceplate by selective anodizing
• Wooden side panels included

General

• Control Mode: Rotary with Alps Blue Velvet Potentiometers
• Phantom Voltage: 18VDC/5mA Max (Default ON)
• MIX and PFL VU-Meter: LED 12 segments (-30dBV ÷ +20dBV)

Τροφοδοσία

• Mains voltage: 90-264VAC 47-63Hz
• Rated power consumption: 30VA

Dimensions

• Dimensions (without wooden sides): 400 x 185 x 100mm / 15.7” x 7.2” x 3.9”
• Weight: 3.6Kg / 7.94 lbs
