Elokance SLA SYSTEM
Elokance SLA SYSTEM
- System with 4 satellites / 2 subwoofers
- Satellites: 350W (700W peak), SPL 120/134 dB
- Subwoofers: 1000W (1800W peak), SPL 129/136 dB
- Sound coverage: 100° horizontal x 15° vertical
- Built-in DSP & Class D amplification
- Durable construction: ABS for satellites, plywood for subwoofers
- Included accessories: speaker spacers, bumper, cables, etc.
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products
L-Acoustics A10i Focus
L-Acoustics A15i Wide
L-Acoustics A15i Focus
L-Acoustics A10i Wide

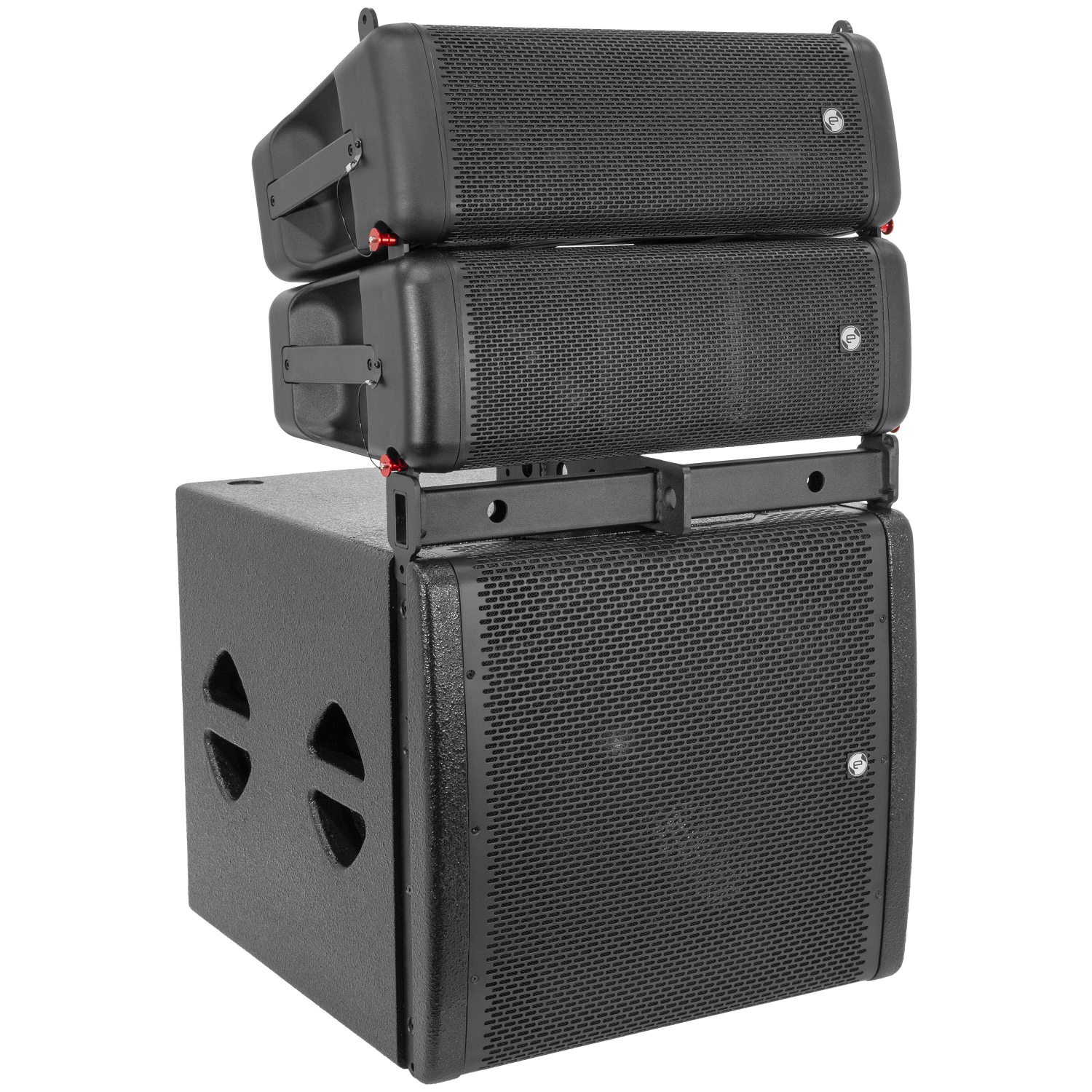

ELOKANCE SLA SYSTEM | Active Line Array Sound System
Elokance SLA System represents the pinnacle of acoustic engineering in the field of portable line array systems, offering a complete, ready-to-use sound solution for audio professionals.

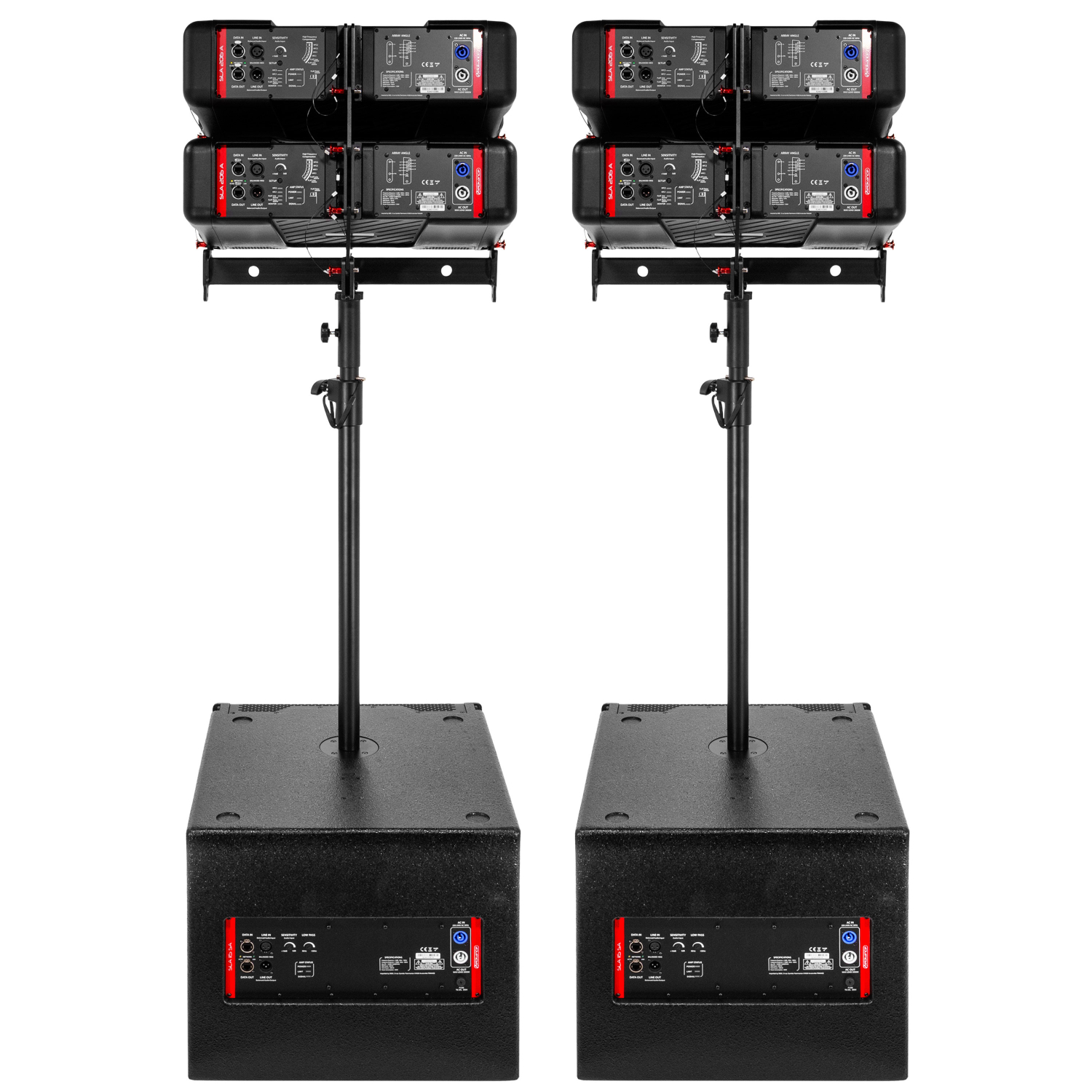

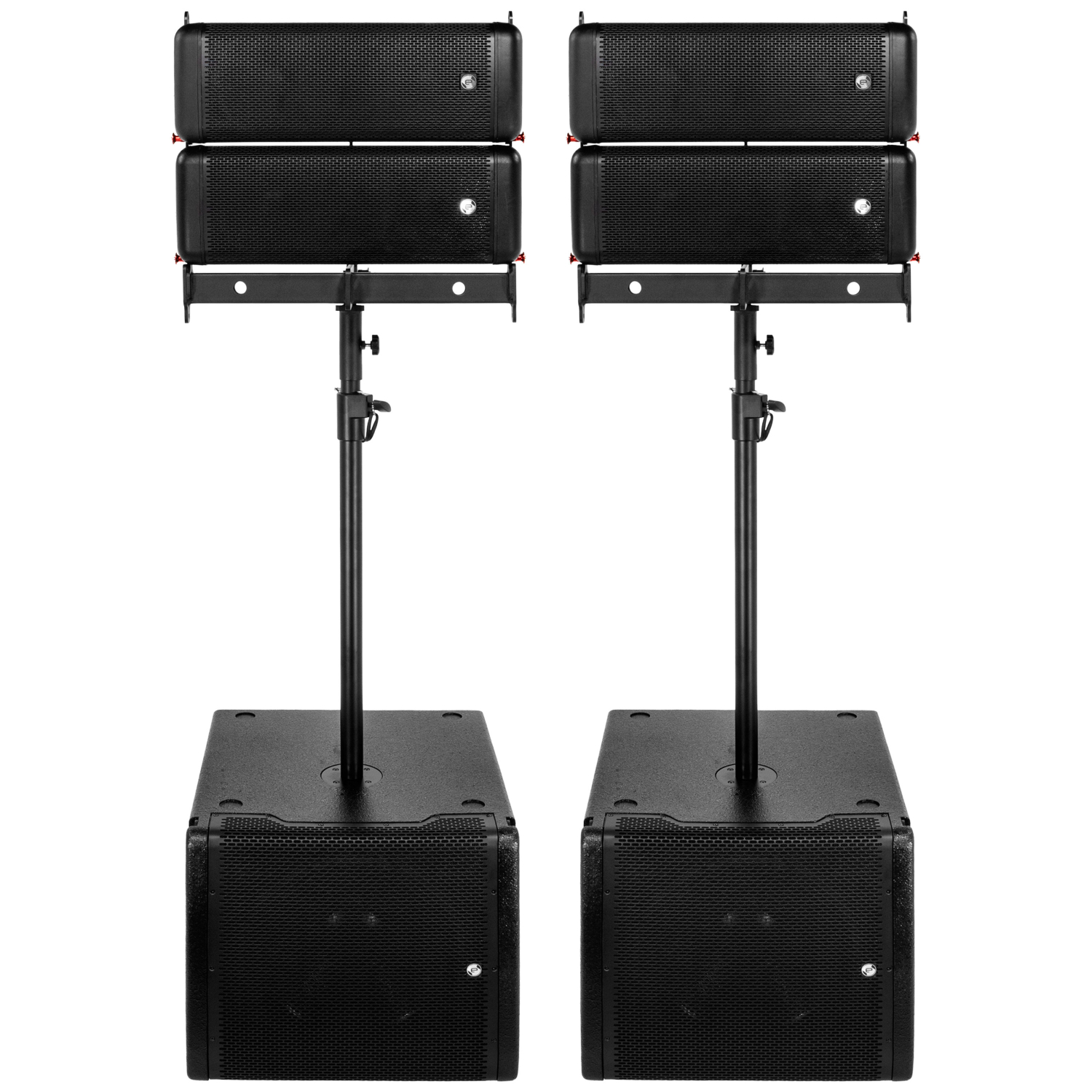

Comprising 4x SLA 206A satellite speakers and 2x SLA 115SA subwoofers, it is precisely engineered to deliver top-tier performance across a wide range of applications—from live concerts to corporate events.

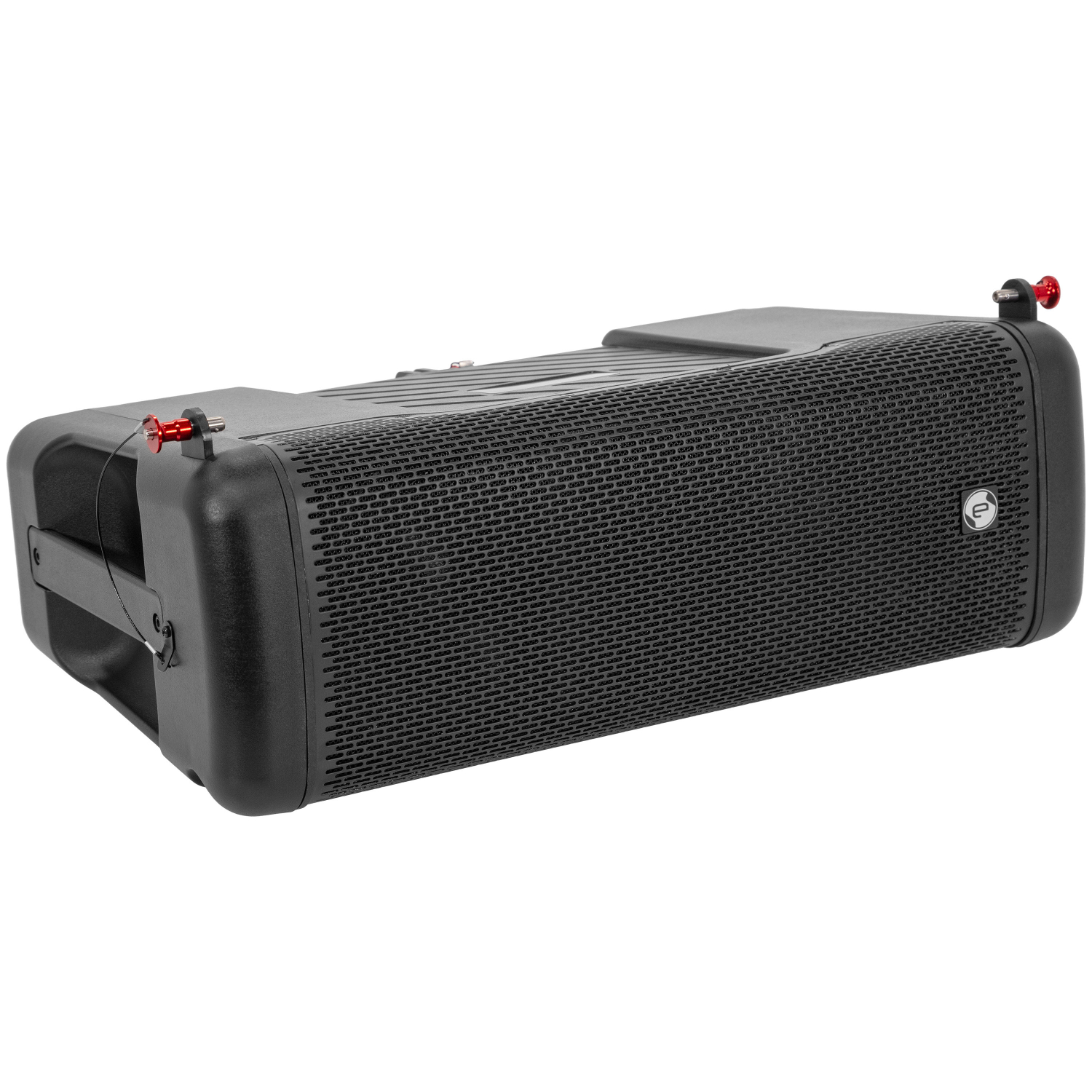

SLA 206A Satellites
- Each SLA 206A line array module features dual 6.5” speakers, delivering 350W RMS and up to 700W peak power for wide, balanced sound coverage.
- With a frequency response of 100 Hz to 20 kHz, horizontal dispersion of 100°, and vertical dispersion of 15°, these modules ensure even sound distribution across the entire audience area.
- With a maximum SPL of 120 dB and peaks up to 134 dB, the SLA 206A ensures clarity and power even in loud or demanding environments.

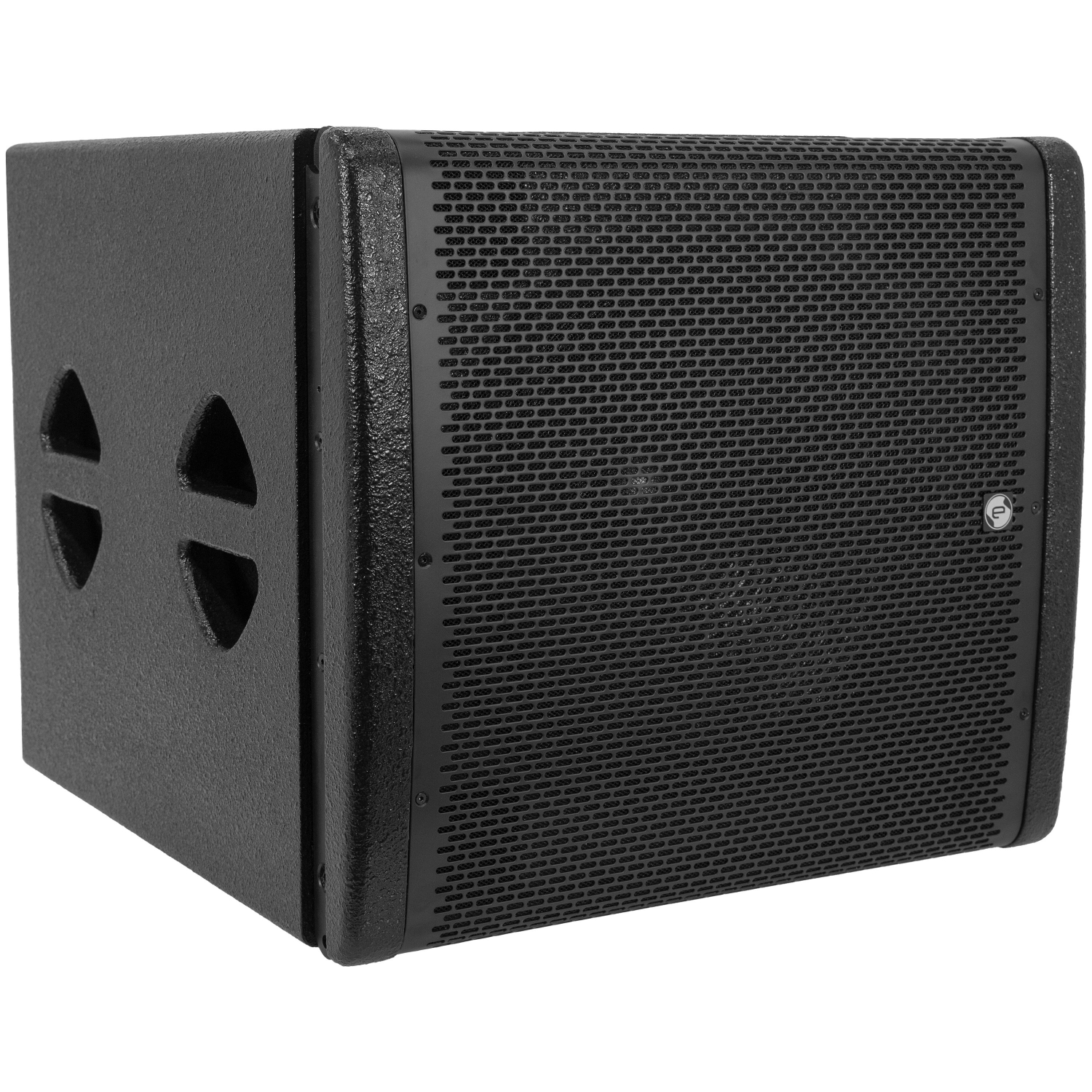

SLA 115SA Subwoofers
- The SLA 115SA subwoofers perfectly complement the satellites, delivering deep, punchy bass via a 15” woofer.
- With 1000W RMS and up to 1800W peak output, they extend the system’s frequency range down to 50 Hz, providing a solid foundation for any music genre or audio content.
- Constructed from 18mm multi-layer plywood, they offer both durability and excellent acoustic performance.

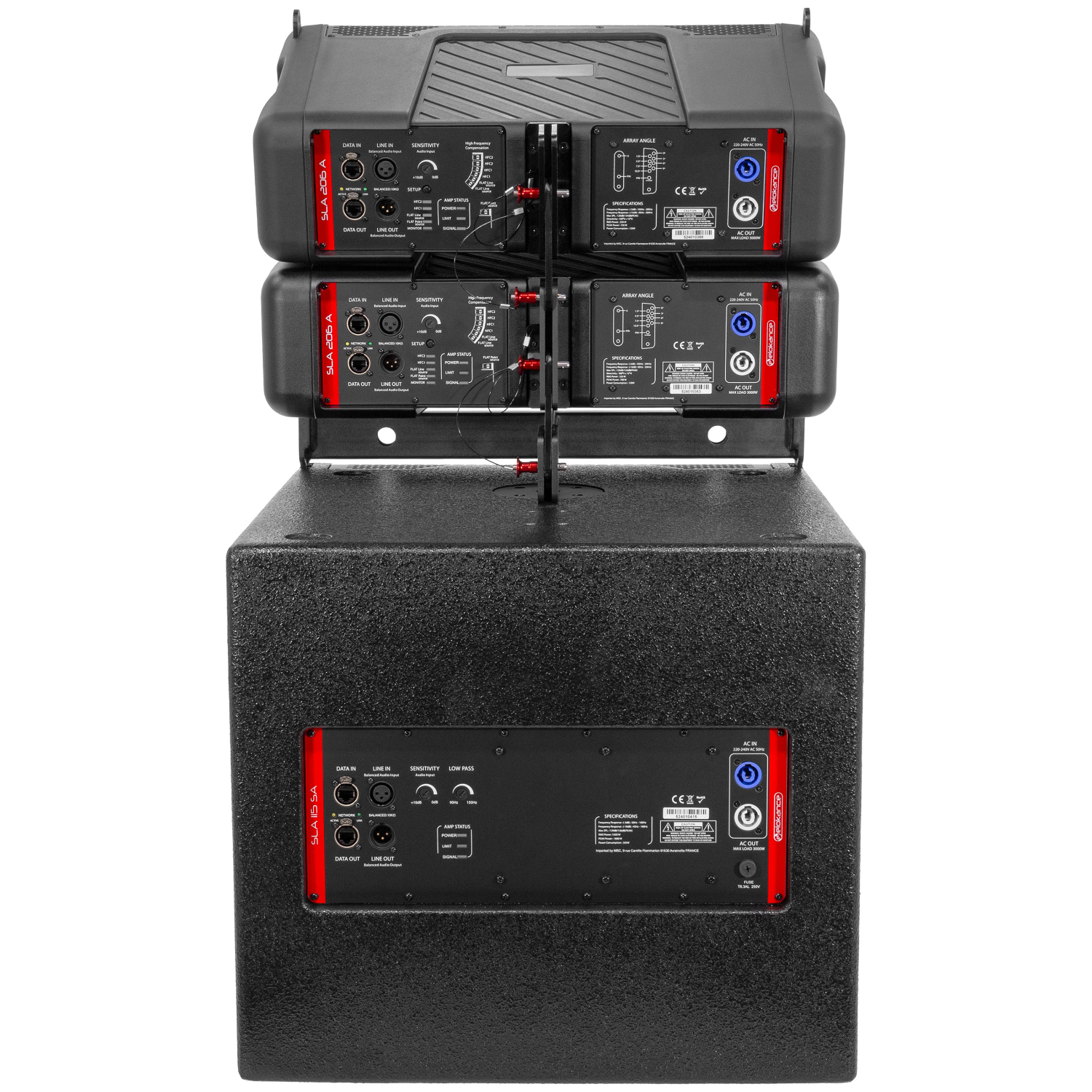

Built-in DSP & Ease of Use
Both system components integrate Class D amplifiers with DSP, offering advanced sound optimization options such as:
- DSP presets
- Low Cut filtering
- RS485 network connectivity for remote control and integration
The passive cooling system ensures reliable, continuous operation without overheating.

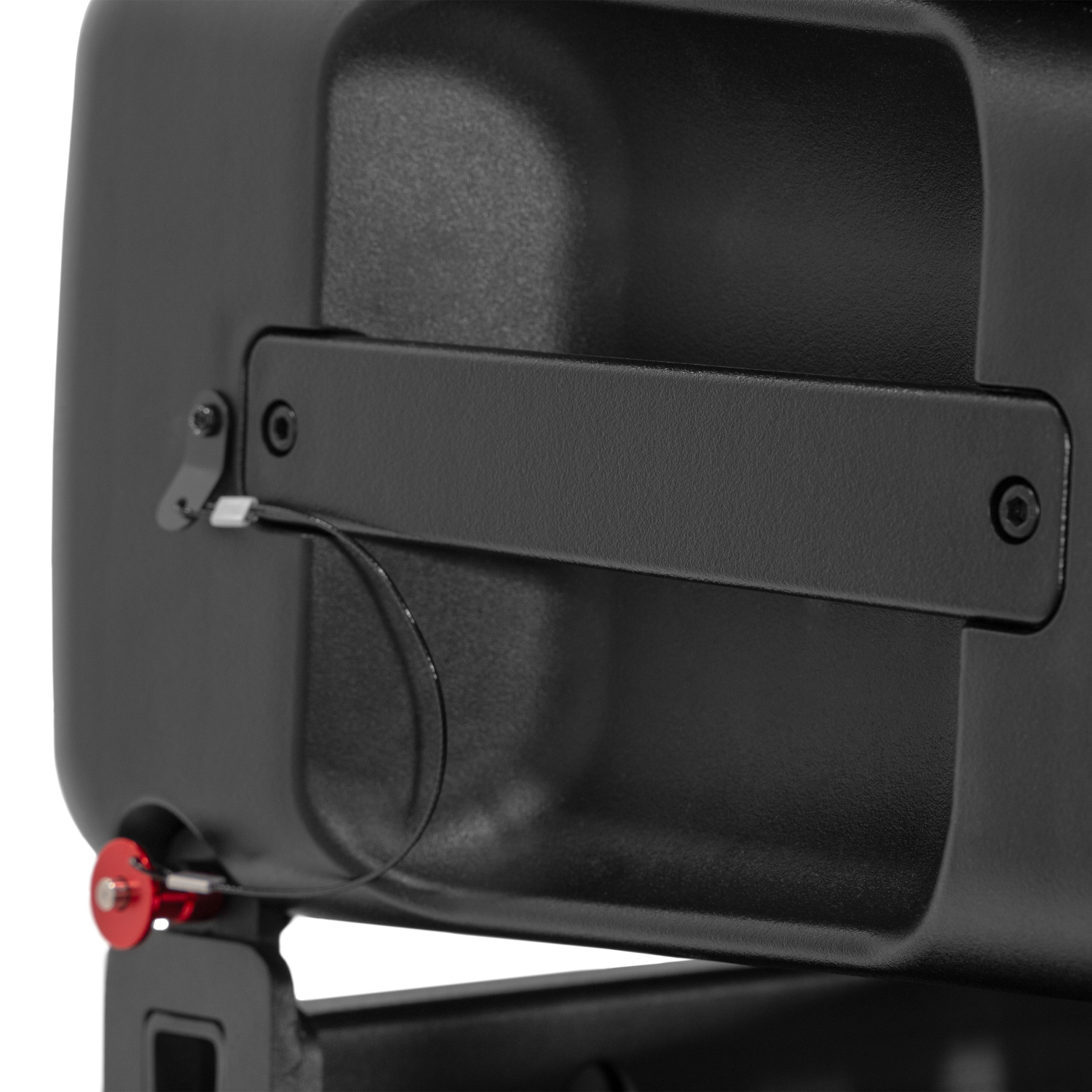

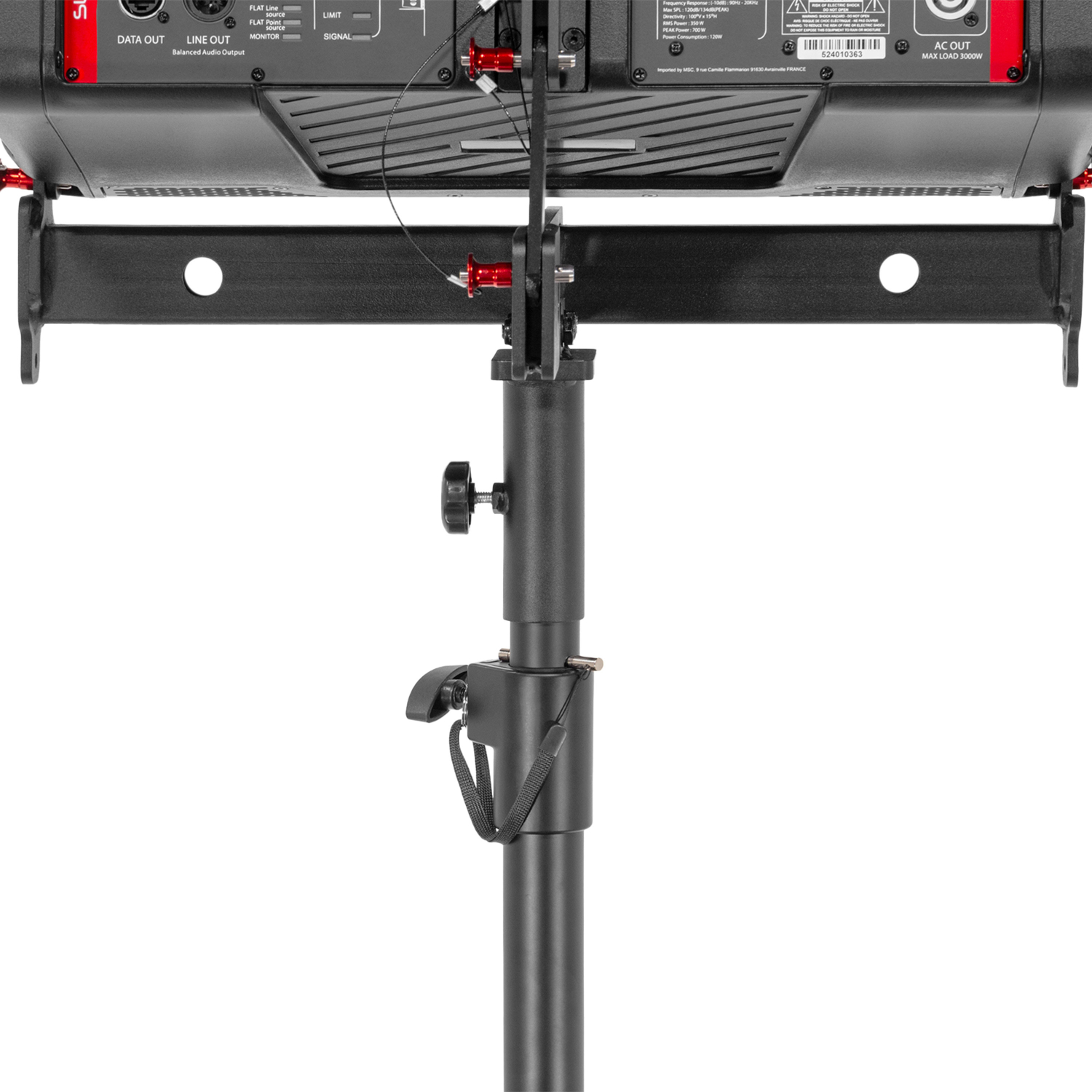

The system also includes coupling tubes and a dedicated docking system for the satellite modules, making it easy to set up, yet incredibly versatile to adapt to different scenarios.
The Elokance SLA System is the ideal choice for sound engineers, event organizers, and professional musicians, combining power, portability, and precision sound control into one complete professional-grade package.
Highlights
- Complete High-End Line Array System that includes
- 4x SLA206A
- 2x SLA115SA

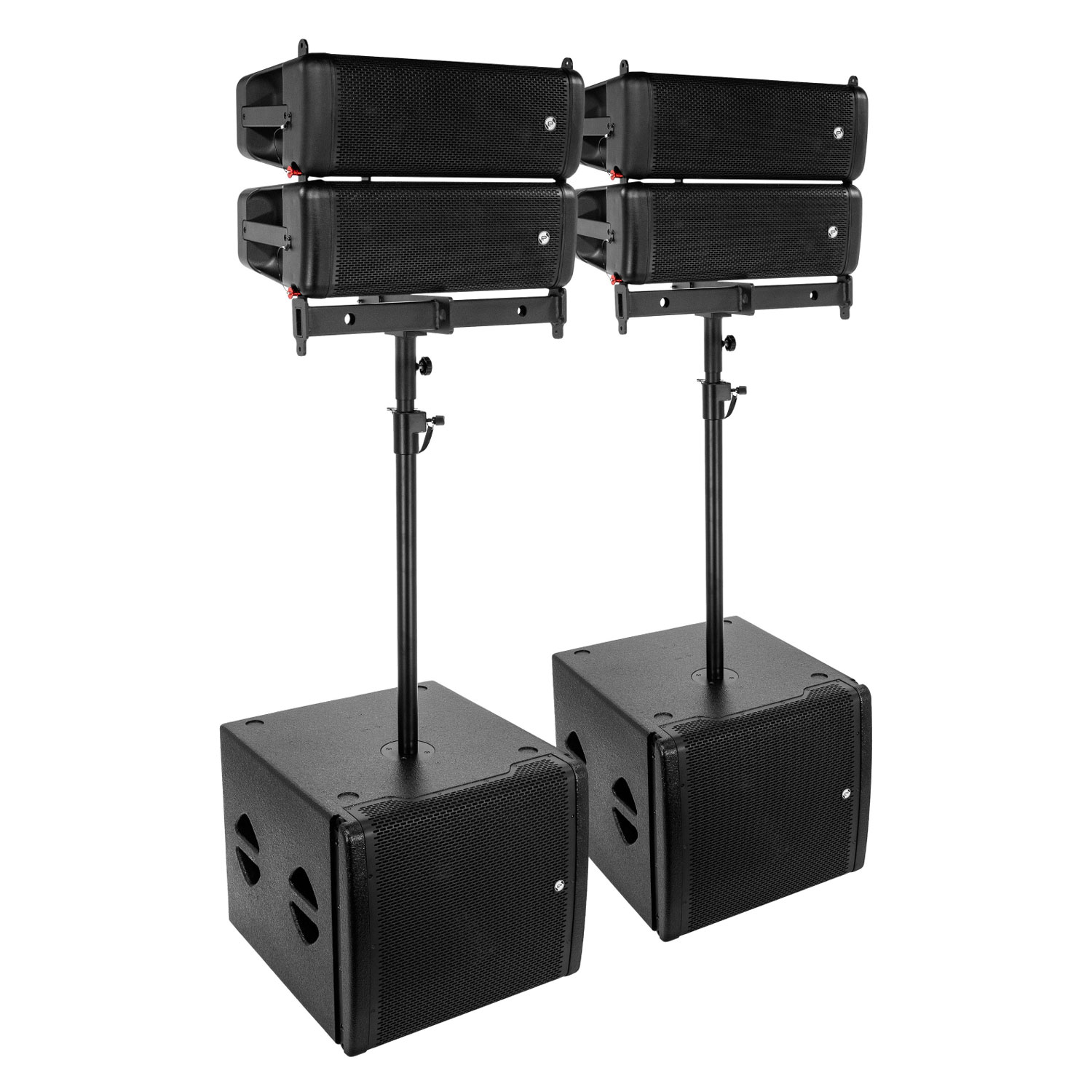

- Designed for Ground Stack or Flying Array placement
- Complete DSP speakers management (sub & satellite) via network

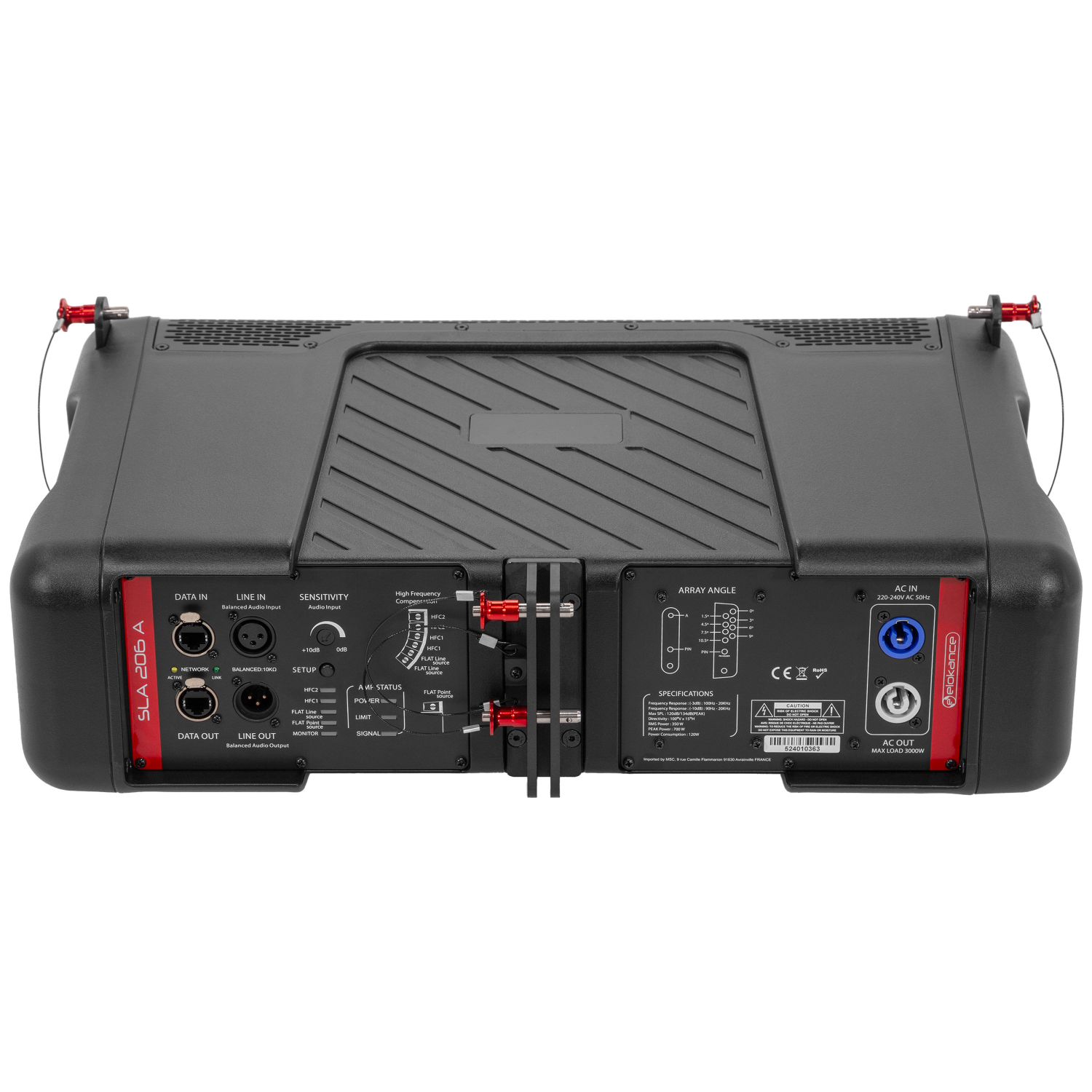

SLA206A
- Active Satellite
- 2-way bi-amplified
- Power: 700W Class D with DSP & RS485
- SPLmax: 134db
- LF: 2x 6.5" woofer with 2" coil
- HF: 1x 1.4" driver with 1.4" coil
- Dispersion: 100° (H) x 15° (V)
- Frequency Response: 90 - 20KHz
- Construction Material: ABS Box
SLA115SA
- Active Subwoofer
- Power: 1800Wrms, Class D with DSP & RS485
- SPLmax: 136dB
- Woofer : 15" with 4" coil
- SPLmax: 143db
- Frequency response: 45Hz - 100Hz
- DSP: 6 Presets, 6 Delays
- Construction Material: 18mm multi-layer plywood

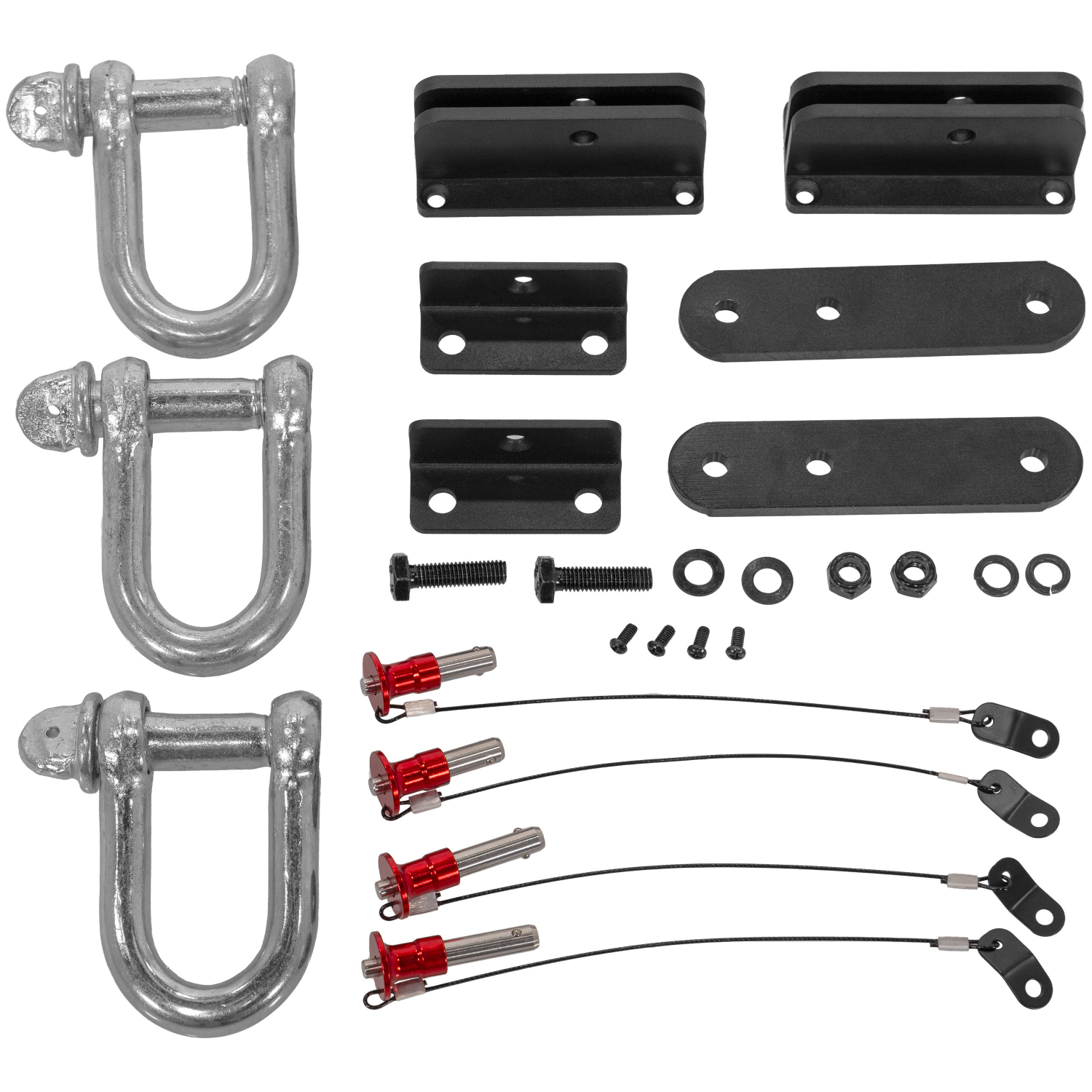

The system is delivered with Spacers, Bumpers & PowerCon cables
Specifications
-
Power3400W RMS / 6800W Max
-
RS485 Audio control softwareYes
-
SLA 206A characteristicDual 6.5 line array module
-
RMS rated power350 W
-
Max rated power700W
-
Frequency response +/-3 dB100 Hz - 20 kHz
-
Frequency response -10 dB90 Hz - 20 kHz
-
Coverage (H x V)100° x 15°
-
Maximum sound pressure level120 dB / 134 dB (peak)
-
Low frequency driver2x 6.5" woofer, 2" VC, neodymium
-
HF speakers1", output, 1.4" VC, neodymium output, 1.4"
-
AmplifierClass D with DSP
-
Input connectorsXLR 20k balanced
-
Output connectorsbalanced XLR
-
Cooling systempassive radiator
-
FunctionsDSP setup, low cut, RS485 network
-
StructureABS Box
-
Characteristics15" line array module
-
RMS rated power1000 W
-
Max rated power1800W
-
AmplifierClass D with DSP
-
Frequency response +/-3 dB50 Hz - 100 Hz
-
Frequency response -10 dB45 Hz - 100 Hz
-
Maximum sound pressure level129 dB / 136 dB (peak)
-
LF speaker15" woofer, 4" VC
-
Amplifier typeClass D with DSP, RS485
-
Input connectorsXLR 20KΩ balanced
-
Output connectorsbalanced XLR
-
Cooling systempassive radiator
-
FunctionsDSP configuration, low pass, RS485 network
-
Supply voltage110-240 VAC / 50-60 Hz
-
Housing18mm multi-layer plywood
-
Dimensions550 x 560 x 500 mm
-
Net weight37 kg
