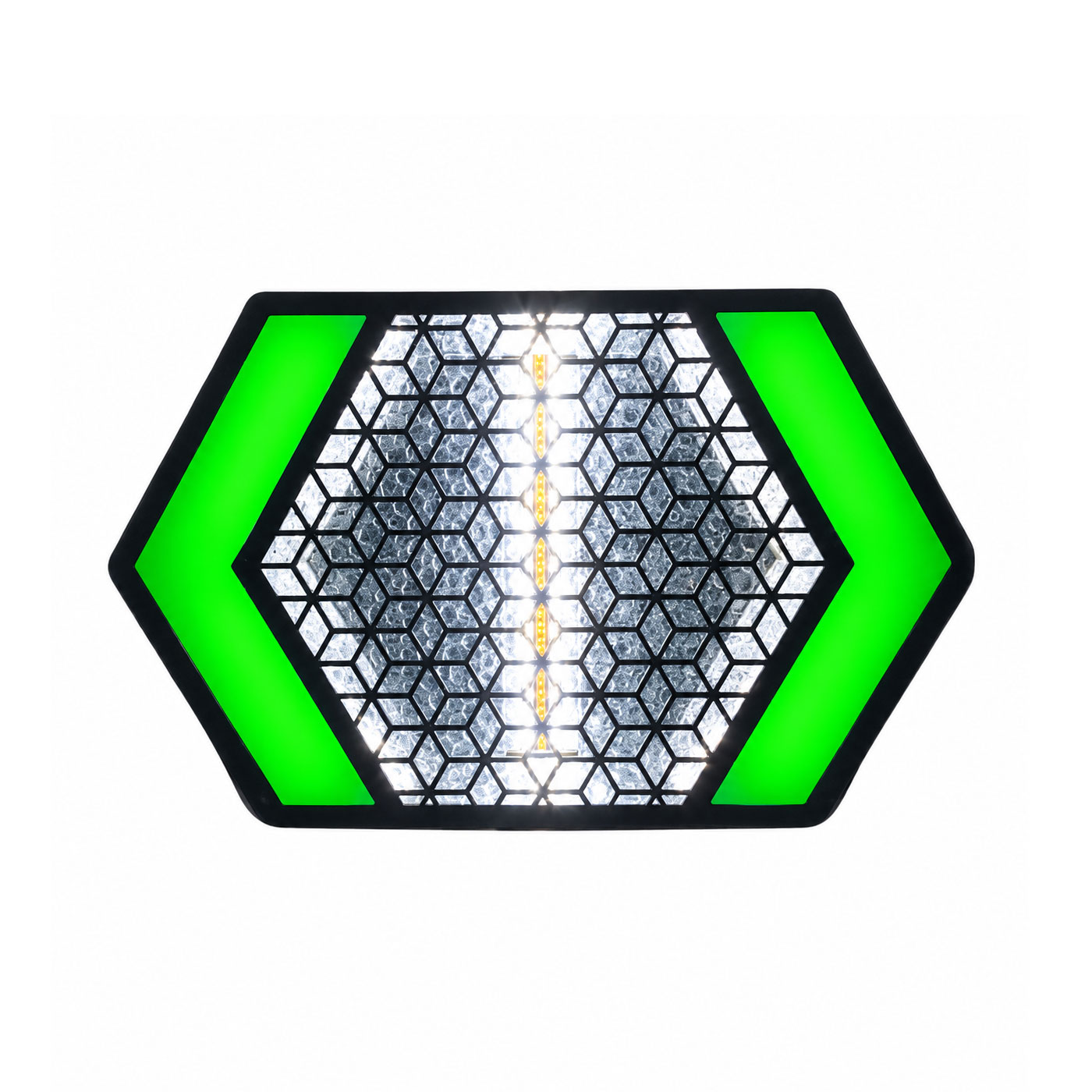

Retro LED Light Fixture

A modern Retro LED lighting fixture designed for professional applications in stage lighting, television productions, clubs, events, and pixel-mapping installations. It combines warm tungsten-style amber lighting, cool white LEDs, and RGB pixel effects, delivering a striking atmosphere and creative flexibility in any setup.

With high brightness output exceeding 4000 lumens, an advanced optical system, and 8-way pixel control, it provides dynamic effects, smooth dimming, and rich color reproduction. The simulated tungsten mode recreates the classic retro glow of traditional lamps, while RGB pixels enable advanced animation and mapping capabilities.

Ideal for lighting designers and professionals who require a blend of vintage aesthetics and modern LED technology.

Features

Lighting & Performance

• LED source: 45W 1600K Amber | 90W 6000K Cool White | 32 x 1.5W RGB LEDs
• Brightness: >4000 lm
• Beam angle: 100°
• High-efficiency optical system
• 8-way constant current pixel control
• Pixel mapping & dynamic lighting effects
• Simulated tungsten effect
• RGB + Amber + White color mixing

Control & Operation

• Protocols: DMX / RDM
• Control modes: DMX, Auto, Master-Slave
• DMX modes: 8CH, 14CH, 16CH, 20CH
• Dimmer: 8-bit & 16-bit
• Dimmer curves: Linear, Curve
• Optional DMX isolation module

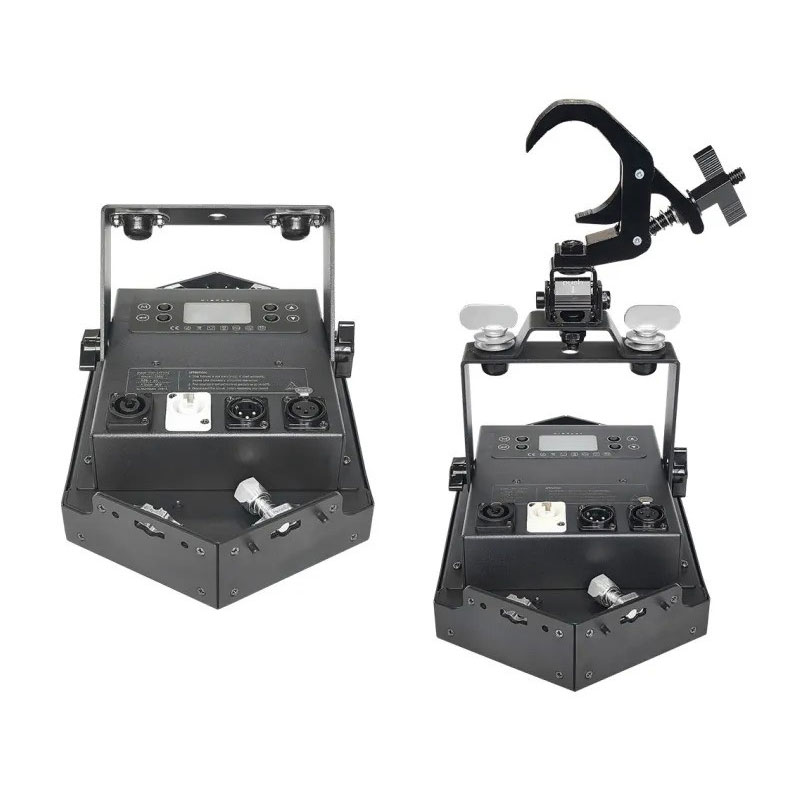

Connections

• PowerCON In & Out
• 3-pin & 5-pin DMX In/Out
• Maximum power linking: up to 10 units
• Includes: Power cable, DMX cable, Safety cable

Construction

• IP20 rating
• Free Light CON support
• Operating temperature: -30°C to 70°C
• Rugged and compact design

Dimensions & Weight



• Dimensions: 297 x 182 x 80 mm
• Weight: 2.3 kg

A versatile retro LED fixture that combines cinematic warm tones, modern RGB pixel effects, and professional lighting control for demanding productions and creative installations.
