The SOUNDSATION ADX500 is a professional active DI box (Direct Injection Box) designed to convert unbalanced audio signals into balanced signals, ensuring reliable audio transmission with minimal noise and interference. It is an ideal solution for connecting electric guitars, bass guitars, keyboards, and other audio sources directly to mixing consoles, stage boxes, and recording systems.

Thanks to its active design, the ADX500 delivers cleaner signal transmission, improved frequency response, and greater resistance to signal loss over long cable runs. The balanced output significantly reduces electromagnetic interference and improves the signal-to-noise ratio, preserving audio quality even in demanding live and studio environments.

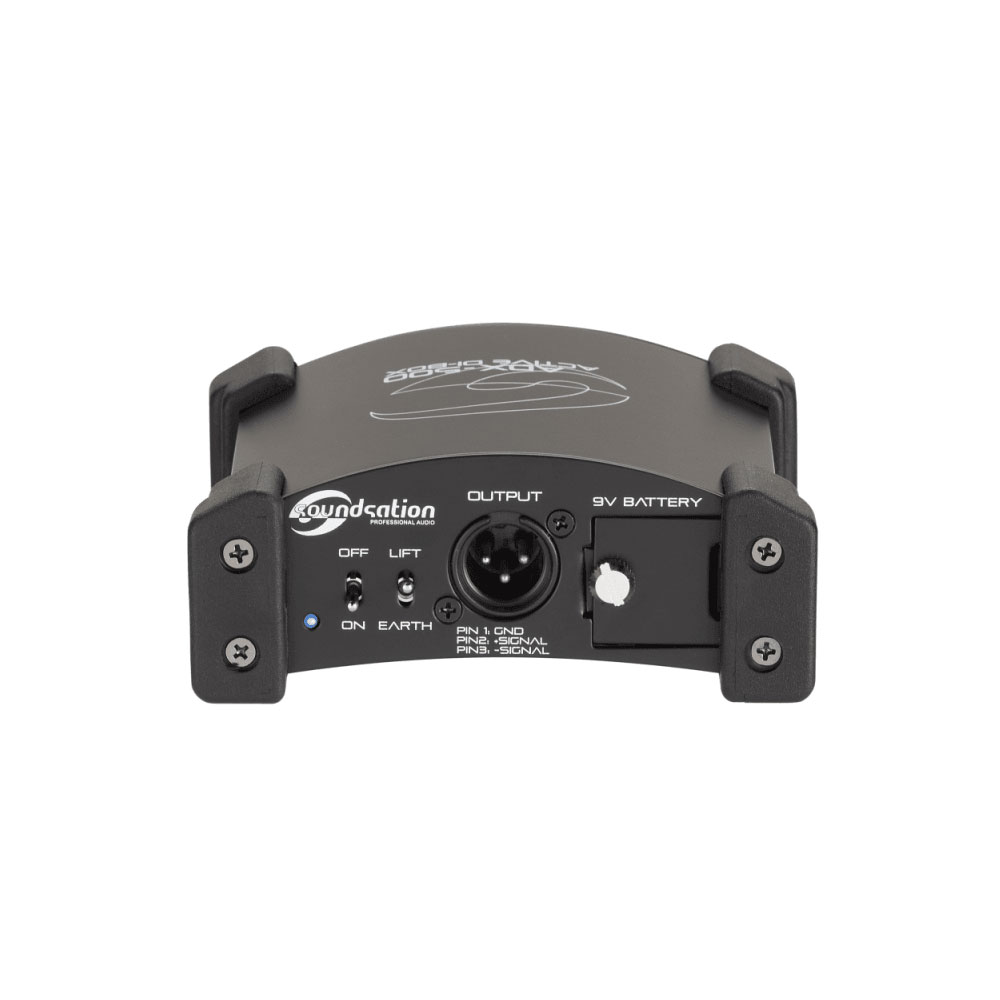

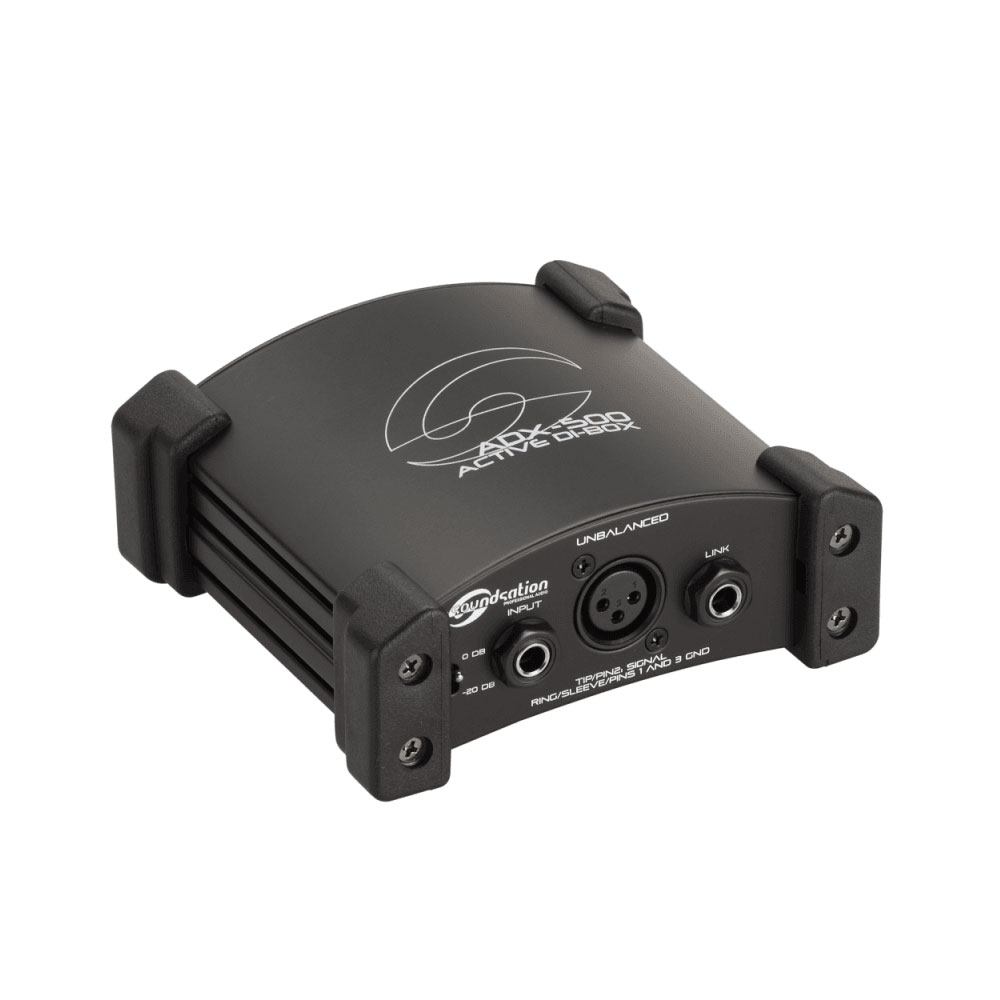

The unit features a 6.35mm jack input and an XLR input, a Monitor/Link output for connecting an amplifier or monitor system, a 0dB/-20dB pad switch for input level adjustment, and a Ground Lift switch to eliminate ground loop noise and hum. Powered by a 9V battery, the ADX500 is a reliable choice for professional musicians, sound engineers, and audio technicians.

Features

• Active Direct Injection (DI) Box
• Converts unbalanced signals into balanced signals
• 6.35mm unbalanced jack input
• Female XLR unbalanced input
• 6.35mm Monitor/Link output
• Male XLR balanced output
• 0dB / -20dB pad switch
• Ground Lift switch
• Powered by a 9V battery
• Ideal for live sound and recording applications
