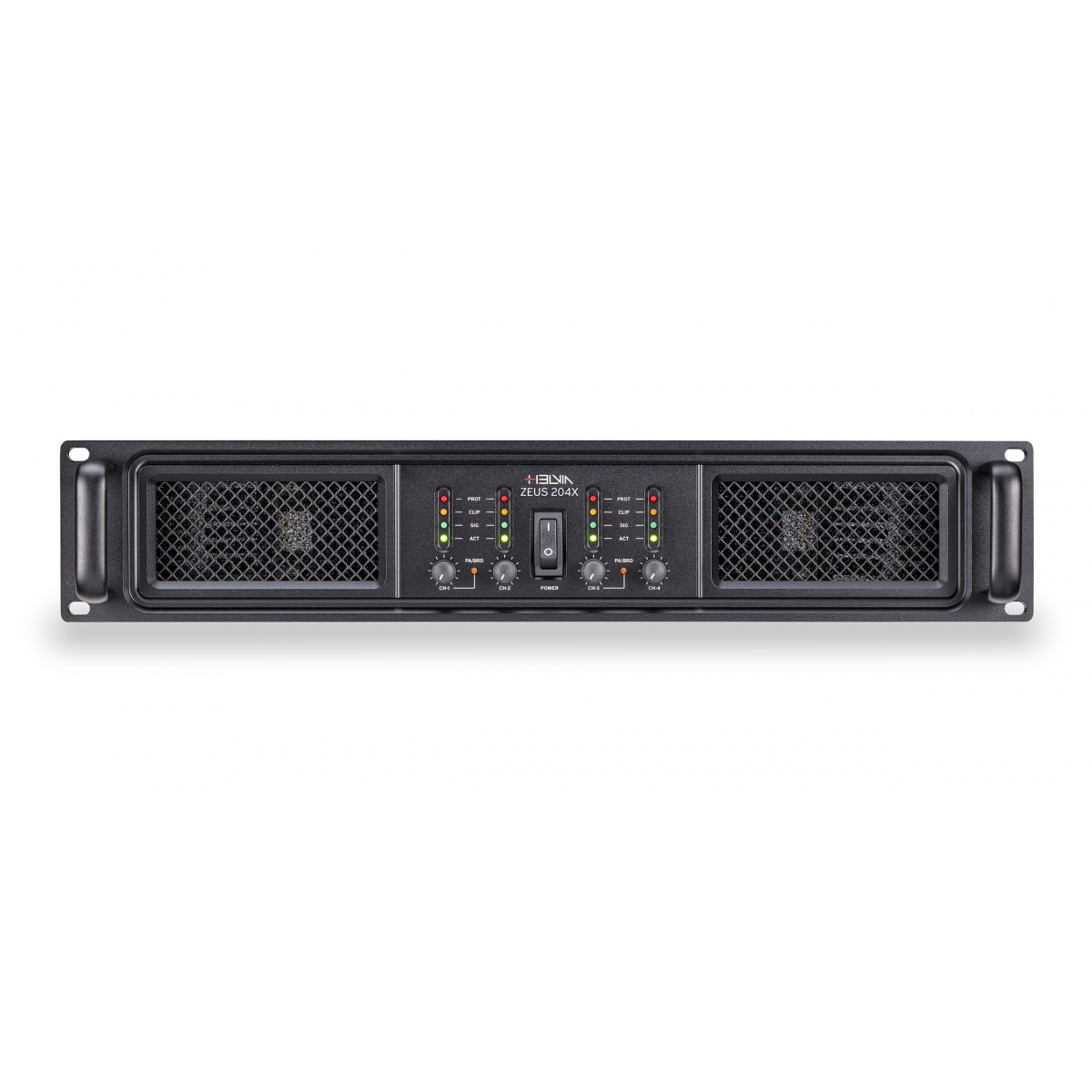

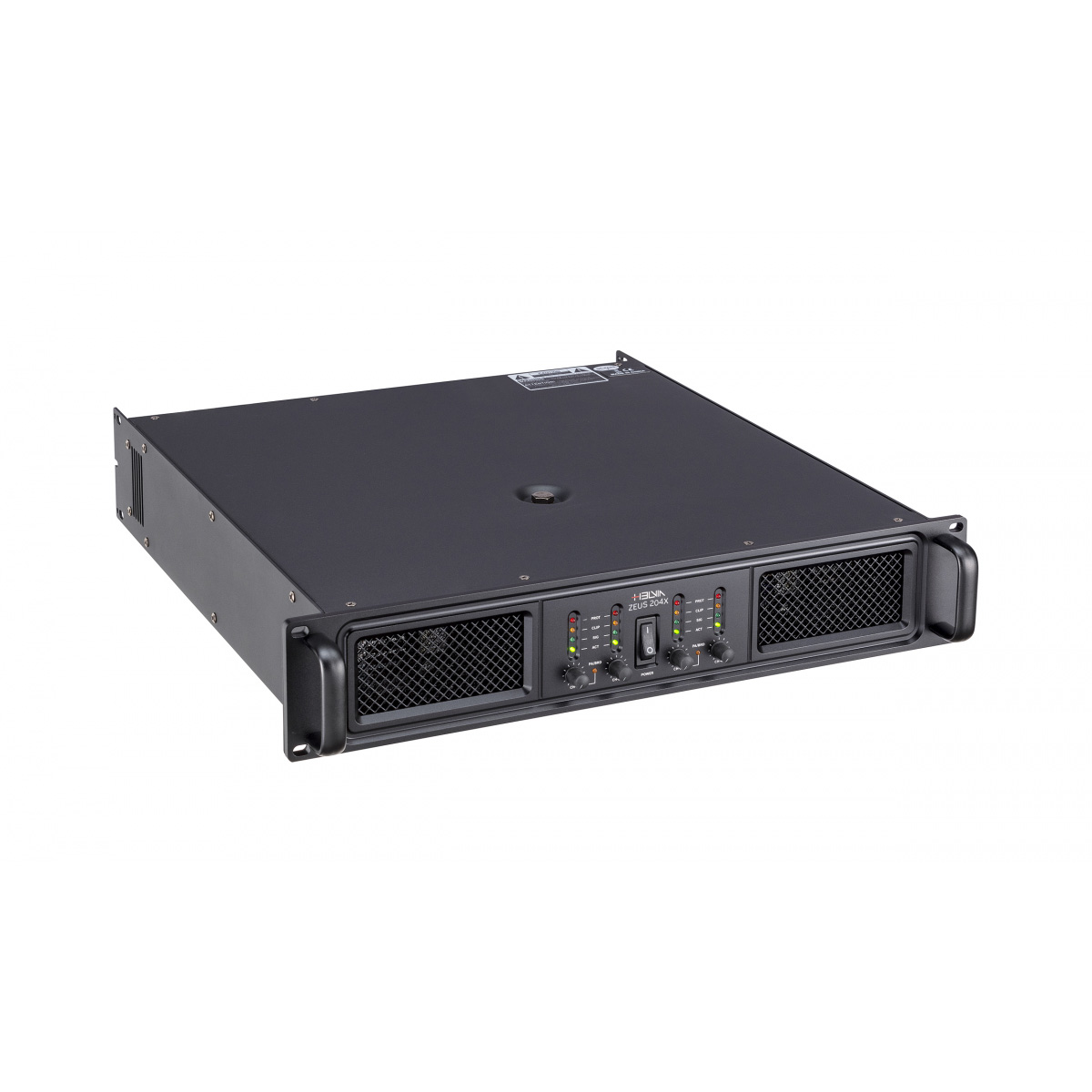

Helvia ZEUS 204X
Helvia ZEUS 204X
- Class H
- Stereo Output Power: 200W @ 8Ω / 300W @ 4Ω
- Bridge Output Power: 650W @ 8Ω
- Frequency Response: 20Hz–20kHz, +1/-1dB
- Input Impedance: >10KΩ, balanced or unbalanced
- THD (1W @ 1m): < 0.1%
- 2x 19” rack-mountable
- Dimensions: 483 x 463.5 x 89 mm | Weight: 22.4 kg
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products
HELVIA ZEUS 204X | Four-Channel Amplifier 4x 600W / 4Ω with Crossover
The HELVIA ZEUS 204X amplifier is ideal for multi-channel low-impedance installations. It is a 4-channel Class H amplifier, offering excellent sound quality and maximum reliability
It supports Stereo, Parallel, and Bridge modes (CH1-2 / CH3-4)
Each channel includes a built-in crossover with a low-pass filter, allowing use with both full-range systems and subwoofers without the need for external processors
The protection system includes signal limiter, on-off muting, DC-offset detection, thermal protection, and current limiting
The cooling system is highly efficient, regulating the speed of two fans while maintaining a low noise level
The quality of copper used in the power transformer, the carefully selected capacitors and power transistors, as well as the precision of the filters, make the HELVIA ZEUS 204X an extremely stable and reliable amplifier, suitable for both permanent installations and live sound applications
Key Features
- Class H
- Stereo Output Power: 200W @ 8Ω / 300W @ 4Ω
- Bridge Output Power: 650W @ 8Ω
- Frequency Response: 20Hz–20kHz, +1/-1dB
- Input Impedance: >10KΩ, balanced or unbalanced
- THD (1W @ 1m): < 0.1%
- 2x 19” rack-mountable
- Dimensions: 483 x 463.5 x 89 mm
- Weight: 22.4 kg
Main Features
-
8Ω Stereo Output Power200W
-
4Ω Stereo Output Power300W
-
8Ω Bridge Output Power650W
-
Input Sensitivity0,775V / 1,2V / 2,5V
-
Input Impedance>10KΩ, balanced or unbalanced
-
Frequency response (1W, 8Ω)20Hz-20kHz, +1/-1dB
-
THD (1W @ 1m)< 0,1%
-
Damping Factor300
-
Crosstalk> 70
-
S/N Ratio≥ 100dB
-
Amplifier ClassH
-
Power Requirements220V – 50/60Hz
-
Power Consumption (Average/Peak)240W/675W
-
Input Connectors3-Pin Female XLR
-
Output ConnectorsFemale Speakon®
-
Link Connectors3-Pin Male XLR
-
Cooling2 fans with variable speed according to internal temperature. Airflow from front panel to rear
-
Dimension (WxDxH)483 x 463.5 x 89mm
-
Rack MountYes, 2x 19" Rack Units
-
Weight22,4 Kg
