Amplified controller

Χαρακτηριστικά

Amplification and power supply

• Amplification class: Class D
• Output power, all channels loaded: 4 x 1000 W at 4 ohms / 4 x 1400 W at 8 ohms
• Power supply model: Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC)
• Mains rating: 100 V - 240 V ±10%, 50-60 Hz

DSP

• Digital Signal Processor (DSP): SHARC 32-bit, floating point, 96 kHz sampling rate
• I/O routing: Flexible 4x4 routing matrix
• Per output channel: Built-in EQ station with 8 IIR, 4 FIR linear phase EQ filters / Array morphing, Air absorption compensation filters / Internal IIR and FIR EQ algorithms / L-DRIVE advanced system protection / Output delay from 0 to 1000 ms

Technologies

• Loudspeaker management: L-DRIVE advanced system protection

Latency

• Standard latency (analog/digital inputs): 3.84 ms
• Low latency (analog/digital inputs): 0.84 ms

Inputs

• AVB: 4 channels from 1 stream (of up to 8 channels)
• AES/EBU: 4 channels AES/EBU (2 x AES3) with SRC
• Analog: 4 channels

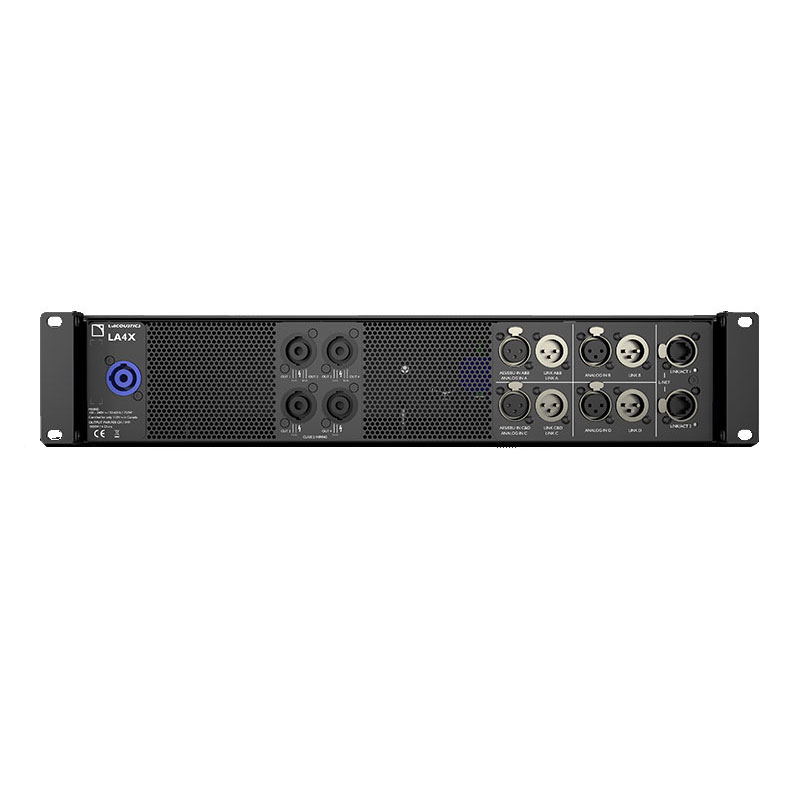

• Connections: 2 etherCON 1 Gb/s I/O+ control / 4 female 3-pin XLR (2 x switching analog/AES3) / 4 male 3-pin XLR links

Outputs

• Loudspeaker connections: 4 × speakON®

Circuit protection

• Mains and power supply: Over and under voltage / over temperature / overcurrent
• Power outputs: Overcurrent / short circuit / over temperature

Interface

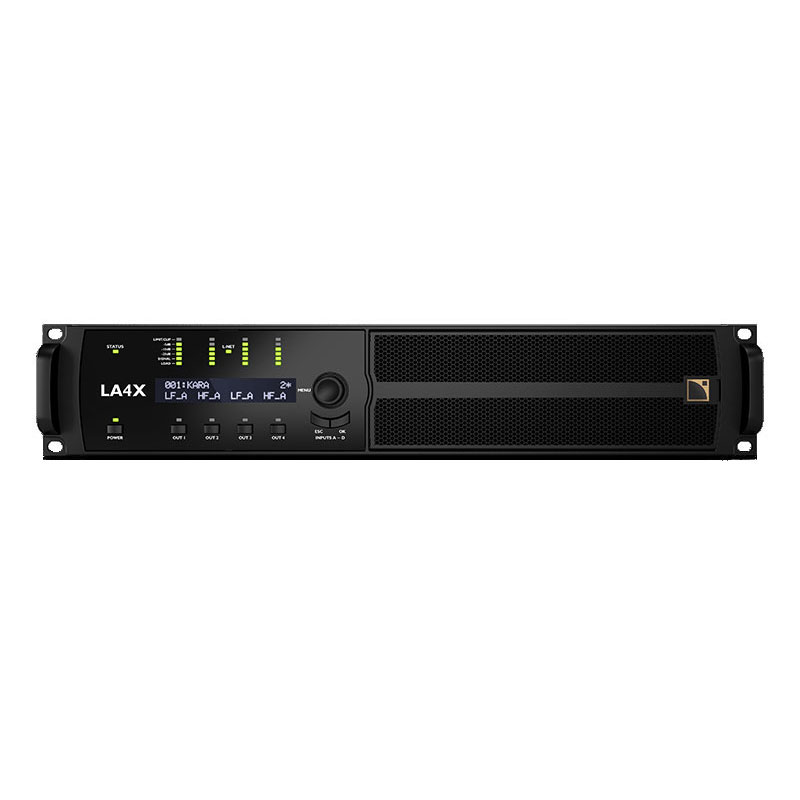

• Display/indicators: LCD and LED's
• Navigation: Rotary encoder, power and mute keys

Control and monitoring

• L-Acoustics remote control software: LA Network Manager
• Third-party management solutions: QSC® / SNMP / Extron® / Crestron®

Operating conditions

• Temperature: 0º C / 32º F to +50º C / 122º F

Physical data

• Height: 2U
• Weight: 14.5 kg / 32 lb
• Protection rating: IP20
