Μίκτης τεσσάρων εισόδων mic/line και μίας εξόδου με euroblock type κονέκτορες

Commercial Mixer provides the perfect mixer solution for commercial and industrial applications requiring great sounding distributed audio

CM41 is easy to install and operate – even for non-technical personnel

Simply put, the CM41 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system

Mixer

• Mixing capabillity: 4 inputs - 1 output

Audio Inputs

• Mic/Line with priority/ducking input: 1 x 5-pin Euroblock connector (channel A)
• Mic/Line with summed RCA: 3 x 3-pin Euroblock connector, 3 x stereo RCA (channel B, C, D)
• Impedance: Balanced mic/line: 20 kΩ, Unbalanced line and RCA:  10 kΩ
• Maximum input level: 4.88 V (+16 dBu)
• Microphone phantom power: 48 V

Audio Outputs

• Output: 3-pin Euroblock connector
• Gain range: -(infinity sign - +10dB
• Output max level: 9.6 V (+22 dBu)

Controls

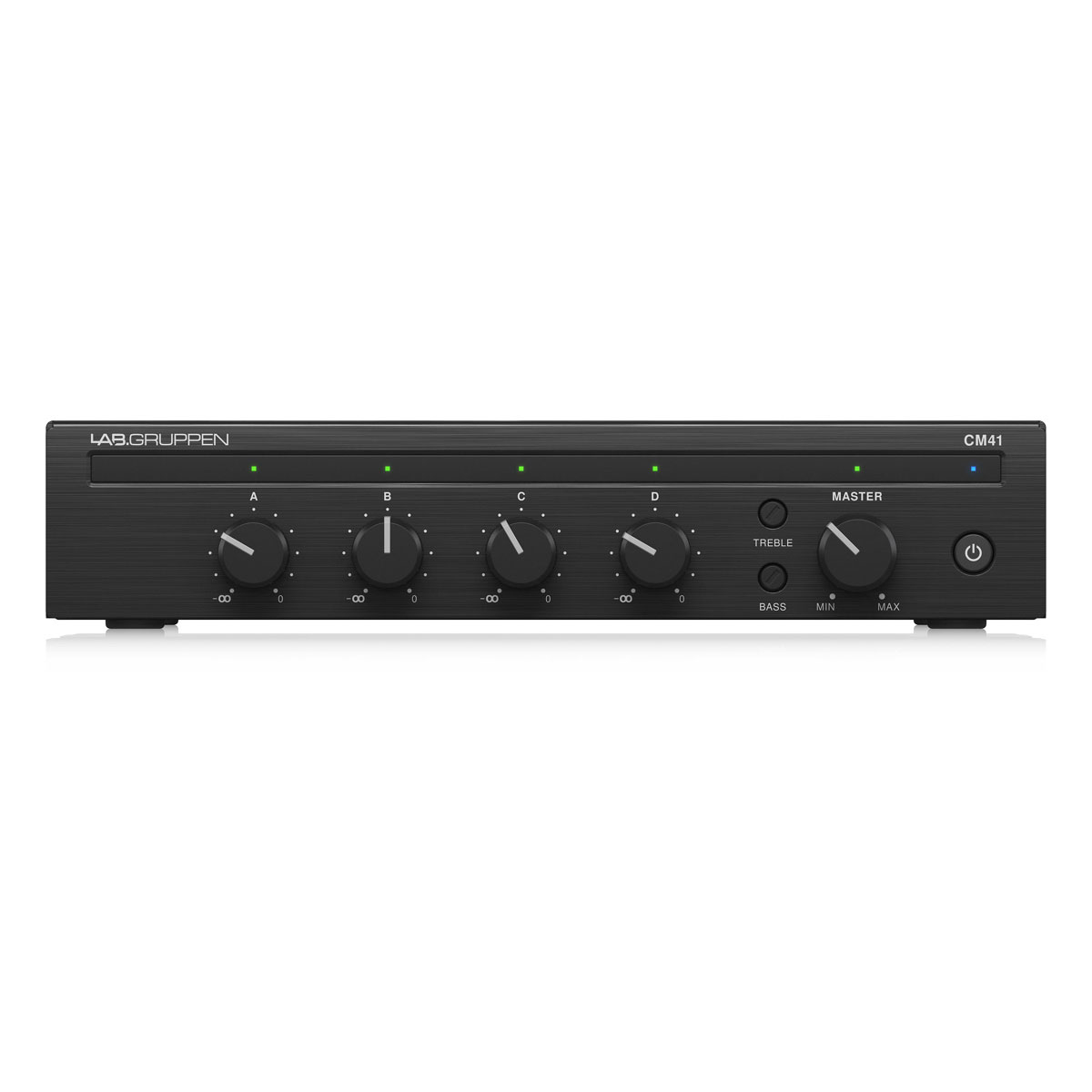

• Front: Power standby button, input and output gain control, tone controls - bass and treble
• Rear: mic/line switch, vox/ducking threshold control, phantom power, input routing (2-channel models only)

Tone Controls

• Bass: ±10 dB @ 100 Hz
• Treble: ±10 dB @ 10 kHz

Indicators

• Power: On (blue), force standby (red), standby (yellow)

Inputs

• Signal (green LED): >12.3 mV (-36 dBu)
• Clip (red LED): 4.88 V (+16 dBu)

Master

• Signal (green LED): >-50 dBu
• Limit (red LED): 3 V (+12 dBu)

System

• Remote connector: 1 x RJ45 Ethernet connector

Performance

• Distortion: <0.05%
• Frequency response: 20 Hz to 20 kHz, +0.5 / -1 dB
• Crosstalk (2 channel models): >70 dB
• Signal-to-noise: >97 dBA

Power Supply, Voltage (Fuse)

• Main voltage: Universal 100-240 V~, 50/60 Hz
• Fuse: T 3.15 A H 250 V
• Power consumption: 10 W
• Mains connector: Standard IEC connector

Dimensions / Weight

• Dimensions (H x W x D): 44 x 218 x 299 mm
• Weight: 2.1 kg (4.6 lbs)
• Finish: Brushed black anodized aluminum chassis with black painted steel bottom
• Approvals: CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B
