Qsc CP12
Qsc CP12
12-inch Compact Powered Loudspeaker
- High performance, superior sound quality
- Class-D 1000 W peak amplifier
- Maximum Rated SPL 126 dB
- Advanced DSP with Intrinsic Correction™ and DMT technology
- Lightweight, portable, and easy to transport
Code: 27858
Warranty:
3 Years
Available in 1 - 3 days
699,00€
Quantity:
Add to cart
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Products
Related Products
High performance, superior quality and lasting reliability.
These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.
Features
- Compact and powerful performance
- 1000 Watt peak power Class-D amplifier module
- Easily selected contours for commonly-used applications
- Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
- Directivity Matched Transition® (DMT) for consistent frequency response across the entire coverage area
- Light weight and highly portable
- Professional appearance looks great in any application
- Use for main PA, stage monitor, or instrument amplifier
- 35 mm pole socket
- Optional yoke, tote, and outdoor cover accessories
- Complete EASE and CAD information available online
- 6 Year Warranty when registered within 30 days of purchase
Specifications
-
ConfigurationTwo-way active loudspeaker
-
LF Transducer305 mm (12 in), cone
-
HF Transducer35.6 mm (1.4 in) compression driver
-
Frequency Response (-6 dB)49 - 20 kHz
-
Frequency Range (-10 dB)47 - 20 kHz
-
Nominal Coverage Angle75° Axisymmetric
-
Maximum Rated SPL126 dB
-
AmplifierClass D
-
Peak800 W (LF), 200 W (HF)
-
ControlsPower; 2 x Gain; Mic Boost Push Switch; 6-way Contour Selection Switch
-
IndicatorsPower LED; 2 × Input Signal LED; Input B MIC selected LED; Limiter active LED
-

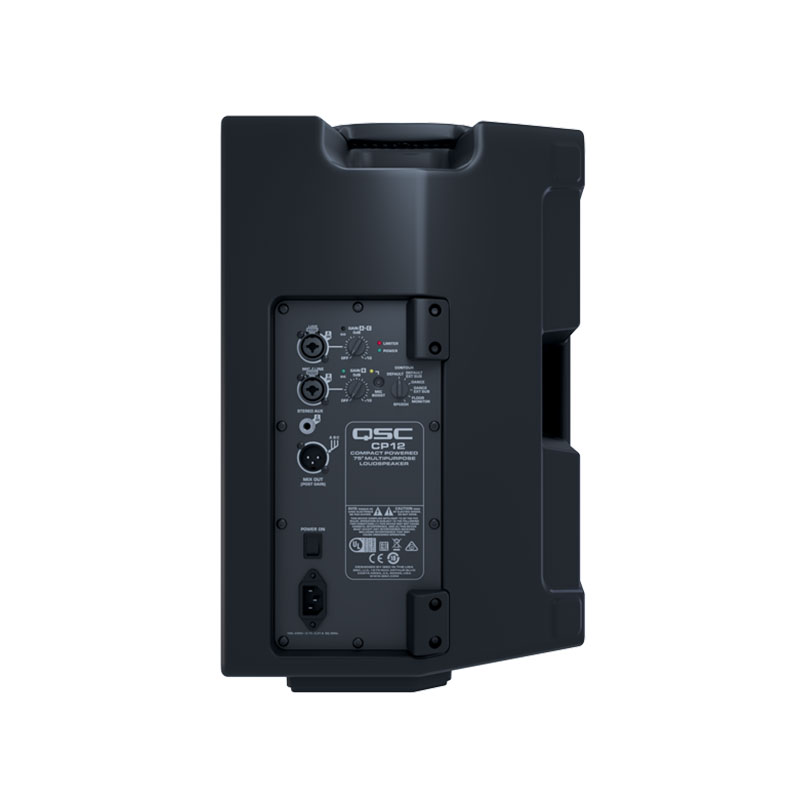

Connectors2 × locking XLR/F ¼” combo (Line Input and Mic/Line input); 1 × 3.5 mm TRS (Stereo Input); 1 × XLR/M (Mix Output); 1 × IEC power connector
-
AC Power InputUniversal power supply 100 – 240 VAC, 50 – 60 Hz
-
AC Power Consumption (1/8th Power)100 VAC, 0.75A - 240VAC 0.31A
-
Enclosure MaterialPolypropylene
-
Attachment PointsM8 threaded insert
-
ColorBlack (RAL 9011)
-
Grille18 Gauge powder-coated steel
-
Speaker Dimensions (H×W×D)516 × 350 × 323 mm
-
Carton Dimensions (H×W×D)430 × 430 × 604 mm
-
Net Weight13.7 kg
-
Shipping Weight16.5 kg
-
RegulatoryEMC, UL, CB
-
Optional AccessoriesCP12 Tote; CP12 Outdoor Cover; CP12 Yoke
