Helvia ONDA 540TFW
Helvia ONDA 540TFW
5.25-inch 2-Way Coaxial Ceiling Speaker, 40W / 8Ω
- With Kevlar woofer & Silk Dome tweeter
- 40W RMS / 8Ω for professional use
- Frameless design with magnetic grille
- Durable (ABS, IP54) for demanding environments
- Cutout Size: Ø 194 mm
- Dimensions: Ø 232 x 88 mm
Code: 28127
Warranty:
2 Years
Available in 1 - 3 days
78,00€
Quantity:
Add to cart
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Products
Related Products
HELVIA ONDA 540TFW | 2-Way Coaxial 5.25" Ceiling Speaker, 40W RMS / 8Ω, White

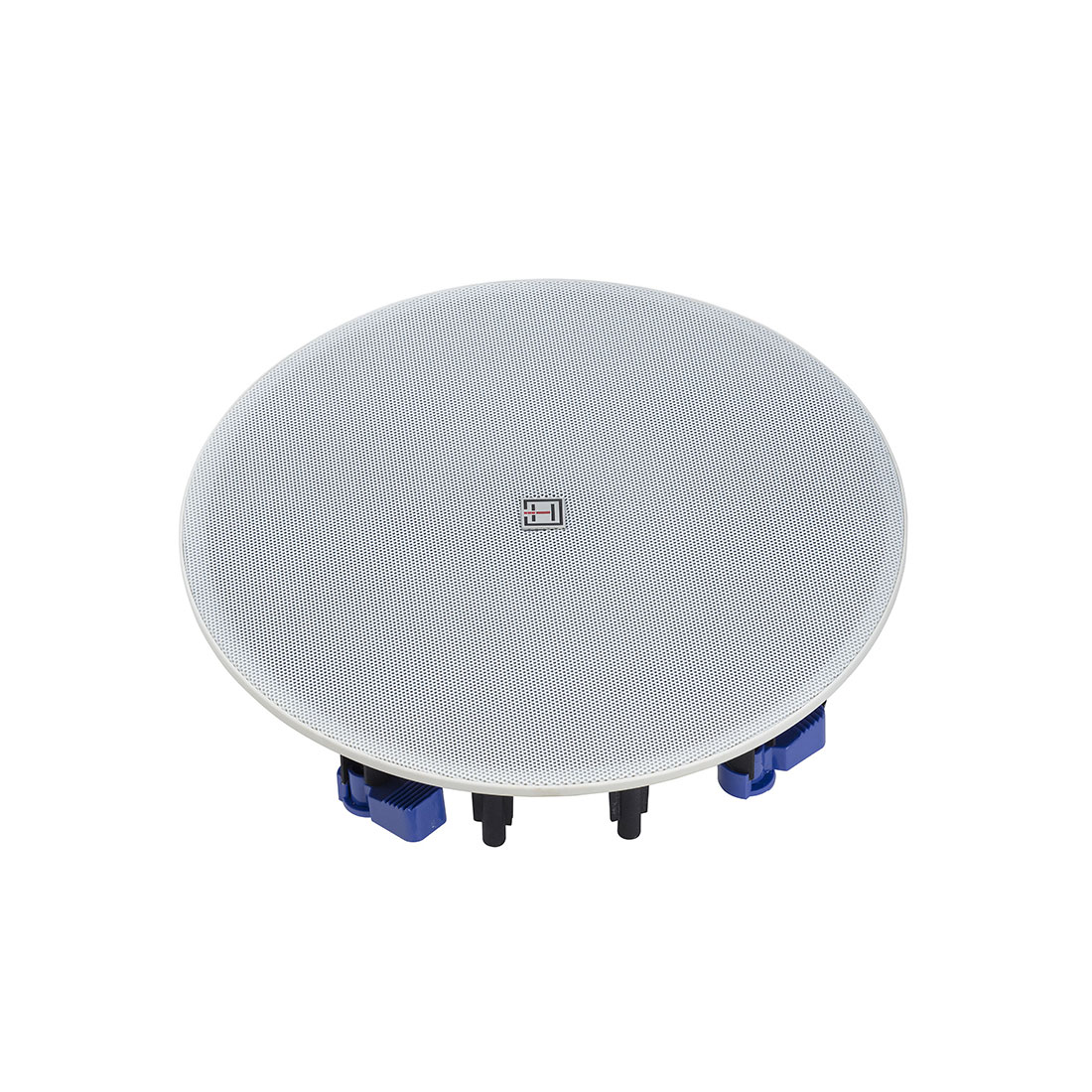

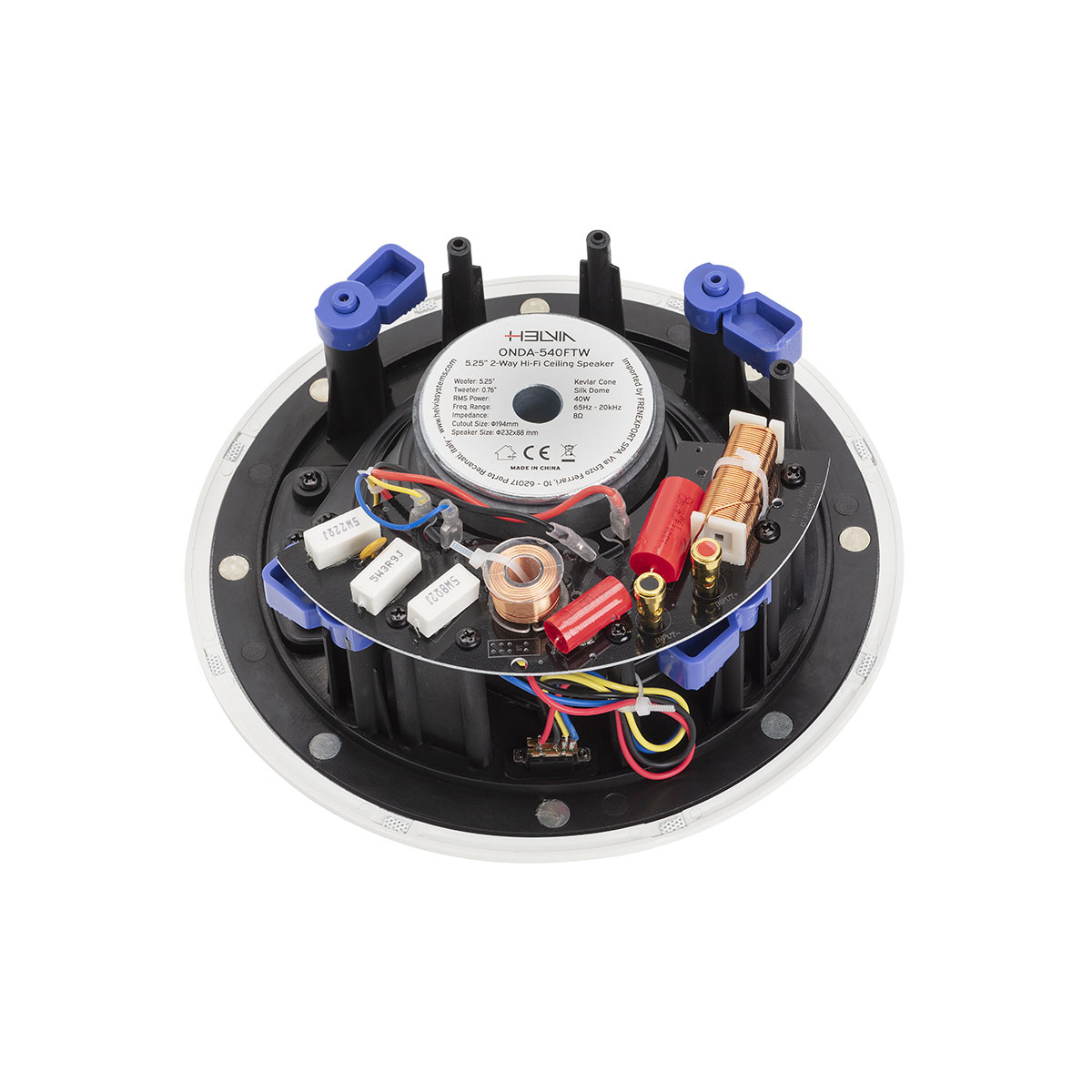

The HELVIA ONDA 540TFW speaker is a low-impedance (8 ohm), coaxial design featuring a Kevlar woofer, Silk-Dome tweeter, and precision crossovers. It is a true 2-way speaker suitable for professional applications, specifically designed for ceiling installation.
- The front panel features a minimalist aesthetic reminiscent of studio monitor speakers.

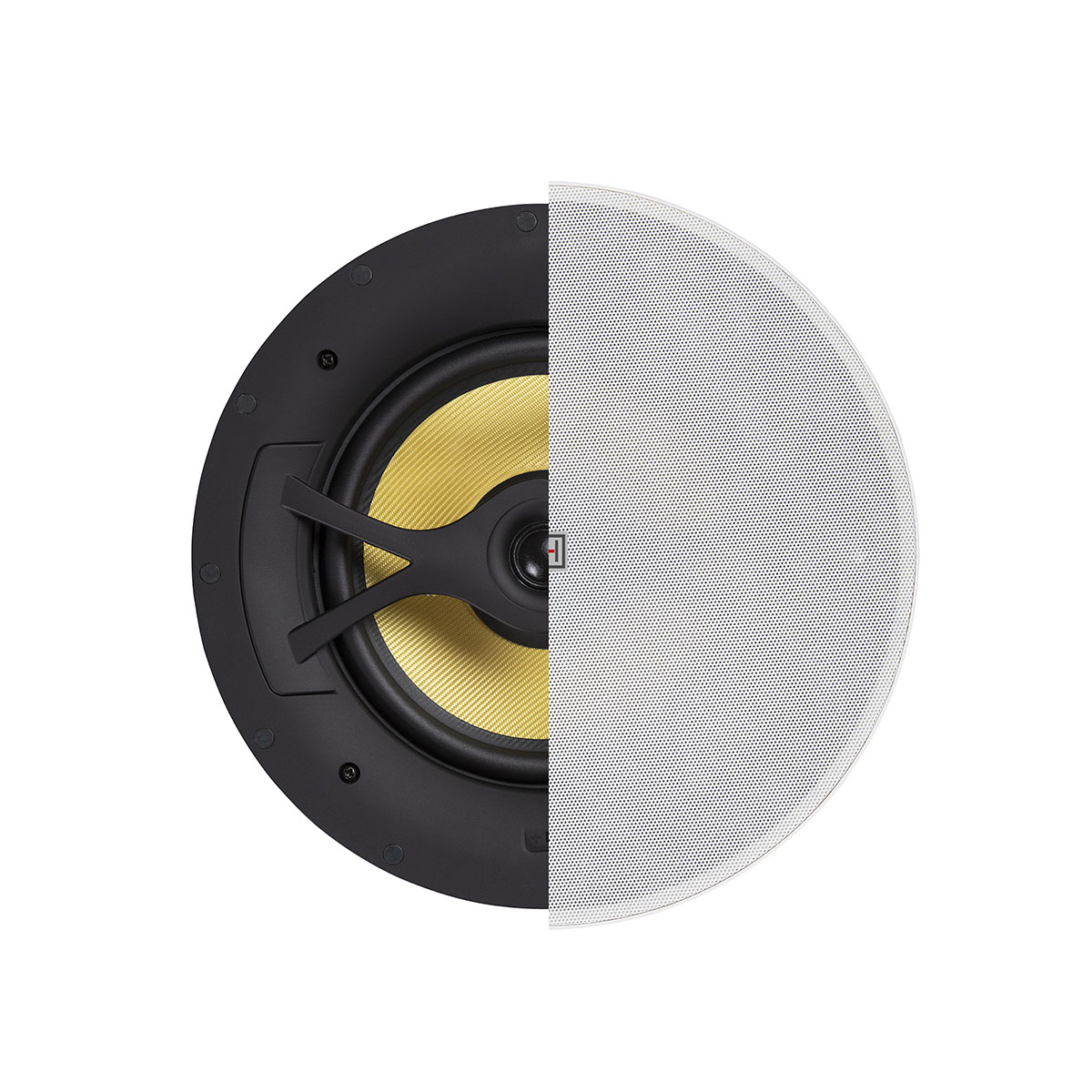

- Its frameless design, with a black ABS enclosure and white magnetic grilles, makes ONDA speakers exceptionally discreet.
The ONDA series of in-ceiling speakers was created to meet the needs of all indoor installations where higher sound pressure levels and better sound quality are required compared to conventional 70/100V systems.
Specifications
-
Speaker Type2-Way Passive, Coaxial
-
Frequency Response (-10dB)65Hz–20kHz
-
Sensitivity (1W @ 1m)91dB
-
RMS Power40W
-
Impedance8 ohm
-

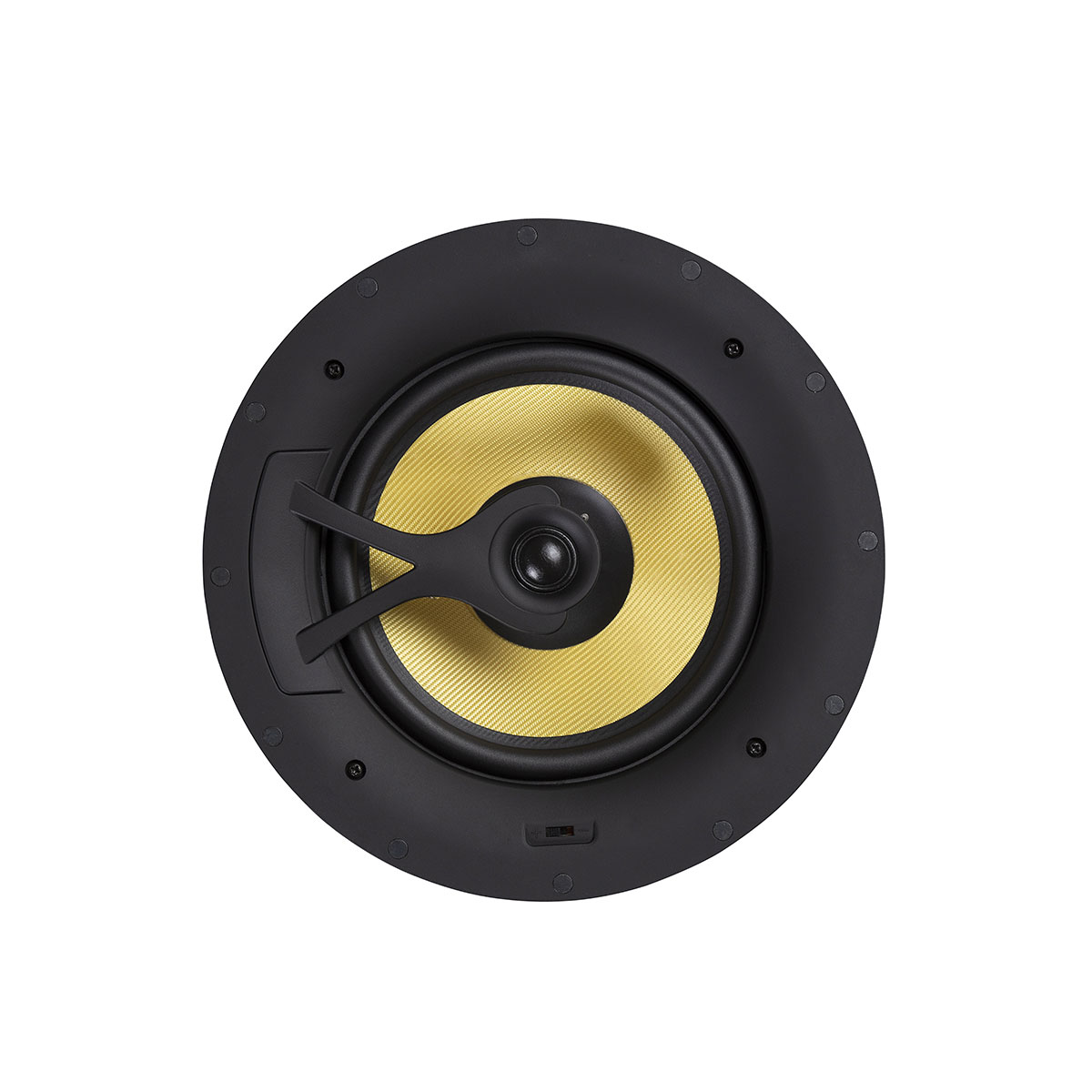

Woofer5.25” (135mm), Kevlar Woven Cone
-
Tweeter0.76” (20mm), Silk Dome
-
High-Freq. Attenuator2-position switch (0dB / -2dB)
-
HousingABS
-
IP rate (speaker installed)IP54
-
MountingQuick mounting system with 4 screws
-
GrilleFrameless Design, Magnetic Mount, Perforated steel with acoustic transparent foam inside, paintable
-
ColorBlack Housing / White Grille
-
Cutout SizeØ 194 mm
-
Dimensions (WxDxH)Ø 232 x 88 mm
-
Weight1.23 kg
