DPA 4099 CORE+ Piano Stereo Kit
DPA 4099 CORE+ Piano Stereo Kit
- Natural stereo reproduction of the piano
- CORE+ technology for extremely low distortion
- Two microphones for stable stereo imaging
- Dedicated mounting system for piano
- Flexible goosenecks for precise positioning
- Includes 2 x XLR adapter
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products
The DPA 4099 CORE+ Piano Stereo Kit is a premium stereo microphone system designed specifically for piano, delivering a highly natural, balanced, and detailed reproduction of the instrument. Built on DPA’s advanced CORE+ technology, it offers extremely low distortion, exceptional clarity, and a wide dynamic range, capturing the full richness and spatial depth of the piano with outstanding accuracy.
The system includes two DPA 4099 CORE+ microphones and dedicated piano mounting solutions, allowing secure and easy placement without affecting the instrument. Its design ensures a stable stereo image and precise capture of both low and high frequencies, preserving the piano’s natural character in every performance.
The package also includes XLR adapter, enabling direct connection to mixing consoles or audio interfaces, making it an ideal solution for professional stage use as well as demanding studio recordings.
Key Features
- Stereo microphone system specifically designed for piano
- CORE+ technology for extremely low distortion and high clarity
- Natural and realistic reproduction of the full piano frequency range
- Two microphones for accurate stereo imaging
- Dedicated mounting system for secure and discreet placement
- Flexible goosenecks for precise positioning
- High SPL handling for dynamic performances
- Supercardioid polar pattern for excellent isolation
- Compatible with wireless systems (MicroDot)

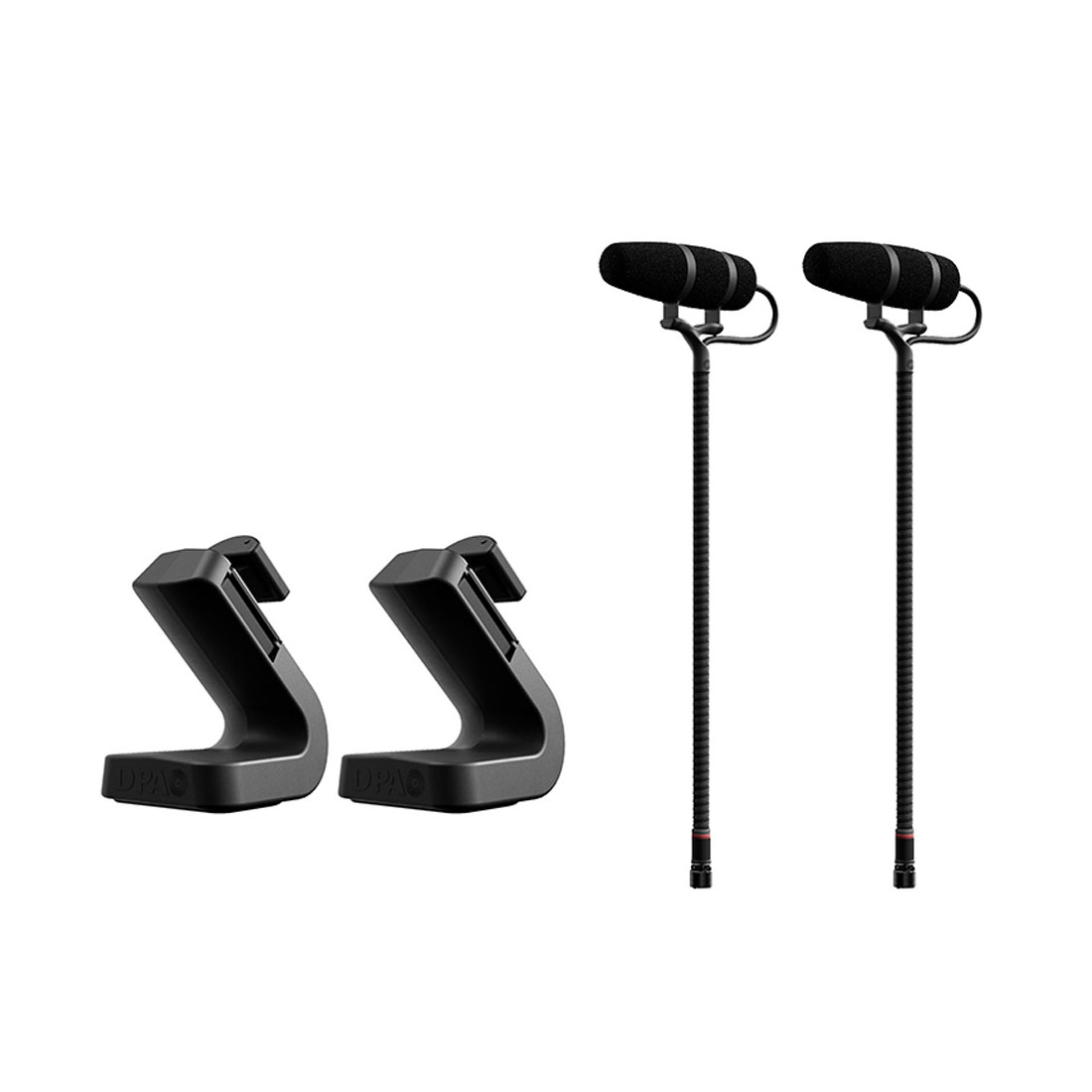

What’s in the Box
- 2 × DPA 4099 CORE+ microphones
- Piano mounting clips / holders
- 2 × Goosenecks with locking mechanism
- 2 × XLR adapter (MicroDot to 3-pin XLR)
- Windscreens
- Carrying case
Specifications
-
Directional patternSupercardioid
-
Principle of operationPressure gradient
-
Cartridge typePre-polarized condenser
-
Frequency response20 Hz – 20 kHz
-
Effective frequency range (±2 dB at 20 cm / 7.9 in)80 Hz – 15 kHz
-
Sensitivity (nominal, ±3 dB at 1 kHz)6 mV/Pa; -44 dB re. 1 V/Pa
-
Equivalent noise level (A-weighted)Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
-
Distortion (THD < 1%)128 dB SPL RMS, 131 dB SPL peak
-
Dynamic rangeTyp. 108 dB
-
Maximum SPL (THD 10%)142 dB SPL peak (label color
-
Rated output impedance
-
From MicroDot30–40 Ω
-
From DAD4099-BC or DAD6001-BC100 Ω
-
Cable drive capabilityUp to 300 m (984 ft) with DAD6001-BC / DAD4099-BC XLR adapter
-
Output balance principleBalanced signal with DAD4099-BC or DAD6001-BC XLR adapter
-
Common mode rejection ratio (CMRR)> 60 dB (50 Hz – 15 kHz) with DAD4099-BC or DAD6001-BC
-
Power supply Wireless systems5 V – 10 V via DPA adapter
-
Power supply With DAD6001-BC or DAD4099-BCP48 (phantom power), operates from 12 V
-
Current consumption MicrophoneTyp. 1.5 mA
-
Current consumption With DAD4099-BC or DAD6001-BC3.5 mA
-
ConnectorMicroDot
-
ColorBlack
-
Microphone weight17 g (0.60 oz)
-
Instrument microphone clamp mount (CM4099)16 g (0.56 oz)
-
Microphone diameter5.7 mm (0.22 in)
-
Microphone length45 mm (1.8 in)
-
Cable length1.8 m (5.9 ft)
-
Cable diameter1.6 mm (0.06 in) / 2.2 mm (0.09 in)
-
Polarity+V at MicroDot pin for positive sound pressure (+V at pin 2 on DAD4099-BC or DAD6001-BC XLR adapter)
-
Temperature range-40°C to 45°C (-40°F to 113°F)
-
Relative humidity (RH)Up to 90%
-
Gooseneck length140 mm (5.5 in)
-
Sensitivity tolerance (1 kHz)±1 dB
