DPA d:vote Core 4099 Violin
DPA d:vote Core 4099 Violin
Πυκνωτικό μικρόφωνο υπερκαρδιοειδές για Βιολί
- Μικρόφωνο ιδανικό για βιολί, banjo και βιόλα
- Με βάση στήριξης και με αντάπτορα XLR
- Frequency range: 20 Hz - 20 kHz
- Dynamic range: Typ. 108 dB
- Max. SPL, peak before clipping: 142 dB
Code: 17302
Warranty:
2 Years
Out of stock
620,00€
Quantity:
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Products
Συνδύασέ το με
Products
Related Products

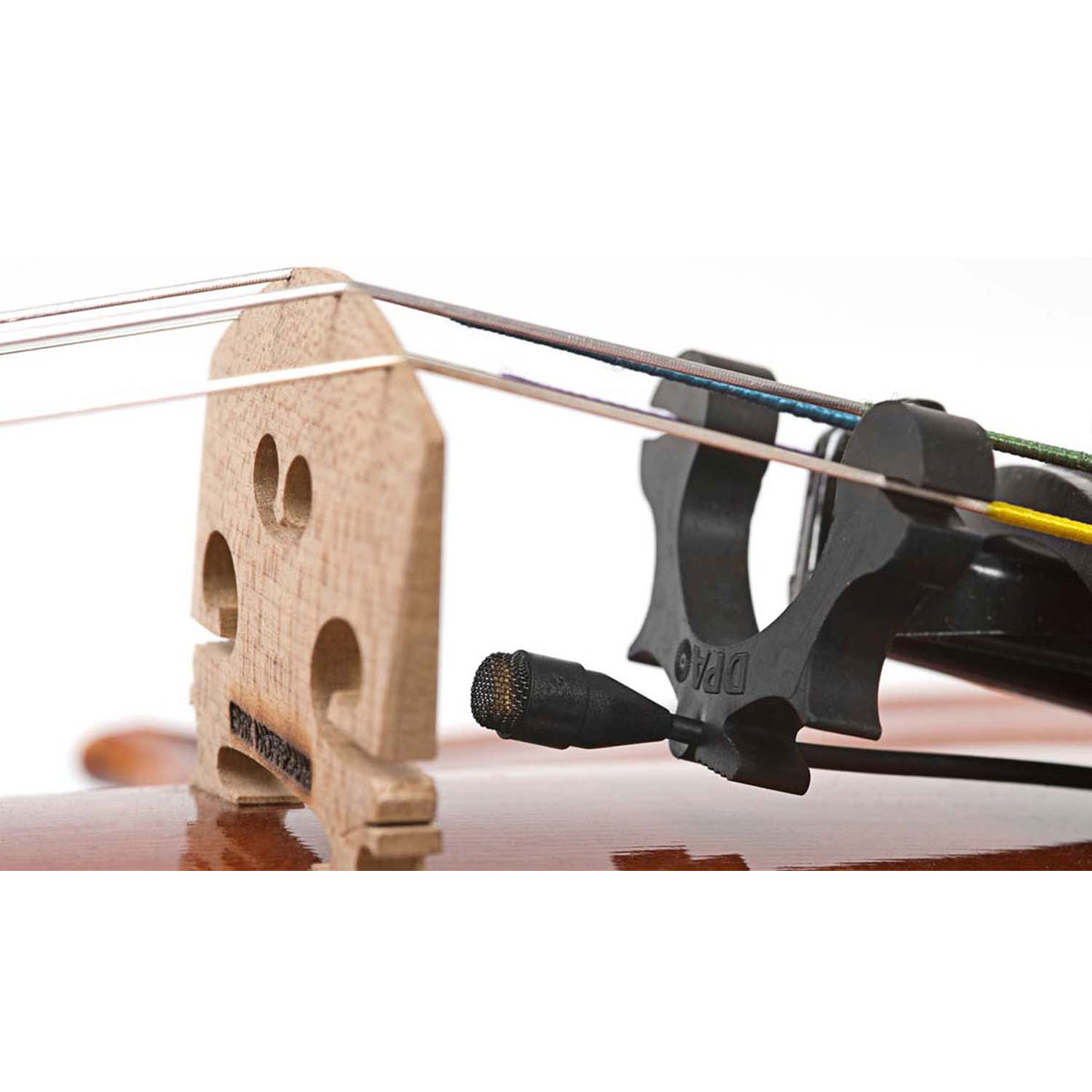

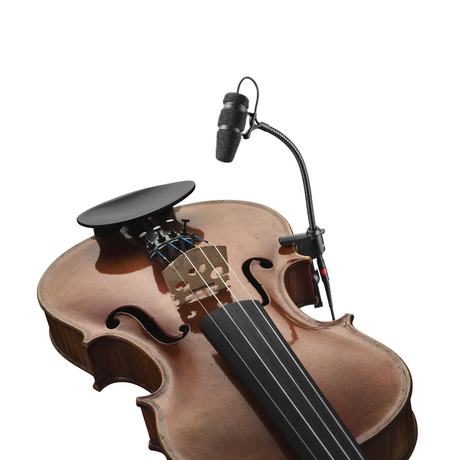

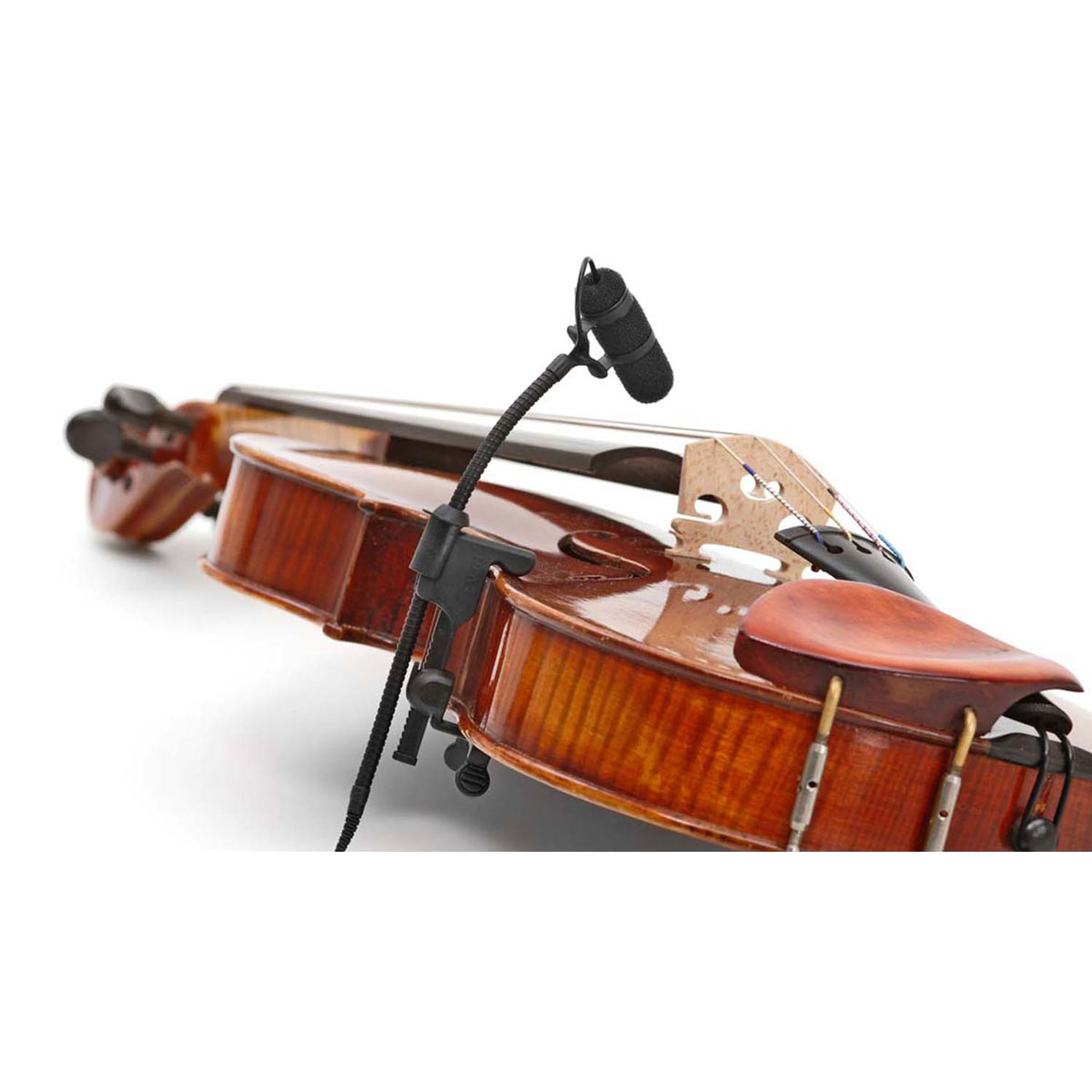

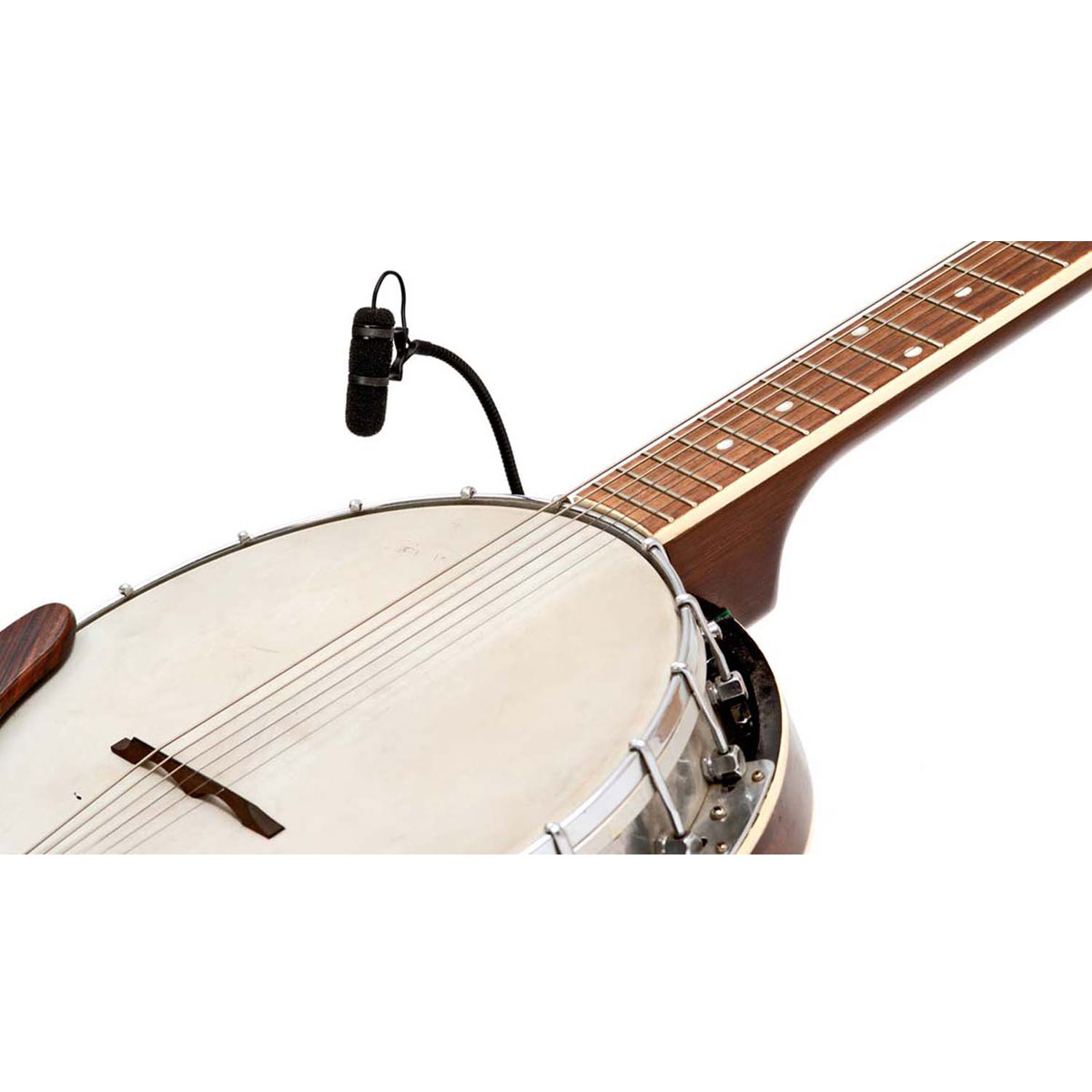

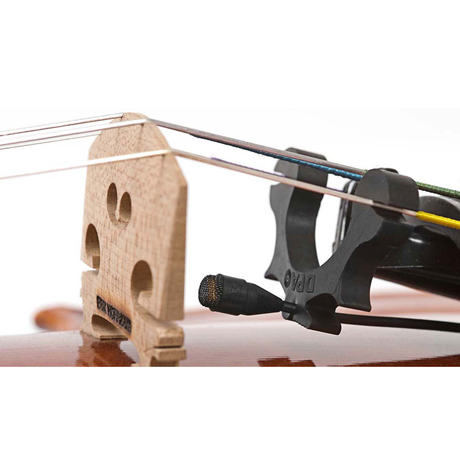

Το μικρόφωνο d: vote ™ CORE 4099 Violin είναι κομψό, ελαφρύ και διακριτικό, ιδανικό για βιολί, banjo και βιόλα

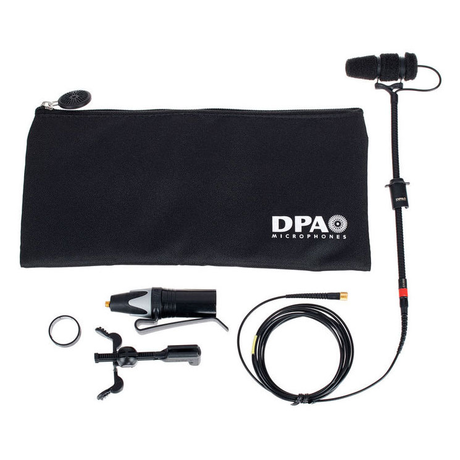

Έρχεται με βάση στήριξης και με έναν αντάπτορα XLR
Χαρακτηριστικά
- Directional pattern: Supercardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency range: 20 Hz - 20 kHz
- Frequency range, ± 2 dB, at 20 cm (7.9 in): 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz
- Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)
- Total harmonic distortion (THD): < 1% up to 131 dB SPL peak
- Dynamic range: Typ. 108 dB
- Max. SPL, peak before clipping: 142 dB
- Output impedance: From MicroDot: 30 - 40 Ω. From DAD4099/DAD6001-BC: 100 Ω
- Cable drive capability: Up to 300 m (984 ft) with DAD4099 or DAD6001-BC XLR Adapter
- Output balance principle: Signal balanced with DAD4099 or DAD6001-BC XLR Adapter
- Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD4099 or DAD6001-BC XLR Adapter
- Power supply (for full performance): Min. 5 V to max. 50 V through DPA adapter for wireless systems
- Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD4099 or DAD6001-BC XLR Adapter
- Connector: MicroDot
- Color: Black
- Weight: 27 g
- Microphone diameter: 5.4 mm
- Microphone length: 45 mm
- Cable length: 1.8 m
- Cable diameter: 1.6 mm / 2.2 mm
- Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099 or DAD6001-BC XLR adapter)
- Temperature range: -40°C to 45°C
- Relative humidity (RH): Up to 90%
- Gooseneck length: 140 mm
-
ManufacturerDPA
