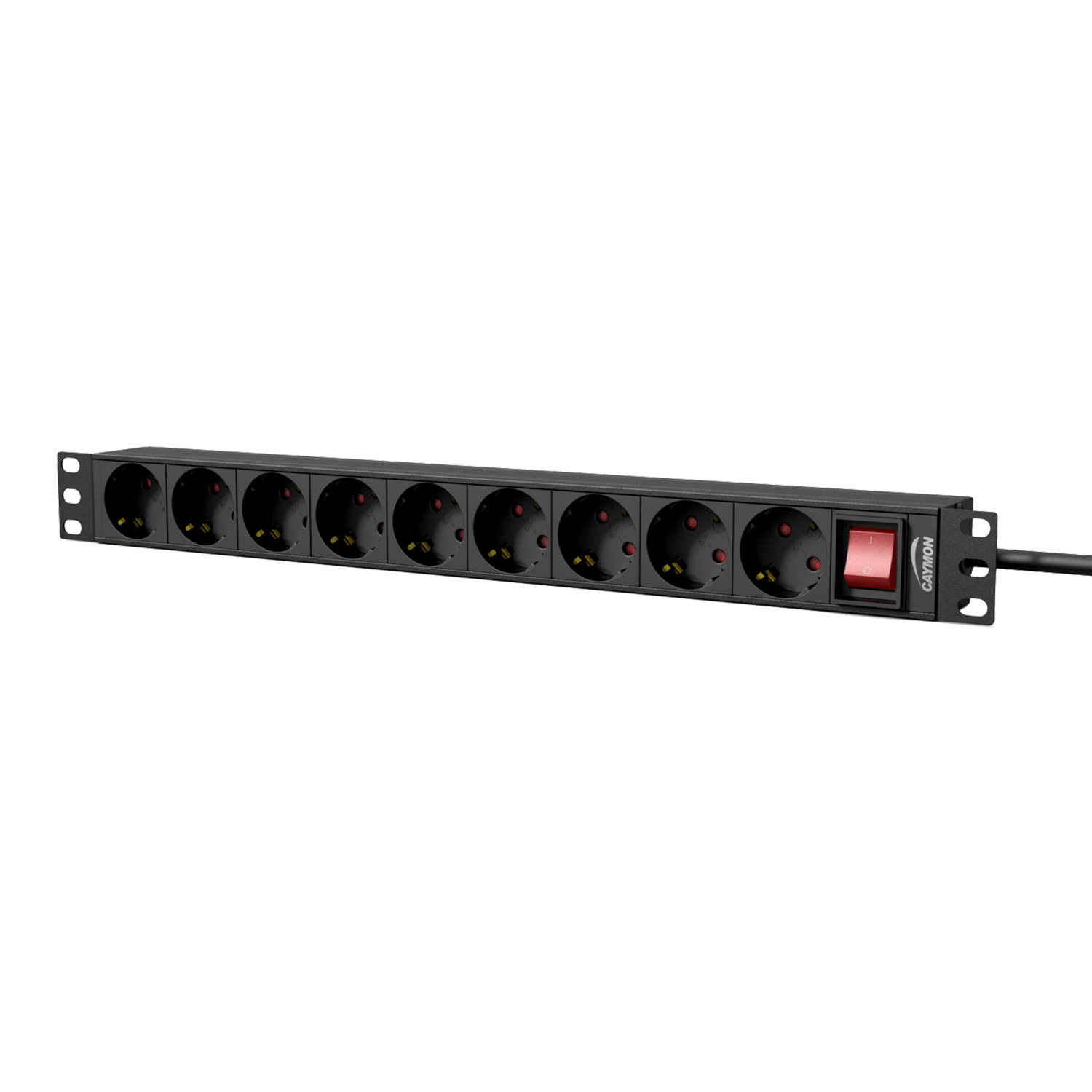

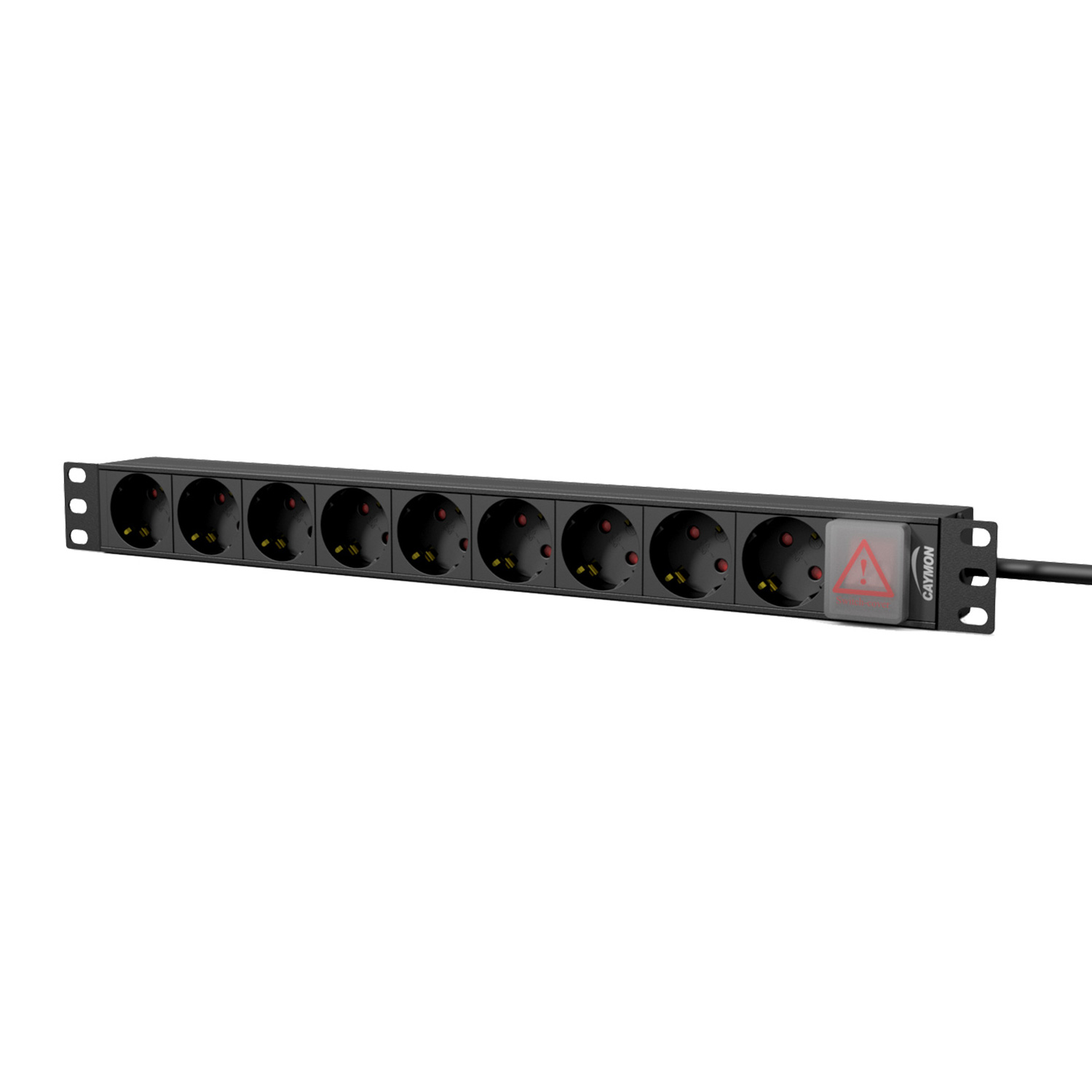

The PSR109GS power strip is a 19’’ power distribution unit, compliant with ANSI/EIA RS-310D, DIN41491, and IEC60297 standards

It features an illuminated switch on the socket side

The construction is made using black powder coated aluminum fitted with steel 19” mounting ears on each side

The total height covers a single 19” rackspace, allowing it to be installed in any 19” housing or equipment rack

Using the rotatable side ears, wall mounting is also made possible

Input connections are made using a fixed 2.5 meter connection cable fitted with a male schuko (CEE 7/7) plug, while German (Type F - CEE 7/4) output sockets allow power distribution to nine devices

A chassis earth connection point is provided for easily connecting your rack/enclosure to mains earth, as required by safety regulations

Specifications

• Dimensions: 482.6 x 44.4 x 45 mm (W x H x D)
• Cable length: 2.5 m
• Unit height: 1 HE
• Weight: 0.74 kg
• Power handling: 250 V AC ~ 16 A / 4000 W
