Vintage ambient lighting

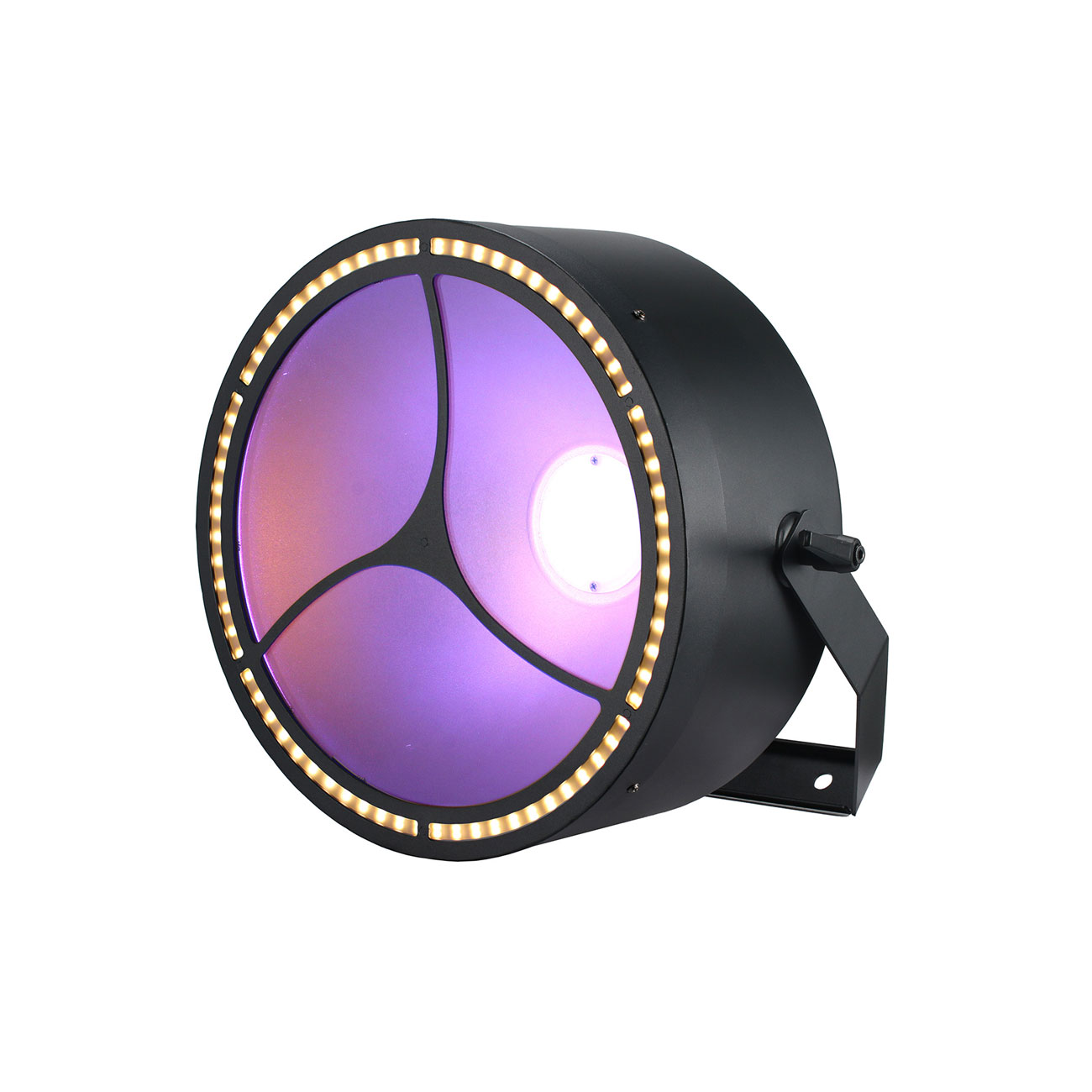

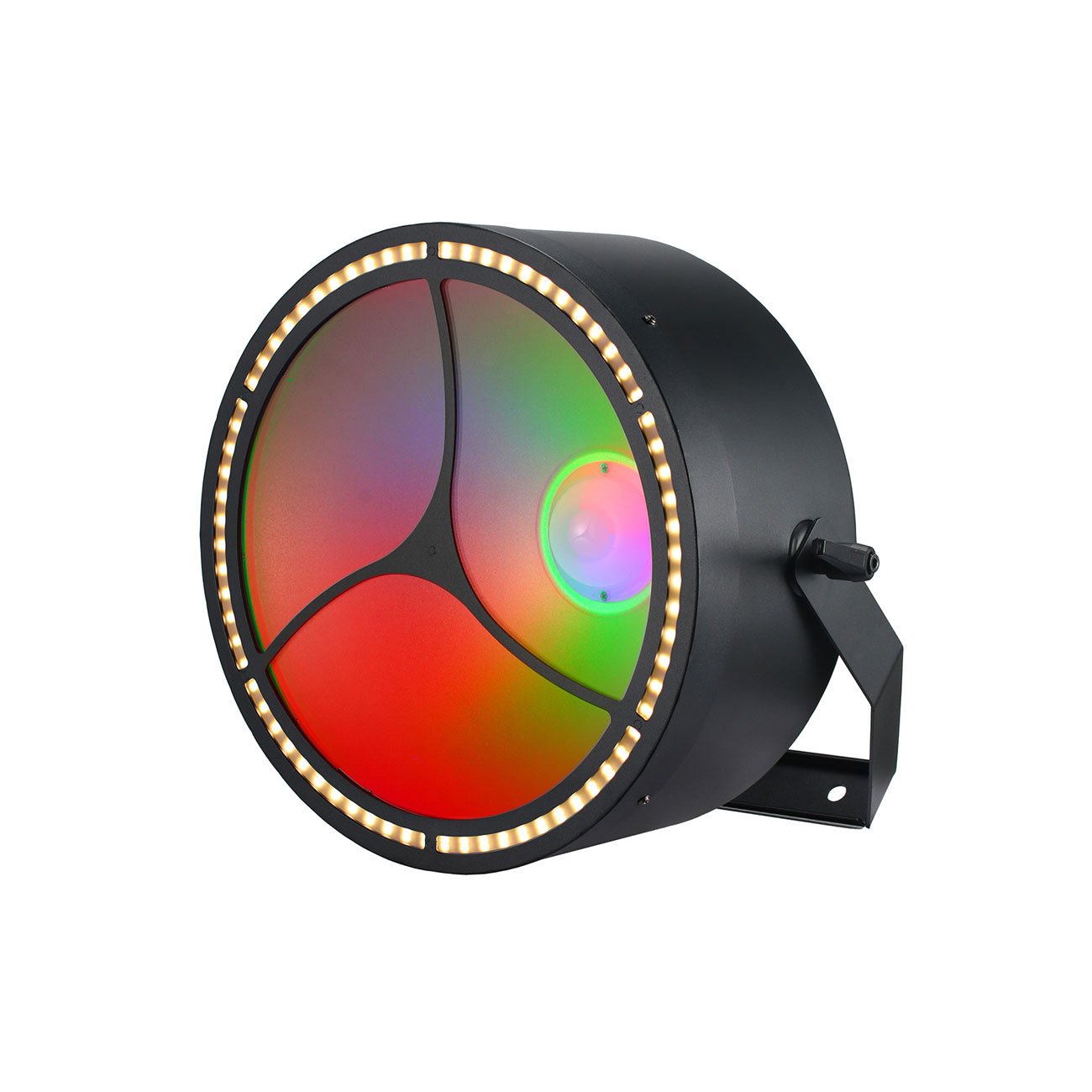

Featuring a 100W warm white central LED, complemented by 72 full-color RGB 5050 0.5W inner circle ring LEDs and 144 warm white 5730 0.2W outer circle ring LEDs. The fixture offers a light beam angle of 77° and a spot angle of 102°.

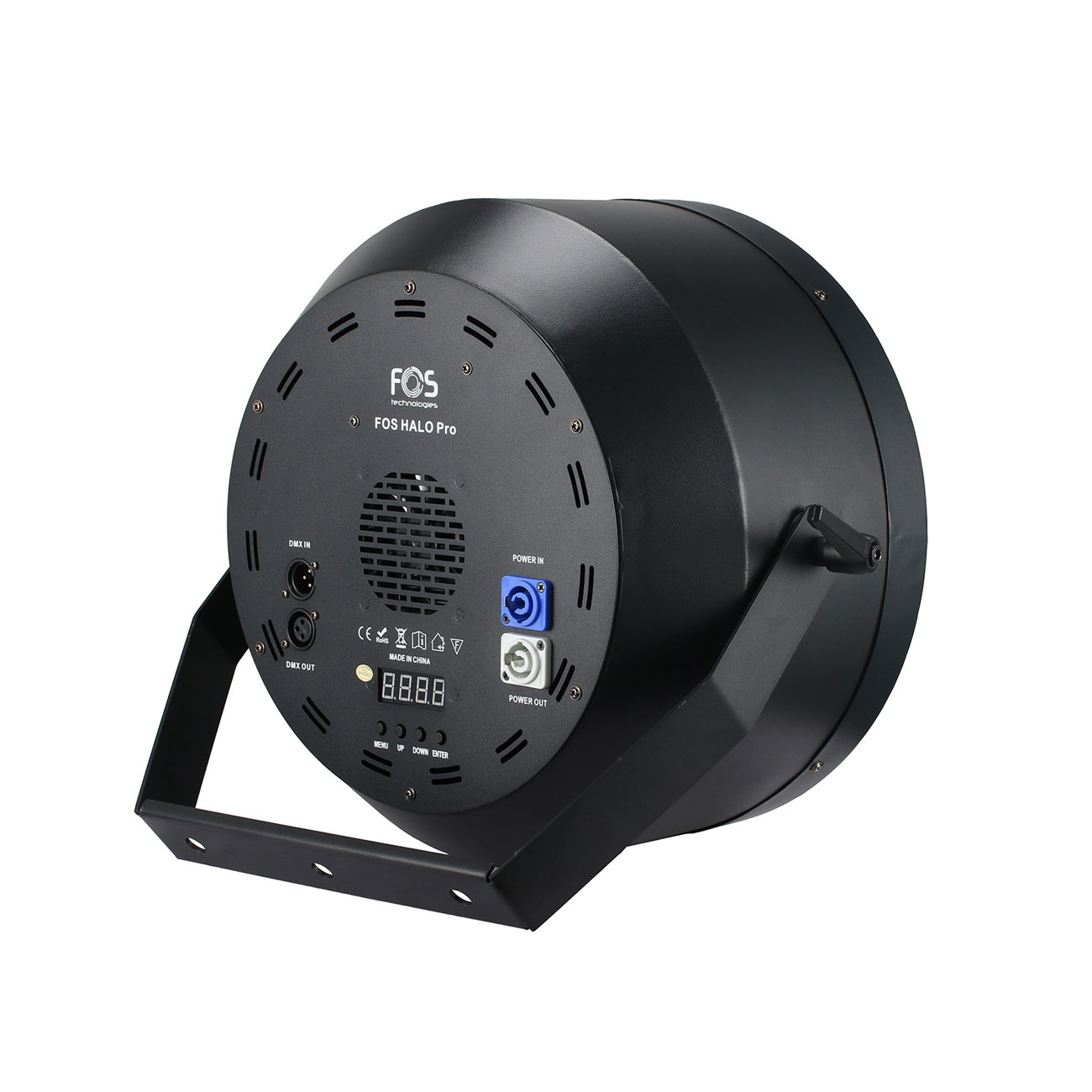

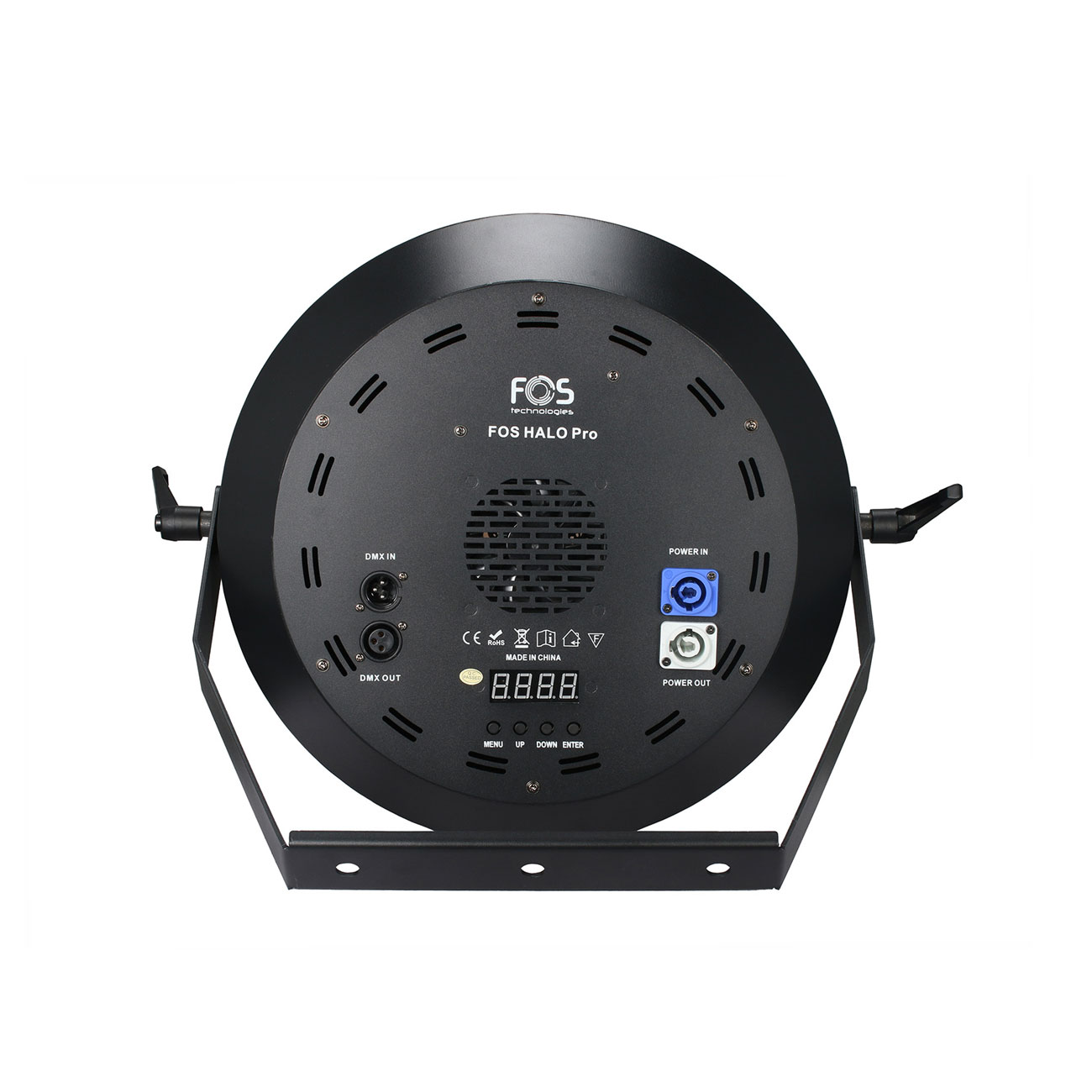

Constructed with durable aluminum housing, it supports 5CH, 13CH, and 16CH DMX channel modes and includes PowerCon in/out connections. Total weight: 6 kg.

The fixture is designed for versatility, making it ideal for various lighting applications, from stage performances to architectural installations. Its robust construction ensures longevity, while the multiple DMX channel modes allow for intricate control over lighting effects. With the added convenience of

PowerCon in/out connections, users can easily integrate it into existing setups, streamlining the installation process. Weighing only 6 kg, it remains portable without compromising on performance, making it a reliable choice for both professionals and enthusiasts alike.

Specifications

Light Source

• 100 Watt Warm White single/centre LED.
• 72x RGB 5050, 0.5 Watt
• 144x Warm White 5730, 0.2 Watt outer ring LEDs
• 77 to 102 degrees light field

Effects

• Warm white flood effect
• RGB background colour mixing, with uniform colours, or pixel chases/effects
• Front ring warm white effects with adjustable speed
• Dimming and strobe

Control

• DMX control, with 5, 13, or 16 channels
• Stand-alone, master slave, or sound-to-light operation

Technical Specifications

• Power input: 100/240V AC, 50/60 Hz
• Power consumption: 200W
• LED numeric display and mechanical buttons for the options menu
• IP20 protection against water jets and dust (indoor use only)
• Environmental temperature for operation: -5 °C to +45 °C
• Fixture dimensions: 38 x 22 x 37 cm
• Net weight: 5.5 Kg
• Packing dimensions: 45 x 45 x 29 cm
• Gross weight: 6.7 Kg
