Fos Technologies Scorpio BSW PRO
Fos Technologies Scorpio BSW PRO
- High-performance Beam/Spot/Wash moving head
- 300W LED 7500K with powerful white light
- 2.5° – 36° zoom for beam to wash versatility
- 10 colors + gobos (static & rotating)
- Frost, focus & 3-facet prism effects
- DMX control & PowerCon IN/OUT connectivity
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products

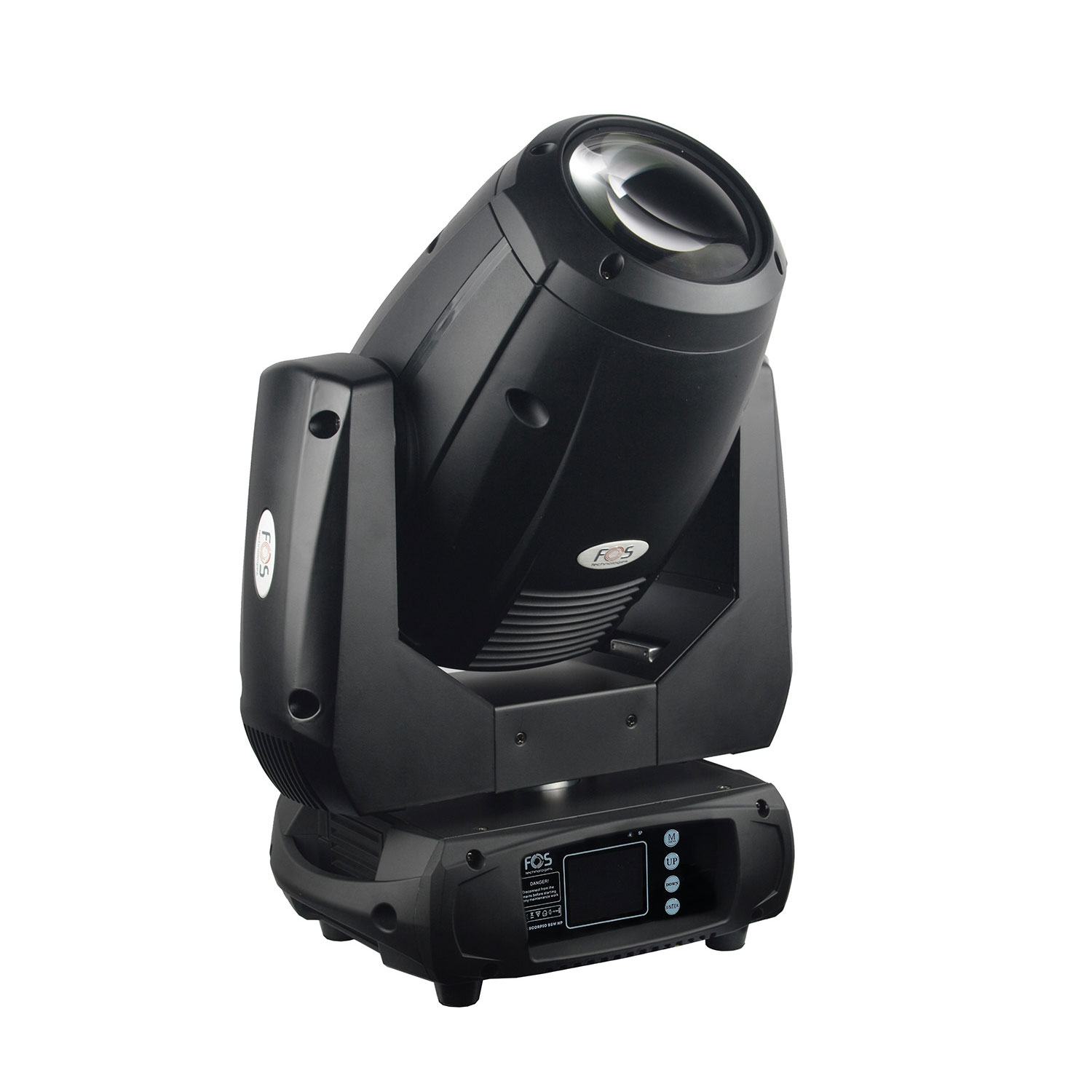

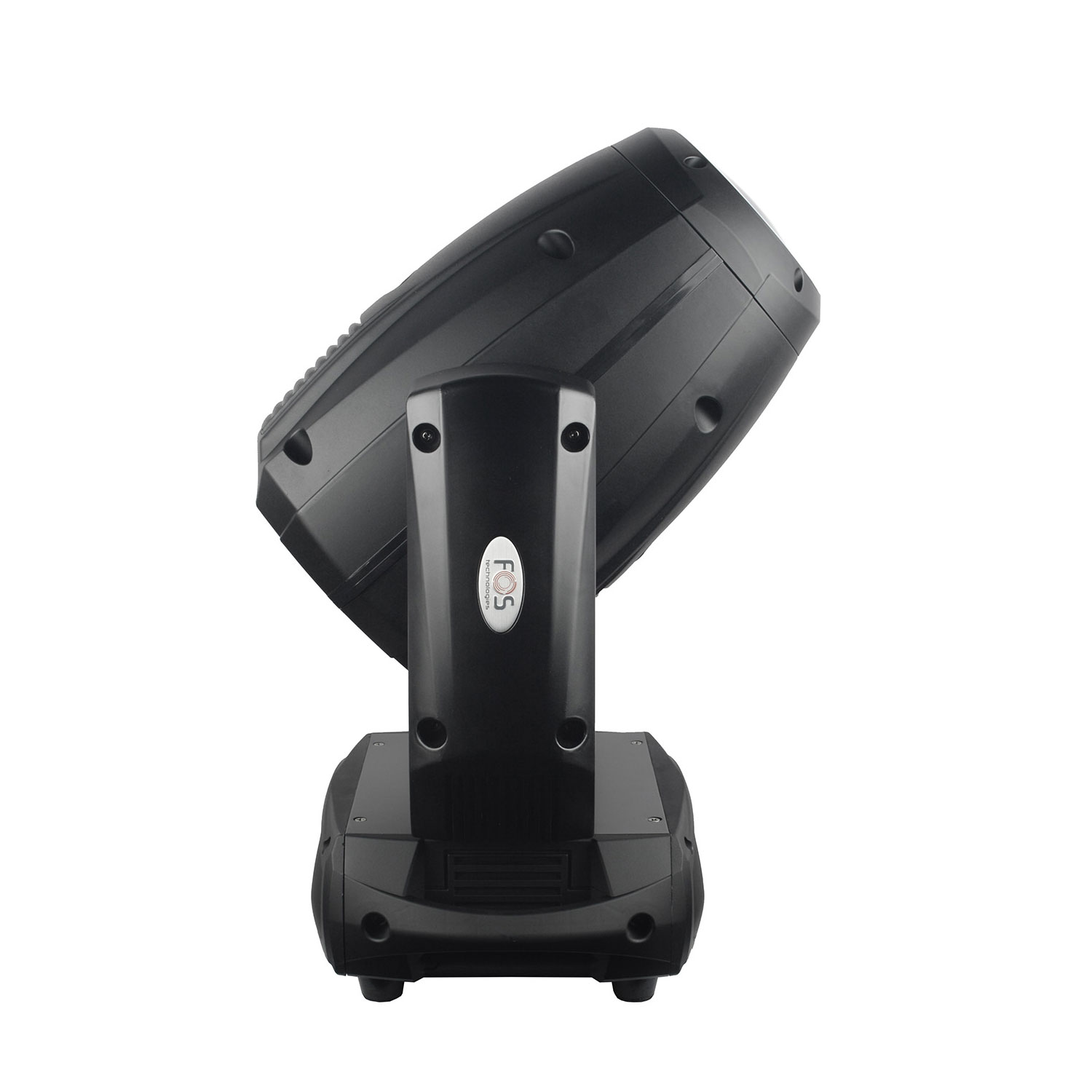

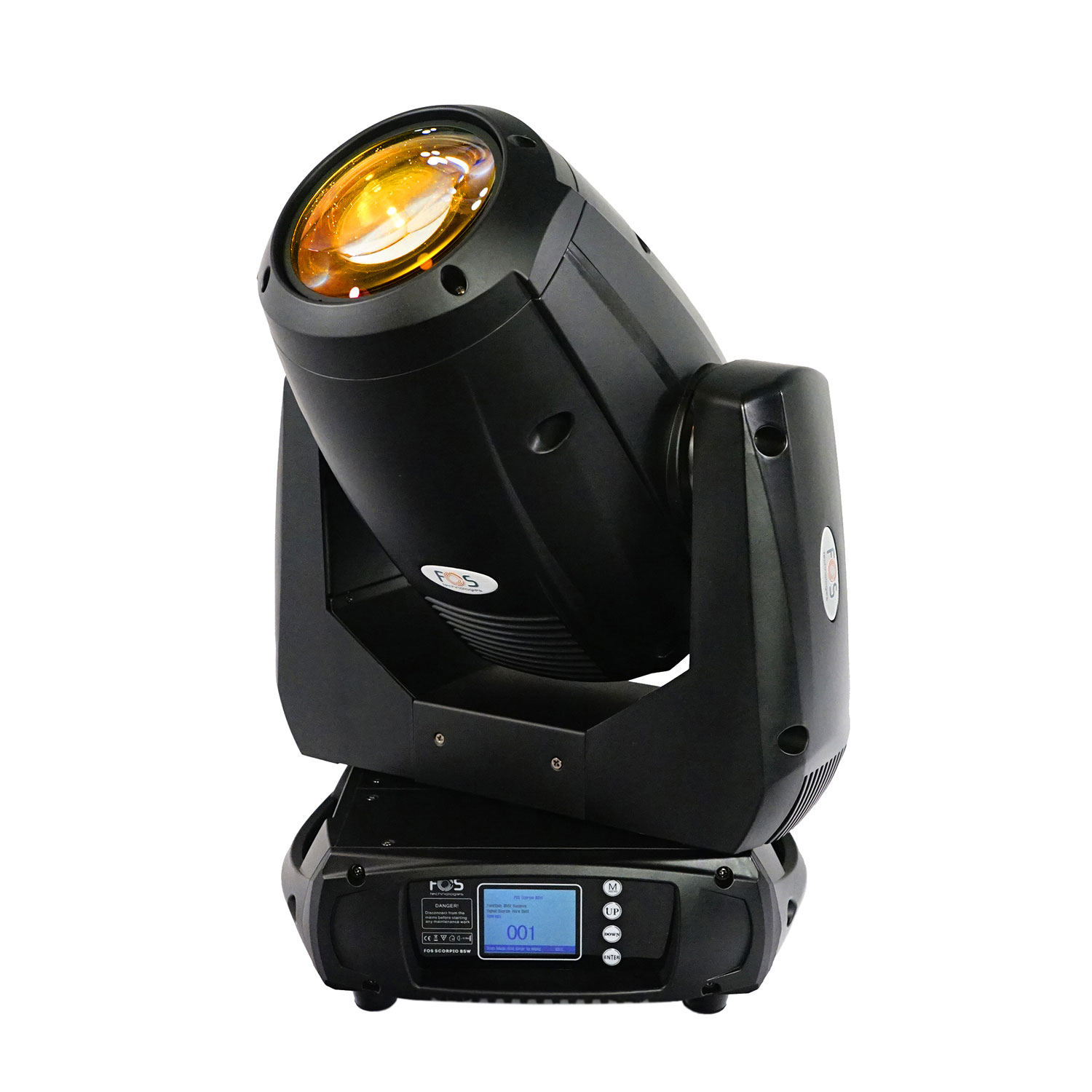

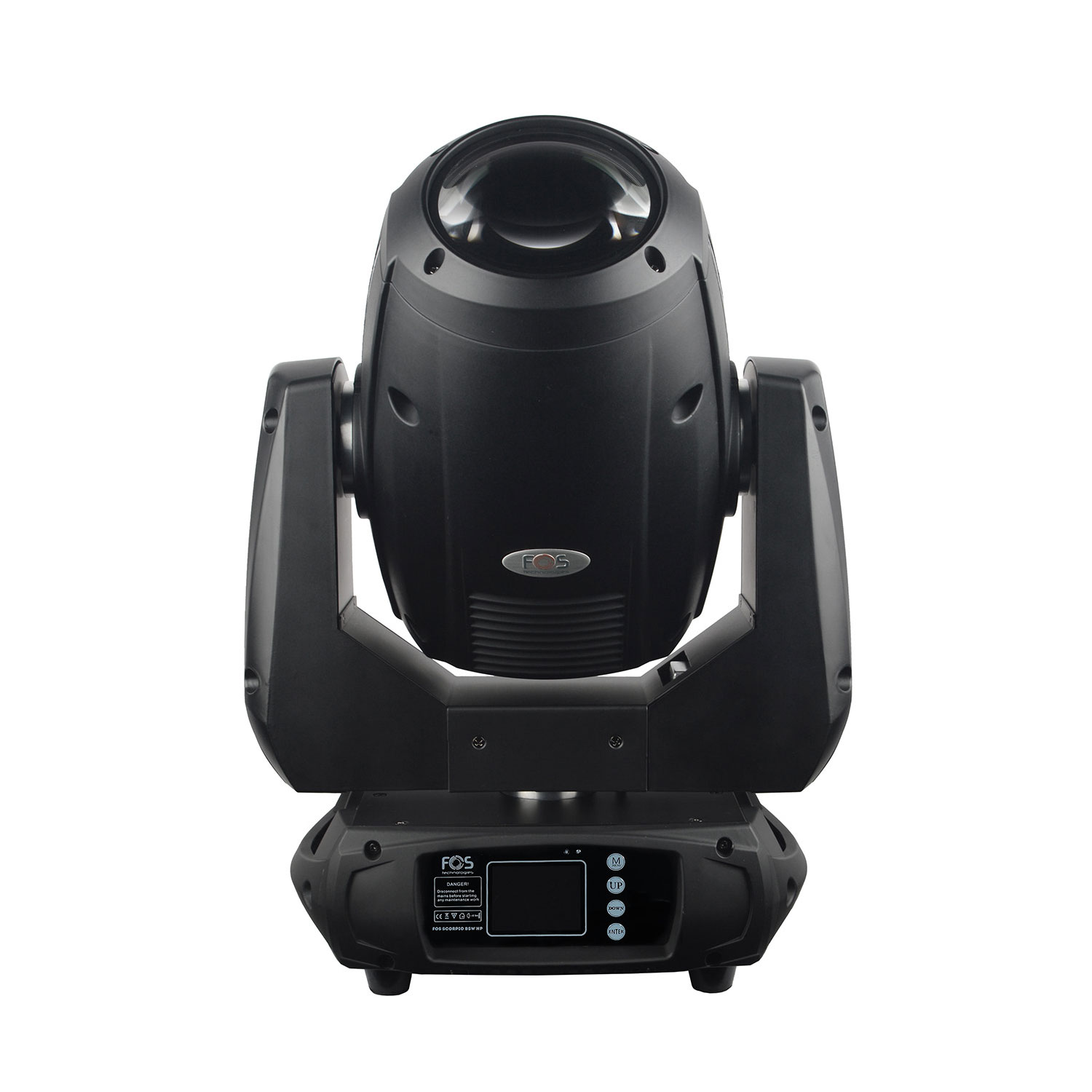

The FOS Scorpio BSW Pro is a professional high-performance Beam / Spot / Wash moving head, designed for demanding applications in concerts, theaters, television productions, and touring setups. It combines three lighting functions in a single fixture, offering maximum flexibility and powerful light output.

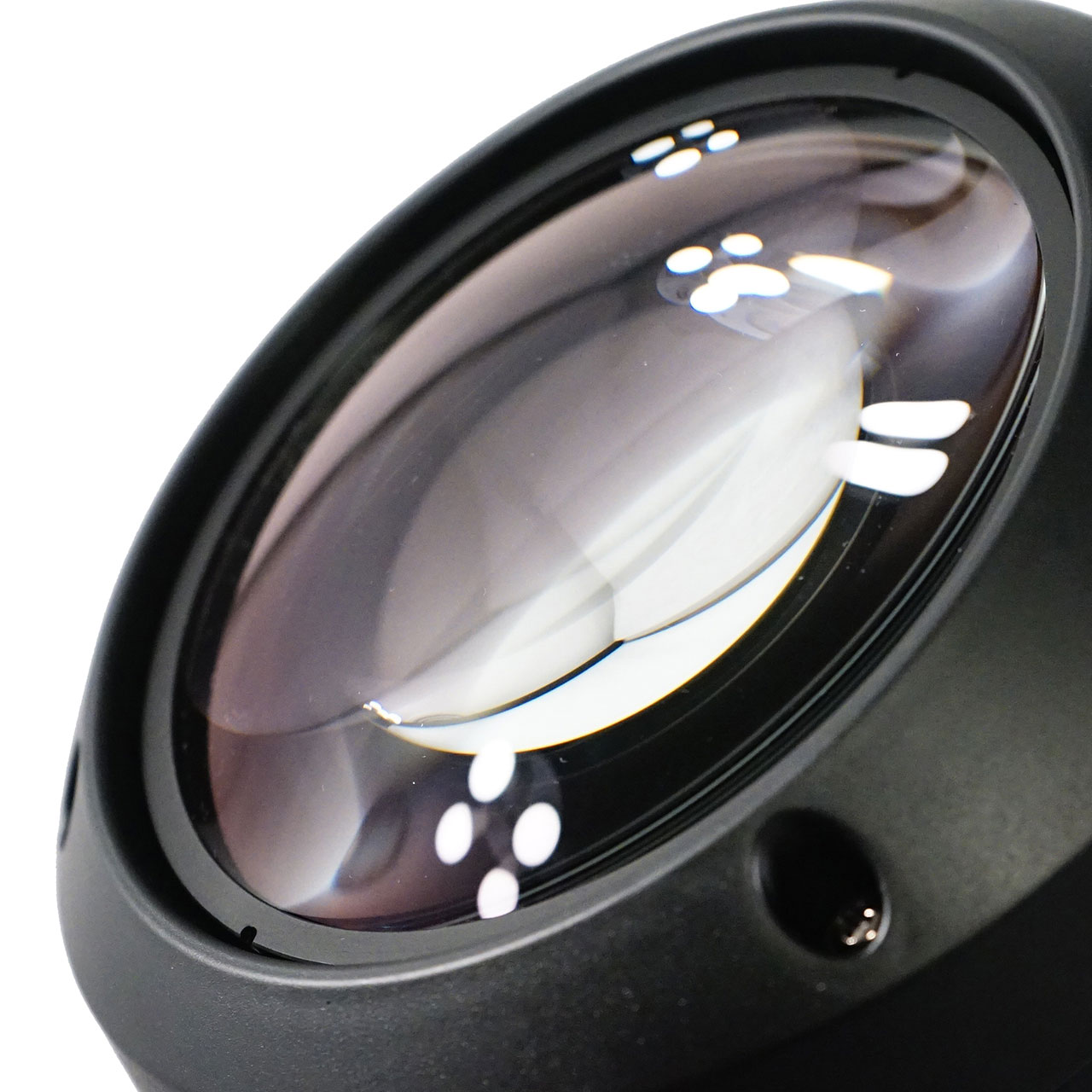

Its high-output 300W LED source at 7500K delivers intense brightness and a clean white light, making it ideal for large venues and professional stage environments. The anti-reflection 136mm front lens ensures high clarity and excellent beam quality.
It features a motorized zoom range of 2.5° – 36°, allowing seamless transitions from a tight beam to a wide wash, adapting to any stage design requirement.
The color system includes 10 fixed colors for fast changes and creative combinations, while the 15 static gobos and 7 rotating indexable gobos provide dynamic projection effects and high creative versatility.
Additional features include a frost filter for smooth wash effects, motorized focus for precise sharpness, and a 3-facet prism for impressive multi-beam visual effects.

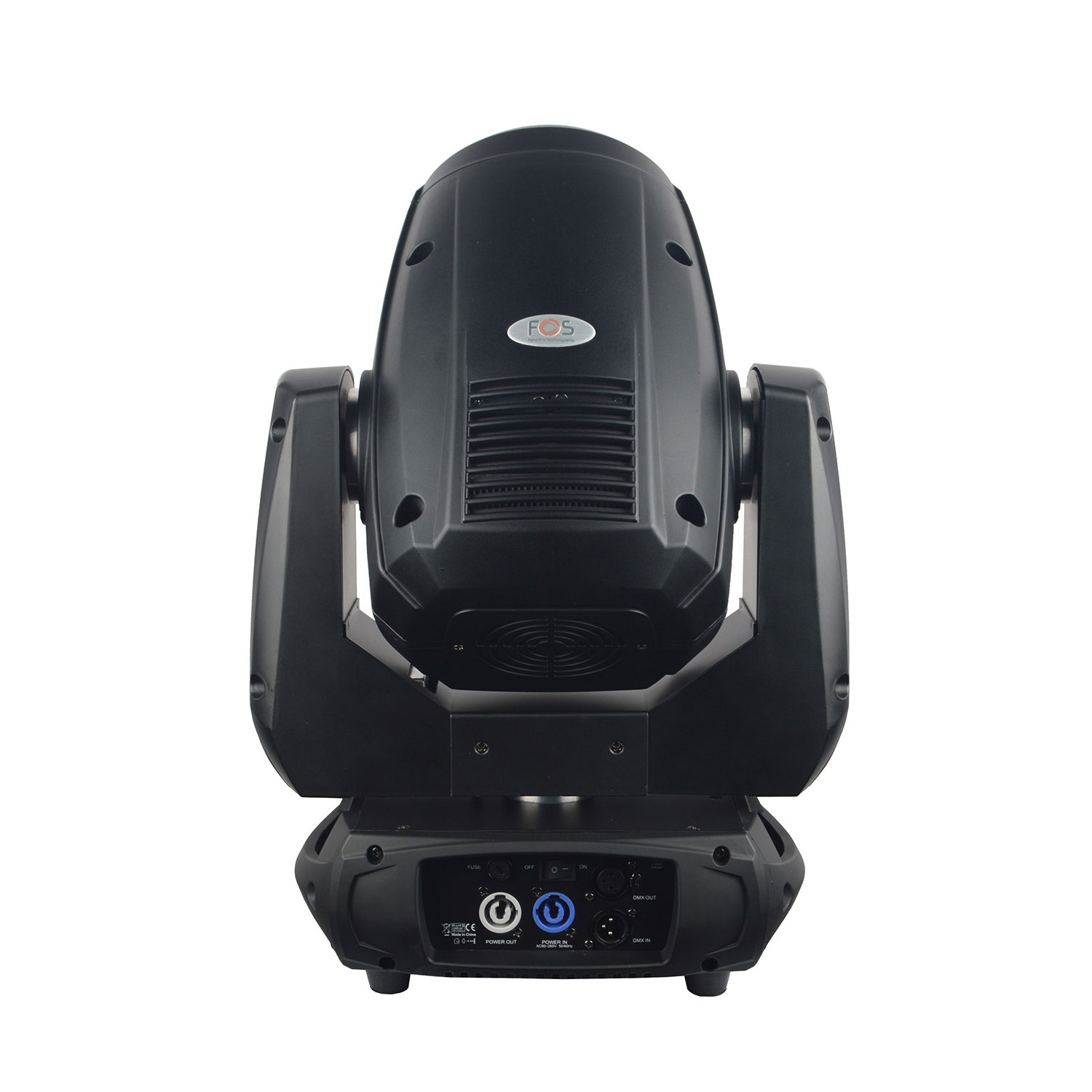

The professional PowerCon IN/OUT connectivity ensures safe and reliable power distribution, suitable for continuous operation and demanding installations.
Overall, the FOS Scorpio BSW Pro is a complete Beam / Spot / Wash lighting solution combining power, versatility, and advanced creative control.
Light Source / Optics
- 1x 300W high-output white LED (20,000 Lux)
- Color temperature: 7500K for bright, clean white light
- LED lifespan: approx. 50,000 hours
- Motorized zoom 2.5° – 36° for Beam, Spot, and Wash operation
- Uniform light beam with stable distribution
- Optical system with anti-reflection lenses for maximum clarity and efficiency
Effects
- 10 dichroic colors + white
- 1 static gobo wheel with 15 gobos + open
- 1 rotating gobo wheel with 7 gobos + open (Ø23mm / inner Ø10mm)
- Frost filter for smooth wash effect
- Motorized zoom & focus (2 – 20 meters)
- 3-facet rotating prism for multi-beam effects
Control
- Control modes: Master/Slave, Auto, Sound active, and DMX
- Selectable 17, 15, or 19 DMX channels
- Pan: 630°, 540° & 360° modes
- Tilt: 270°, 180° & 90° modes
- Auto reposition for accurate Pan/Tilt recovery
- Temperature-controlled fan cooling system
Specifications
-
Operating voltageAC 90–260V, 50/60Hz
-
Power consumption340W
-
Noise level46 dB @ 1m
-
Protection ratingIP20
-
Dimensions356 × 224 × 492 mm
-
Packing dimensions510 × 470 × 650 mm
-
Net weight13.3 kg
-
Gross weight16 kg
