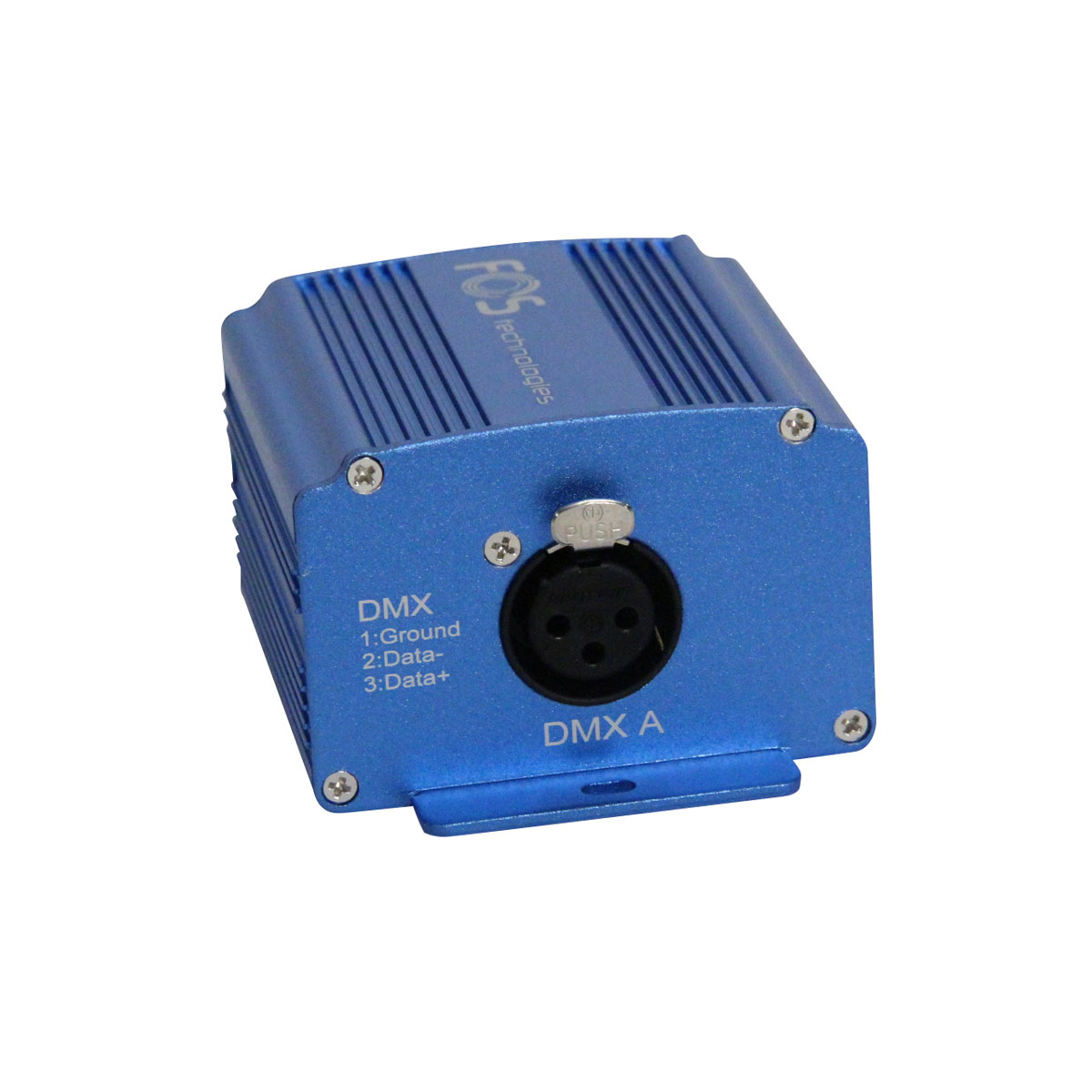

512 Dmx channels interface

LED Player

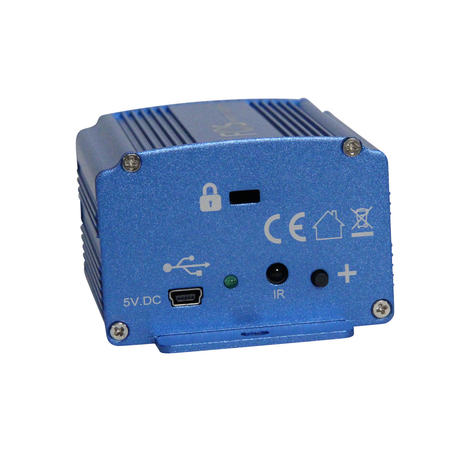

Mini USB 2.0

Infra Red Remote Control

5 V. DC USB Power supply

Default scene triggering when power up

Χαρακτηριστικά

Main Software Features

• Languages now available : French, English, Spanish, Chinese, German, Italian, Korean, Japanese, Czech, Portuguese, Dutch, Italian, Polish, Russian
• User-friendly Editor mode to program scenes
• Effect-generator for Colors (RGB) and Pan/Tilt (X/Y) movements
• Graphical DMX addressing for 128 DMX Universes via the Patch
• Complete Profile Editor, easy and fast to operate with more than 7,000 existing library files (Profiles)
• Advanced Matrix Editor to allow all LED pixel configurations
• Device's memory to write scenes and trigger sequences under Stand Alone mode
• User firendly and effective Live Board mode to play and trigger
• Compatibility with 32/64 bit systems (Windows, Mac Os X, Linux)
• Free, downloadable updates
• Can modify the DMX signal speed and allocated DMX universes
• Includes a smart-phone communication to command the live board

Stand Alone

• Organize and schedule scenes by time and date in chronological order and to write them in to the dedicated device memory
• Graphic Timeline to display an overview of all the Time Triggers effective without computer
• Setup the output channels number, number of universes
• Assign triggers to interfaces buttons
• Setup Infrared remote triggers + External contacts I/O
• Setup a default start scene
• Mast/Slave mode to synchronize up to 64 interfaces together in SA

Live Board

• Mouse, Keyboard, MIDI and DMX IN allowed in Live Board
• Multiple Program Triggers with latest priority management
• Can play several Program buttons at the same time
• Graphic, customizable and user friendly Live Board mode for triggering scenes, programs and sequences, touch screen operated
• Scenes can play Audio files (MP3, Wave)
• Color, Dimmer, Speed, Black Out, Pause can be managed in Live manually or with keyboard keys
