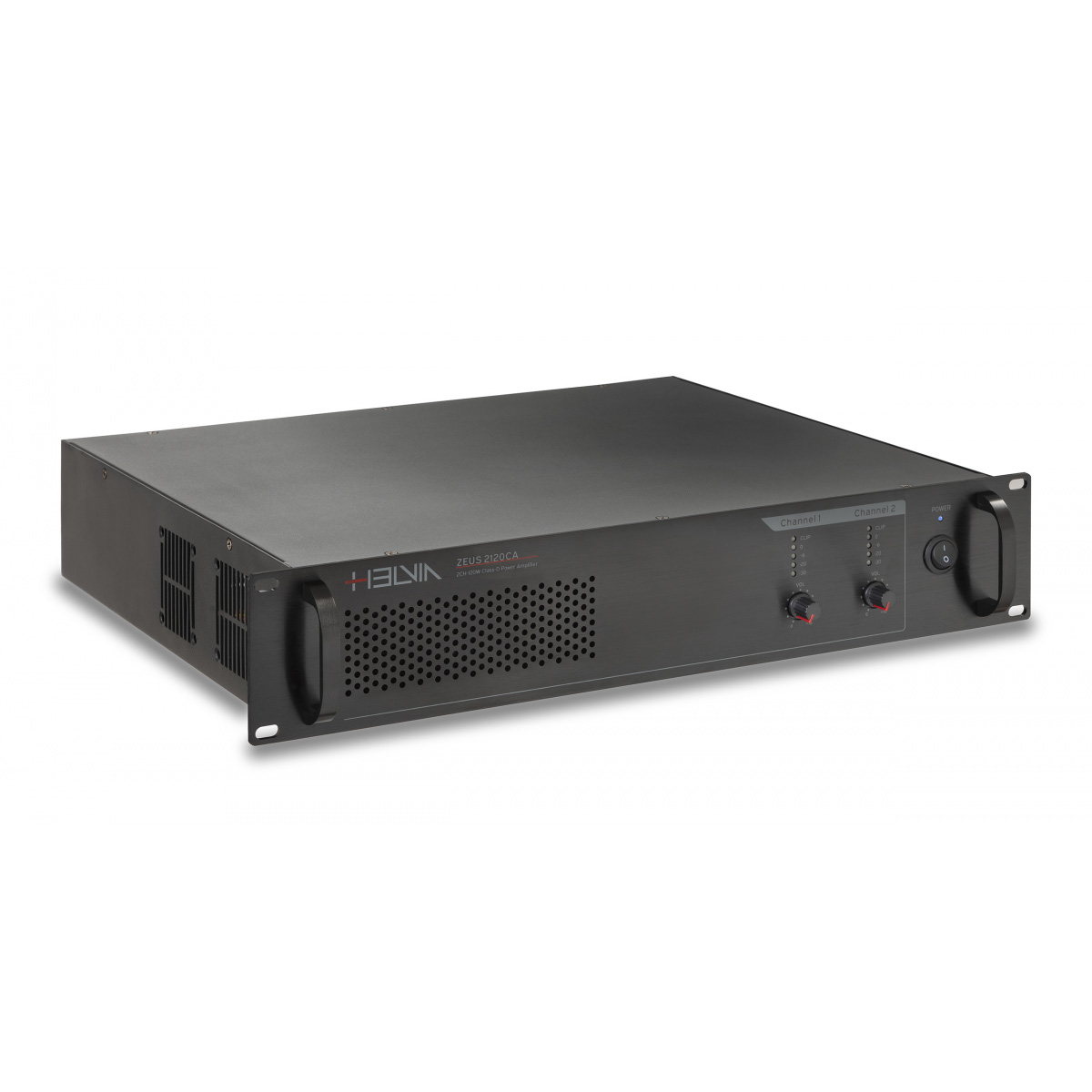

Helvia ZEUS 2120CA
Helvia ZEUS 2120CA
- Class D
- 2x120W @ 100V / 4Ω
- Frequency Response: 80Hz–20kHz / 400Hz–20kHz
- Damping Factor: >300 @ 100Hz
- THD (1W @ 1m): < 0.1%
- 2U 19” rack-mountable
- Dimensions: 484 x 400 x 88 mm | Weight: 9.6 kg
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products
HELVIA ZEUS 2120CA | Four-Channel Power Amplifier 2x120W 100V / 4Ω
The HELVIA ZEUS 2120CA amplifier is designed for small to medium-sized commercial audio systems, supporting both constant voltage lines (70V / 100V) and low-impedance connections ranging from 4 to 16 ohms
Each channel operates independently and includes its own line transformer, allowing selection between 70/100V and 4–16Ω low impedance, ensuring maximum flexibility for the specific needs of each zone
In addition to volume control, each channel offers LED VU-meter and clip indicators, as well as gain adjustment on the rear panel
A high-pass filter (HPF) is included, with a cutoff frequency set at 400Hz
Inputs and outputs are balanced XLR connections, while all power outputs use Phoenix (Europlug) terminals
Each channel is equipped with power-on muting, signal limiter, thermal protection, and current limiting
The cooling system includes a temperature-controlled fan, and the standard 19” 2U rack-mount chassis improves heat dissipation
The quality is ensured not only by the careful selection of active and passive components, but also by the materials used in the line transformers and the digital processing, which provides stability, reliability, and high-level audio performance
Key Features
- Class D
- 2 x 120W @ 100V / 4Ω
- HPF: ON = 400Hz–20kHz; OFF = 80Hz–20kHz
- Frequency Response: 80Hz–20kHz / 400Hz–20kHz
- Damping Factor: >300 @ 100Hz
- THD (1W @ 1m): < 0.1%
- 2U 19” rack-mountable
- Dimensions: 484 x 400 x 88 mm
- Weight: 9.6 kg
Main Features
-
100V RMS Output Power2x120W
-
70V RMS Output Power2x120W
-
4-16Ω RMS Output Power2x120W @ 4Ω
-
Input Sensitivity1V/Gain max @ 0.775V
-
Input Impedance20KΩ ±10%
-
HPF FilterON = 400Hz-20kHz; OFF = 80-20kHz
-
Frequency response80-20kHz/ 400Hz-20kHz
-
THD (1W @ 1KHZ)< 0.05%
-
Damping Factor>300 @ 100 Hz
-
Crosstalk＞70dB
-
S/N Ratio＞85dB
-
Amplifier ClassClass D
-
Power RequirementsAC 230V
-
Power Consumption (Average/Peak)300W
-
Input Connectors3-Pin Female XLR
-
Output Connectors5-Pin Phoenix
-
Ch Output Connectors3-Pin Male XLR
-
CoolingTemperature controlled fan
-
Dimension (WxDxH)484x400x88 mm
-
Rack Mount2x 19" Rack Units
-
Weight9.6 kg
