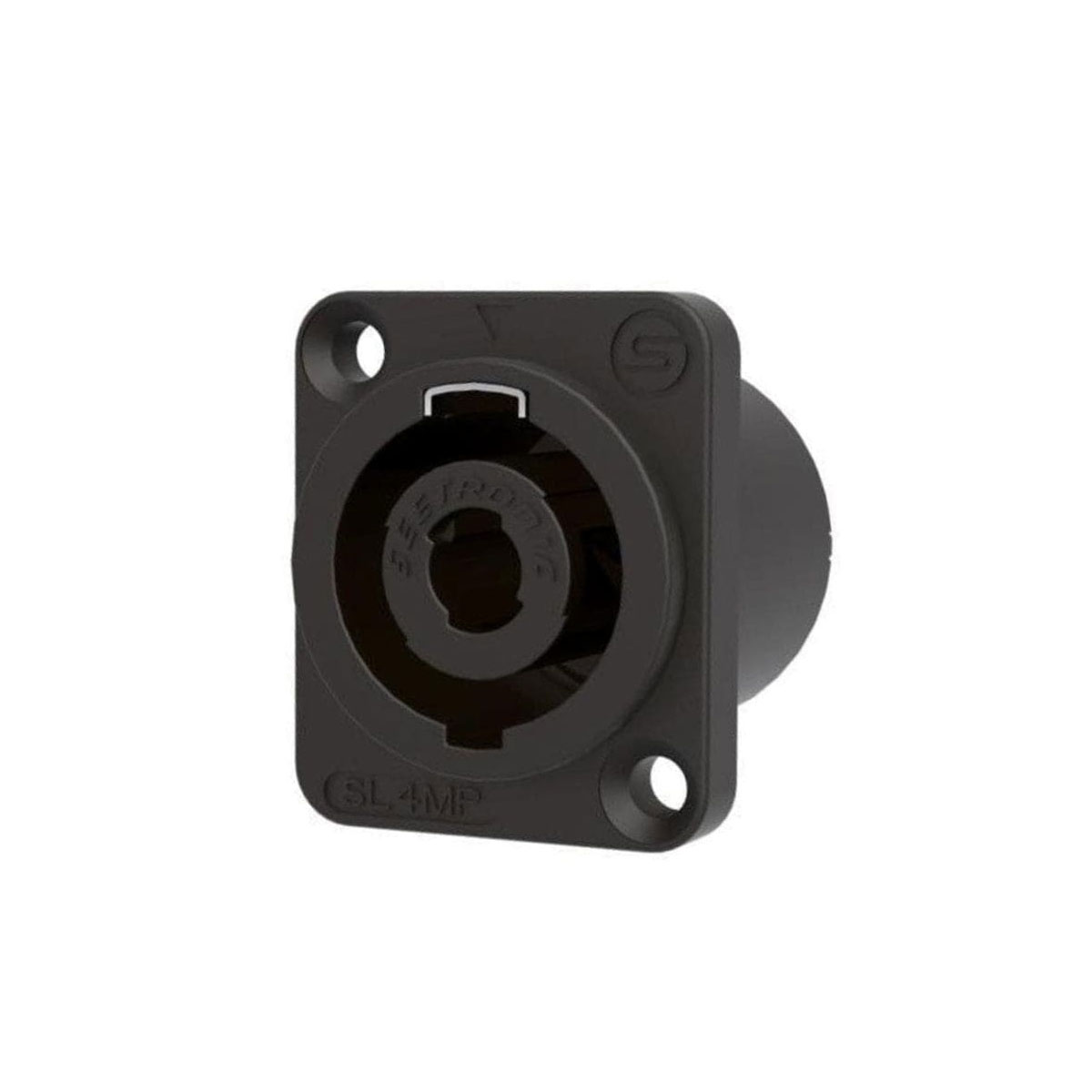

The SEETRONIC SL4MP is a professional 4-pole Speakon chassis connector, designed for safe and reliable speaker connections in professional audio systems. It features a black D-size plastic flange for easy mounting on standard panels and an extremely robust construction suitable for demanding applications.

With a rated current of up to 30A RMS, the SL4MP provides high performance and reliable power signal transmission. The silver-plated copper alloy contacts ensure excellent conductivity, low contact resistance, and stable operation, while the construction supports more than 1000 mating cycles.

Suitable for professional loudspeakers, PA systems, live applications, and audio installations, offering reliable performance under demanding operating conditions.

Features

• 4-pole Speakon chassis connector
• Black D-size plastic flange for easy panel mounting
• Rated current up to 30A RMS
• Rated voltage 250V AC
• 4 contacts with silver plating (Ag)
• Extremely robust construction with more than 1000 mating cycles
• Low contact resistance ≤ 3 mΩ
• Dielectric strength 4KV DC
• Insulation resistance >1 GΩ
• PA housing material with UL94-V0 flame-retardant rating
• Operating temperature range: -30°C to +80°C
