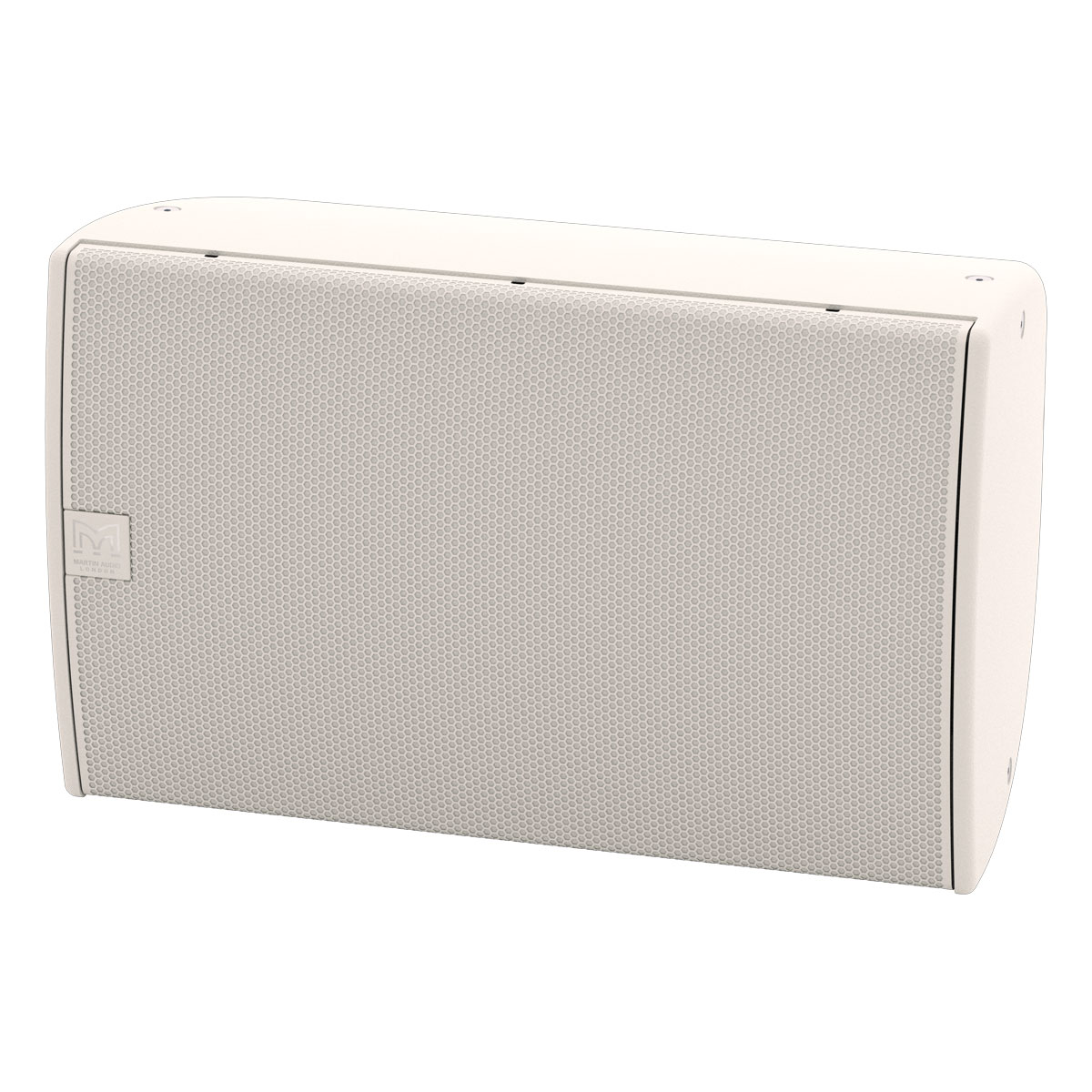

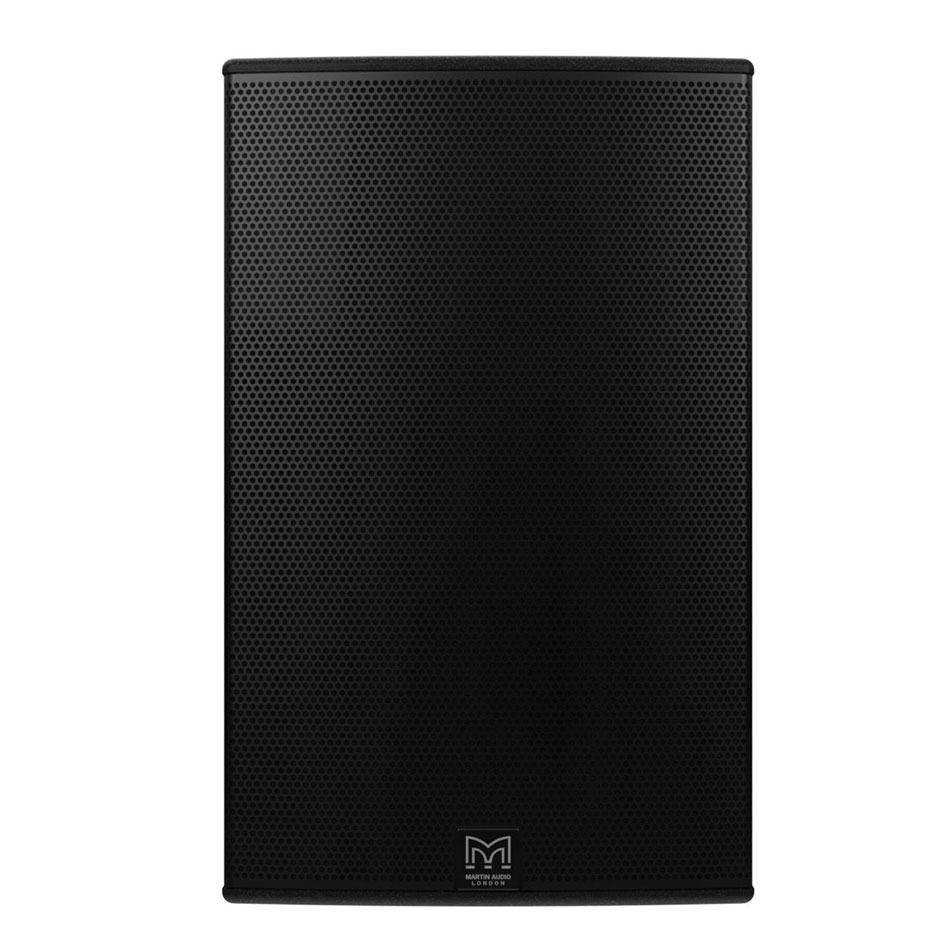

15" Passive Speaker

Ideal for medium to large rooms, the CDD15 is a high-power passive two-way system, designed for installations that demand ultimate sonic performance from a single enclosure.

It combines very high output capability with exceptional fidelity and consistent coverage.

The coaxial driver unit features a powerful 15" (380mm) / 3" (75mm) voice coil LF driver and a 1.4" (35mm) exit HF compression driver with a 3" (75mm) pure titanium diaphragm.

Specifications

• Type: High-output, Coaxial Differential Dispersion passive two-way system
• Frequency Response: 55Hz–18kHz ± 3dB, -10dB @ 45Hz
• Drivers:
• LF: 15" (380mm) / 3" (75mm) voice coil, long excursion, shared ferrite motor system with HF
• HF: 1.4" (36mm) exit / 3" (75mm) voice coil, titanium dome compression driver
• Power Handling: 400W AES, 1600W peak
• Sensitivity: 100dB
• Maximum SPL: 126dB continuous, 132dB peak
• Nominal Impedance: 8Ω
• Dispersion (-6dB): 100˚–60˚ horizontal, 60˚ vertical (user-rotatable)
• Crossover: 1.6kHz passive
• Enclosure: 68 litre, birch plywood
• Finish: White textured paint
• Protective Grille: White perforated steel with scrim cloth backing
• Connectors: Low-profile 20A push-lock
• Pin Connections: Left to right: Input+, Input-, Link-, Link+
• Fittings: 10 x M8 fly points included
• Dimensions: 432 × 685 × 413 mm
• Weight: 26kg
