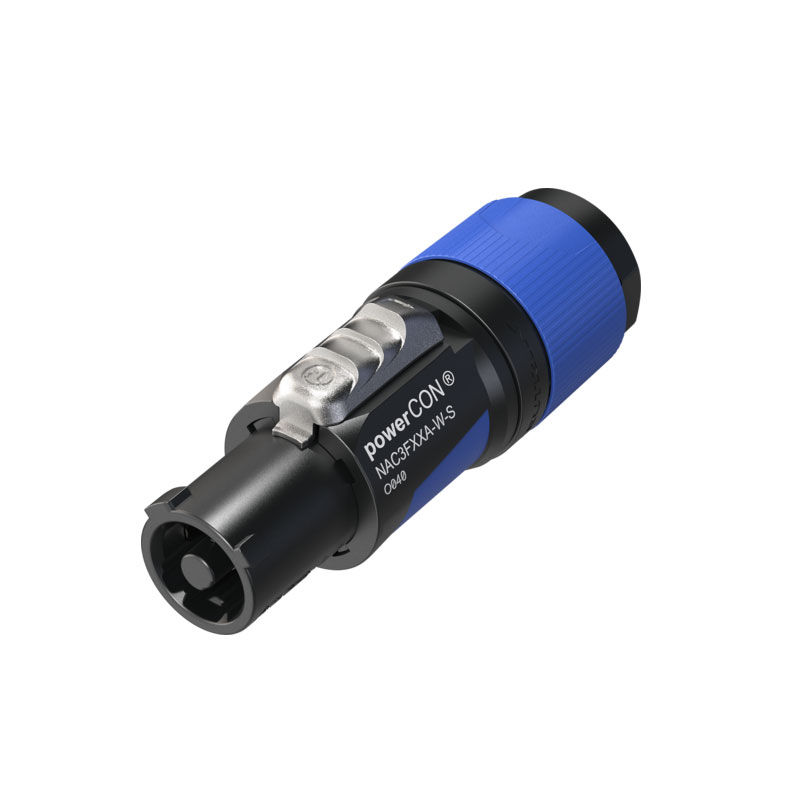

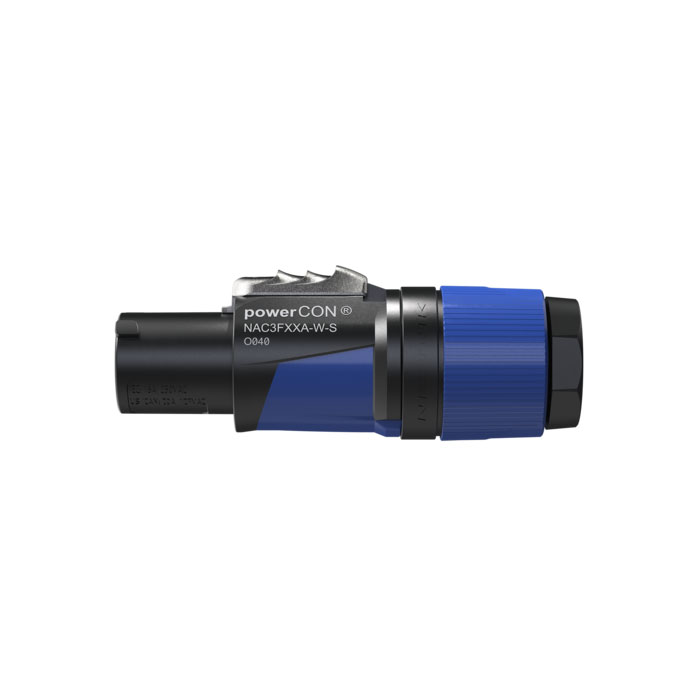

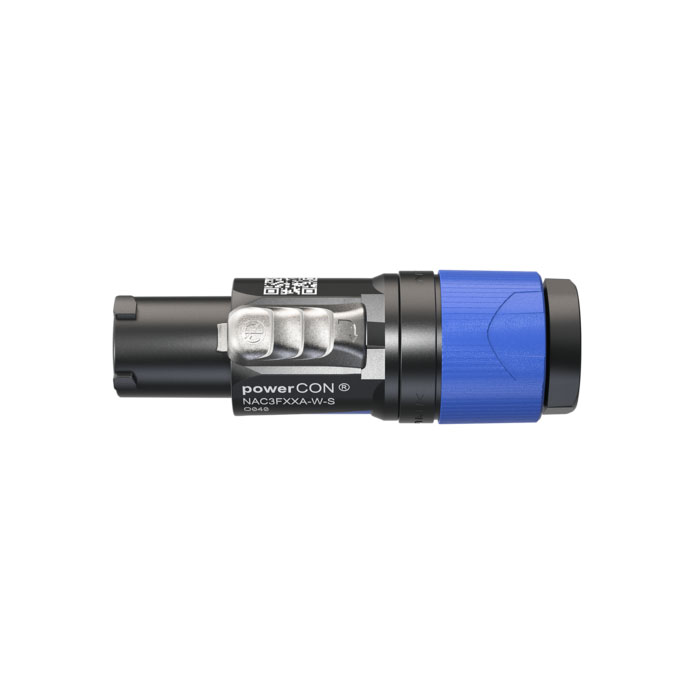

Βύσμα τροφοδοσίας AC, εισόδου, μονοφασικό, προεκτάσεως για καλώδια διαμέτρου 6-12 mm (1.5 x 2.5 mm²), χρώμα μπλε

Χαρακτηριστικά

• Title: NAC3FXXA-W-S
• Connector series: powerCON blue/grey

Electrical

• Contact resistance: ≤ 2 mΩ
• Dielectric strength: > 3 kVac (after mating cycles)
• Insulation resistance: > 10 GΩ (initially)
• Number of electrical contacts: 2 + PE
• Rating Europe: EN 60320-1: 16 A 250 V AC, CBC

Mechanical

• Cable O.D.: 6 - 12 mm
• Lifetime: Typically 5’000 mating cycles
• Wiresize (mm²): 1.5 – 2.5 mm²
• Wiresize (AWG): 16 – 12 AWG
• Locking device: Twist lock
• Termination: Screw type terminals

Material

• Contact plating: Ag
• Contacts: Copper Alloy
• Insert: Polyamide (PA6.6)
• Locking element: Zinc diecast
• Shell: Polyamide (PA6) / TPE
• Strain relief: Polyketone
• Bushing: Polypropylene / TPE

Environmental

• Temperature range: -33 °C to +80 °C
• Protection class: IP20
• Flammability acc. to UL94: V-0
