Allen & Heath XONE:24C
Allen & Heath XONE:24C
- Compact, hybrid DJ mixer
- With high-quality USB-C interface
- High-gain, low-noise RIAA preamps
- Dual Phono/Line inputs
- 3-band isolator EQ
- Incorporates the Xone:VCF for creative sound shaping
- Mini innoFADER crossfader
- Master Insert FX loop
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products
Xone:24C is a compact 2+1 channel hybrid DJ mixer that blends analogue sound quality with flexible digital connectivity.
Essential Tools. Professional Sound
Building on the foundations of the all-analogue Xone:24, the Xone:24C adds a high-quality USB-C interface and powered USB hub for easy integration with DVS, streaming, and production setups.
Built for smaller spaces, home setups, or mobile rigs, Xone:24C delivers the same core tools found in flagship Xone mixers – including the Xone filter and mini InnoFADER – in a compact and accessible format. It doesn’t matter if you’re learning your craft, performing live, listening at home, or creating in the studio, the Xone:24C offers a no-compromise path into the world of Xone.
Hybrid Workflow. Simplified
Whether you’re using timecode vinyl, streaming live sets, or integrating with a DAW, Xone:24C offers plug-and-play digital connectivity while retaining the unmistakable feel and sound of a true analogue mixer.
Its class-compliant 96kHz USB audio interface delivers pristine sound quality with three operating modes – Streaming, DAW, and DVS Pro – to simplify setup.
The powered USB-C hub ports allow connection of controllers like the Xone:K series, or any class-compliant USB-C MIDI/audio device, creating a simple, centralised connection hub.
Additionally, MIDI is output from key mixer controls to the connected host system.
The Sound of Analogue
At the heart of the Xone:24C is the meticulously engineered all-analogue signal path, designed to deliver the clarity, warmth and punch that define the Xone sound.
A pair of high-gain, low-noise RIAA preamps ensures faithful reproduction of vinyl sources, while the matched Phono/Line inputs allow seamless switching between decks and digital players without compromising gain structure.
The 3-band isolator EQ offers precise, creative control for sculpting your mix, from swapping bass lines to expressive transitions.
Underpinning it all is carefully tuned, pure analogue summing that delivers deep, powerful low end and open, detailed highs, giving your mixes that professional full-bodied sound that can only be achieved in an analogue mixer.
Legendary Xone Filter
Incorporating a filter design inspired by Allen & Heath’s flagship Xone mixers, the Xone:24C includes an iconic Xone:VCF for creative and precise sound shaping, offering low-pass and high-pass modes, frequency sweep, and the renowned mild-to-wild resonance control.
Built to Perform
Xone:24C features the Mini innoFADER crossfader, trusted by DJs worldwide for its smooth response and durability. Backlit switches, responsive metering, and comprehensive I/O round out a mixer built to deliver reliable performances, no matter where you find yourself performing.
Flexible Effects Integration
The Xone:24C introduces a Master Insert FX loop, offering easy integration with external effects via rear-panel send/return connections, making it simple to integrate the most popular effects hardware into your mixes. For venues, the Master Insert can be connected to dynamic processors, offering control over the main output for environmental or system management needs.
Specifications
-

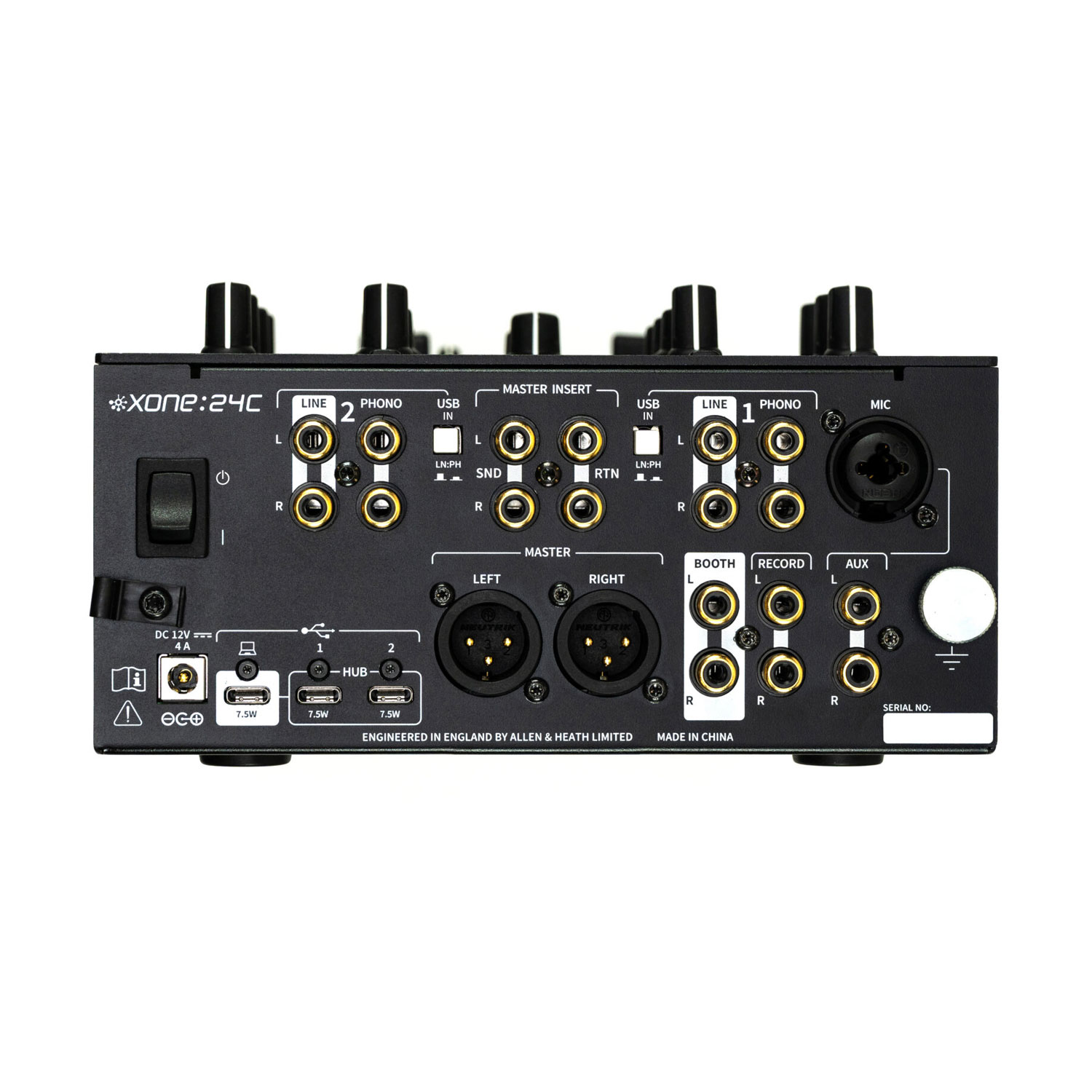

TypeHybrid - Analogue + Internal USB-C Soundcard and Dual-port USB-C hub
-
Channels2 + 1
-
CH1&CH2Phono/USB/Line
-
AUX CHMic/USB/Line
-
Line Inputs3 x RCA (CH 1 & 2 + Aux CH)
-
Phono Inputs2 x RCA (CH 1& 2)
-
RIAA Gain+42dB @ 1kHz, 6mV RMS= 0VU @ 1kHz
-
Mic Input1 x Combi (XLR + TRS)
-
Mic Gain+40dB, EIN = -115dB @ 40dB gain with 150R source
-
Master Output1 x XLR (Balanced)
-
Level+4dBu (Nominal), +22dBu (Max)
-
Residual Noise-93dBu
-
Mix Noise-83dBu
-
Booth Output1 x RCA (Un-balanced)
-
Level0dBu (Nominal), +18dBu (Max)
-
Residual Noise-93dBu
-
Mix Noise-83dBu
-
Record Output1 x RCA (Un-balanced)
-
Level-10dBV (Nominal), +8dBV (Max)
-
Mix Noise-83dBu
-
Stereo Master Insert2 x RCA MASTER INSERT Send | 2 x RCA MASTER INSERT Return
-
Level-2dBu (Nominal), +18dBu (Max)
-

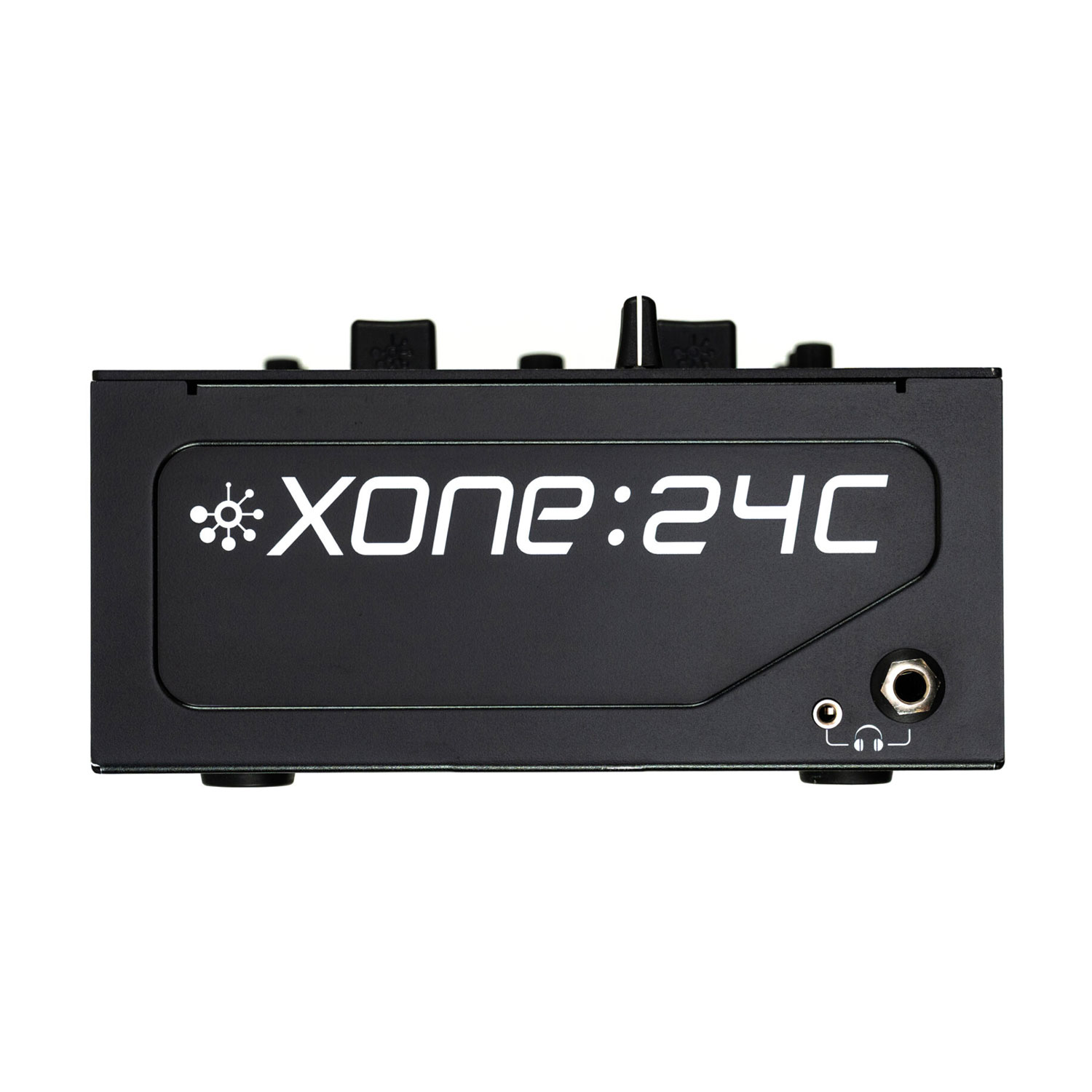

Headphones1 x 1/4", 1x 3.5mm, Split Cue Monitoring
-
Frequency response+/-0.5dB from 20Hz to 30kHz (Line In -> Master Out)
-
Internal headroom+18dB
-
DistortionTypically 0.01% @ 1kHz 0dBu
-
Crosstalk< -85dB inter-channel @ 1kHz +10dBu
-
EQ (CH1&CH2)3-band, +6dBu / Total Kill
-
HF (Shelving)> 3.5kHz
-
MF1.1kHz
-
LF (Shelving)< 500Hz
-
Total Kill attenuation-75dB
-
EQ (AUX CH)2-band, +/- 12dB
-
HF (Shelving)4.4kHz (3dB point)
-
LF (Shelving)160Hz (3dB point)
-
Analogue Filter1 x Voltage Controlled Filter, HPF / LPF, Adjustable Frequency & Resonance, Assignable CH 1 & 2 + Aux CH
-
Channel Faders45mm Voltage Controlled Amplifier
-
Channel Fader Cut Off< -90dB @ 1kHz +10dBu
-
X-Fader45mm VCA mini innoFADER®
-
X-Fader Curve Settings3 Types (Constant power, Transition, Fast-cut)
-
X-Fader Cut Off< -90dB @ 1kHz +10dBu
-
Earth Ground Terminalsx 1
-
Headroom+18dB
-
Mix Meters12 LED (-25dBu to +12dBu)
-
Chanel MetersSingle tri-colour LED, GREEN -25dBu to 0dBu, BLUE > 0dBu to +12dBu, RED > 12dBu
Internal Soundcard
-
Digital Architecture (USB)6 Channel | 24-bit/96kHz capable*8 | USB 2.0
-
Digital Architecture (USB)12 Channel
-
3 Mode USB IN OperationSTREAM MODE / DVS PRO MODE / DAW MODE
USB Audio & USB MIDI I/O
-
1 x HOST-PortUSB Type C, Full-duplex Audio
-
2 x HUB-PortsUSB Type C, Full-duplex Audio and MIDI
-
Analogue/Digital Line-up0dBu = -15dBFS
-
Supported Variable Buffer Sizes32 / 64 / 128 / 256 / 512 / 1024 / 2048 / 4096 / 8192 samples
-
Supported Sample Rates44.1 kHz / 48kHz / 88.2kHz / 96kH
-
Supported Bit depth16 bit / 24 bit
-
MIDI ControlsYes
-
MIDI CCCH1 & CH2 Faders, Crossfader, VCF FREQ
-
MIDI Out1x USB HOST-Port (Type C), 2x USB HUB-Ports
-
DC Mains100 to 240V, AC 50/60Hz, Consumption 35W max
-
Mains Adaptor2 pin DC socket with cable clamp
