The FOS Splitter Quadro is a professional DMX-512 signal distributor designed for reliable DMX signal regeneration, amplification and distribution in demanding stage lighting applications.

It combines four independent DMX splitters in a single unit, providing separate control of four DMX input channels and up to 16 DMX outputs. This multi-channel architecture allows complex lighting systems to be expanded while maintaining stable signal transmission and high operational reliability.

All inputs and outputs feature independent optical and electronic isolation, protecting the DMX network from interference and potential differences. Its advanced design with high resistance to signal interference ensures stable performance even in demanding professional lighting environments.

With its robust aluminum profile construction, standard 19-inch 1U rack mounting capability, and truss installation support via M12 connection, the FOS Splitter Quadro is an ideal solution for theatres, concert venues, live events and professional lighting installations.

Features

• DMX Signal Management
• Professional DMX-512 signal distributor
• 4 independent DMX input channels
• 16 DMX output channels
• Functions as 4 independent DMX splitters in one unit
• Independent channel operation without interaction between channels

Isolation & Protection

• Independent optical and electronic isolation on all inputs and outputs
• High interference resistance for stable DMX signal transmission
• DMX THRU outputs and termination switches

Connectivity

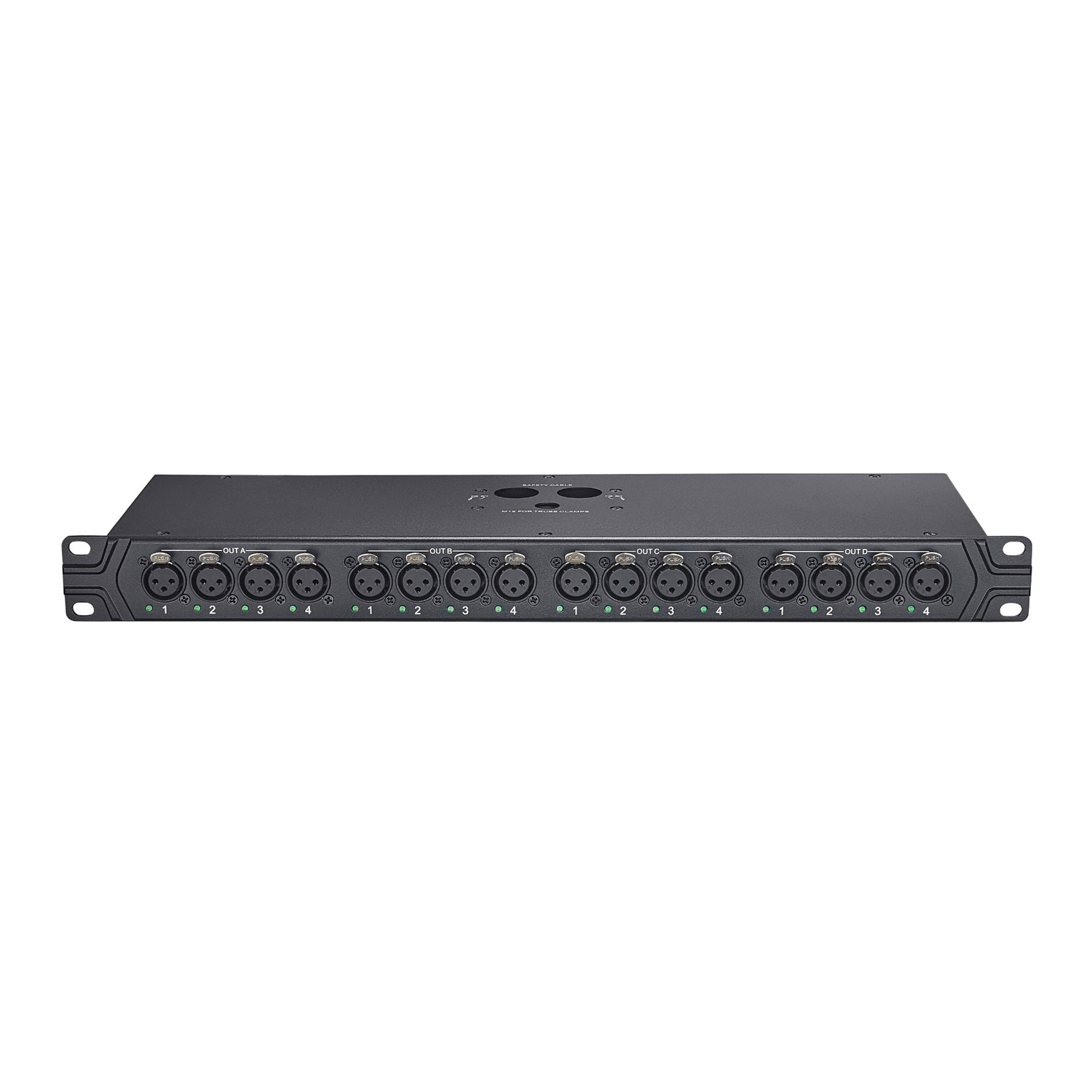

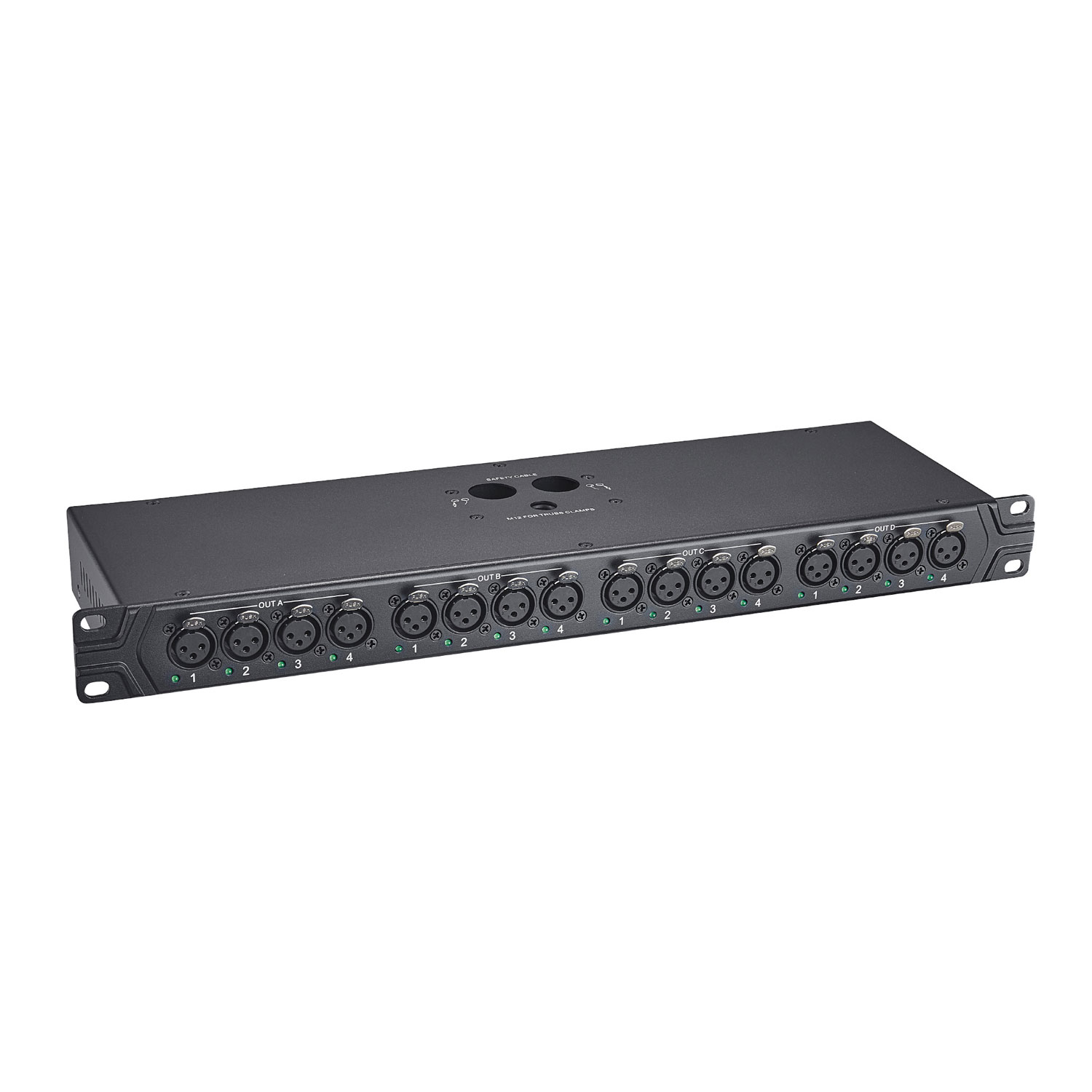

• 16 DMX outputs arranged in 4 groups (A, B, C, D), with 4 outputs per group

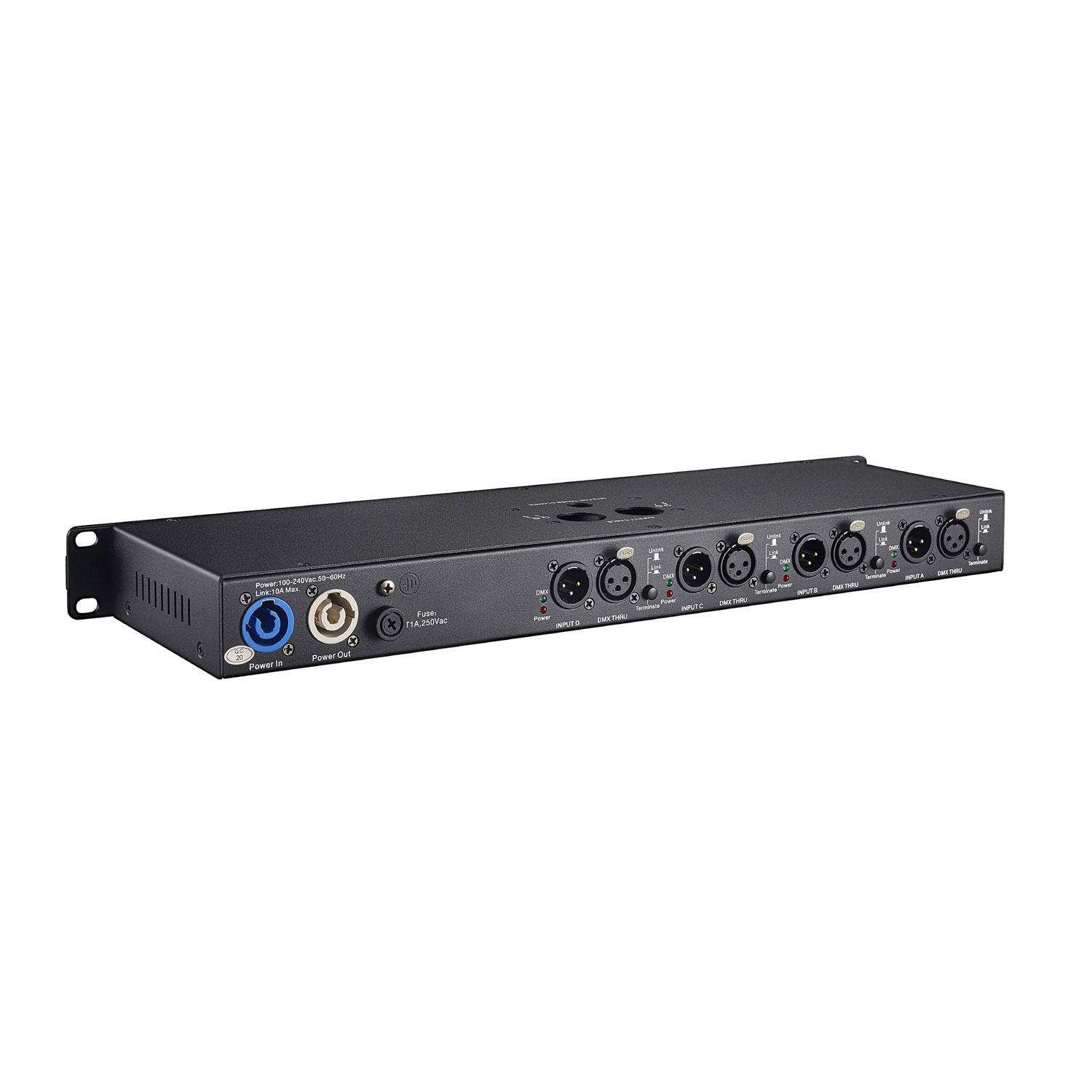

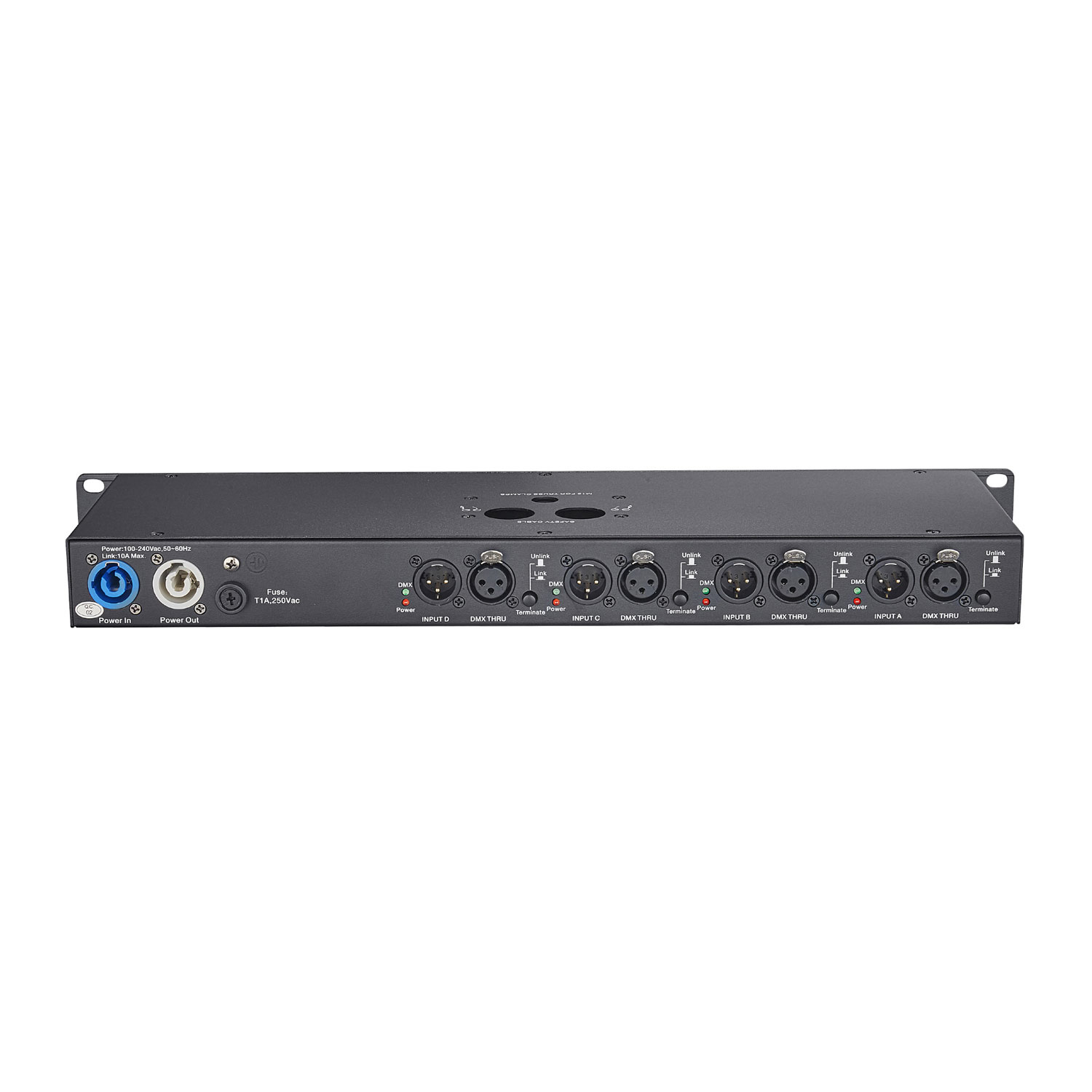

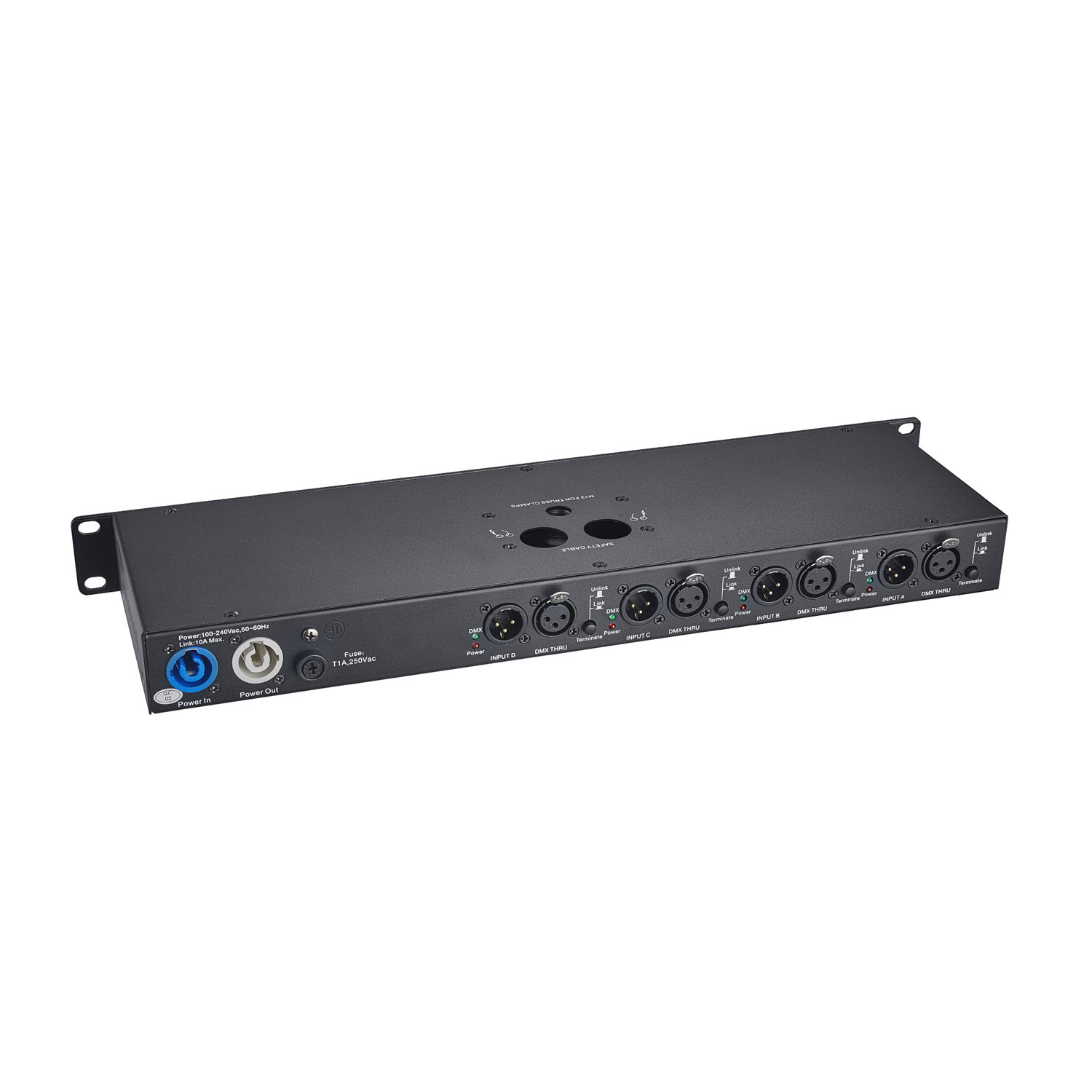

• 4 DMX inputs (A, B, C, D) with THRU ports
• DMX termination switches
• PowerCon IN / OUT for power daisy-chaining

Construction & Installation

• Black aluminum profile housing
• 19-inch 1U rack mounting
• M12 connection for truss mounting
• Dedicated safety cable attachment points

Technical Specifications

• Power Supply: 100–240VAC, 50/60Hz
• Power Consumption: Up to 10W
• Fuse: T1A, 250VAC
• Dimensions: 482.6 x 44.5 x 143 mm
• Weight: 1.9 kg
