Optimal Audio Zone 8P
Optimal Audio Zone 8P
- 8-zone DSP controller with integrated amplification
- 100W per channel with bridge capability up to 200W
- Flexible signal routing
- WebApp for easy system control
- 2 mic, 4 stereo line and 2 HDMI inputs
- All-in-one system for large multi-zone applications
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products

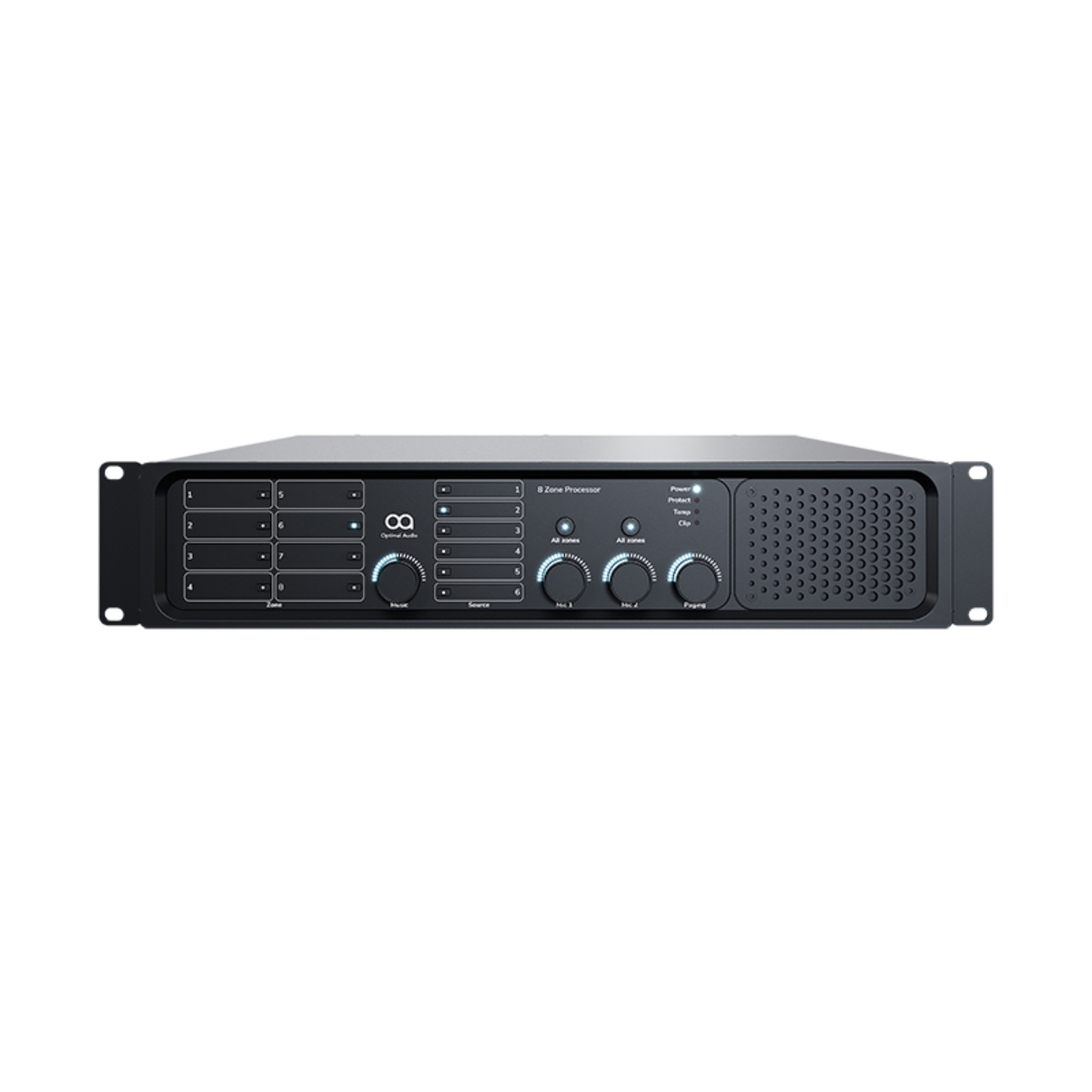

Zone 8P is a zonal audio controller with DSP providing everything required in a single compact unit to become the beating heart of an efficient, high-quality multi-zoned commercial sound system.
It has integrated amplification making installation straightforward and cost-effective and allows the user to independently allocate sources across eight configurable zones, such as a lobby, bar or restaurant. Each zone can be configured to do precisely what is required using the intuitive WebApp including EQs, speaker presets, structured time of day routines and so much more.

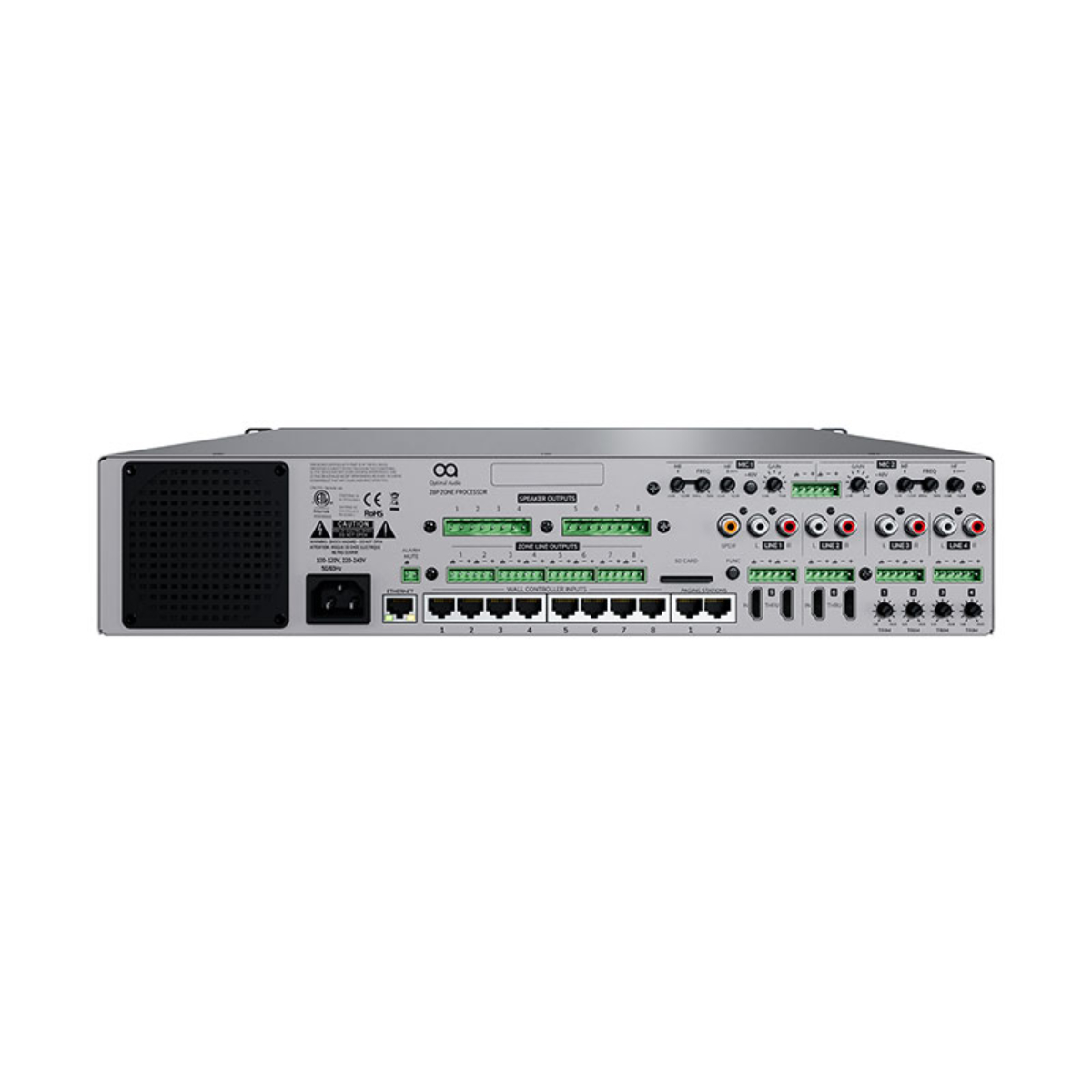

Zone 8P features 4 line and 2 mic inputs plus 2 HDMI inputs for TV and video sound.
The integrated eight-channel amplifier in Zone 8P provide 100 watts per channel and eliminate the need for separate amplifiers for most small to medium applications.
Zone 8P has been designed to work seamlessly with other products in the Optimal Audio range and when coupled with our ZonePad series provides a simple, intuitive and cost-effective audio system with superb sound quality.
Features
- Full suite of audio controls for up to 8 zones
- Fully flexible signal routing
- Eight channels of 100W integrated amplification at 4Ω or 8Ω
- Bridge channels for 200W @ 8Ω for 70v applications
- WebApp interface for easy system configuration and everyday control
- 2 mic, 4 stereo line and 2 HDMI inputs
- Fully programmable presets and timed events
- Very competitive pricing
Specifications
-
Type8 zone audio processor with DSP, amplification and loudspeaker presets
-
Mic Inputs2 with 48V phantom power, +12dB to +55dB gain
-
Mic Input Processingfixed hi-pass filter @160Hz; sweepable mid-band 200Hz–5kHz ±12dB; HF shelf @12kHz
-
Line Inputs4 stereo with +26dB gain trim, SPDIF option on input 1
-
HDMI Inputs2
-
Line Outputs8
-
ZonePad Sockets8
-
Amplifier Channels8
-
Amplifier Power100W at 4Ω or 8Ω
-
Amplifier Power (Bridged)200W @ 8Ω
-
Paging Inputs (CAT 5)2
-
LAN Ethernet100Mbps
-
Alarm OverrideYes
-
Dimensions480 x 88 x 400 mm (W x H x D)
-
Weight10.3 kg
