All-in-one 4-channel DJ system, award-winning for its design

iF Design Award 2024 & Red Dot Design Award 2024

https://www.pioneerdj.com/en/news/2024/opus-quad-wins-if-design-award-and-red-dot-design-award/

Pioneer’s new professional all-in-one DJ system gives you control over music like a conductor leading an orchestra!

Creating harmony between stunning design and music playback capabilities, it features advanced innovations such as standalone 4-deck playback

All of this comes together to deliver a powerful DJ experience you can use to inspire your audience—anywhere, anytime

Specifications

Main Features

• Supported music file formats: MP3, AAC, WAV, AIFF, Apple Lossless, FLAC
• File systems: FAT16, FAT32, exFAT, HFS+, (NTFS isn’t supported.)
• Compatible DJ Software: rekordbox for Mac/Windows: Hardware Unlock, rekordbox for iOS/Android, Serato DJ Pro: Hardware Unlock
• MIDI Control: Yes
• USB record: Yes
• Plug and Play: Yes
• Auto Standby: Yes
• Accessories: Power cord, Quick Start Guide, Precautions for Use, Warranty (Only products in Europe. Products in North America and Japan include warranty information in the “Precautions for Use”)

Specifications

• Sampling Rate: 44.1 kHz
• Frequency Range: 20 - 20000 Hz
• Width: 925.7 mm
• Height: 142 mm
• Depth: 499.7 mm
• Weight: 13.2 kg
• Power Supply: AC 100-240 V, 50 Hz / 60Hz
• Power Consumption: 60 W
• MASTER DA converter: 32 bit
• A/D Converter: 24 bit
• Signal-to-Noise Ratio: USB: 114 dB, LINE: 96 dB, PHONO: 85 dB, MIC: 79 dB
• Distortion: USB: 0.003 %, LINE: 0.005 %

Performance Control

• Channels: 4
• Deck Control: 4 (USB storage device), 4 (DJ Software control)
• Jog Wheel: 206 mm
• Jog Feeling: Yes
• Sound Color FX: Space, Dub Echo, Sweep, Noise, Crush, Filter
• Beat FX: Delay, Echo, Ping Pong, Spiral, Reverb, Trans, Filter, Flanger, Phaser, Pitch, Slip Roll, Roll, Vinyl Brake, Helix
• Hot Cues: 8 per deck
• Beat Loop: Yes
• Beat Jump: Yes
• Beat Sync: Yes
• Quantize: Yes
• WaveZoom: Yes
• Manual Loop: Yes
• Trim knob: Yes
• EQ Isolator: Yes

Mic

• Mic Connection: XLR connector & 1/4 inch TRS jack
• Mic EQ: 3 band
• Talkover: MIC OFF/ON/TALK OVER slide SW

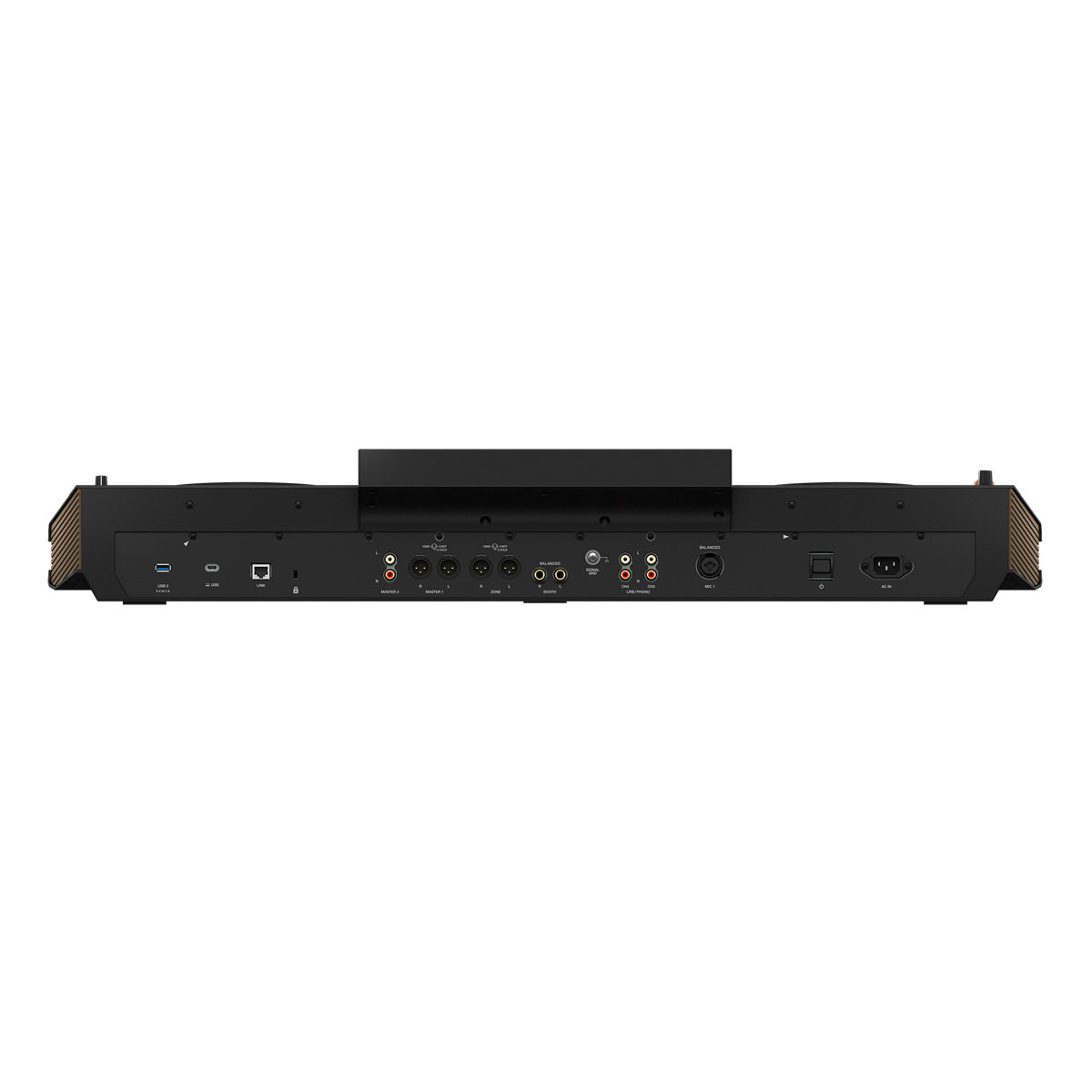

Terminals

• Inputs: 2 LINE (RCA), 2 PHONO (RCA), 2 MIC (XLR connector & 1/4 inch TRS jack)
• Outputs: 1 MASTER (XLR), 1 MASTER (RCA), 1 ZONE (XLR), 1 BOOTH (1/4 inch TRS Jack), 1 PHONES (1/4 inch stereo phone Jack), 1 PHONES (3.5-mm stereo mini jack)
• USB: 3 USB A ports, 1 USB C port

Wireless LAN

• Supported standards: IEEE 802.11 a / b / g / n / ac
• Frequency band used: 2.4 GHz / 5 GHz

Bluetooth

• Wireless system: Bluetooth ver. 4.2
• Frequency band used: 2.4GHz
• Compatible codecs: SBC, AAC
