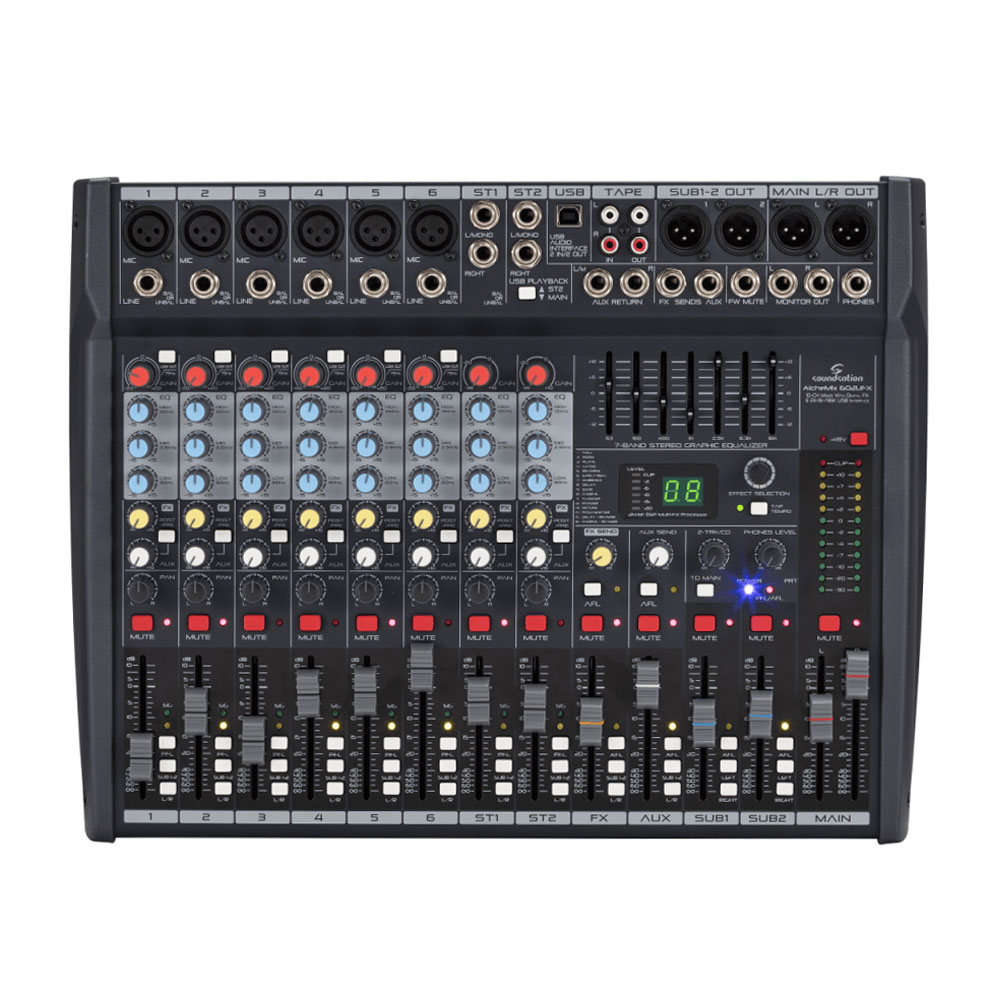

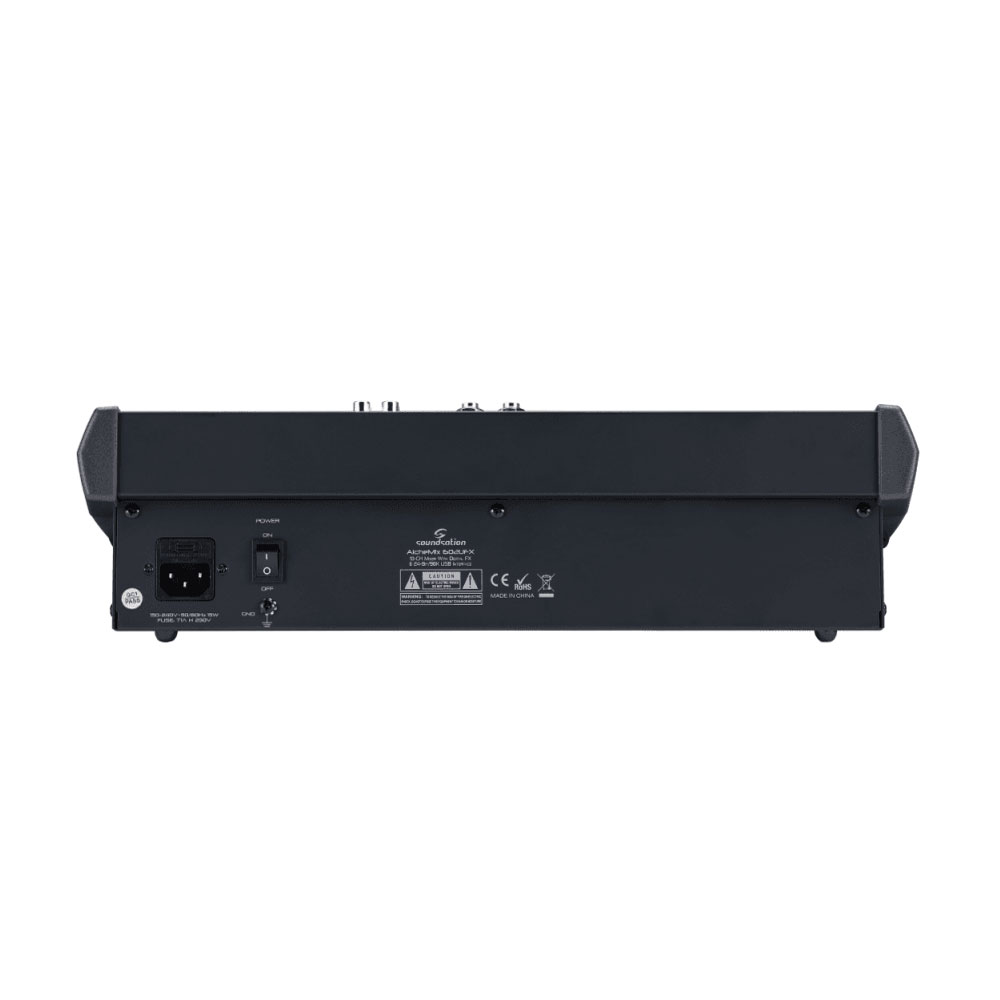

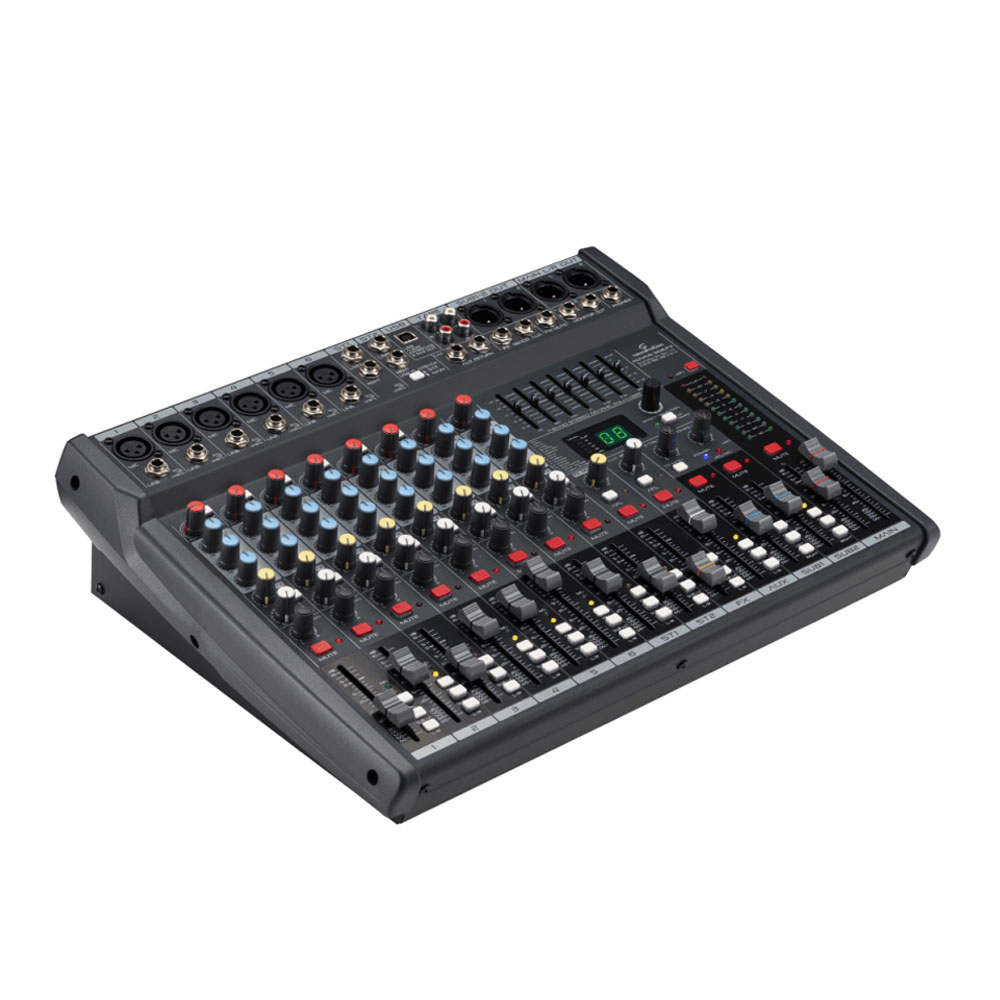

Soundsation AlcheMix 602FX
Soundsation AlcheMix 602FX
- 24-bit digital effects with 16 presets
- Stereo 2-in/2-out USB audio interface
- 2 subgroups and 2 AUX sends
- 7-band graphic equalizer on the main output
- 3-band EQ with full channel control
- Ideal for live sound, studio recording and professional audio applications
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products
SOUNDSATION ALCHEMIX 602UFX | 10-Channel Audio Mixing Console with USB & Digital Effects
The AlcheMix series has been designed to meet the needs of musicians and entertainment professionals seeking reliable, professional-grade equipment for live performances, rehearsals, educational environments, and home recording applications.
Design
The 2-bus mixer architecture includes 2 subgroups and 2 AUX sends (one with selectable Pre/Post-Fader operation and the other in Pre-Fader mode), providing maximum flexibility for a wide range of applications.
All channels feature a 3-band EQ, Mute function, AFL (After-Fade Listen), as well as routing capabilities to group and main mix.
The console also features a 7-band graphic equalizer on the master output with high-precision filters, along with a built-in 24-bit/48kHz digital effects processor offering 16 popular presets (Hall, Room, Plate Reverb, Delay, Echo, and more).
Effect customization is easily achieved via Tap Tempo control and adjustable parameters per preset, allowing greater sound flexibility.
The SOUNDSATION ALCHEMIX 602UFX is equipped with a stereo 2-in/2-out USB audio interface, enabling recording and playback on PC/Mac at up to 24-bit/96kHz.
Specifications
-
Configuration6 Mic/Line + 2 Stereo
-
Nominal Gain (Mic/Line/Stereo Line)60dB, 40dB, 20dB
-
Max Gain (Mic/Line/Stereo Line)80dB, 60dB, 40dB
-
Mic Input Sensitivity (Gain Min / Gain Max)-10dBu / -60dBu
-
Line Input Sensitivity (Gain Min / Gain Max)+10dBu / -40dBu
-
Stereo Line Input Sensitivity (Gain Min / Gain Max)+10dBu / -20dBu
-
Aux Return Input Sensitivity0dBu / 2-Track Input Sensitivity
-
Mic / Line Max Input Level+24dBu
-
Stereo Line / Aux / 2-Track Max Input Level+20dBu
-
Mic Input Impedance2kΩ Balanced
-
Line / Aux Input Impedance20kΩ (Balanced) / 10kΩ (Unbalanced)
-
Tape Record Inputs Impedance10kΩ Balanced
-
Main / Group / Monitor / Aux Send Output Levels0dBu (0.775V RMS) Nominal / +22dBu (10V RMS) Max
-
Record Out Output Levels-2dB (600mV RMS) / +22dBu (10V RMS) Max
-
Main / Group / Monitor / Aux Send Output Impedance75Ω
-
Record Output Impedance1kΩ
-
Phones Output Impedance33Ω min
-
Frequency Response20Hz – 20kHz (+0 / -2dB)
-
Total Harmonic Distortion / Signal-to-Noise Ratio<0.006% / < -85dB
-
Mono MIC (Treble / Mid / Bass)±15dB (12kHz HF / 2.5kHz MF / 60Hz LF)
-
Stereo Line (Treble / Mid / Bass)±15dB (12kHz HF / 2.5kHz MF / 80Hz LF)
-
Effect16 effects, 24-bit Sigma-Delta, 256x oversampling, 48kHz sampling rate
-
USB I/O SoundcardUp to 24-bit/96kHz stereo input/output streaming, USB Class 2.0 compliant
-
Phantom Power+48V
-
Power Supply150–240V~ 50Hz, 15W max
-
Size (W × D × H)376 × 316.5 × 134 mm
-
Net Weight5.0 kg
