Soundsation AlcheMix 802FX
Soundsation AlcheMix 802FX
- 24-bit digital effects with 16 presets
- Stereo 2-in/2-out USB audio interface
- 2 subgroups and 2 AUX sends
- 7-band graphic equalizer on the main output
- 3-band EQ with full channel control
- Ideal for live sound, studio recording and professional audio applications
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products
SOUNDSATION ALCHEMIX 802UFX | 12-Channel Audio Mixing Console with USB & Digital Effects

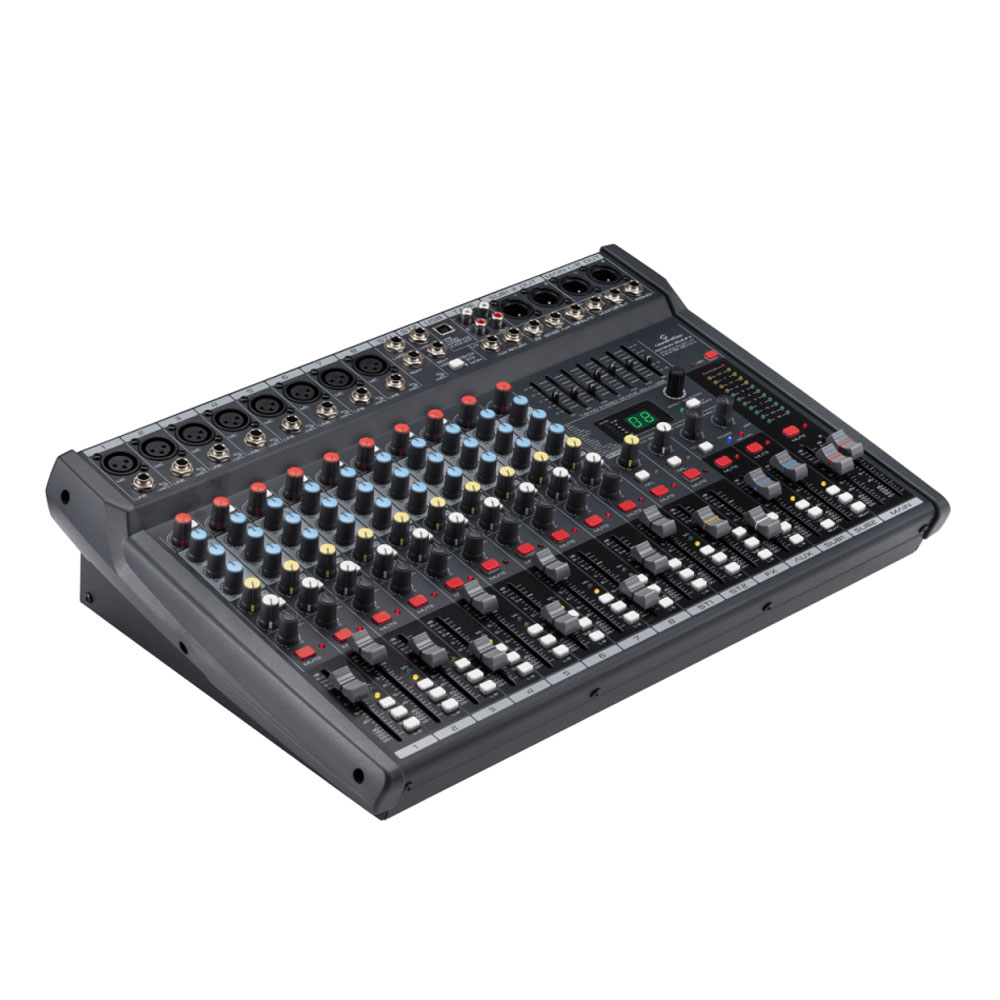

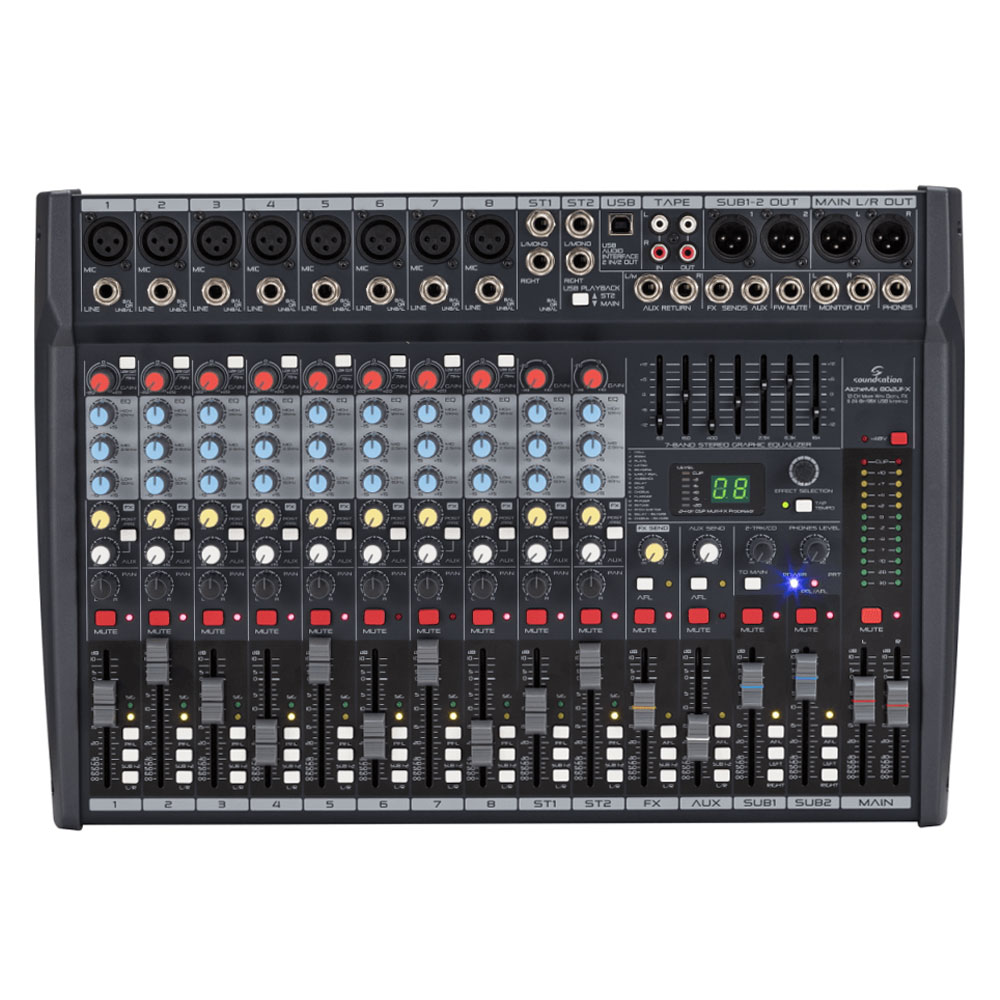

The SOUNDSATION ALCHEMIX 802UFX is a professional-grade 12-channel analog mixer designed for high-quality audio performance. It features built-in 24-bit digital effects and an integrated stereo USB audio interface (In/Out). It is designed to meet the needs of musicians and audio professionals, offering reliability and flexibility for live performances, studio recording, rehearsal spaces, educational environments, and home recording setups.
Its architecture is based on a 2-bus design with 2 subgroups and 2 AUX sends (with selectable Pre/Post-Fader operation), providing a high level of flexibility for various audio applications.
All channels feature a 3-band EQ, Mute function, AFL (After-Fade Listen), as well as routing options to group and main mix.
The master output section includes a 7-band graphic equalizer with high-precision filters, while the built-in 24-bit/48kHz digital multi-effects processor offers 16 presets such as Reverb, Delay, and Echo, with adjustment via Tap Tempo control.
The integrated 2-in/2-out USB audio interface enables recording and playback on PC/Mac at up to 24-bit/96kHz, making it an excellent solution for music production and professional audio applications.
Specifications
-
Configuration8 Mic/Line + 2 Stereo
-
Nominal Gain (Mic/Line/Stereo Line)60dB, 40dB, 20dB
-
Max Gain (Mic/Line/Stereo Line)80dB, 60dB, 40dB
-
Mic Input Sensitivity (Gain Min / Gain Max)-10dBu / -60dBu
-
Line Input Sensitivity (Gain Min / Gain Max)+10dBu / -40dBu
-
Stereo Line Input Sensitivity (Gain Min / Gain Max)+10dBu / -20dBu
-
Aux Return Input Sensitivity0dBu / 2-Track Input Sensitivity
-
Mic / Line Max Input Level+24dBu
-
Stereo Line / Aux / 2-Track Max Input Level+20dBu
-
Mic Input Impedance2kΩ Balanced
-
Line / Aux Input Impedance20kΩ (Balanced) / 10kΩ (Unbalanced)
-
Tape Record Inputs Impedance10kΩ Balanced
-
Main / Group / Monitor / Aux Send Output Levels0dBu (0.775V RMS) Nominal / +22dBu (10V RMS) Max
-
Record Out Output Levels-2dB (600mV RMS) / +22dBu (10V RMS) Max
-
Main / Group / Monitor / Aux Send Output Impedance75Ω
-
Record Output Impedance1kΩ
-
Phones Output Impedance33Ω min
-
Frequency Response20Hz – 20kHz (+0 / -2dB)
-
Total Harmonic Distortion / Signal-to-Noise Ratio<0.006% / < -85dB
-
Mono MIC (Treble / Mid / Bass)±15dB (12kHz HF / 2.5kHz MF / 60Hz LF)
-
Stereo Line (Treble / Mid / Bass)±15dB (12kHz HF / 2.5kHz MF / 80Hz LF)
-
Effect16 effects, 24-bit Sigma-Delta, 256x oversampling, 48kHz sampling rate
-
USB I/O SoundcardUp to 24-bit/96kHz stereo input/output streaming, USB Class 2.0 compliant
-
Phantom Power+48V
-
Power Supply150–240V~ 50Hz, 15W max
-
Size (W × D × H)430 × 316.5 × 134 mm
-
Net Weight5.5 kg
