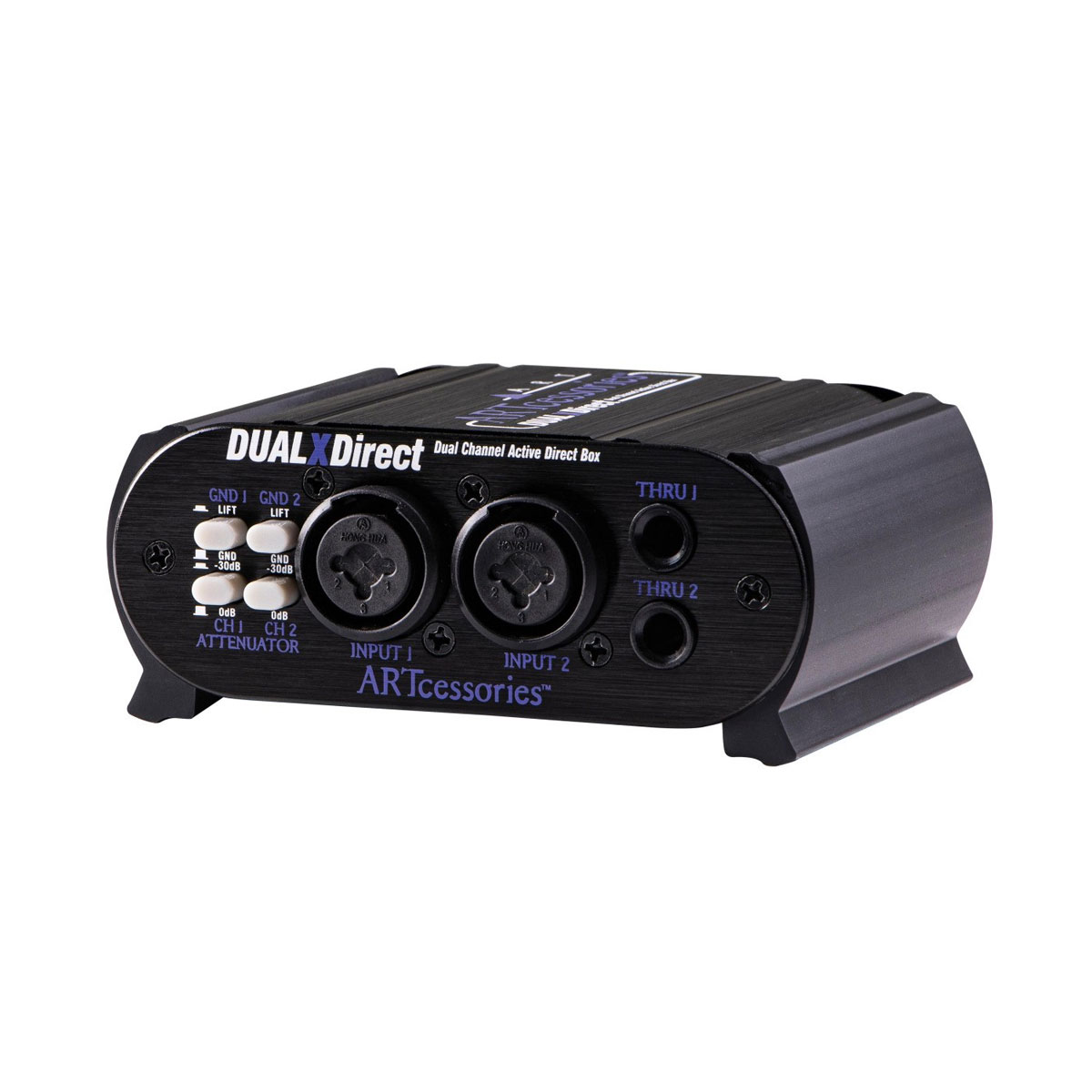

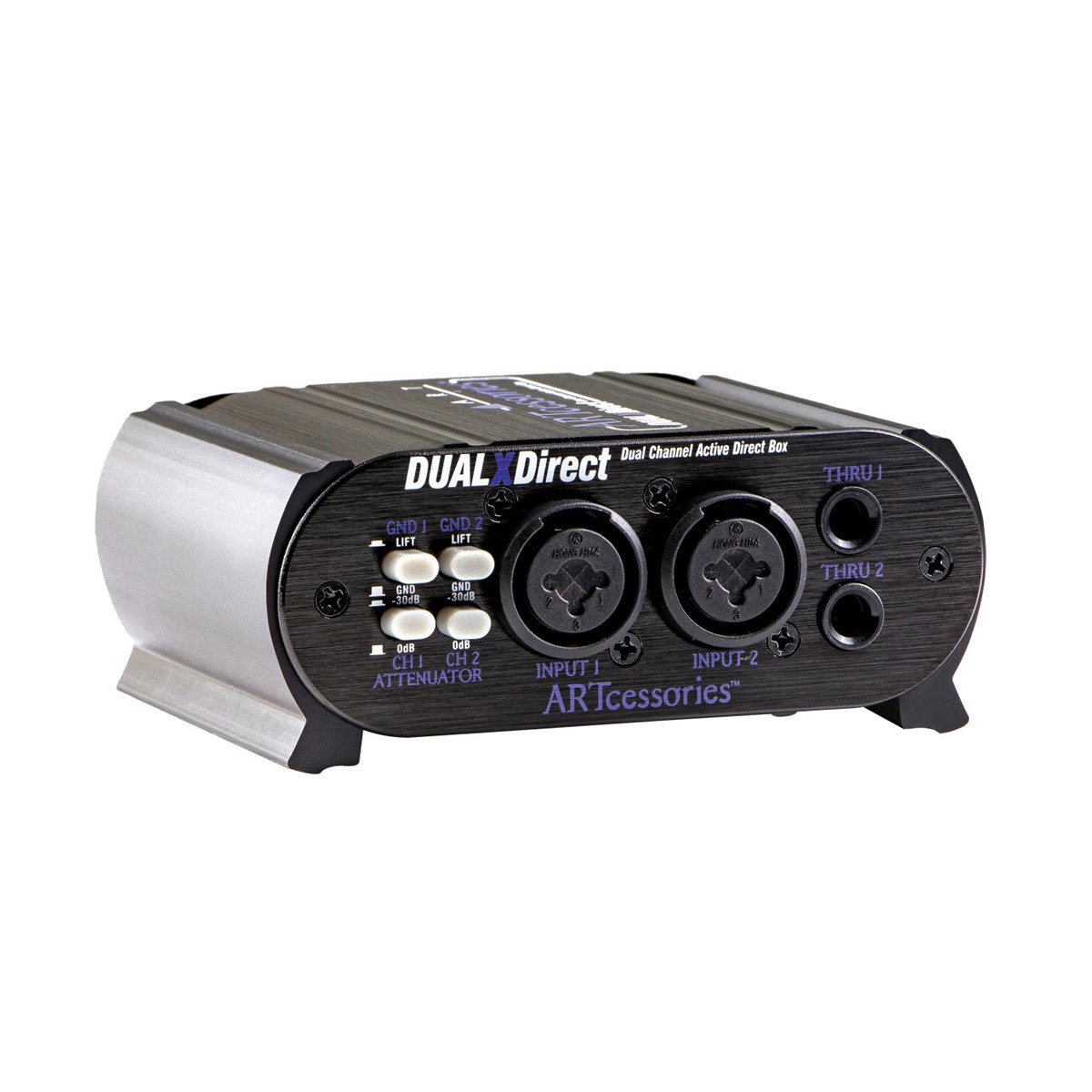

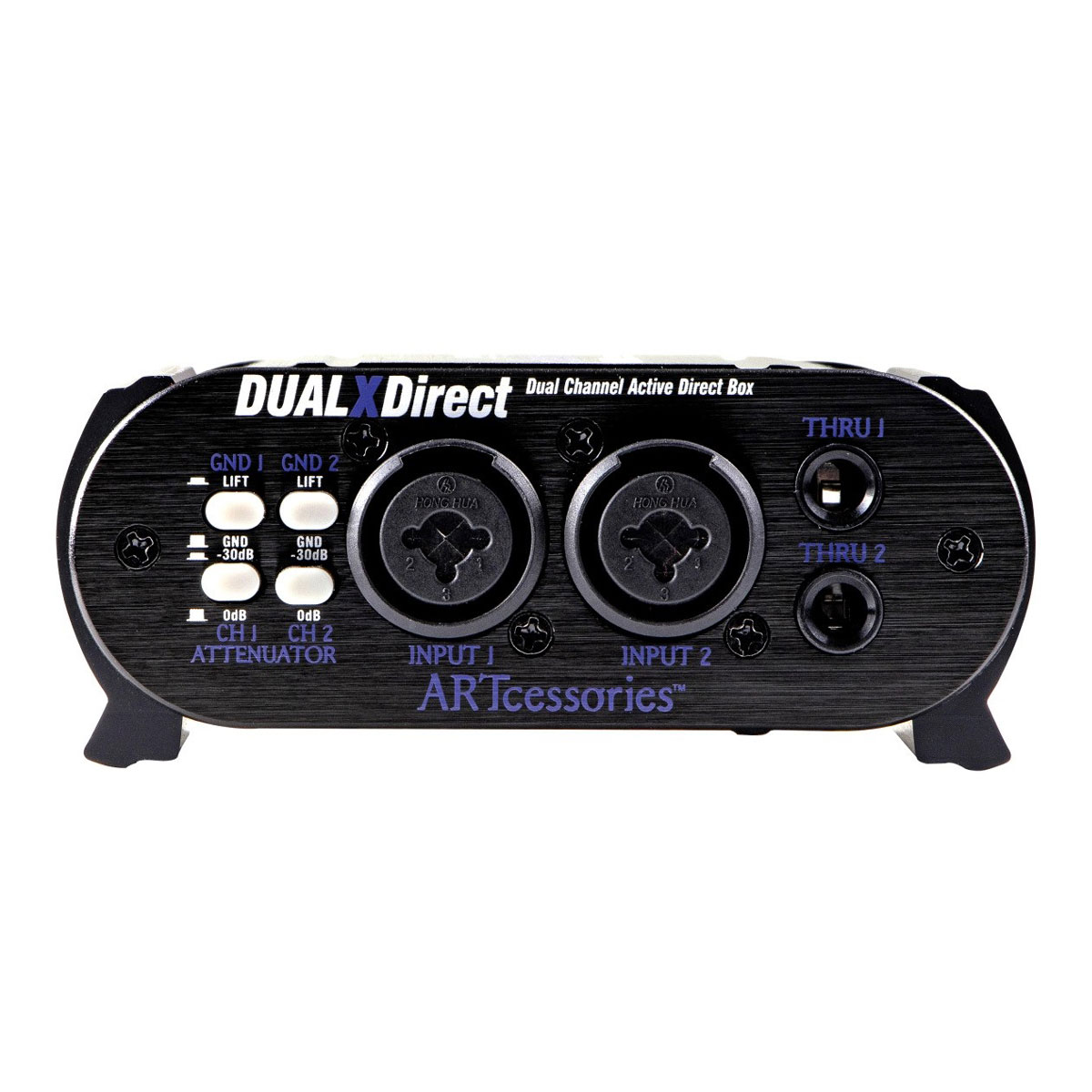

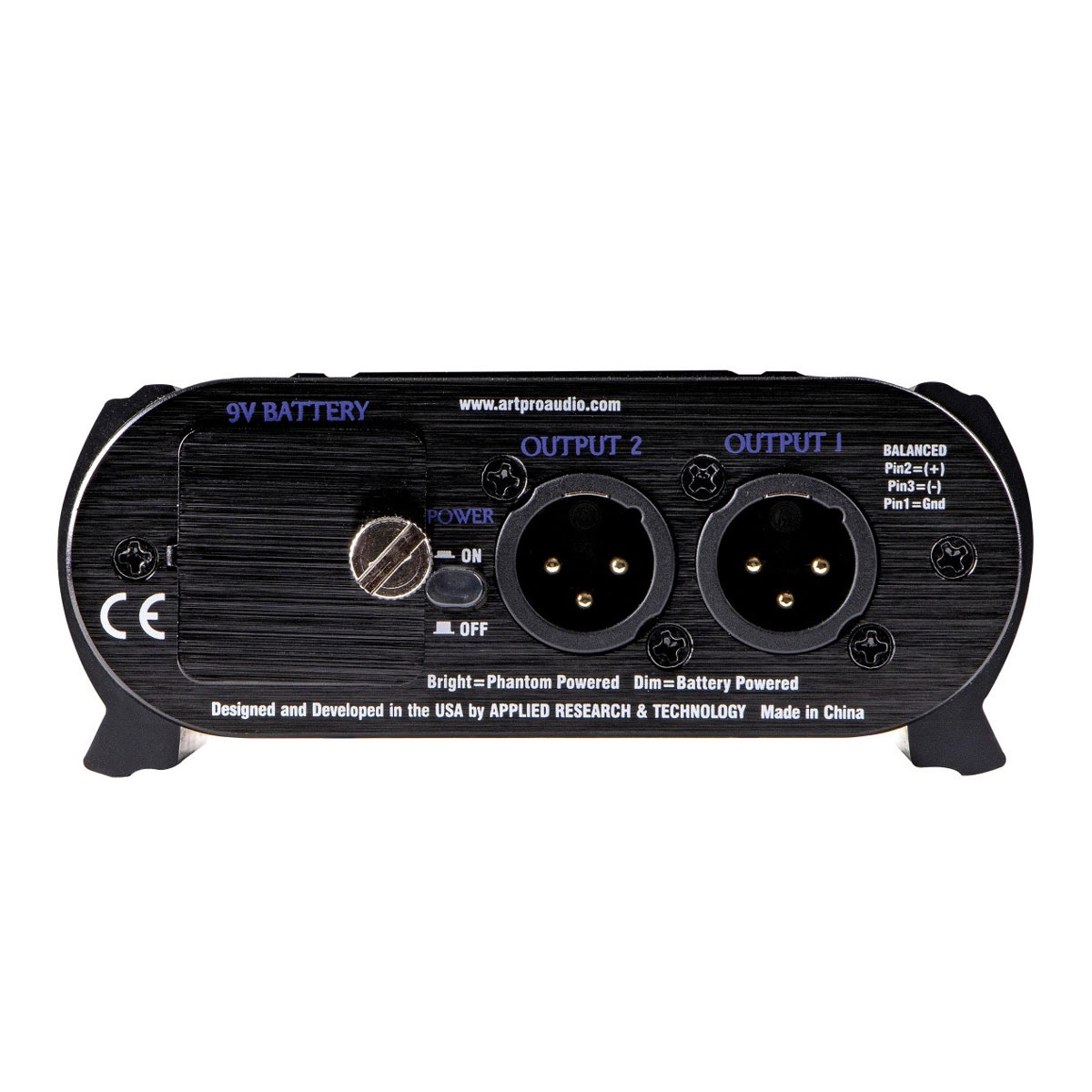

Art Dual XDirect
Art Dual XDirect
Ενεργό DI Box 2 καναλιών
- 2 Ανεξάρτητα κανάλια
- 1/4" TRS / XLR Combo Inputs
- 1/4" Thru Connectors
- Balanced XLR Outputs
- Εναλλαγή Attenuation 30dB και Ground Lift ανά κανάλι
Code: 26397
Warranty:
3 Years
Out of stock
71,00€
Quantity:
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Products
Related Products
Το DualXDirect είναι ένα ενεργό DI Box 2 καναλιών για τη σύνδεση unbalanced σήματος οργάνων, line ή ηχείων σε balanced εισόδους
Features
- 2 Independent Channels
- 1/4" TRS / XLR Combo Inputs
- 1/4" Thru Connectors
- Balanced XLR Outputs
- Switchable 30dB Attenuation and Ground Lift per Channel
- Powered by 9-Volt Battery (100+ Hours) or Phantom Power
Χαρακτηριστικά
- Type: Active
- Inputs: 2x 1/4" TRS / XLR Combo jacks
- Outputs: 2x XLR, 2x 1/4" TRS Thru
- Input Impedance: 470 kΩ
- Output Impedance: <600Ω
- Maximum Input Level: +4 dBu above Attenuation Setting
- Maximum Output Level: +6 dBu (Battery), +14 dBu (Phantom)
- Controls: Attenuator (0 dB, -30 dB), Ground Lift (All per Channel)
- Frequency Response: 10 Hz - 100 kHz +/- 0.5 dB @ 0 dBu
- Total Harmonic Distortion: <.05 (Typical)
- Channel Separation: >80 dB (Typical)
- Power Requirements: 9V, 7.5 mA (Battery, Alkaline Recommended), 18V - 48V, 6.5 mA (Phantom, per Channel)
- Battery Life: 100+ Hours
- Dimensions (HWD): 4.7 cm x 11.7 cm x 9.9 cm
- Weight: 380 g
-
ManufacturerArt
