Eve Audio EXO 24
Eve Audio EXO 24
- Compact near-field monitor for small spaces
- Woofer diameter: 4"
- AMT tweeter with wide sweet spot
- Extended low-end for accurate mixing
- Advanced DSP & room tuning
- Ethernet control & EVE Control software
- 140 W Class-D power, low distortion
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products
Compact near-field monitor for small spaces, without compromising sound quality
The EXO 24 delivers precision, compact dimensions, and professional reliability, making it the ideal monitor for studios or creative environments where space is limited but sound quality must remain uncompromised.
Exceptional sonic accuracy
Precision AMT tweeter with GDC waveguide for a wide sweet spot, crystal-clear highs, and accurate stereo imaging; extended low-end response suitable for mixing and mastering.
Advanced acoustic design
Curved cabinet with rounded edges minimizes diffraction; newly developed aerodynamic bass ports deliver deeper, quieter bass performance.
Smart EVE Control software
Real-time DSP adjustments, filters, and room calibration tools;
Ideal for Dolby Atmos thanks to per-monitor control.
Network integration
Ethernet connectivity for remote control, firmware updates, and future automatic room correction.
Powerful & reliable electronics
Class-D amplification delivering 140 W / 1% THD per channel,
32-bit / 96 kHz DSP with high-end ADC/DAC converters for low distortion and wide dynamic range.
Designed for professionals
Premium components, XLR / RCA and S/PDIF (192 kHz / 24-bit) connectivity to support any studio workflow.
Sustainability & longevity
Eco-friendly packaging, digital manuals, and a modular design for easy servicing and upgrades.
User-friendly UI & status indication

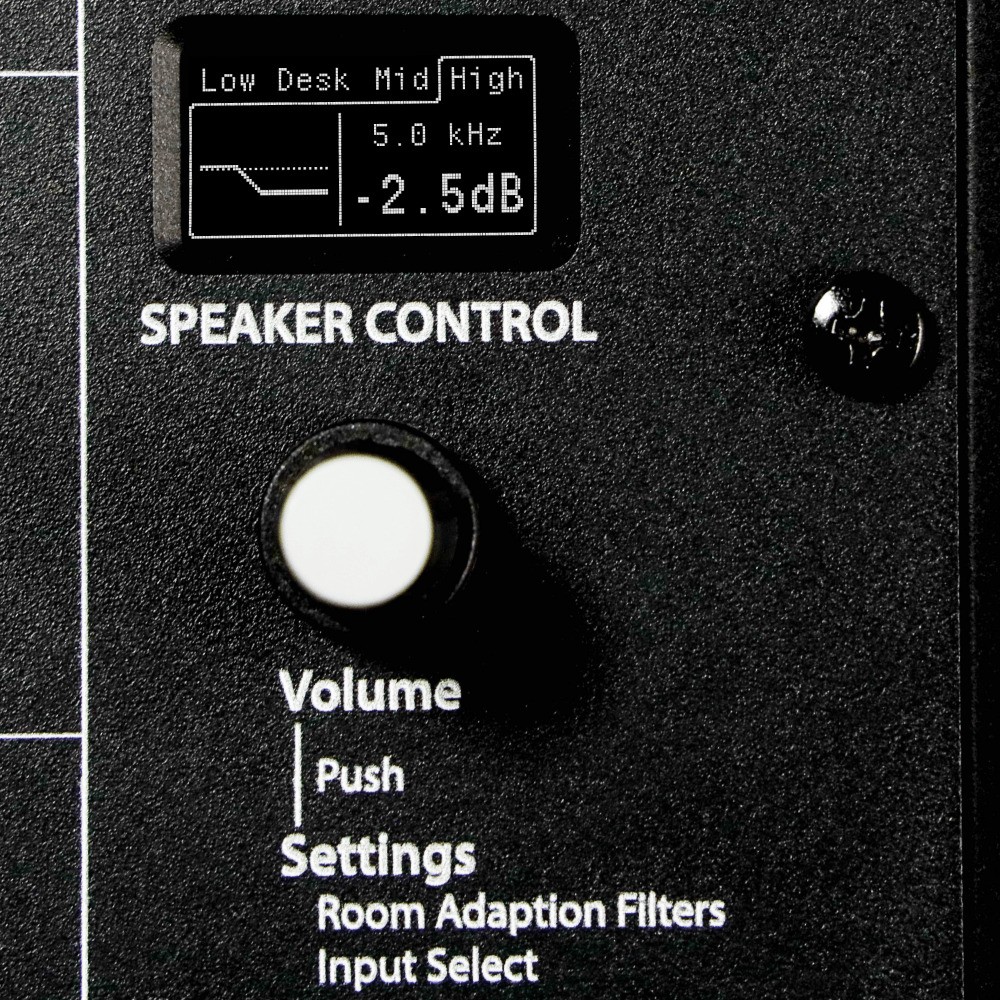

Rear-mounted OLED display with SMART Knob; front RGB logo provides visual feedback for level and system status.
Perfect room adaptation
Per-monitor 8-band PEQ, delay, level matching, and input sensitivity switch (+4 dBu / -10 dBV).
Built to last
Extendable 5-year warranty, comprehensive protection circuits (limiter, thermal, clipping), and intelligent power management (Wake-on-LAN / Signal, EU standby).
EXO Series – Key Features
- EXO Precision AirMotion Tweeter, newly developed for outstanding clarity
- GDC Waveguide (Guided Directivity Control) for wide, uniform dispersion
- CAL (Coated Aluminium) woofer with Air-Stream Optimized Voice Coil Design
- Bottom-mount mounting option across all models
- Rear SMART Control & OLED display for intuitive operation
- Multicolor illuminated logo (status indication)
- Curved panels & rounded edges to minimize diffraction
- EVE Control software (coming soon) for centralized multi-monitor management
- Inputs: XLR & RCA (analog), S/PDIF In/Out 192 kHz / 24-bit
- Safe soft-start power-up to prevent signal peaks
- High-resolution A/D conversion, 32-bit DSP, low-distortion amplifiers
- High-performance power supply for maximum dynamic range
- 5-year manufacturer warranty
The EXO series represents the culmination of many years of R&D, offering mixing engineers, mastering engineers, and creators the precision, clarity, and power that turn every project into a truly immersive experience.
General Information
-
Dimensions (mm)171x252x194
-
Weight4,3 kg (9.5 lb)
-
Output power per speaker280 W
Tweeter
-
ModelPrecision AirMotion Tweeter (PAMT)
-
Waveguide TechnologyGuided Directivity Control (GDC)
-
Output power140 W / 1%
Woofer
-
Woofer diameter4"
-
Diaphragm materialCoated aluminum
-
Woofer voice coilAir Stream Optimized Voice Coil Design
-
Output power140 W / 1%
Acoustics
-
Frequency range (- 3 dB at 1 m full space)54 Hz - 24 kHz
-
Max. SPL (full space) > 100 Hz102 dB
-
Max. SPL (half space) > 100 Hz108 dB
-
Cross-over frequency2200 Hz
Features
-
Protection LimiterYes
-
Wake-on-LANYes
-
Wake-on-SignalYes
-
Automatic Standby ModeYes (Adjustable)
-
Status LEDYes (Shows 8 different states, e.g. Signal overload)
-
Mounting PointBottom side mounting hole pattern of 50.8 x 107.9 mm (M6)
-
User Interface (Filter and settings access)Rear OLED display with SMART Control Knob
Adjustable Settings
-
Volume- ∞ to +10 dB
-
High-Shelf Filter (-5 dB to +3 dB)> 3 kHz
-
Mid EQ (-3 dB to +3 dB)3,5 kHz
-
Desk Filter Cut (-5 dB to 0 dB)650 Hz
-
Low-Shelf Filter (-5 dB to +3 dB)< 300 Hz
-
Max. Input Level-10 dBV (max. 16.5 dBu) / +4 dBu (max. 20 dBu)
-
Input selectBalanced, Unbalanced, S/PDIF L/R/Mono
-
LED BrightnessContinuously dimmable from 0% to 100%
-
IP-Adress ConfigurationManual/Automatic (DHCP)
-
Standby Mode15 min / 30 min / 60 min / off

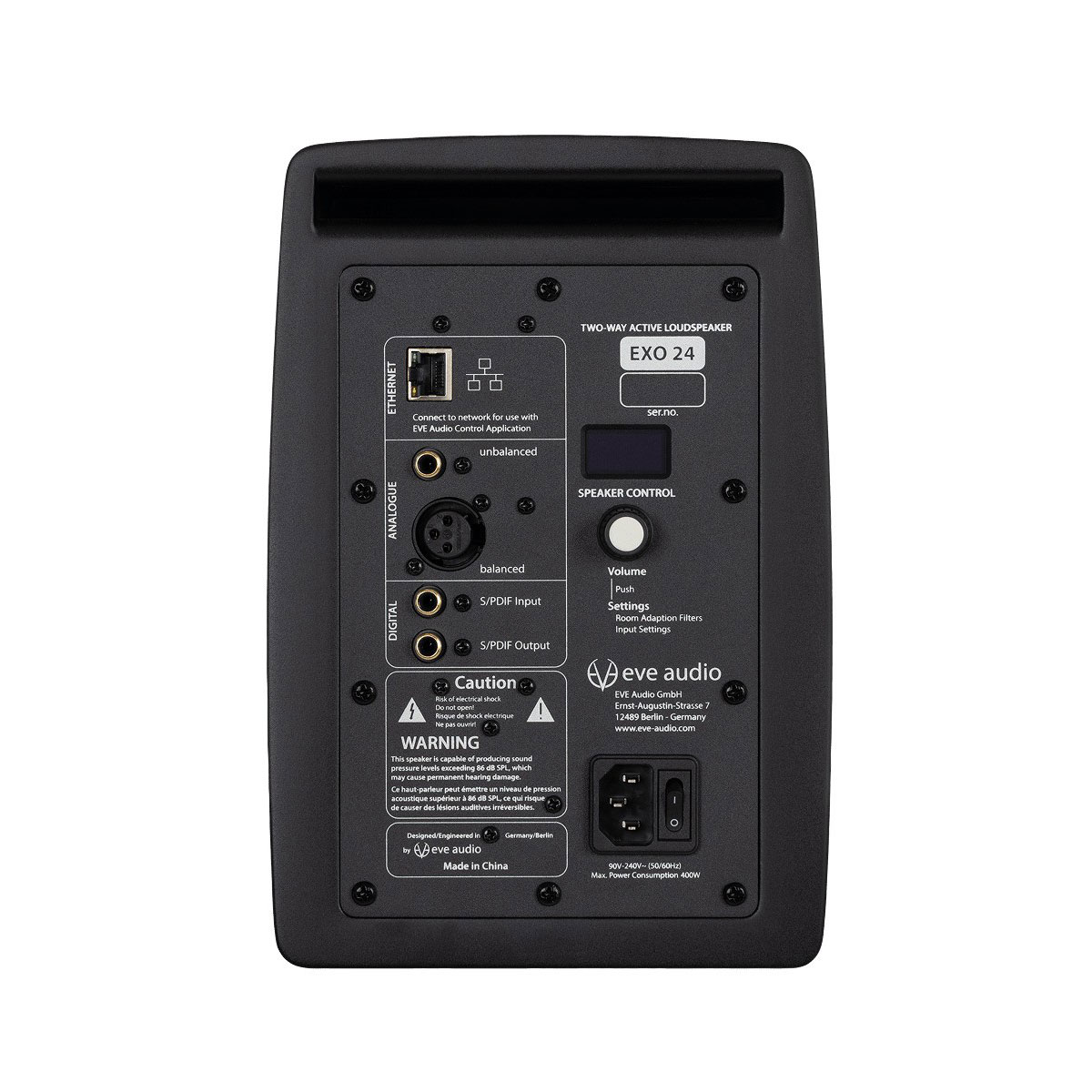

Connections
-
Balanced XLRAnalog signal input
-
Unbalanced RCA InAnalog signal input
-
S/PDIF digitalDigital Signal in-/output
-
LANEthernet and software access
Power consumption
-
Standby< 1 W
-
Idle Power Consumption7 W
-
Peak Power Consumption400 W
