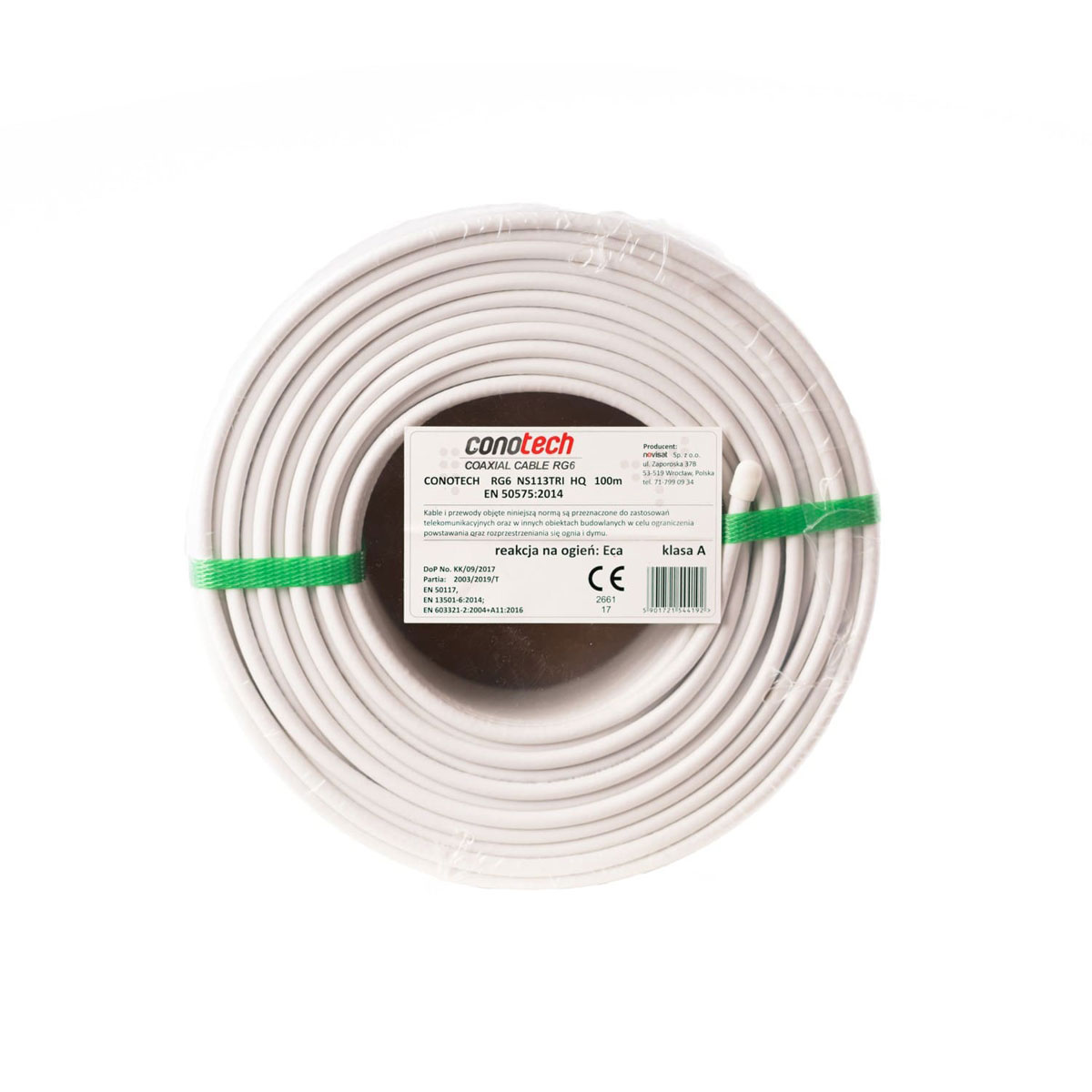

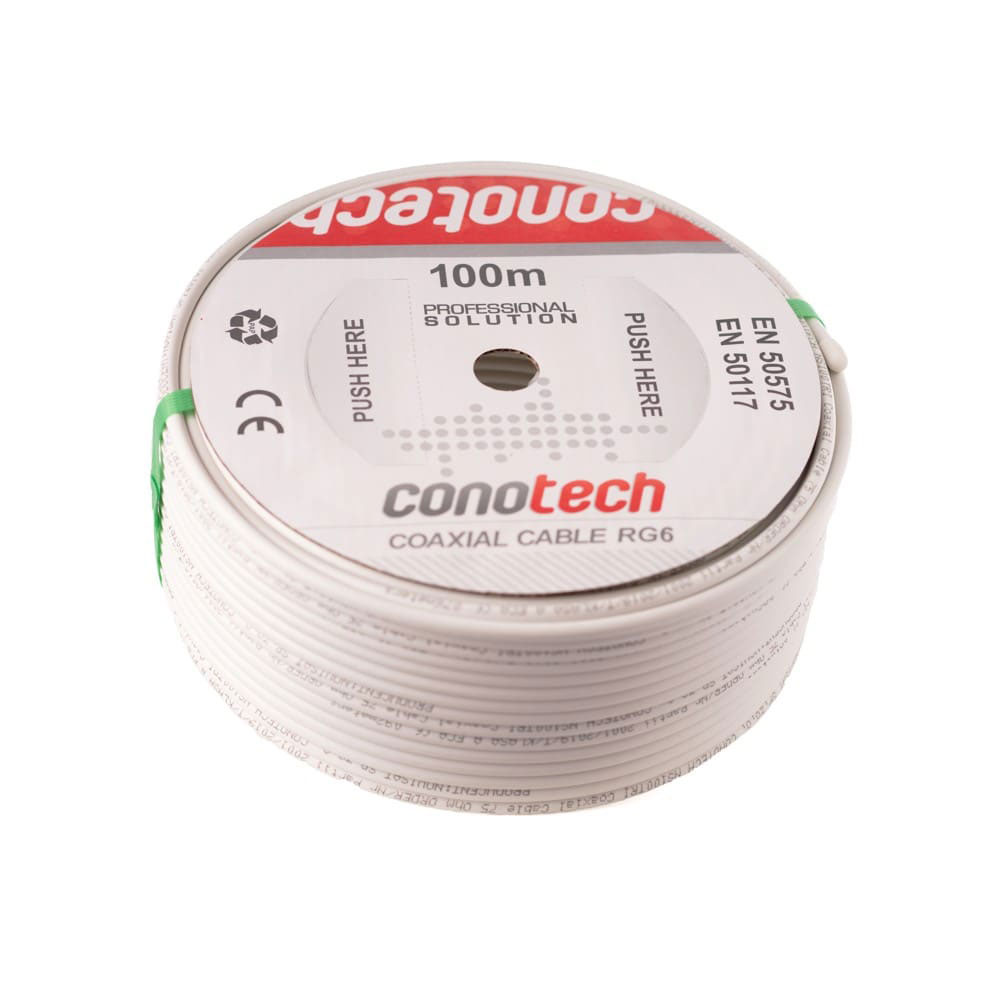

Conotech NS113TRI HQ
Conotech NS113TRI HQ
Καλώδιο RF 1 μέτρο
- Εσωτερικός αγωγός χαλκός 1.13mm
- Πλέξη 144 wires x 0.12mm
- Λευκό PVC
Code: 22581
Out of stock
0,51€
Quantity:
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Products
Related Products
Καλώδιο RF 1 μέτρο
Χαρακτηριστικά
- Type: RG-6
- Inner conductor: copper (CU), ø 1.13 ± 0.02 mm
- Dielectric: 4.8 ± 0.02mm PE physically foamed with nitrogen (N)
- First screening: Al/PET foil, thickness 0.04 mm
- Braiding: 144 wires x 0.12mm (thick braid), AL wire
- Second screening: Al/PET foil, thickness 0.04 mm
- Outer diameter PVC: 6,8 mm, white
- Characteristic impedance: 75± 3 Ohm
- Capacitance: 50,3± 2 pF/m
- Optical braiding coverage: >= 98%
- Implementation: indoor installation
-
ManufacturerConotech
