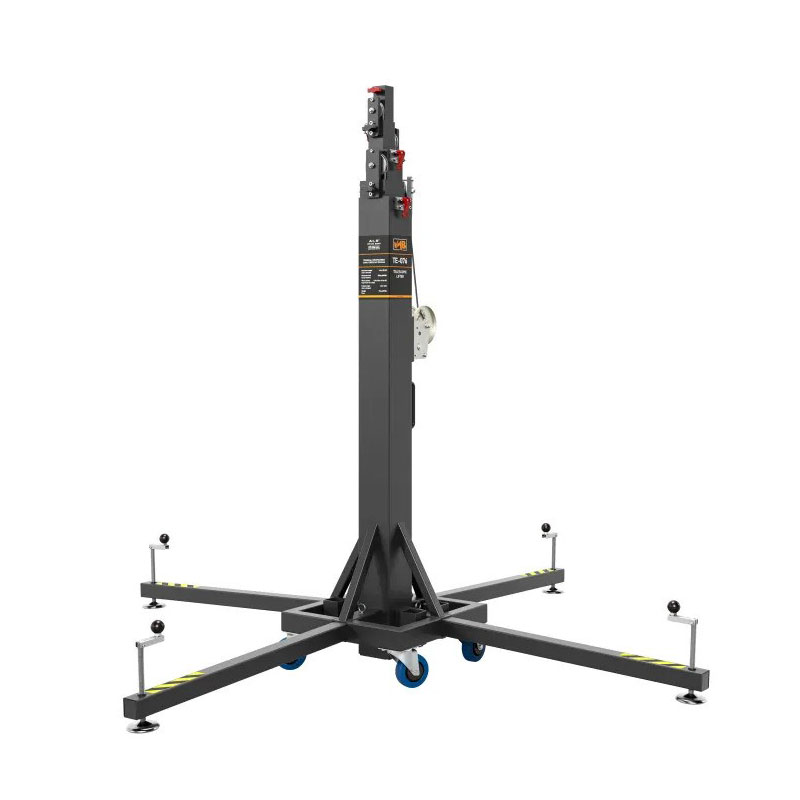

The TE-076 is a top-loading, telescopic lifter designed to lift a maximum weight of 220kg (485lb) to a maximum height of 6.5m (21.3ft)

Manufactured in Valencia (Spain) it is comprised of five premium grade steel masts finished in black, epoxy, powder coated paint for greater resistance to the elements for both indoor and outdoor use.

Operated by an AL-KO winch with automatic brake and guided through our custom-made bearing pullies via a galvanized steel cable. Our patented ALS (Auto Lock Security) system ensures maximum safety. The lift is automatically locked at intermittent heights via the ALS bolt so that the lifter does not have to rely on the cable for security making it impossible for the load to fall.

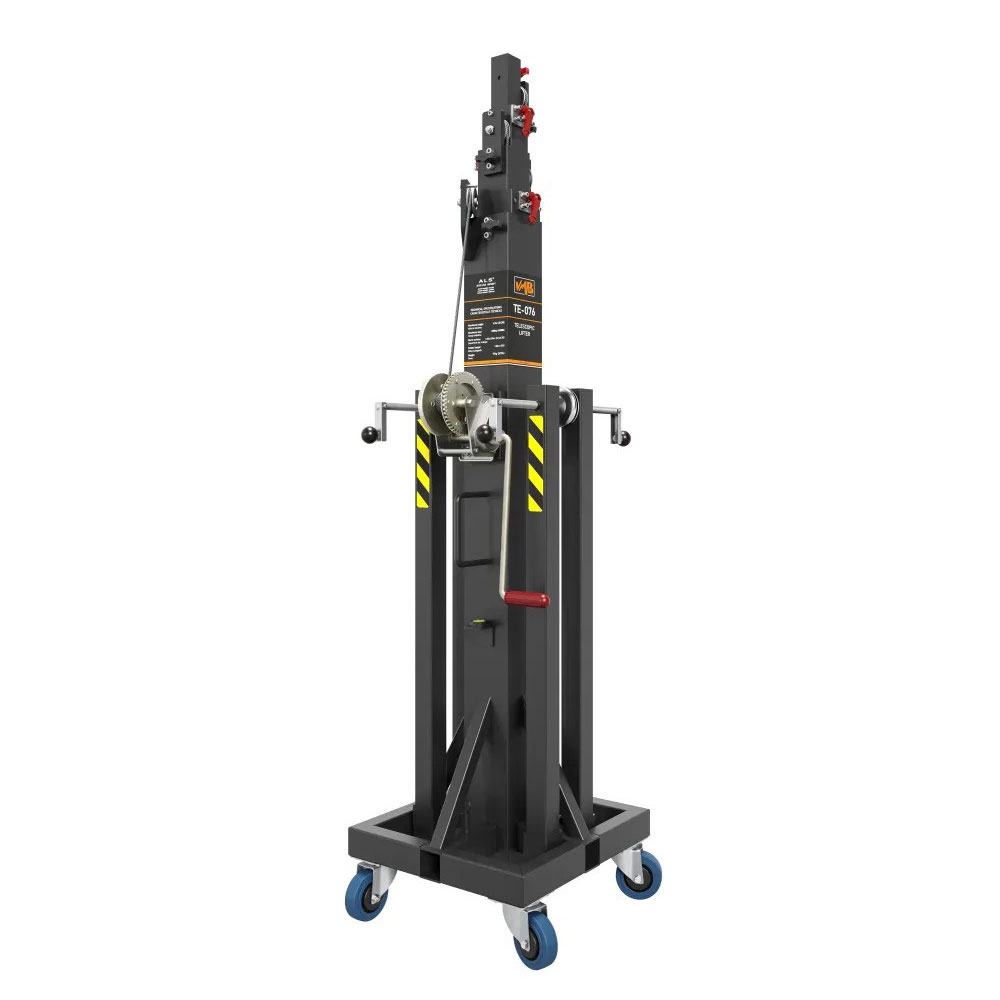

The lifter is both easy to transport and store due to its compact steel base, with pockets for the outriggers, each with their own swivel leveller with non-slip rubber base. Four 360º first grade, durable castors are fitted easing the transport of the lifter. A spirit level is also located on the main mast for levelling orientation during set-up.

Specifications

• Max. height 6.5m
• Max. Load 220Kg
• Safety ALS (Automatic Lock System)
• Work surface 1.85 x 1.85m
• Folded height 1.83m
• Winch 600Kg
• Adaptor 35mm (PSU-06 / PSA-01)
• Weight 95Kg
