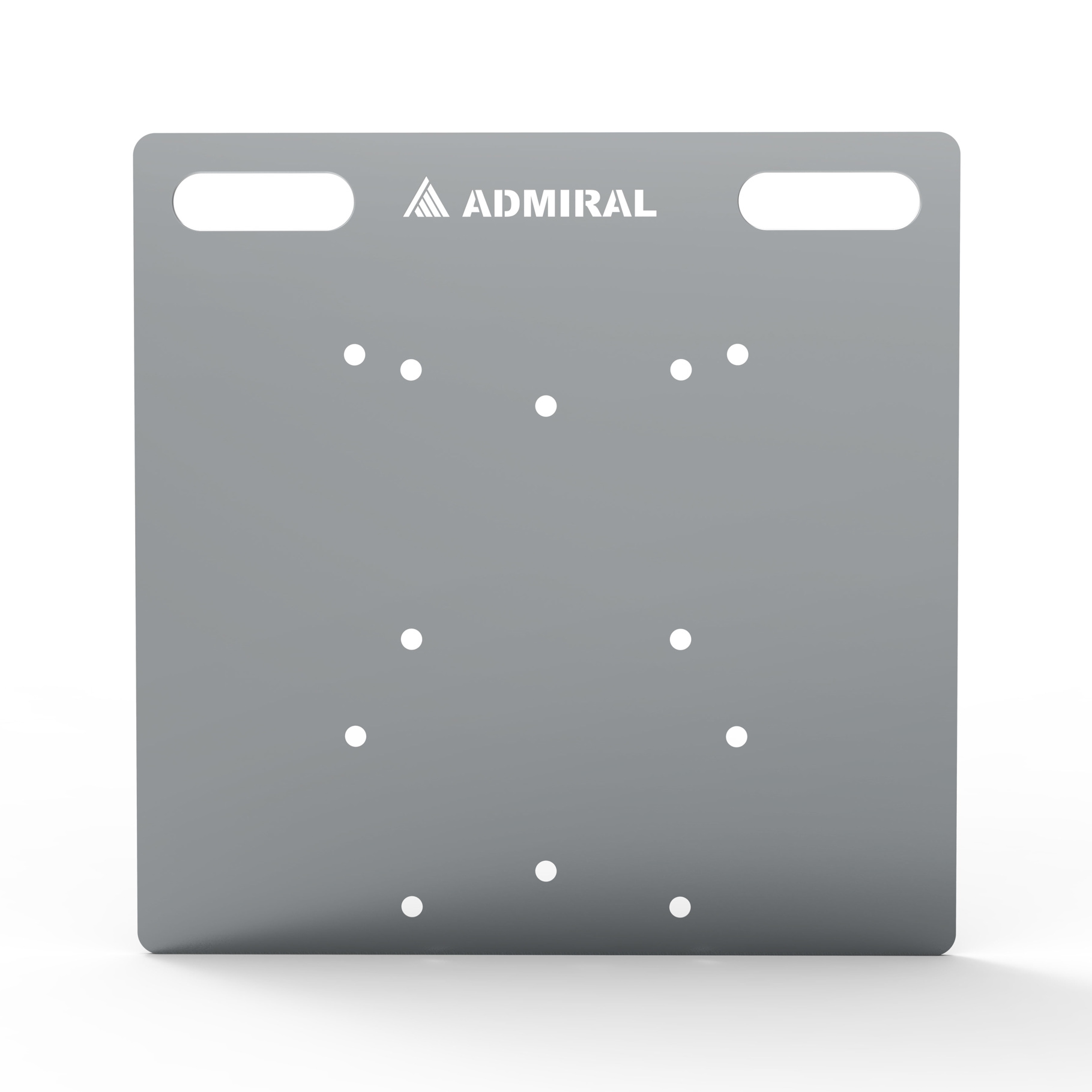

Admiral Staging Baseplate 73cm Combi 30/40 Truss Zinc
Admiral Staging Baseplate 73cm Combi 30/40 Truss Zinc
- Compatible with trusses with center-to-center distances of 239 mm (truss 30) and 339 mm (truss 40)
- Material: Steel | Width: 73 cm
- Pre-drilled holes for M12 couplers
- Suitable for truss towers, booths, and exhibition structures
- Compatible with Prolyte, Eurotruss, Global Truss, LITEC
Other Colors
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products
Sixty82 Spigot M03 202003
Sixty82 R-Spring M05 202005
Sixty82 Connector M00 202001
Sixty82 Half Connector M52S 202008
Sixty82 Half Connector M49 202007

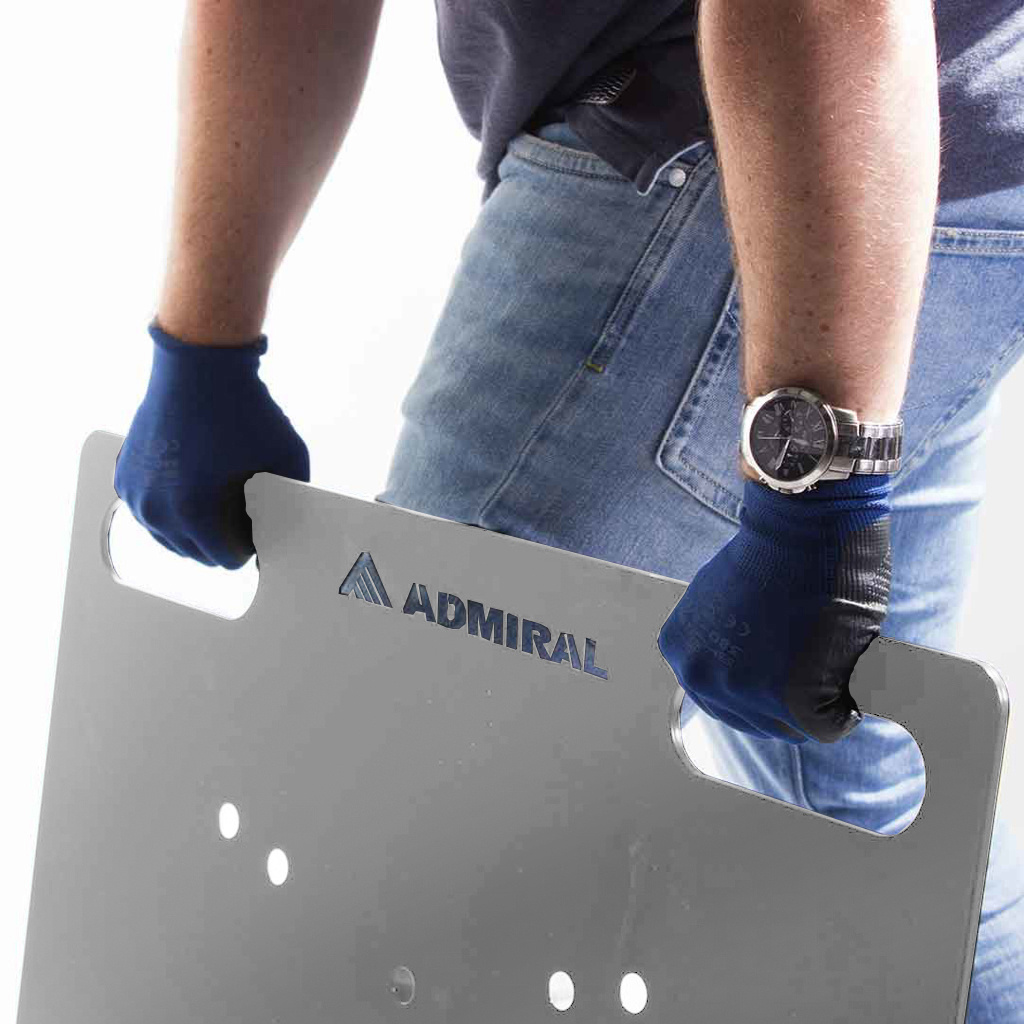

Our robust steel baseplates give you more flexibility when rigging a truss by creating a stable and flat surface. The Admiral baseplates add 25 kg of weight to the base of your truss construction, making them an excellent base for free-standing objects.

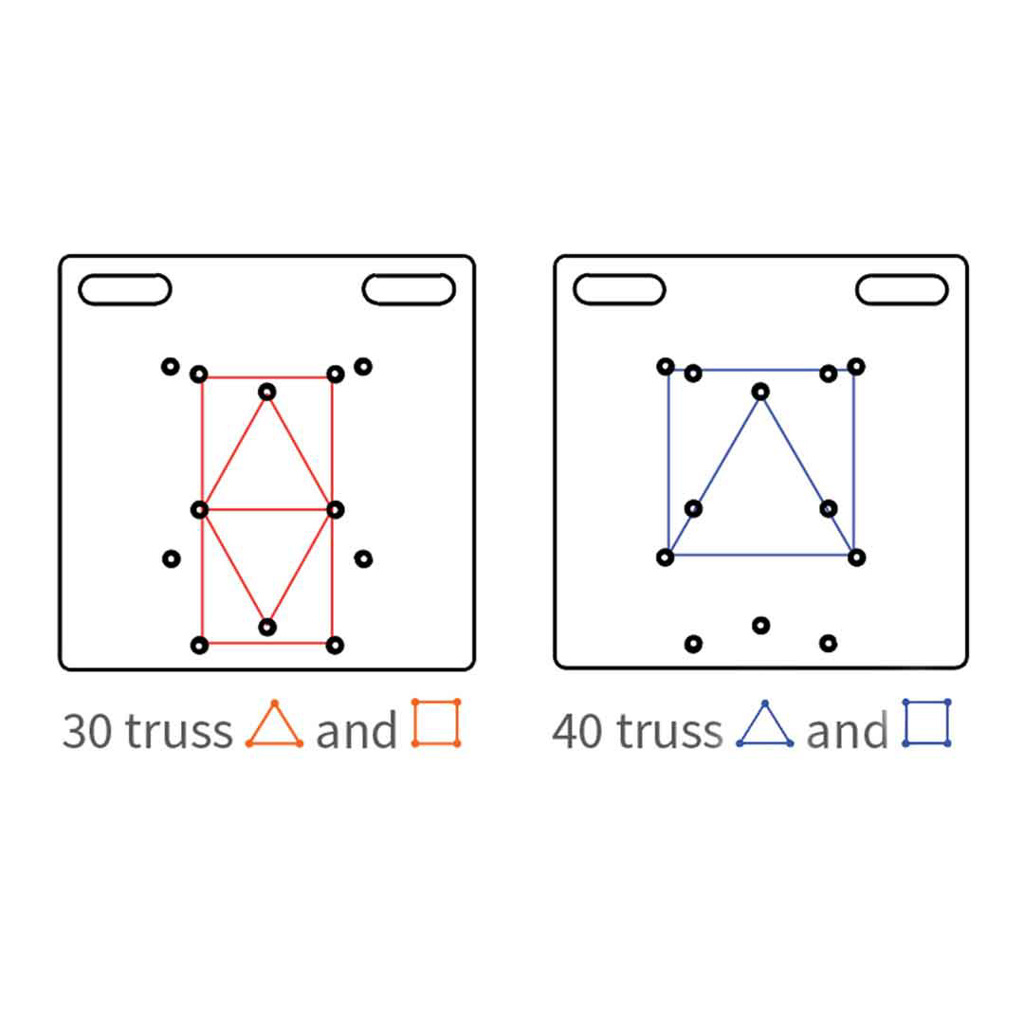

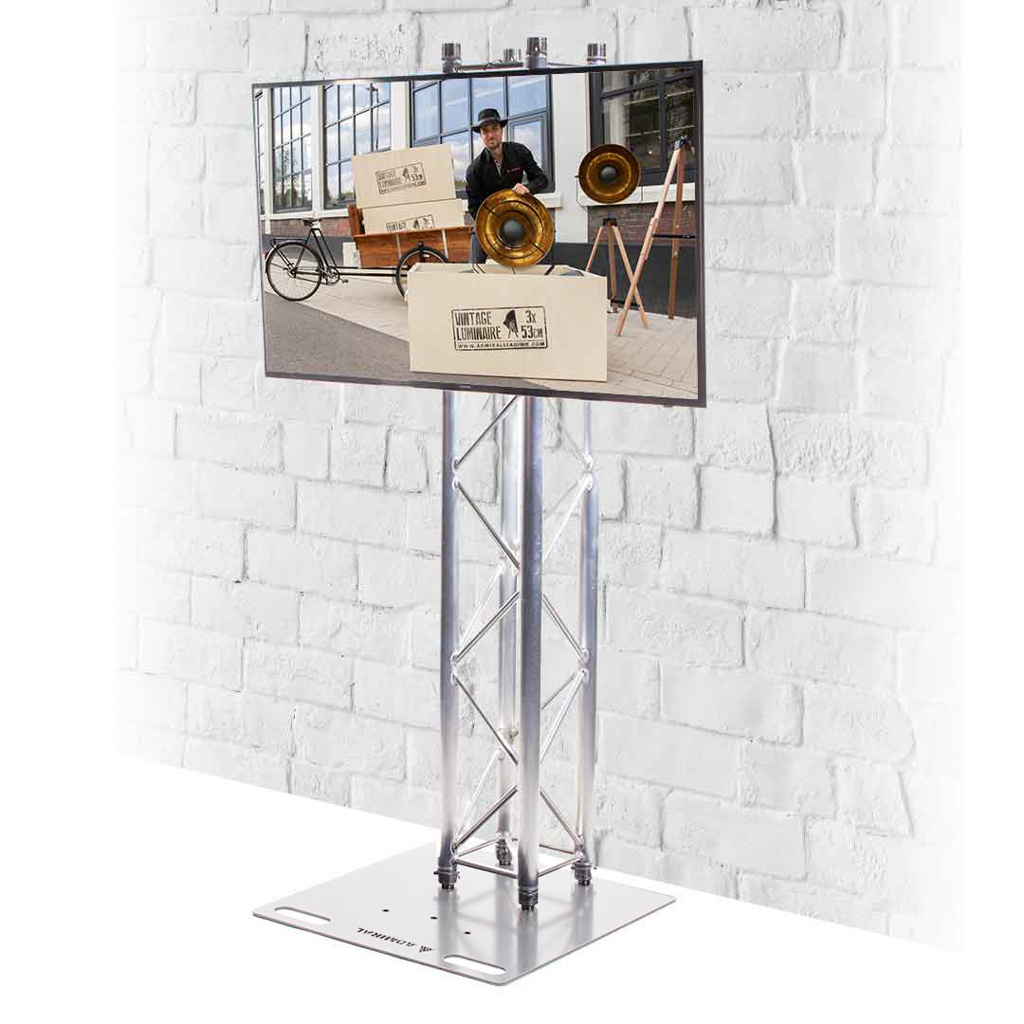

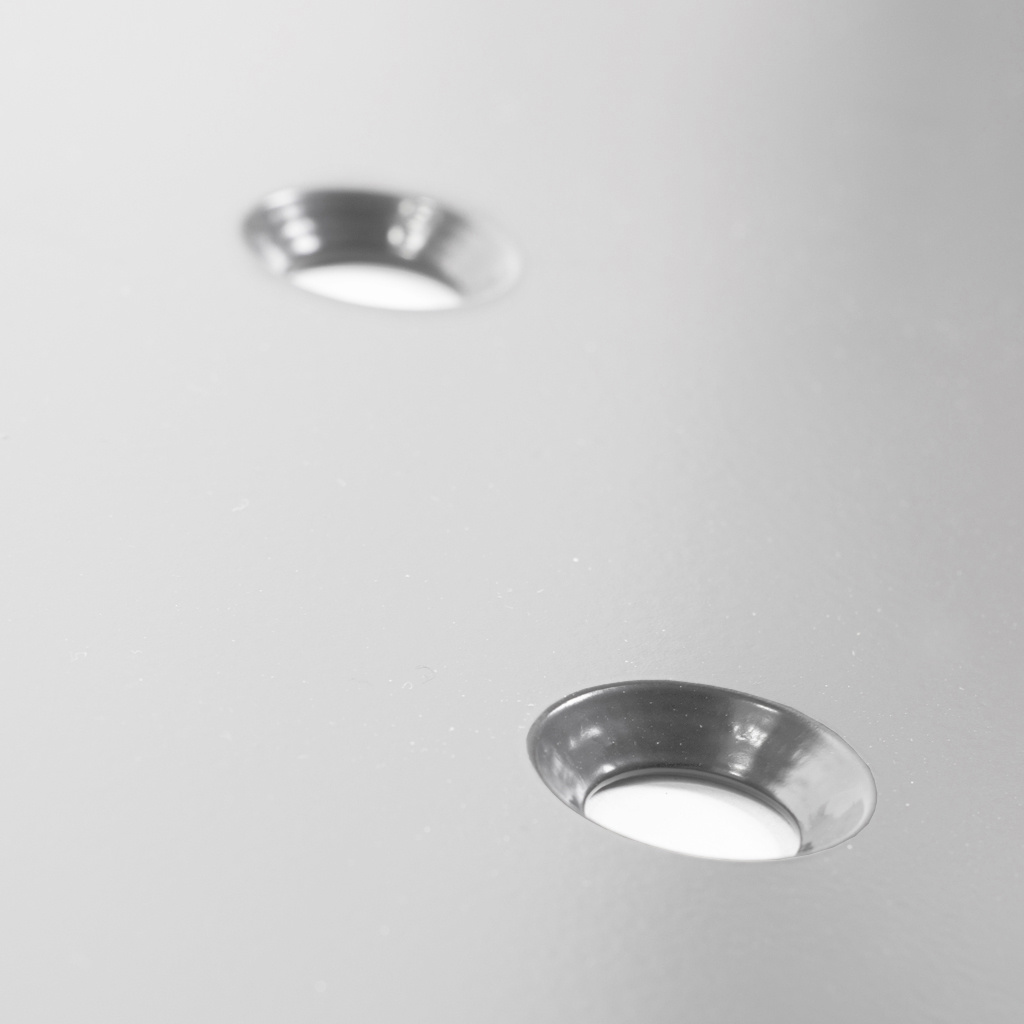

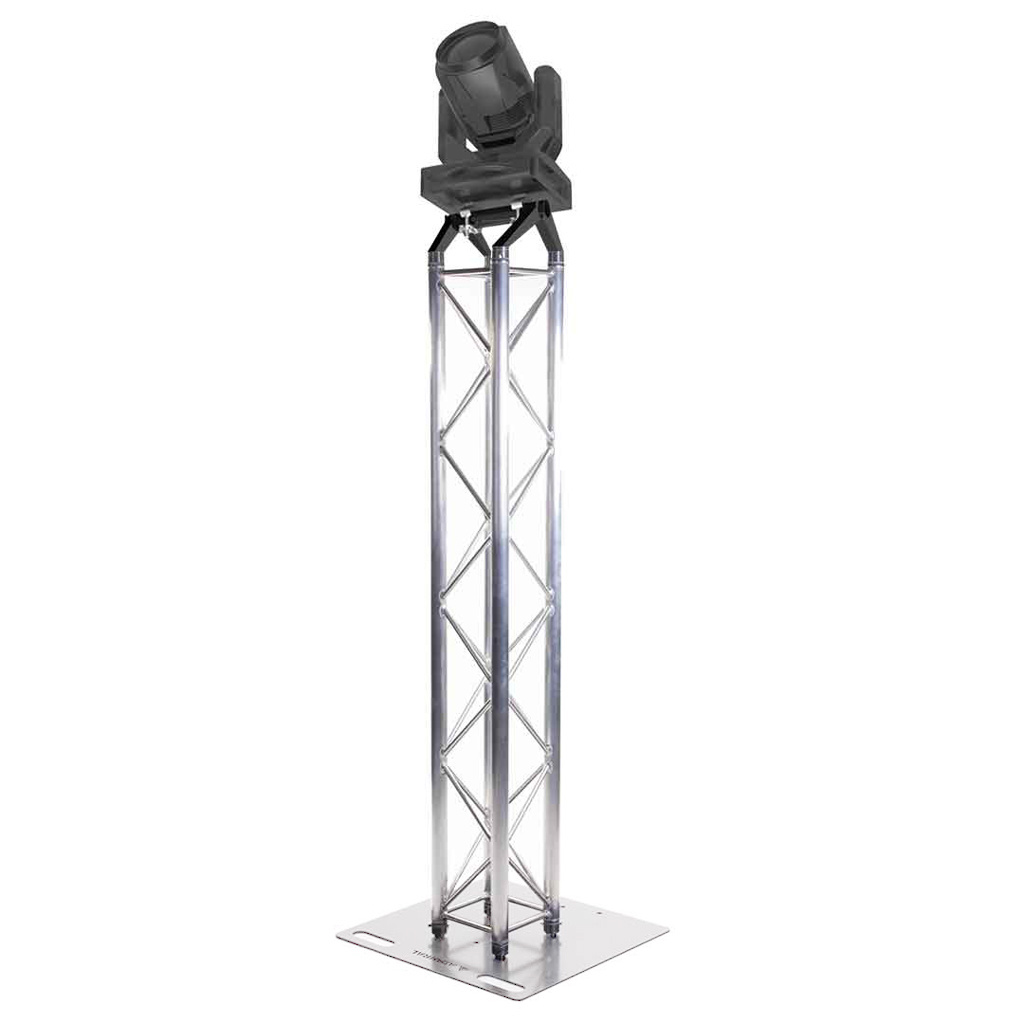

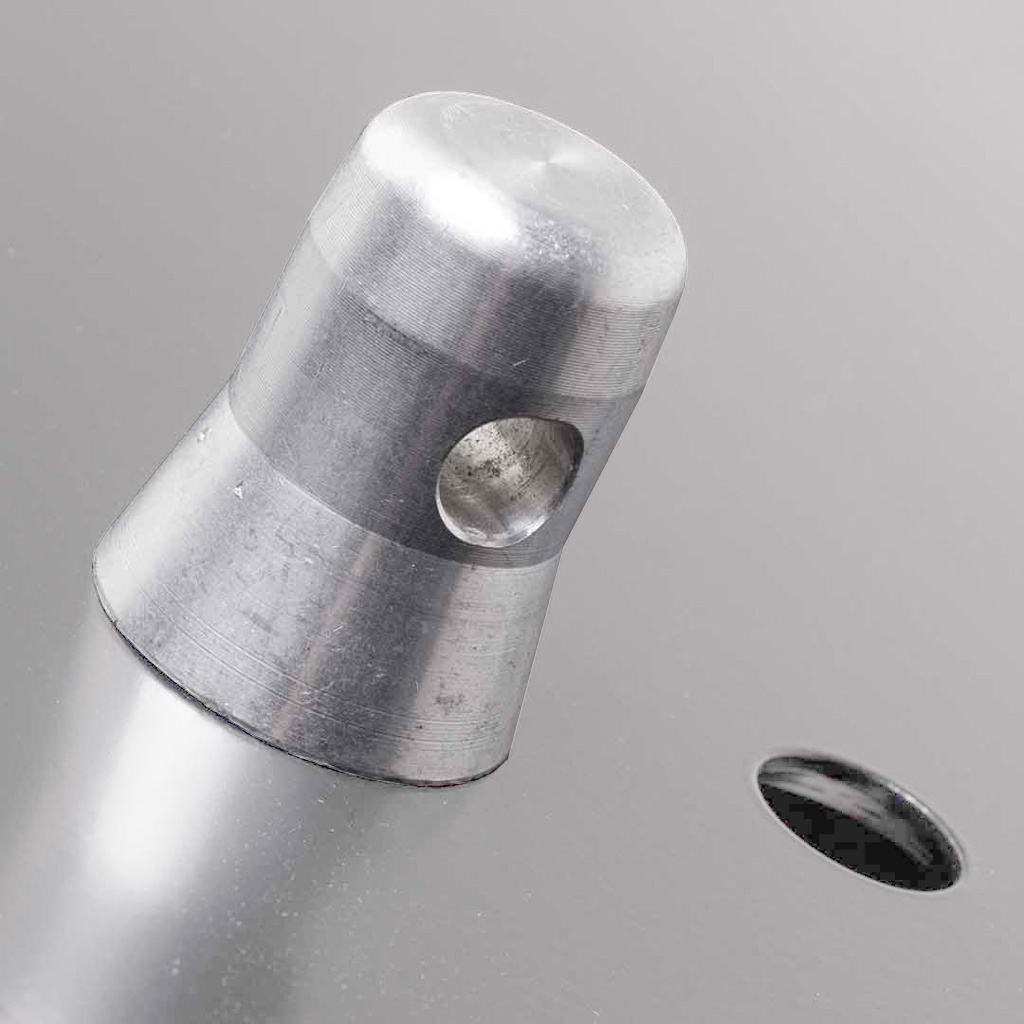

Pre-drilled symmetrical and asymmetrical holes, suitable for the attachment of M12 conical couplers, make assembly and mounting quick and easy. Attaching your truss with M10 couplers can also be easily done by using our reduction ring. The asymmetrical pattern, suitable for 30 truss, can be ideal for setting up displays such as TV-screens along a wall. The symmetrical pattern, suitable for both 30 and 40 truss, can be used for tables, truss bridges or moving head bases.

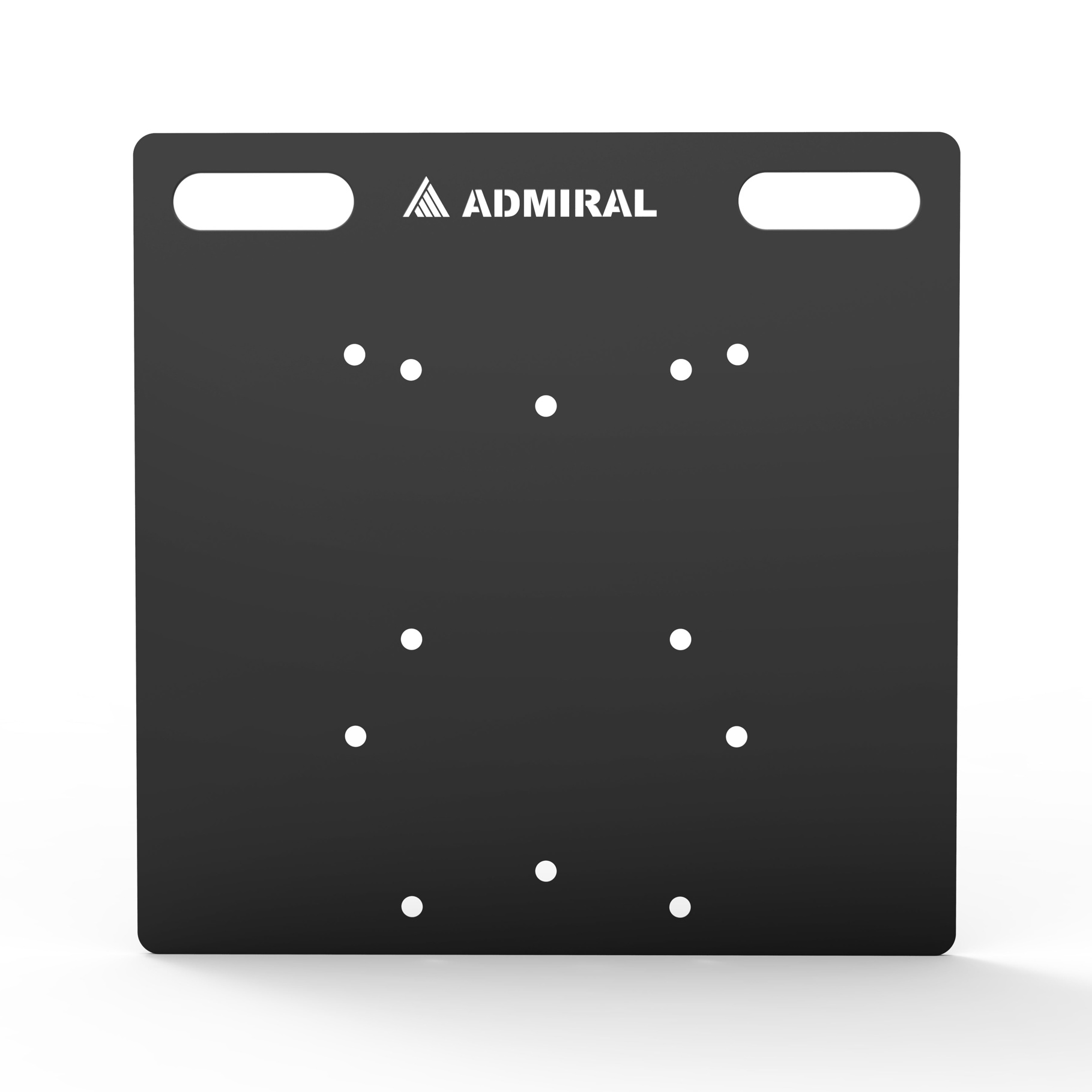

The Admiral Combi baseplates are available in two colours, zinc plated and black powder coated.
Note: This baseplate is compatible with trusses that have a center-to-center distance of distance of 239 mm (30 truss) and 339 mm (40 truss), including Prolyte, Eurotruss, Global Truss, NEXT Truss and LITEC.
If you want to add an adhesive floor protector to your 6 mm baseplate, the total thickness of it becomes 7 mm. This makes the 6 mm baseplate holder on our Baseplate dolly too narrow for these baseplates, and the rubber protector can end up being damaged. We recommend using one of the larger holders to prevent this.
Specifications
- Width: 73 cm
- Material thickness: 6 mm
- Material: Steel
- Colour: Silver
- Finish: Hot-dip galvanized
- Compatible with: Prolyte, Eurotruss, Global Truss, NEXT Truss, LITEC
-
ManufacturerAdmiral
