Our steel baseplates can be mounted at the bottom of your standing truss structure, providing you with a solid and stable base. They are a key element of temporary structures and installations used during outdoor shows, trade fairs and other events.

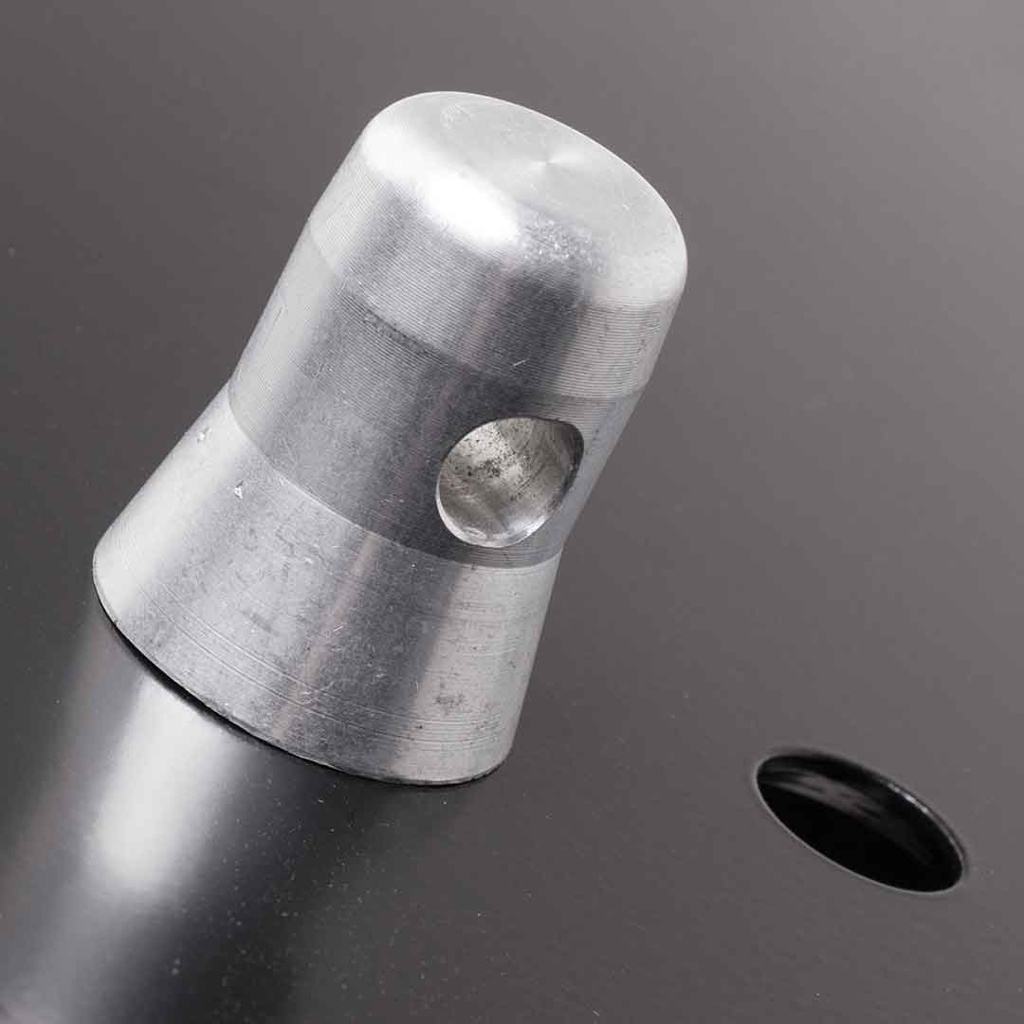

These baseplates can be used with 30-truss in both triangular and square layouts. They are equipped with pre-drilled holes suitable for M12 conical couplers, allowing a quick and easy attachment to the truss. Attaching your truss with M10 couplers can also be easily done by using our reduction ring .

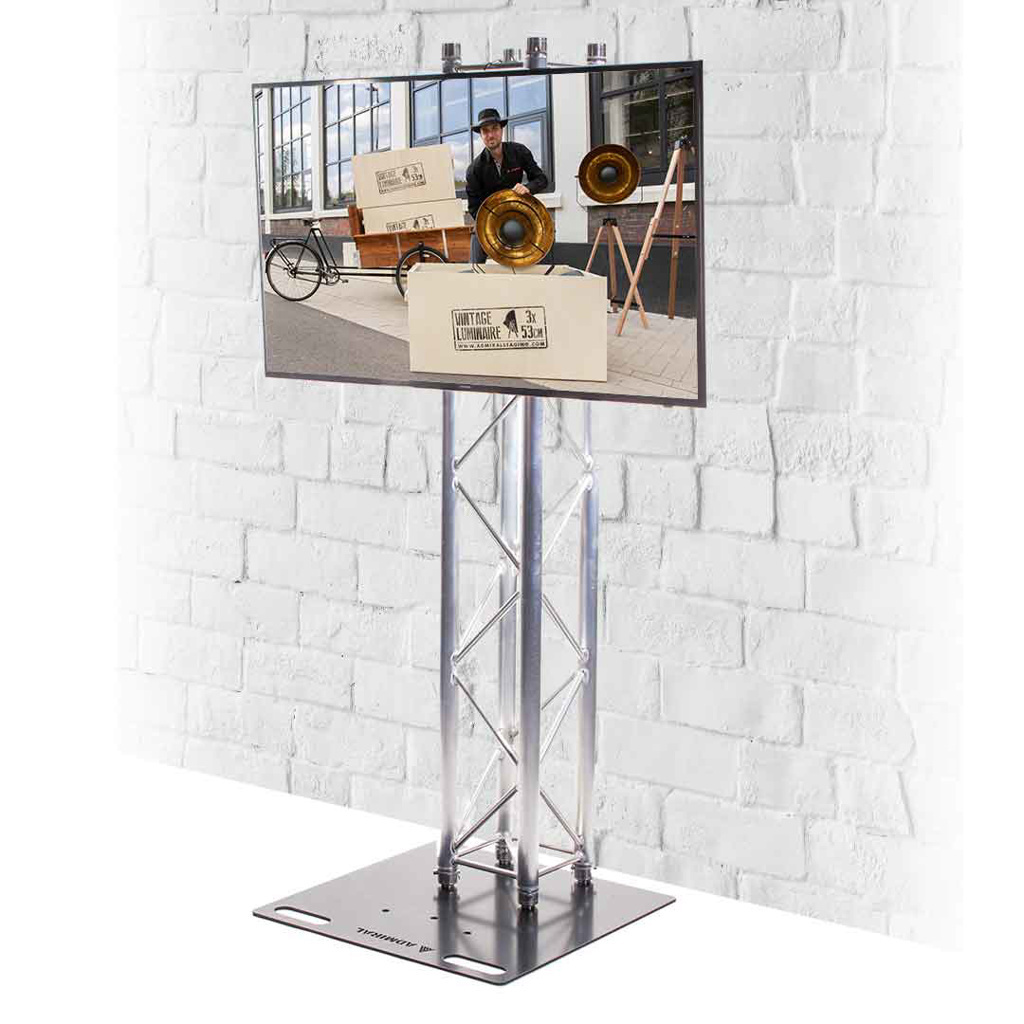

The Admiral baseplates can be used for countless applications including structures such as truss towers, booths, exhibition displays, truss TV stands and many more. They are available in two colours: zinc plated and black powder coated.

Note: This baseplate is compatible with trusses that have a center-to-center distance of 239 mm (30 truss), including Prolyte, Eurotruss, Global Truss, NEXT Truss and LITEC.

If you want to add an adhesive floor protector to your 6 mm baseplate, the total thickness of it becomes 7 mm. This makes the 6 mm baseplate holder on our Baseplate dolly too narrow for these baseplates, and the rubber protector can end up being damaged. We recommend using one of the larger holders to prevent this.

Specifications

• Width: 73 cm
• Material thickness: 6 mm
• Material: Steel
• Colour: Black
• Finish: Powder coated
• For truss: Square truss 40
• Compatible with: Prolyte, Eurotruss, Global Truss, NEXT Truss, LITEC
