Allen & Heath QU-16
Allen & Heath QU-16

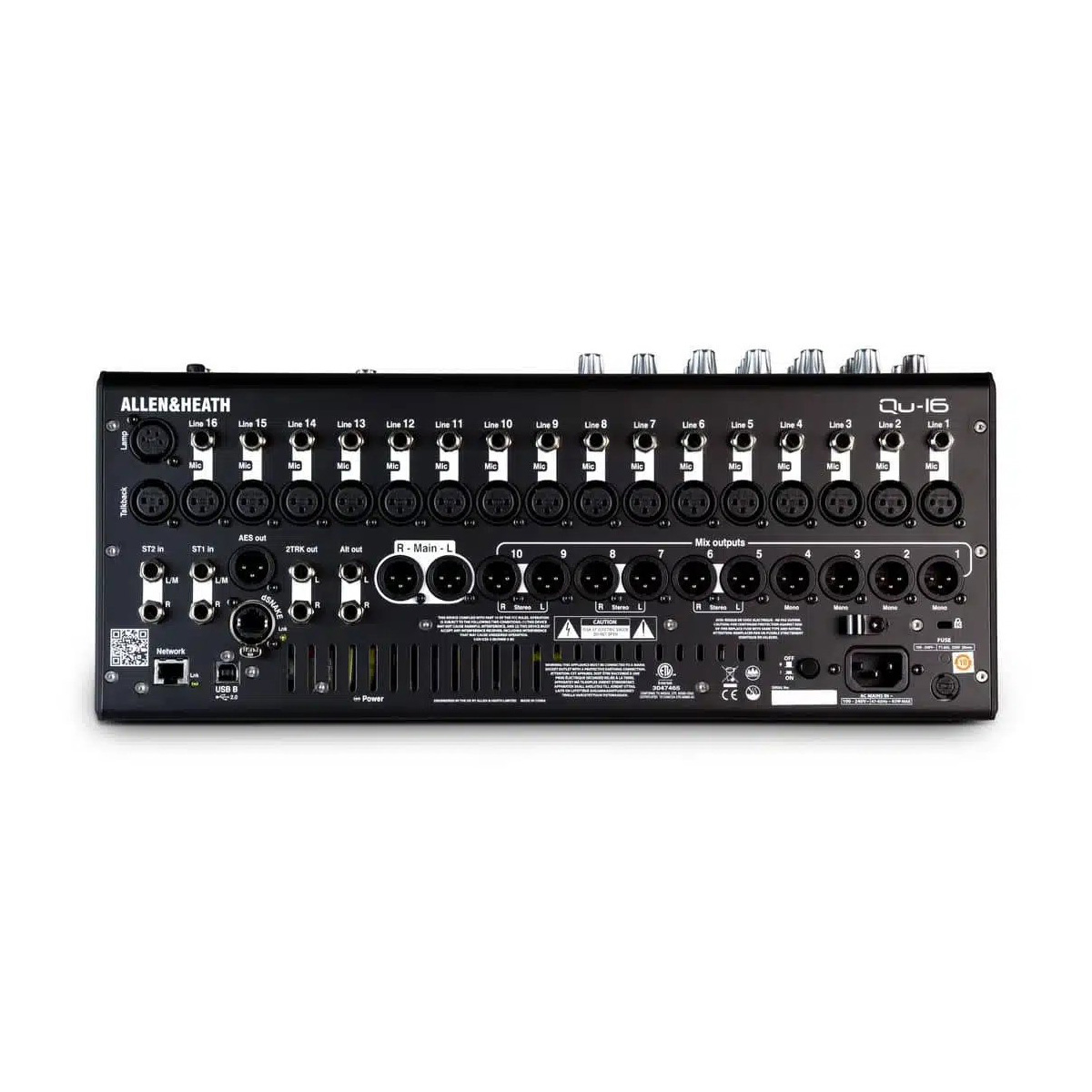

- Inputs: 16 mono (TRS + XLR), 3 stereo, 4 stereo returns
- Busses & Effects: 16 busses, 4 effects engines
- Faders & Control: Motorized faders, touchscreen, iPad app (Qu-Pad)
- Audio Processing: AnaLOGIQ preamps, 4-band PEQ, compressor, gate, HPF on all inputs; GEQ & delay on outputs
- Recording & Streaming: USB multitrack recording/playback, USB audio streaming, DAW MIDI control
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products
Allen & Heath SQ-6
Allen & Heath SQ-7
Allen & Heath SQ-5
Midas M32 LIVE
Midas M32R LIVE
Midas DP48
Allen & Heath’s most popular digital console combines exceptional functionality with innovative design, delivering a professional mixing experience with class-leading sound quality
The Qu-16 features a fader for every mono input channel and fewer fader layers for a simpler, faster workflow. Each mic input is presented on its own fader for quick and easy control, making the Qu-16 the ideal console for those transitioning from analogue to digital or for users who are not comfortable working with multiple fader layers
The True Colour touchscreen and dedicated rotary encoder form the heart of the Qu-16’s interface, providing super-fast access to all settings and parameters. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus, and much more
Complementing the touchscreen, the SuperStrip — a set of single-function physical controls — provides instant access to gain, HPF, 4-band PEQ, gate, compressor, GEQ, and pan
Coming from analogue? The Qu will make you feel right at home
Specifications
-
Inputs (TRS + XLR)16
-
Stereo Inputs (TRS)3
-
Stereo Returns4
-
Busses16
-
Effects Engines4
-
Digital OutputAES
-
19” RackmountableYes
-
Motorized FadersYes
-
PreampsAnaLOGIQ
-
Multitrack Recording / Playbackvia USB drives
-
Touchscreen800x480
-
Compatible withME Personal Mixing System
-
iPad AppQu-Pad
-
USB Audio StreamingYes
-
DAW MIDI ControlYes
-
Mute Groups4
-
Input Processing (all inputs)Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay
-
Output Processing (Main LR and Mono Mix)Insert, 1/3-octave GEQ, compressor, delay
-
Output Processing (Stereo Mix)Insert, 4-band PEQ, compressor, delay
-
Signal GeneratorBuilt-in
-
RTAwith Peak Band indication
