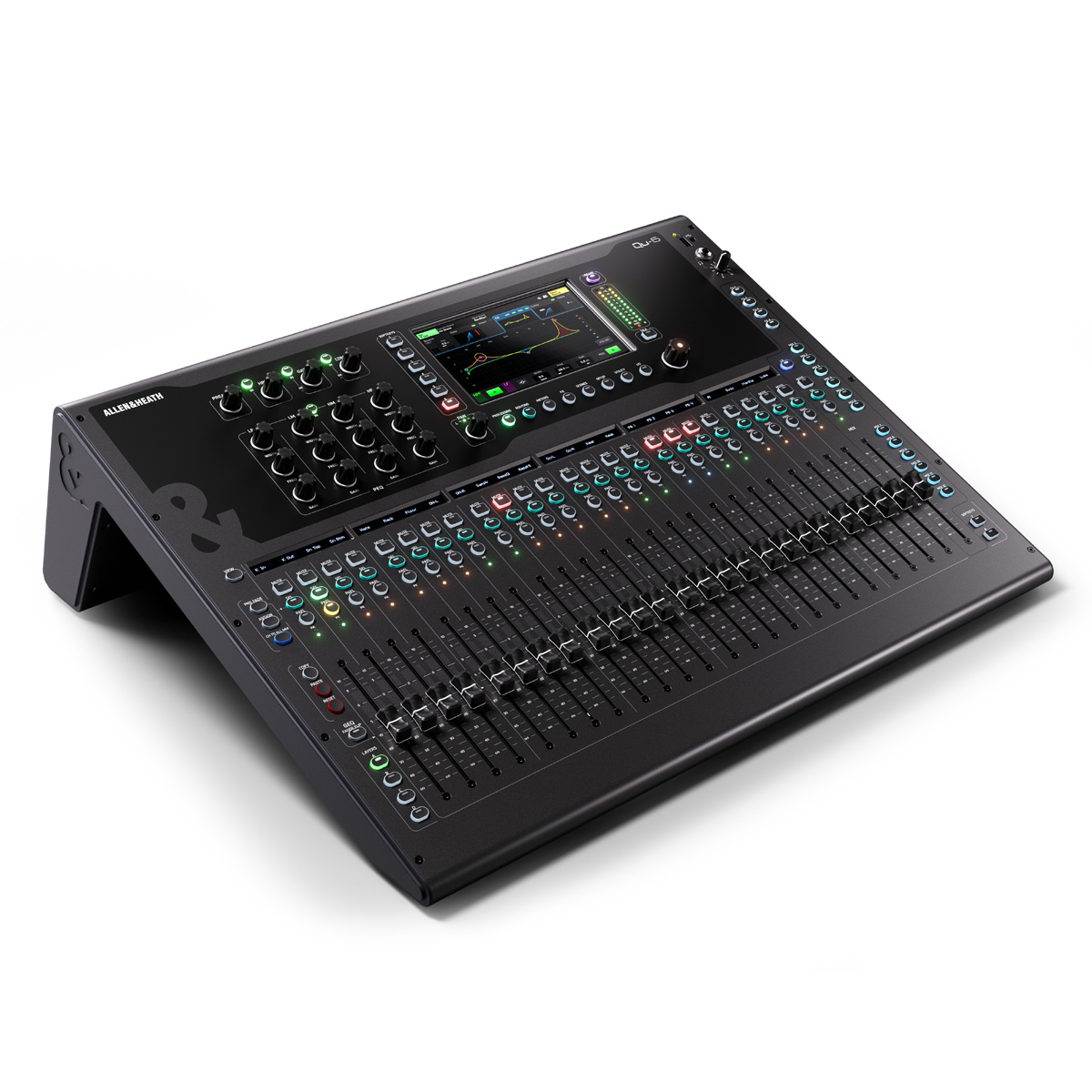

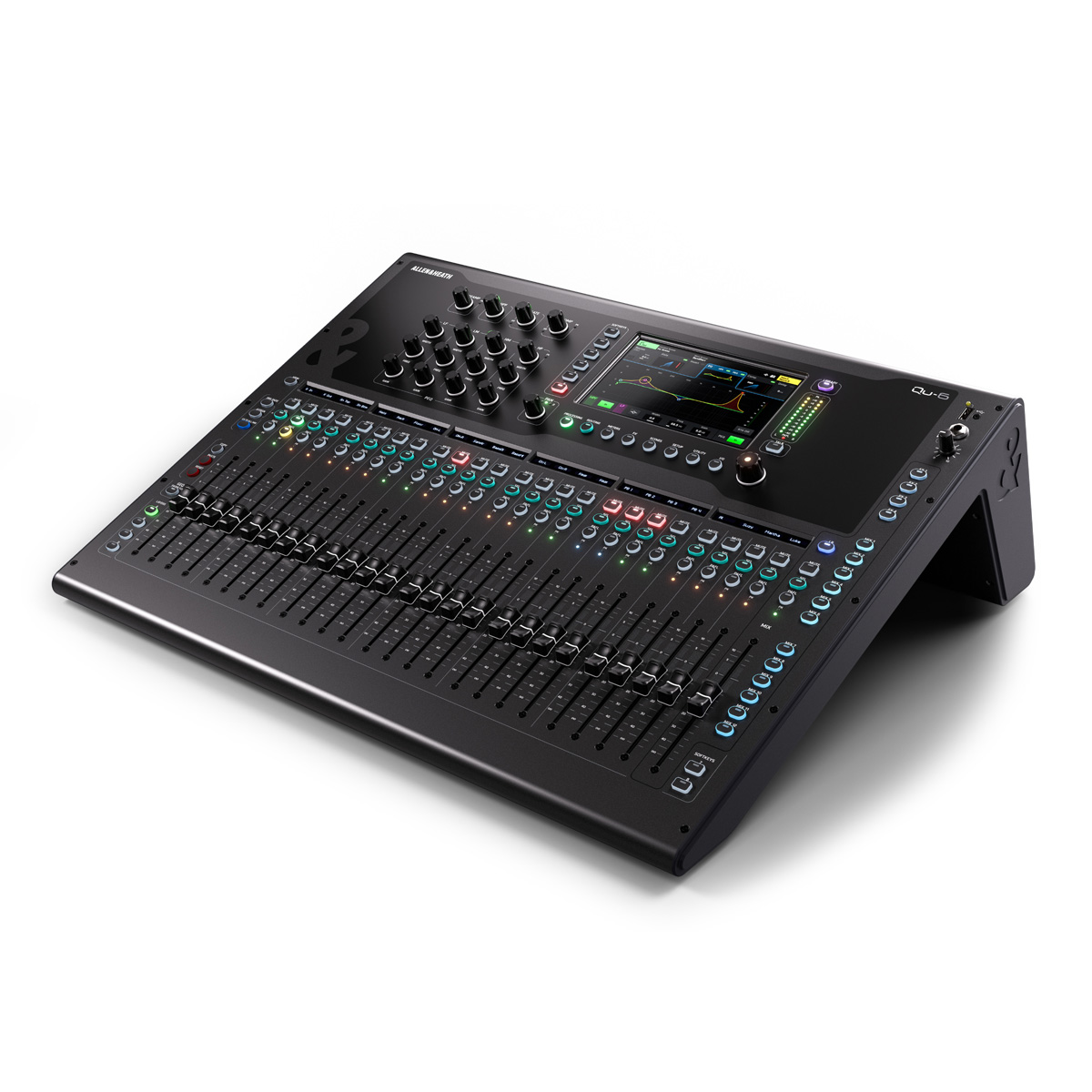

Qu-6 takes the ever-popular Qu-24 form factor and adds Allen & Heath’s powerful XCVI processing, new FX engines and Everything I/O connectivity. There’s also a larger capacitive touchscreen, channel strip displays, customisable layers and extra SoftKeys

In addition, the Qu-6D variant features a built-in 16x16 48/96 kHz Dante port for interoperability with other Dante enabled equipment

Both the Qu-6 and Qu-6D are 32 input channel, 96kHz digital audio mixers, combining high performance audio processing and professional features with ease of use and hands-on control

The Qu-6 and Qu-6D are multi-purpose mixers suitable for live music/band use, AV and install, studio and broadcast. Workflow and UI have been designed to make operation easy for inexperienced users or volunteers, provide familiarity to those transitioning from analogue mixing and give quick access to more advanced features for the experienced engineer

Specifications

Processing & FX

• 96kHz XCVI Core
• 6 Multi-FX Engines with dedicated Stereo Returns
• DEEP Processing Ready

Mix Architecture

• 38x Inputs to Mix (32x Mono/Linkable, 3x Stereo)
• 12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
• 4 Mono/Linkable Matrix
• Stereo Main LR Output

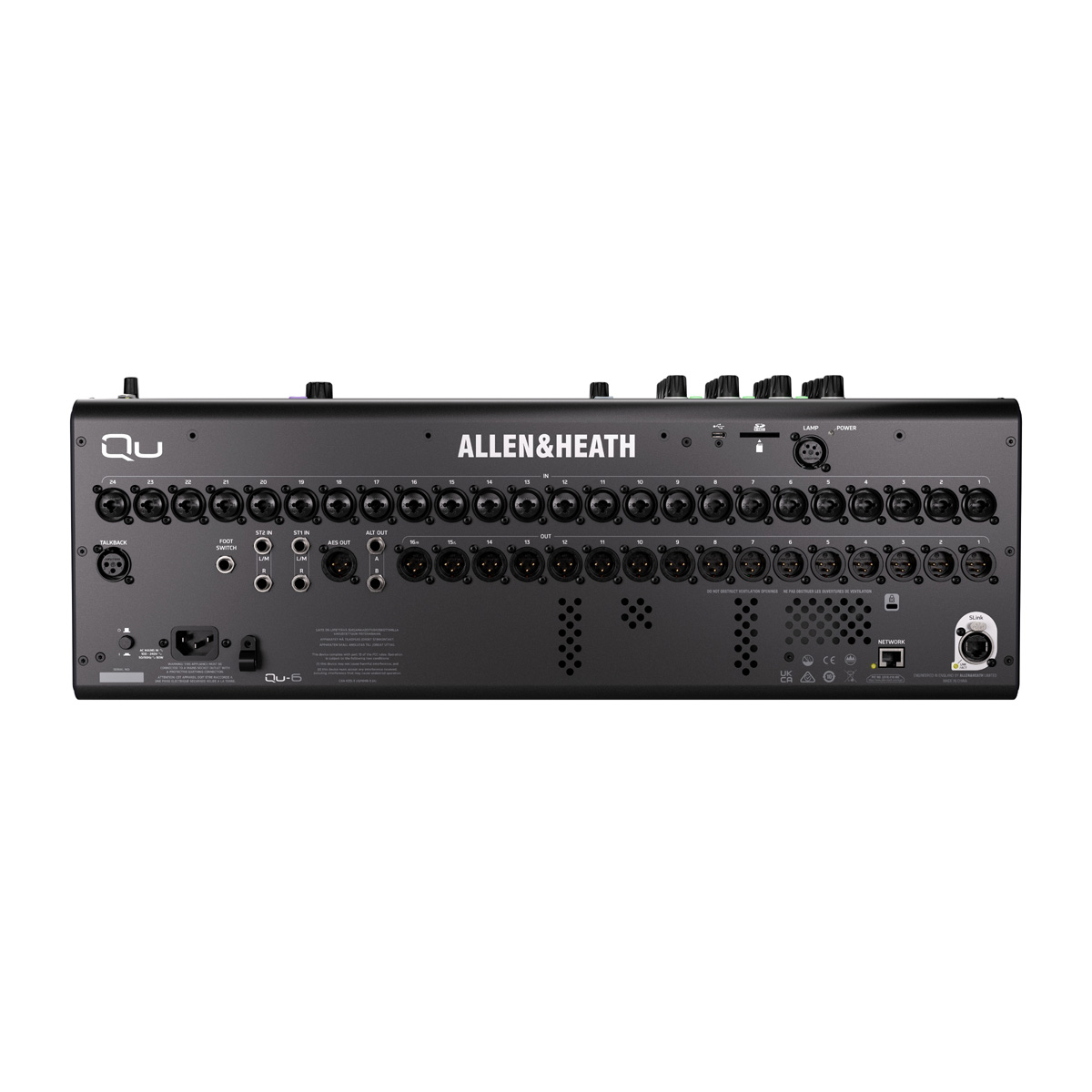

I/O

• 24 XLR/Jack ‘Combi’ Mic/Line Input Sockets
• 2 Stereo Line Input Sockets (each 2x TRS)
• 16 XLR Output Sockets
• 1 XLR Talkback Socket
• 2 TRS Output Sockets
• 1 AES3 Stereo Digital Output Socket
• 128×128 Intelligent SLink Port for Everything I/O expansion and system connections
• 16×16 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-6D only)
• Stereo Headphone Output

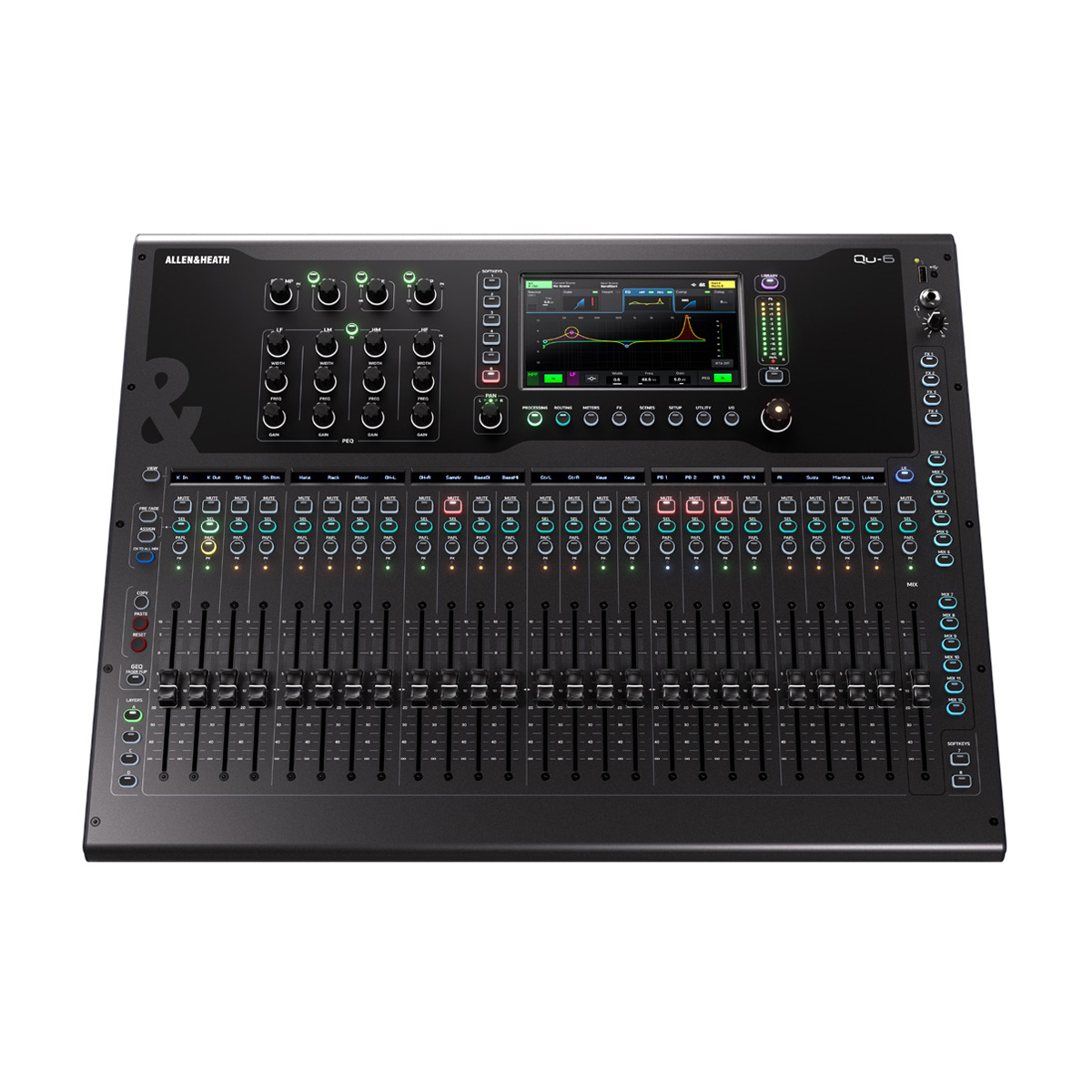

Control

• 7” Capacitive Touchscreen
• 25 100mm Motorised Faders
• 4 Channel Strip Layers
• Remote control via free apps – Windows/MacOS/iOS/Android
• 8 SoftKeys
• Configurable single/dual Footswitch Connection

Recording & Playback

• USB-A For stereo audio record/playback and data transfer
• USB-C Audio interface for multichannel record/playback (32×32)
• SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)

Misc

• 12V Lamp Socket
• Configurable Chromatic Channel Meter LED’s
