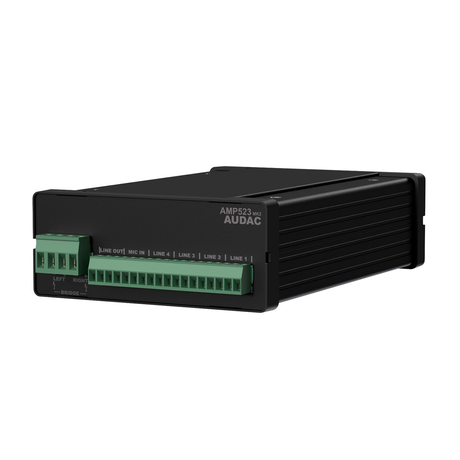

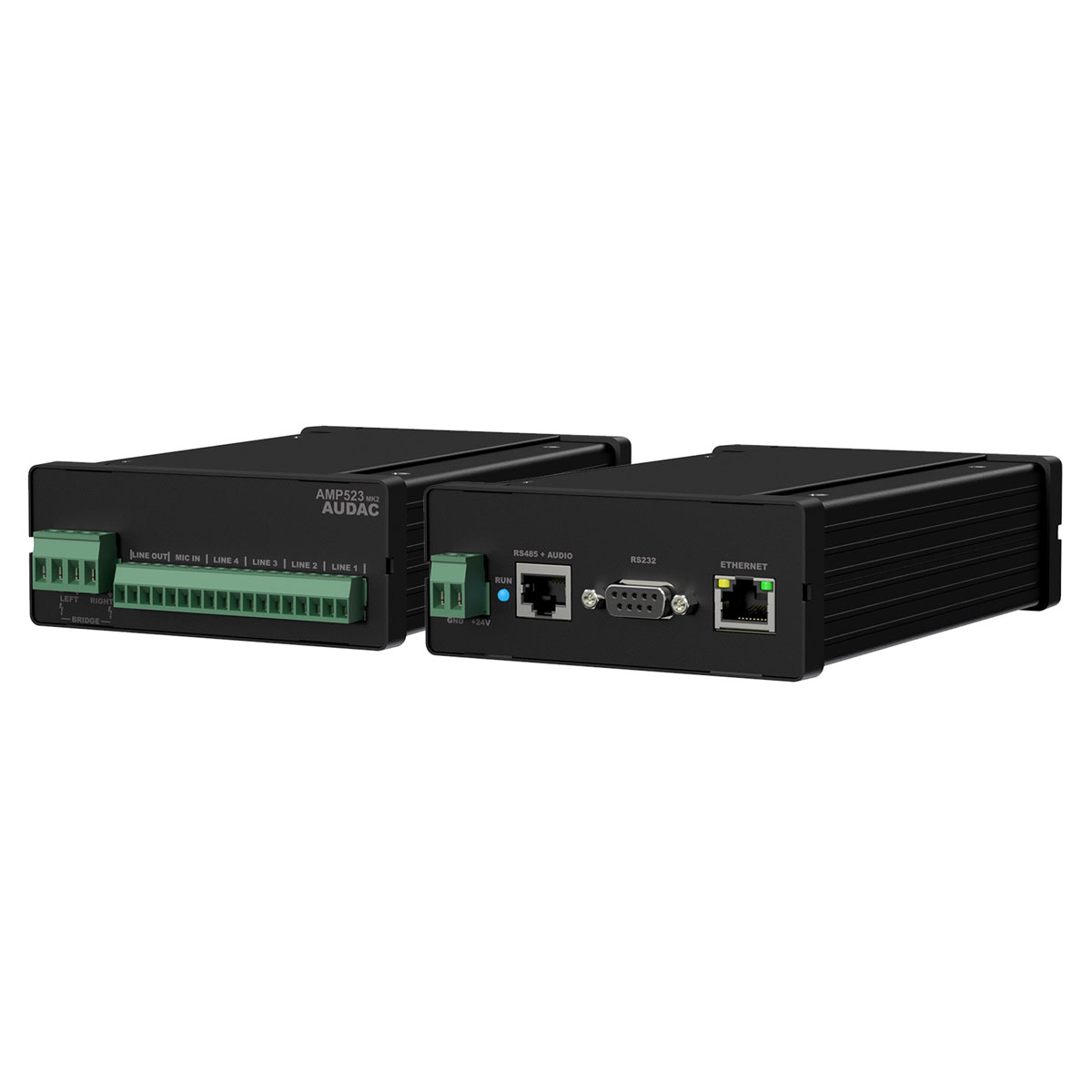

Compact Class-D Stereo Amplifier

It delivers 2 x 15 W output power and features a built-in web-based control interface, four stereo line inputs, and one microphone input with phantom power

The multiple stereo line inputs allow simultaneous connections from different sources, while a microphone remains connected

Input switching, volume adjustment, and other controls can be managed from any computer with a web browser—no additional software required. The RS232 connection also enables control of the AMP523 via any device that supports serial communication

Additionally, the system can be controlled via smartphone or tablet using the specially developed AUDAC Touch™ app

A variety of optional mounting brackets allow for installation on a desk, in a cabinet, or in a 19″ equipment rack

Specifications

System specifications

• RMS/AES power handling
• @ 4 Ω Stereo: 2 x 15 W
• @ 8 Ω Stereo: 2 x 75 W
• Satelite @ 8 Ω Bridge: 30 W

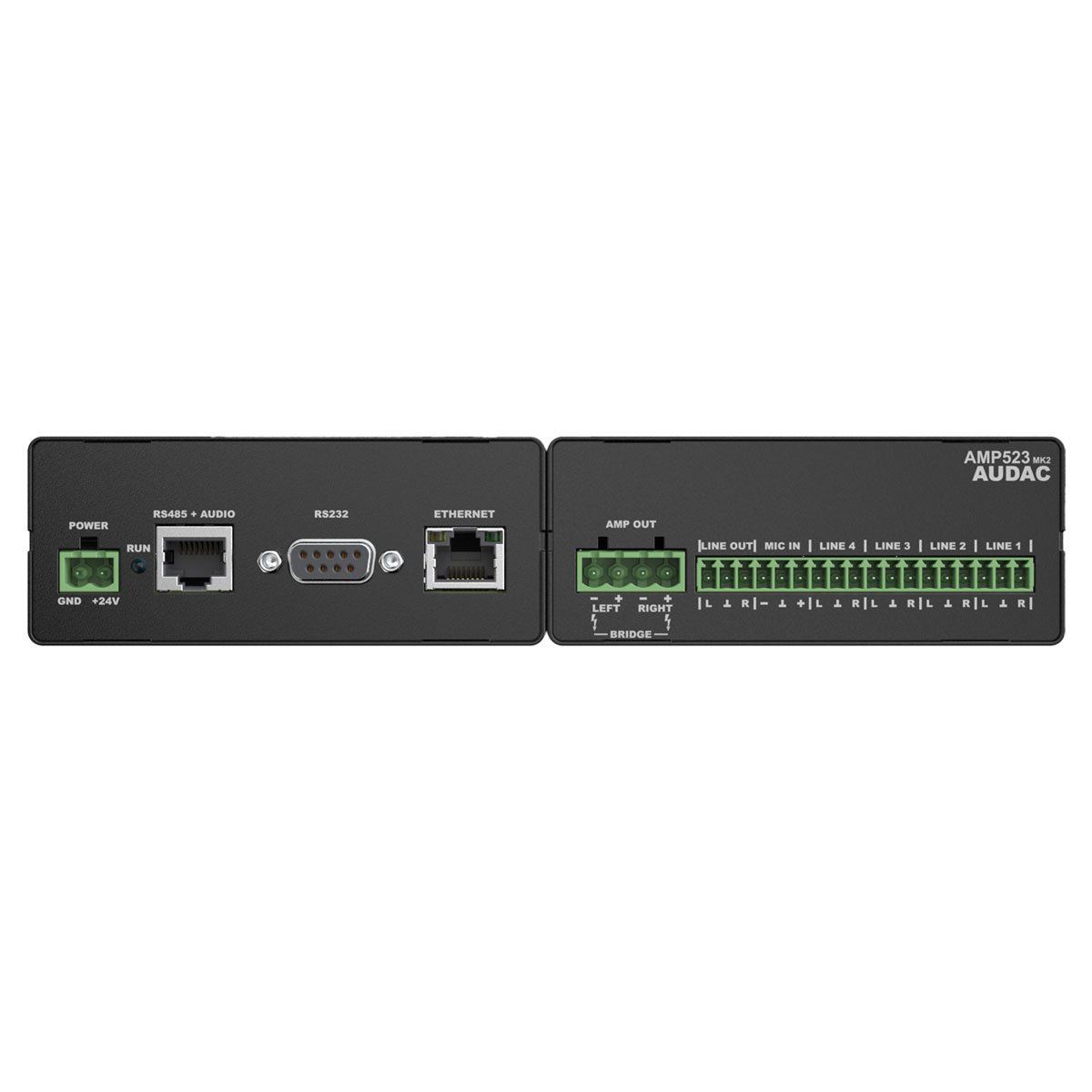

• Inputs
• Unbalanced Stereo
• Type: 4 x Stereo Unbalanced Line
• Balanced Stereo
• Connector: 18-pin Euro Terminal Block (Pitch - 3.81 mm)
• Impedance: 20 kΩ
• Sensitivity: -10 dBV ~ +4 dBV
• Balanced Microphone
• Type: 1 x Balanced Microphone
• Connector: 18-pin Euro Terminal Block (Pitch - 3.81 mm)
• Impedance: 47 kΩ
• Sensitivity: -45 dBV ~ -20 dBV

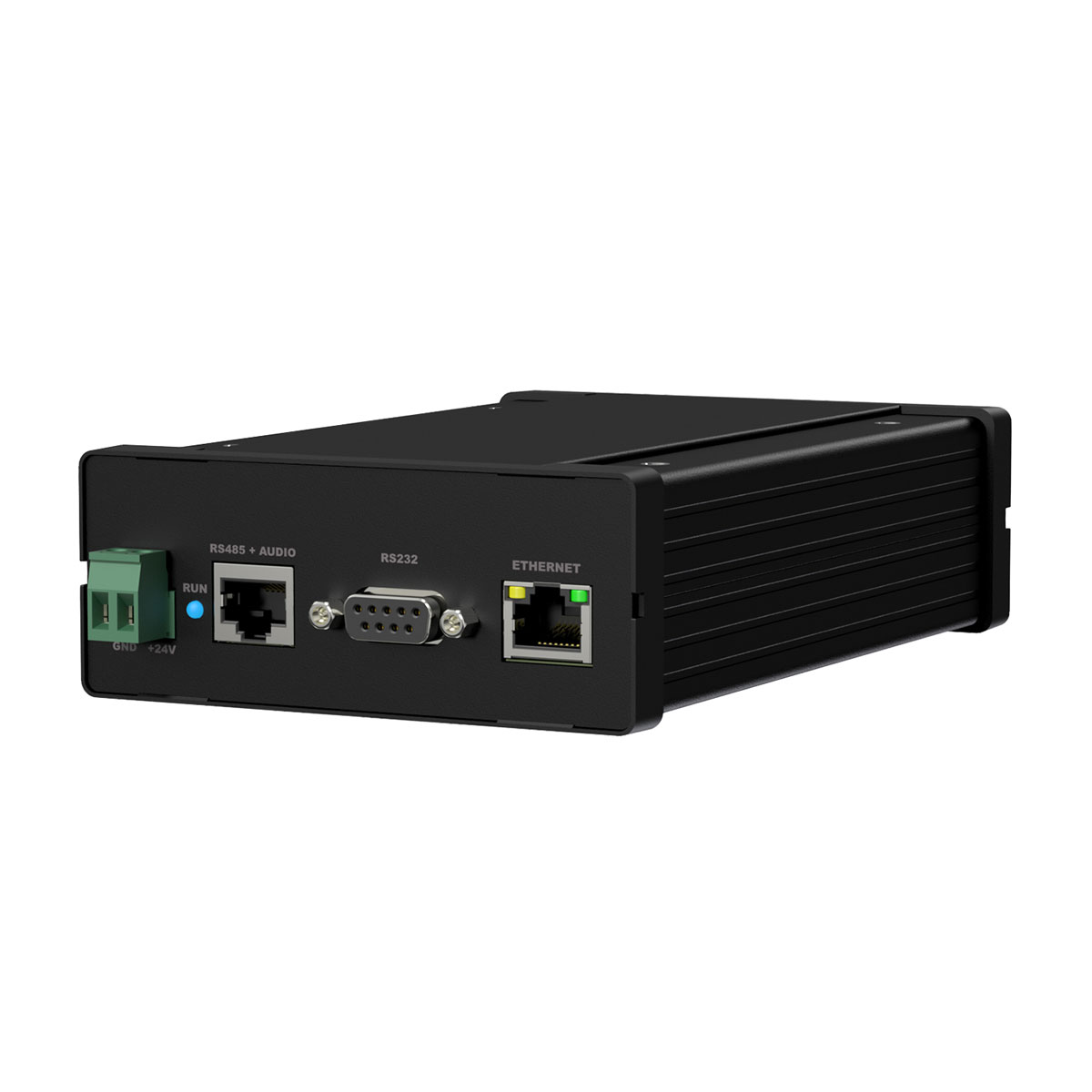

• Other
• Type: 1 x RS-485 + Differential audio
• Connector: RJ45
• Type: 1 x RS-232
• Connector: SUBD9
• Type: 1 x Ethernet
• Connector: RJ45
• Outputs
• Type: 1 x Stereo Loudspeaker
• Connector: 4-pin Euro Terminal Block (Pitch - 5.08 mm)
• THD+N (@ 1 kHz): < 0.1%
• Crosstalk (@ 1 kHz): < -75 dB
• Signal / Noise: > 95 dB
• Power
• Consumption: Standby < 3.0 W (PSD242 included)
• Supply: 24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz)
• Efficiency: 87%
• Cooling: Passive
• Protection
• Over heating
• DC Short circuit
• Limiter
• Control
• RS-232
• TCP/IP
• RS-485
• Socket Connections (AUDAC Touch™): 2 sockets

Product Features

• Dimensions: 108 x 44 x 165 mm (W x H x D)
• Weight: 0.81 kg

Accessories

• Included: PSD241 - Power supply 24V / 1.67 A (Efficiency Level V)
• Optional: Wall Controller (MWX45), WMI18/22 & WLI18/22 Wall input unit, MBS1xx Wall mounting brackets, TR3030 100V Transformer 30 W, WP2xx Universal wall panel

Recommended applications

• Bars & Restaurants
• Education
• Retail
• Corporate
• Residential
