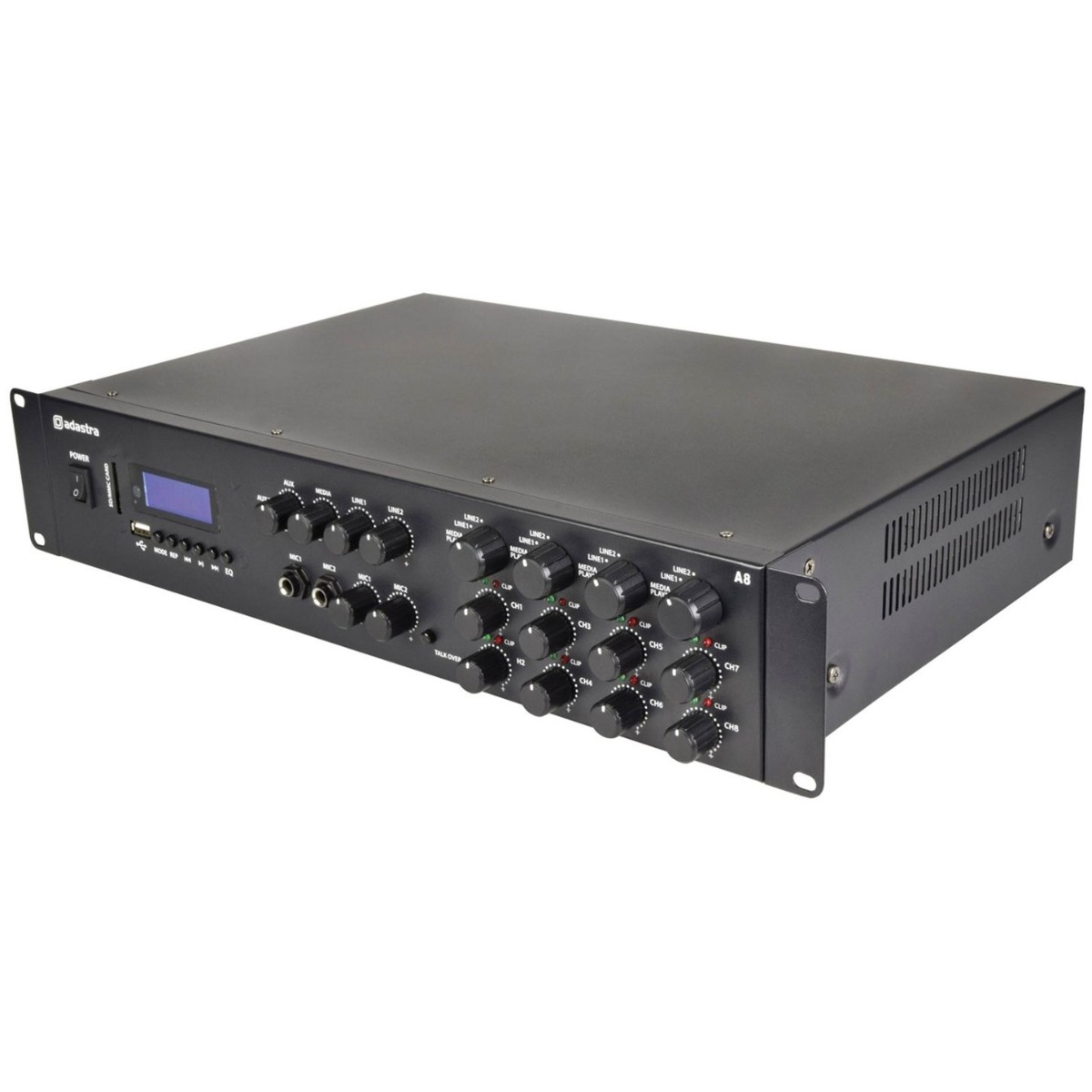

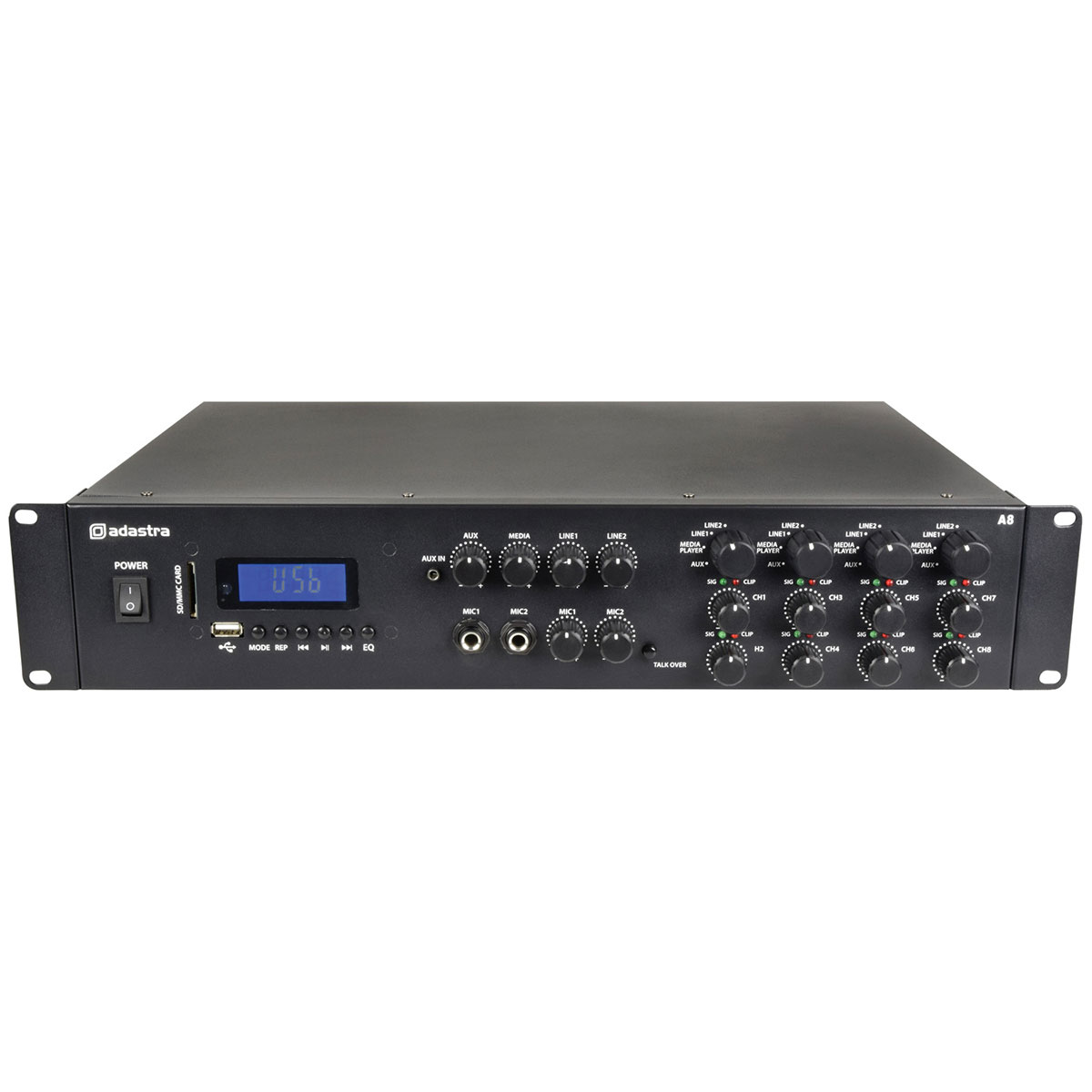

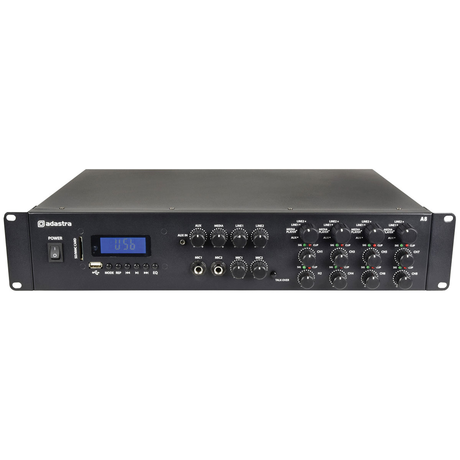

Quad Stereo Power Amplifier 4×2×200W, 2U

Specifications

Power Supply: 230Vac, 50Hz (IEC)

Fuse: F5A, 250V

RMS Output Power @ 4 Ohms: 8 × 200W

RMS Output Power @ 8 Ohms: 8 × 100W

Amplifier Type: Class D construction

Frequency Response: 20Hz – 20kHz ± 0.5dB

Microphone Inputs: 2 × 6.3 mm mono jacks

Line Inputs:

• Line 1: L + R (6.3 mm jack / RCA)
• Line 2: L + R (RCA)

Input Sensitivity:

• Line: 0.775 Vrms
• Aux: 0.480 Vrms

Auxiliary Input: 3.5 mm stereo jack

Input Impedance: 20k Ohms (balanced), 10k Ohms (unbalanced)

Audio Sources:

• USB / SD MP3 playback
• FM tuner
• Bluetooth receiver

Bluetooth Version: 2.3

Input Controls: Aux, Media, Line 1, Line 2, Mic 1, Mic 2, Talkover

Antenna Connection: F-type (FM receiver)

Line Outputs: 8 × RCA

Output Controls:

• Source Selection × 2
• Bass × 2
• Treble × 2
• Channels: Ch1, Ch2, Ch3, Ch4

Total Harmonic Distortion + Noise (THD+N): < 0.1%

Protection: Thermal, Overvoltage, Undervoltage, Short Circuit

Dimensions: 482 × 300 × 88 mm (2U rackmount)
