FBT DLM260
FBT DLM260
Digital Audio Processor 2 in / 6 out
- Ολοκληρωμένες επιλογές επεξεργασίας, όπως EQ, Gate, Delay, Dynamic EQ
- Aντιστοίχιση matrix routing και των δύο εισόδων σε οποιαδήποτε έξοδο
- Crossover IIR, FIR και Linear Phase
- RMS και Peak limiter
- Σύνδεση Ethernet ή RS 485 | Θύρα USB για σύνδεση με PC
Code: 26590
Warranty:
2 Years
In Stock
840,00€
Quantity:
Add to cart
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Products
Related Products

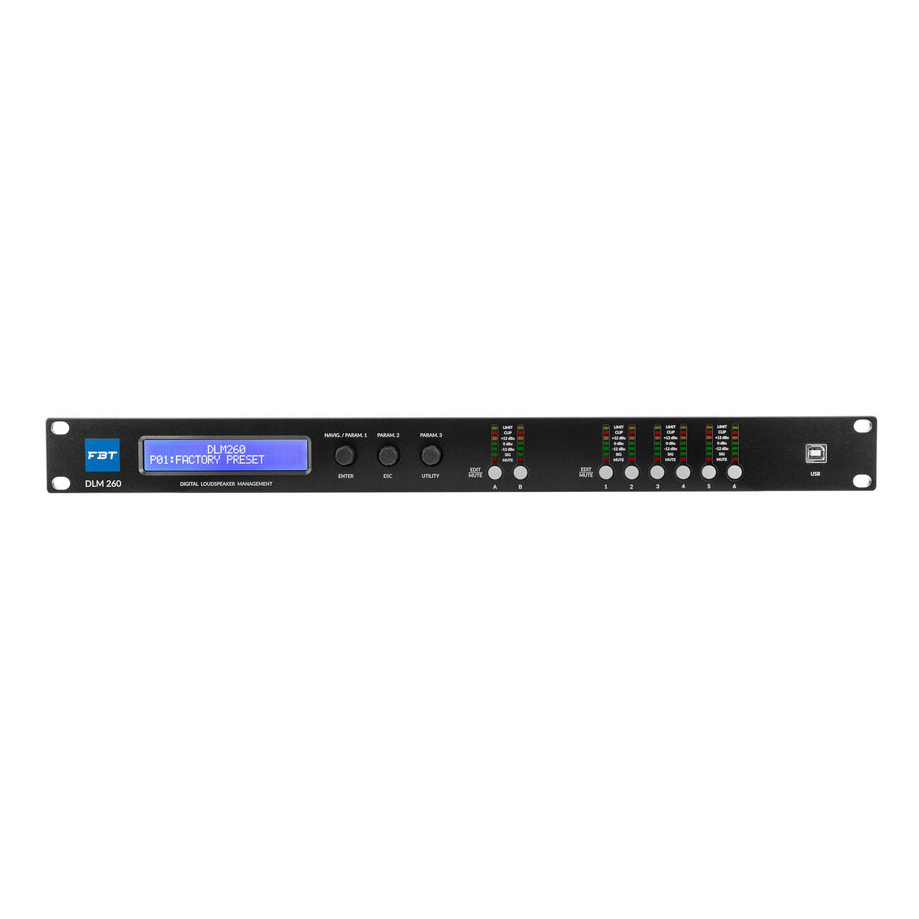

Digital Audio Processor 2 in / 6 out
Functions
- Integrated processing options such as EQ, Gate, Delay, Dynamic EQ
- Matrix routing matching for both inputs to any output
- IIR, FIR, and Linear Phase Crossover
- RMS and Peak limiter
- Frequency/phase response measurement with computer and sound card
- Auto EQ using IIR, FIR
- Signal generator Pink/White noise
- One press Mute for all inputs and outputs

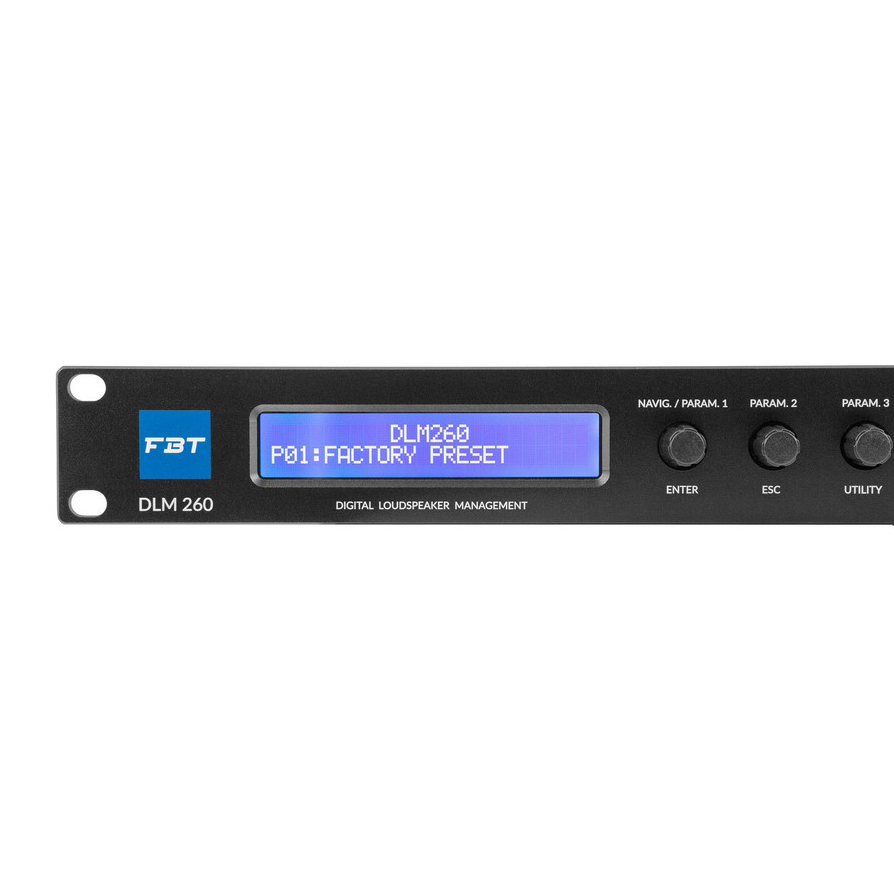

- LCD display
- Connectivity via Ethernet or RS 485 for larger systems
- USB port for computer connection

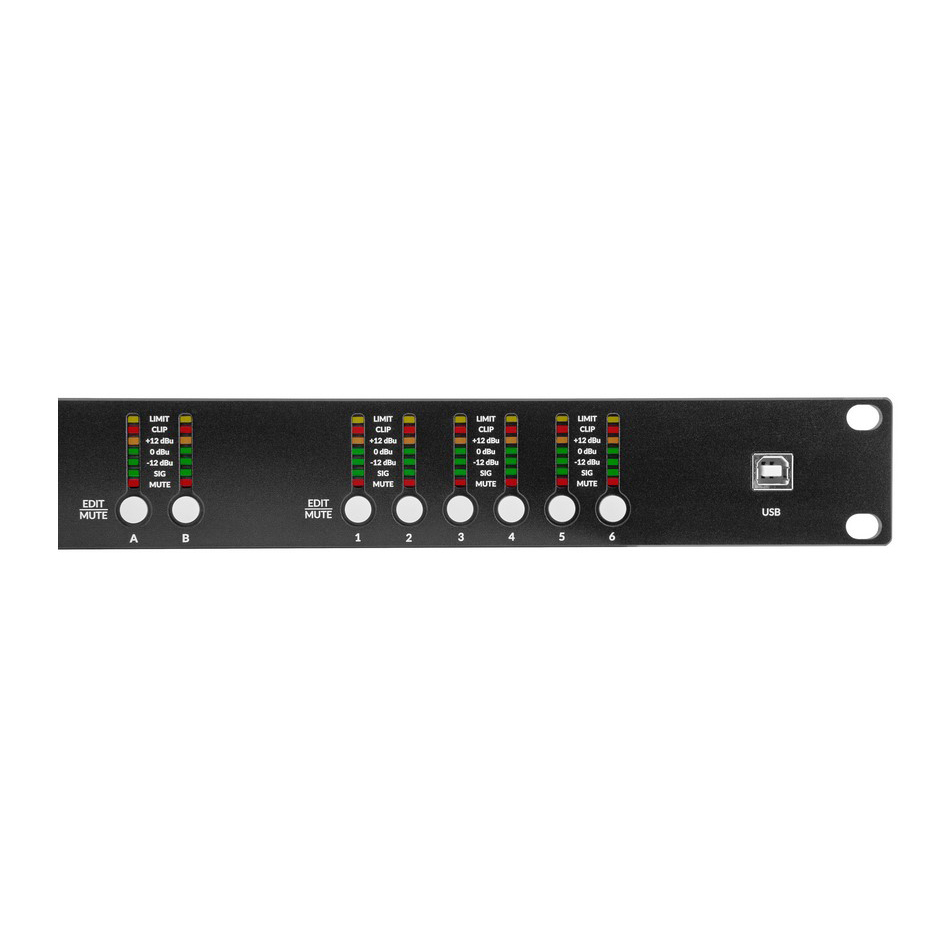

- Six-segment LED indicator for input/output level and limiter function
Specifications
- Sample Rate: 48kHz
- Input Impedance: 20K Ohm balanced
- Output Impedance: 100 Ohm
- Max. Input Level: +20dBu
- Max. Output Level: +18dBu
- Crosstalk: < -95dB
- Sample Rate: 48kHz
- Signal to Noise Ratio: > 116dB (A weighted)
- Noise Floor: < -95dB (A weighted)
- Common Mode Rejection Ratio: 60dB
- Frequency Response: 20Hz - 20kHz +0.3dB
- THD (+4dBu 1kHz): < 0.003%
- Mains Voltage Range: 90 - 240Vac / 50-60Hz
- Nominal Power Consumption: 30W

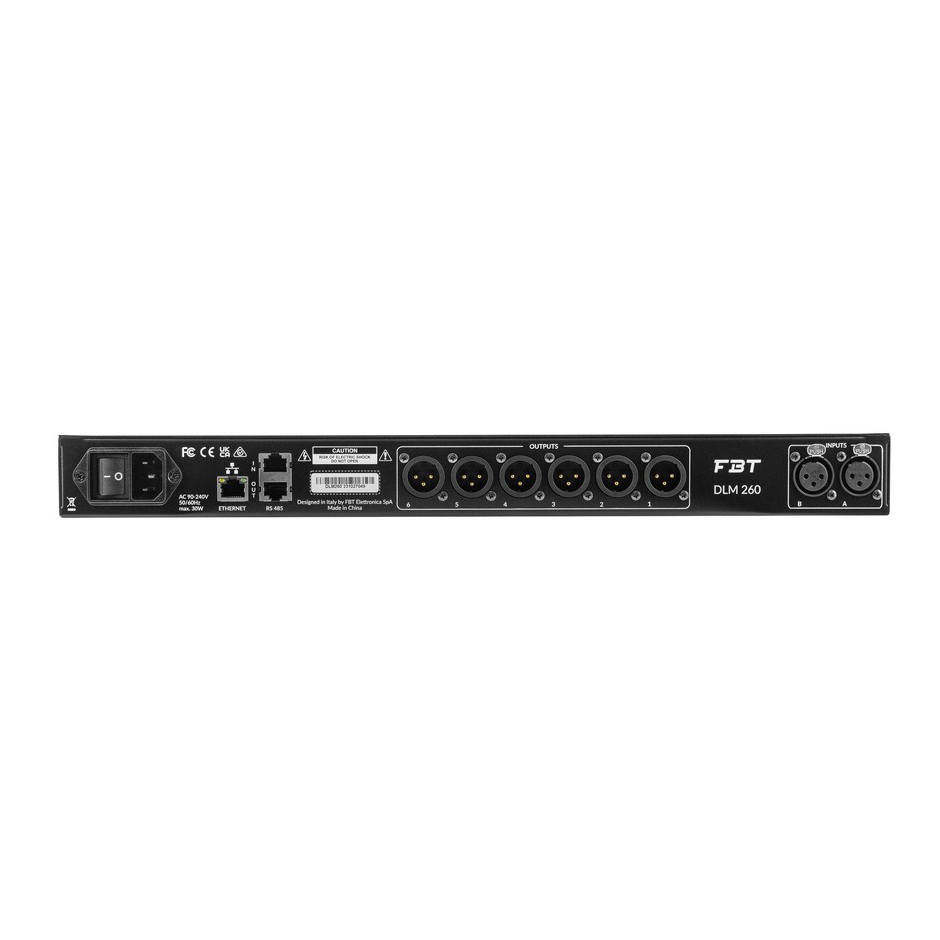

- Audio Input: 2 x 3 pin female XLR
- Audio Output: 6 x 3 pin male XLR
- Ethernet: shielded RJ45, Dynamic or Static IP
- RS485: 2 x RJ45
- USB: 1 x USB "B"
- Mains: 3 pin IEC
- Processing: Please refer Instruction Manual
- Height: 1U (44mm) (1.75")
- Width: 482mm (19")
- Depth: 230mm (9.1")
- Weight: 3.0kg (6.6 lb)
-
ManufacturerFBT
