Helvia SoniX 4800F
Helvia SoniX 4800F
- Powerful SHARC DSP 32-bit / 400MHz
- Full matrix routing
- Front panel with Mute, VU meters & 2” TFT display
- USB / LAN control
- Flexible EQ, FIR, crossover, limiter, and delay functions
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products
HELVIA SONIX 4800F | 4 In - 8 Out Digital Processor with FIR & DEQ
The HELVIA SoniX 4800F is a new, advanced DSP audio processor with 4 inputs and 8 outputs, designed for both live applications and permanent professional installations.
It combines high-quality converters, powerful computing performance, and Helvia-level reliability, making it an ideal tool for professionals who demand precision, stability, and top-tier performance.

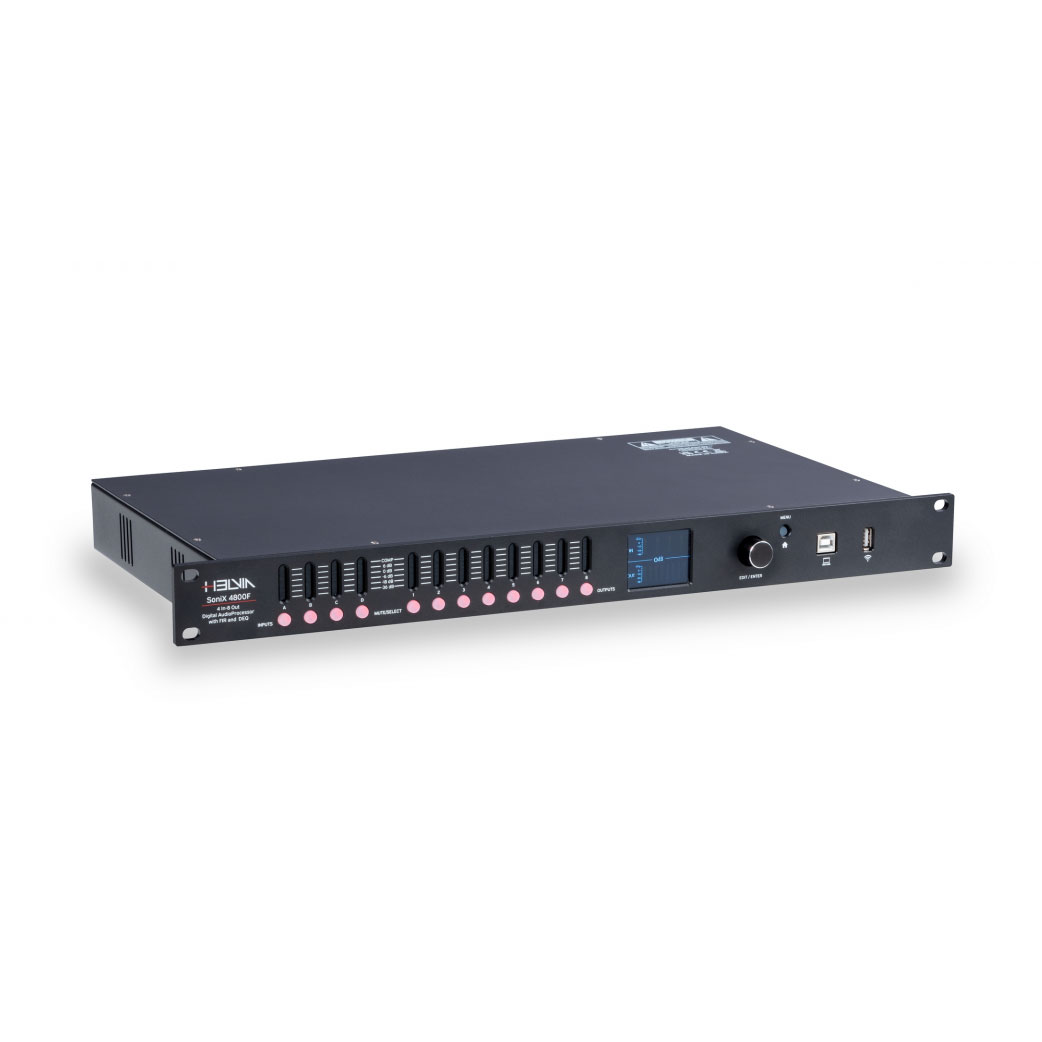

Sleek and Functional Design

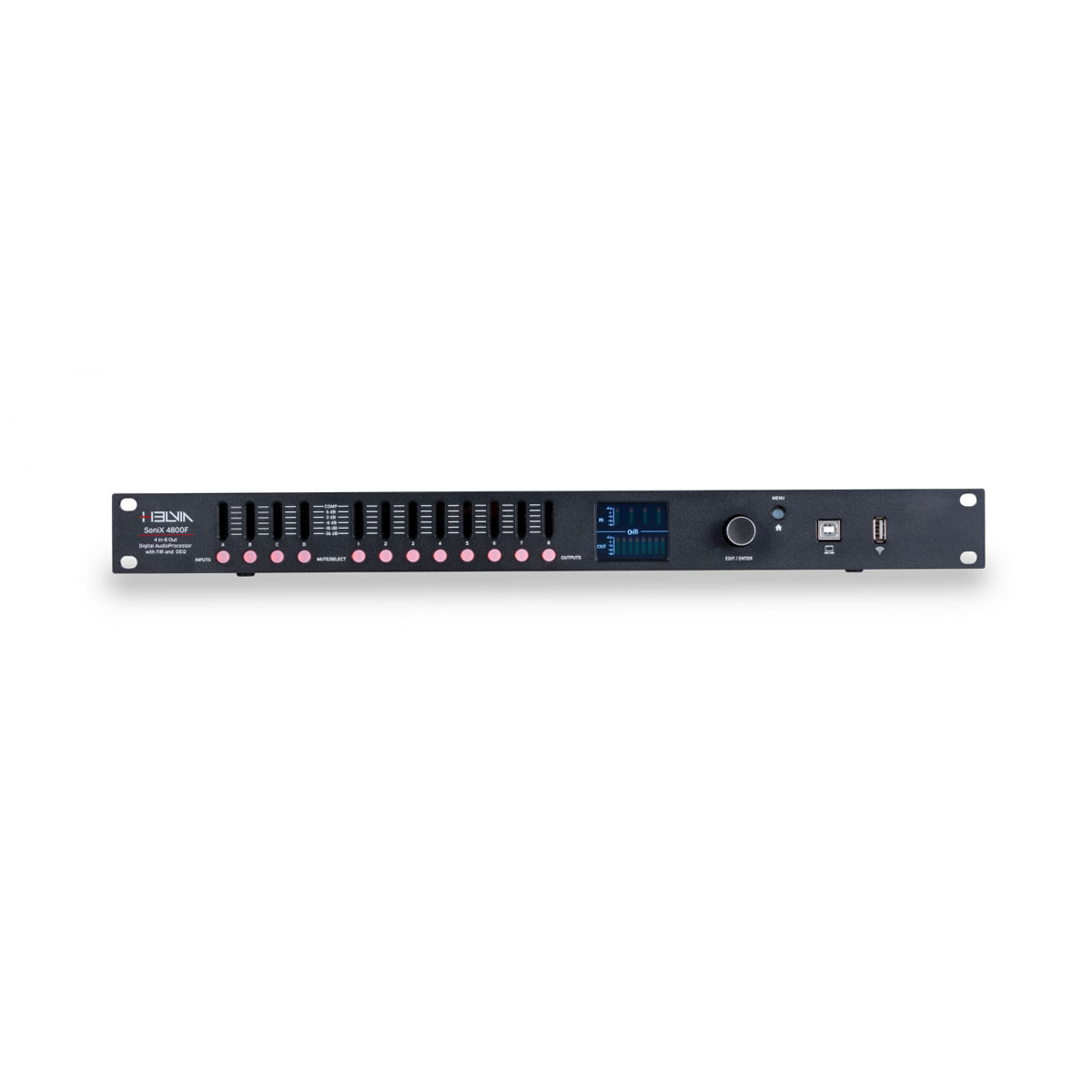

The front panel of the SoniX 4800F is minimal and ergonomic, featuring only essential controls:
- Mute buttons for each channel
- VU meter indicators for visual level monitoring
- 2” color TFT display for easy navigation
- USB port, Data/Entry keys, and Menu button

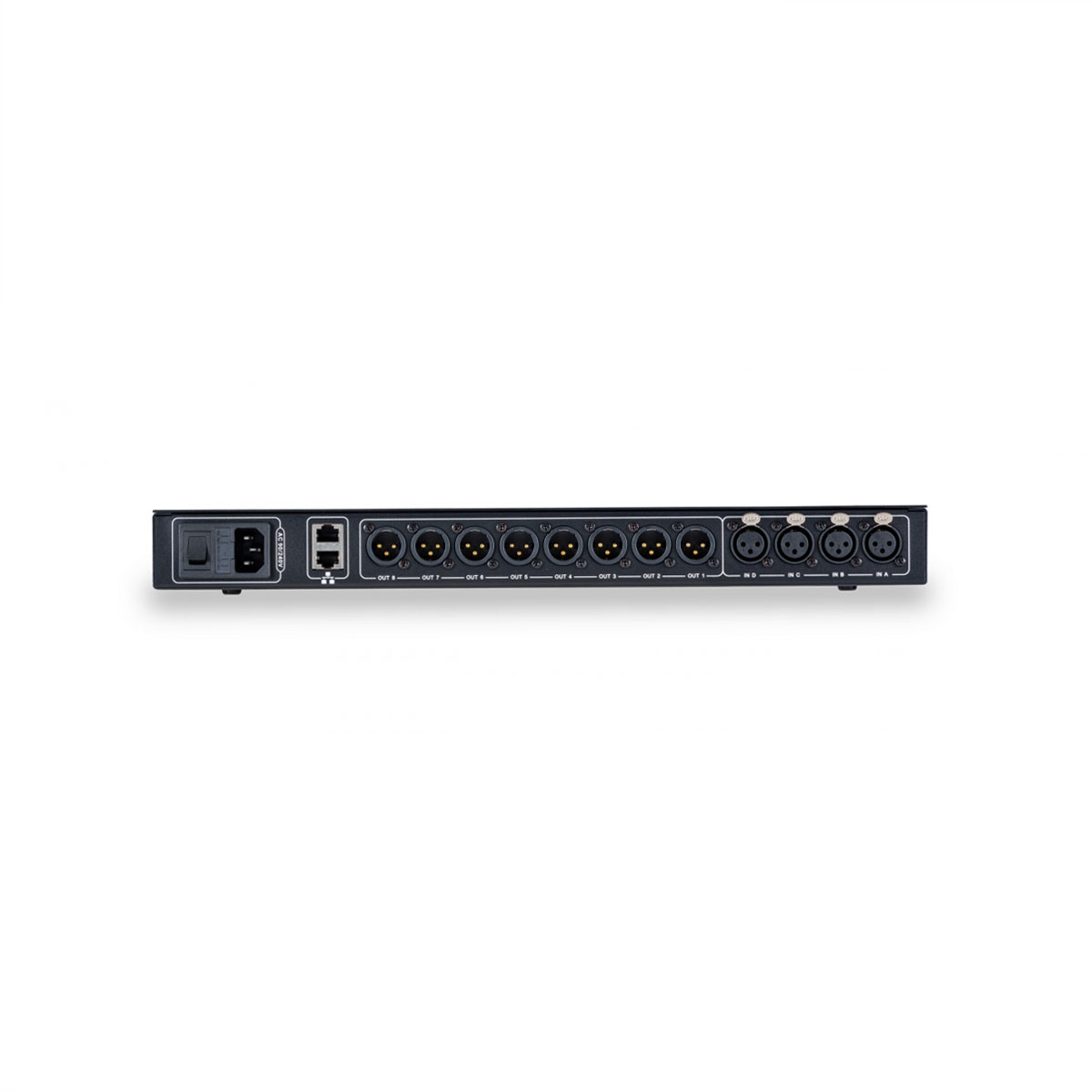

The rear panel houses all balanced inputs and outputs, as well as an RJ-45 LAN port for network connectivity, enabling remote control and management.
High Performance and Flexibility
Internally, the SoniX 4800F features a 4th generation SHARC processor (32-bit / 400MHz) with 24-bit AD/DA conversion and 192 kHz sampling, ensuring pristine audio quality and real-time responsiveness.
The 4 inputs can be freely assigned to the 8 outputs via a matrix interface, offering full routing control and maximum flexibility for any application.
All functions are accessible from the front panel or via Windows® software using USB or LAN, allowing full customization and system configuration from a PC.
Specifications
-
Frequency response±0.2dB 10Hz-25kHz
-
THD + N< 0.005% @ 10Hz-25KHz
-
SNR>118dB at 1% THD + N 10Hz-25KHz
-
Maximum input level+20dBu/7.775Vrms
-
Maximum output level+20dBu /7.775Vrms
-
Gain range- 80dB to +12dB per channel
-
Input impedance> 10Kohm - XLR input
-
Output impedance< 60 ohms - XLR output
-
Test signalIndependent sine wave / white noise / pink noise for each channel
-
Input equalization7 sections (parameter/ high / low rack / all-pass) + 3 sections dynamic EQ
-
High pass typeNingke / BesseI / Bart 6 / 12 / 18 / 24 / 30 I 36 / 42 I 48
-
Low pass typeNingke / BesseI / Bart 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48
-
Delay1200ms / 0.01ms accuracy for each Input and Output
-
Output equalization15-Band + HPF/LPF per channel with high / low frame/ all pass filter
-
Output FIRlow pass / high pass / bandpass direct setting, External Inport/Export
-
LimiterClipping (Peak or RMS value), Threshold, Attack, Release Time
-
Output CompressionAdjustable Threshold / Ratio / Start time / Recovery time
-
Volume / Mute ControlDirect panel knob, total volume and mute control
-
Phase controlInput / output
-
Online controlUSB / LAN control
-
Level meterDynamic indication of display level
-
Power range85V-260V / 50Hz-60Hz
-
Overall dimensions46 x 482 x 250mm
