HK Audio LINEAR 3 112 FA
HK Audio LINEAR 3 112 FA
Αυτοενισχυόμενο ηχείο 12"
- Drivers: Low-/mid speaker 12", 2" voice coil & HF driver 1", 1" voice coil
- Ενισχυτής Class D με μέγιστη ισχύ1200 W
- Max. SPL peak @ 10 % THD 135 dB
- Απόκριση συχνότητας 65 Hz – 19 kHz (+/-3 dB)
- Καμπίνα 16 mm MDF
Code: 23029
Warranty:
5 Years
Out of stock
939,00€
Quantity:
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Products
Συνδύασέ το με
Products
Related Products
Αυτοενισχυόμενο ηχείο 12"
Χαρακτηριστικά
- Max. SPL @ 10% THD: 126 dB half space (70 Hz – 12 kHz averaged)
- Max. SPL peak @ 10 % THD: 135 dB half space
- Frequency response +/-3 dB: 65 Hz – 19 kHz
- Frequency response -10 dB: 58 Hz – 18 kHz
- Power amp output (peak power): 1200 W
- Preamp: DSP (Time Alignment)
- Amp type: Class D - biamped
- Active protective circuits: Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters
- Low-/mid speaker: 1x 12", 2" voice coil
- HF driver: 1", 1" voice coil
- Horn directivity: 90° x 55° CD horn
- Active crossover frequency: 2.3 kHz FIR X-over with 72 dB/oct

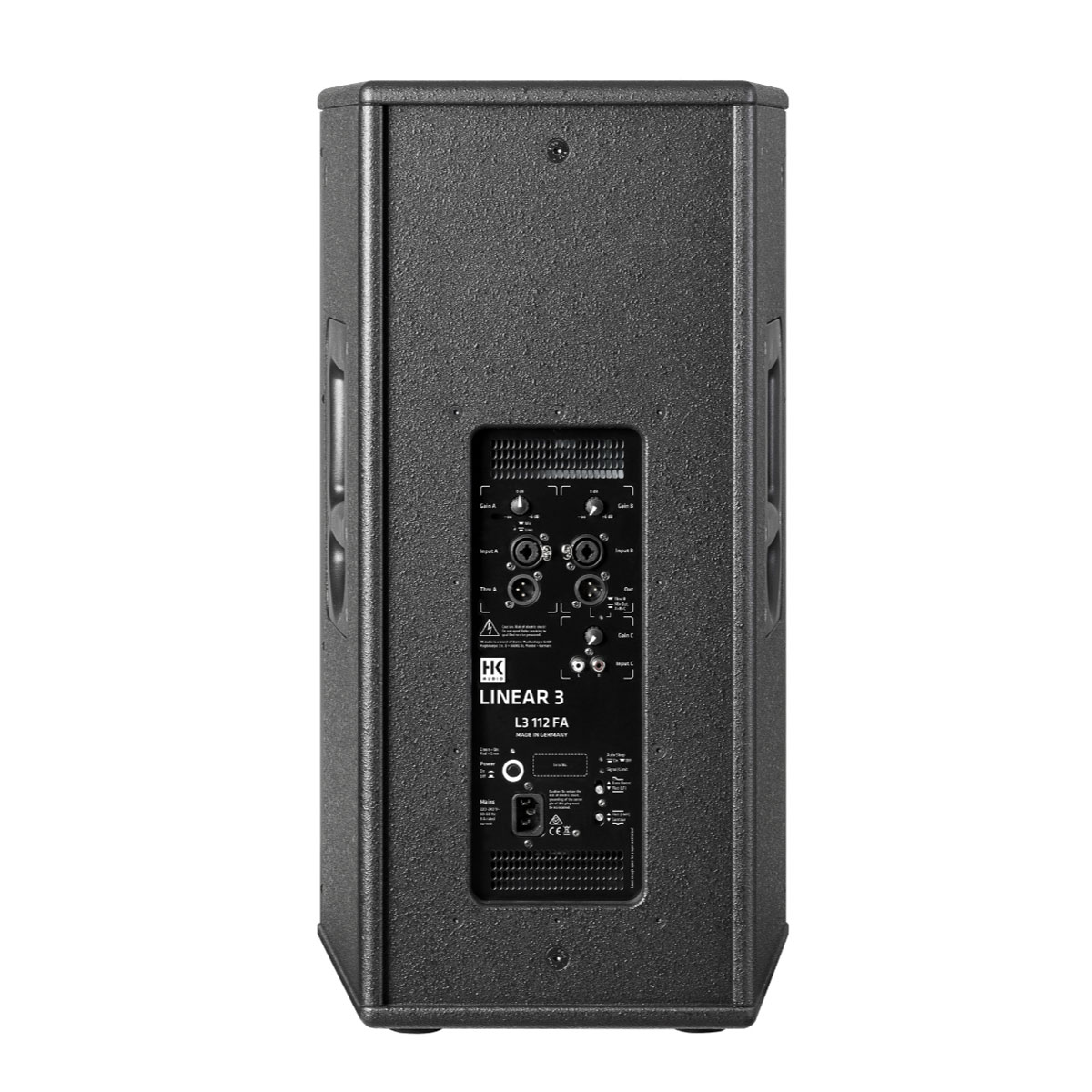

- Analog inputs: 2x XLR combo balanced, 1x Stereo RCA
- Analog outputs: 2x XLR Thru balanced, 1x XLR Mix Out
- Input sensitivity: +4 dBu @ Gain center-notched
- Sensitivity switch: Line/Mic Input A
- Filter presets: 2 EQ switches: Bass Boost/Flat & Flat/Contour
- Mains connector: 1x IEC socket with V-Lock cord retainer
- Power consumption: 3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065

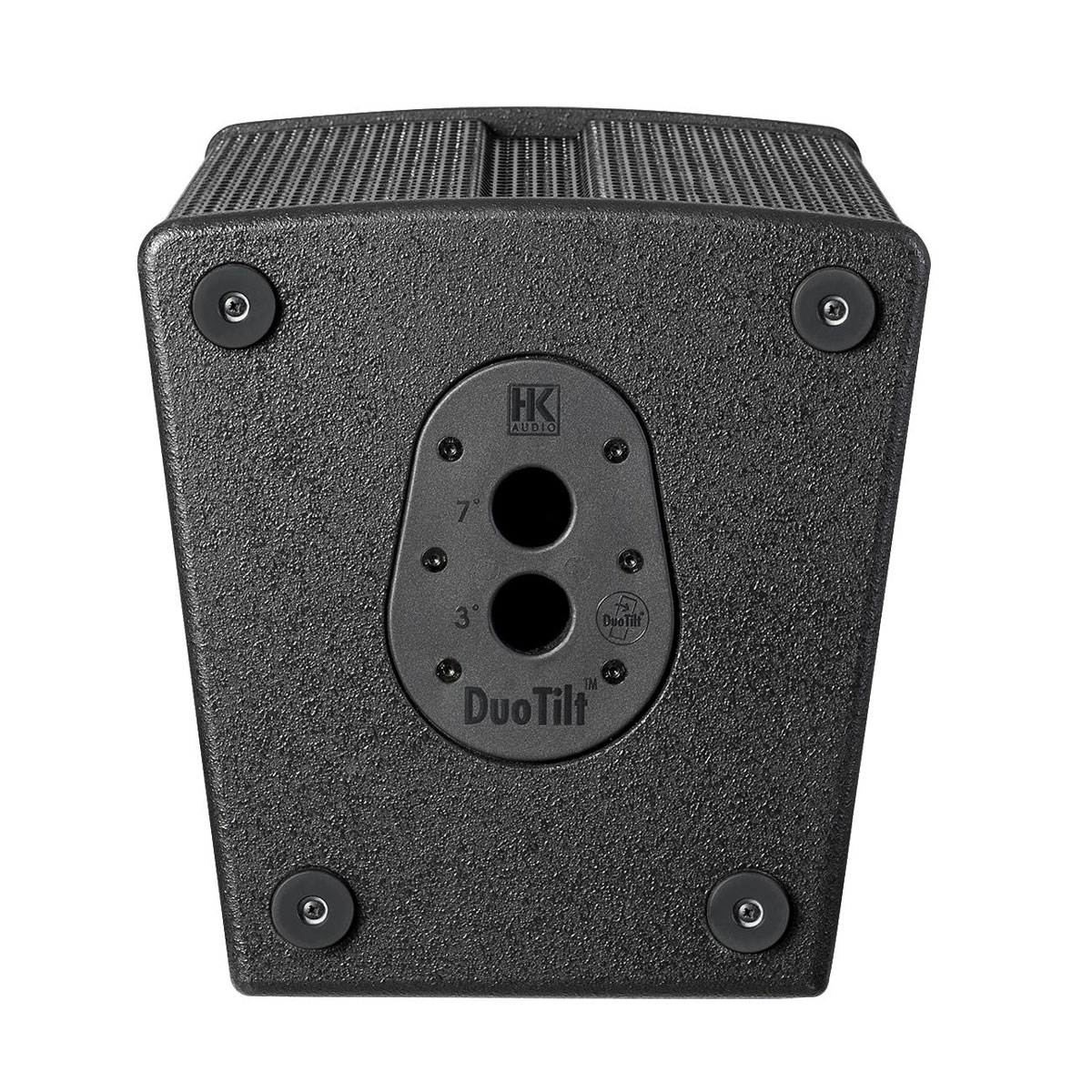

- Pole mount: DuoTilt 3°/7°
- Rigging points: 4x M8 (AP-8)

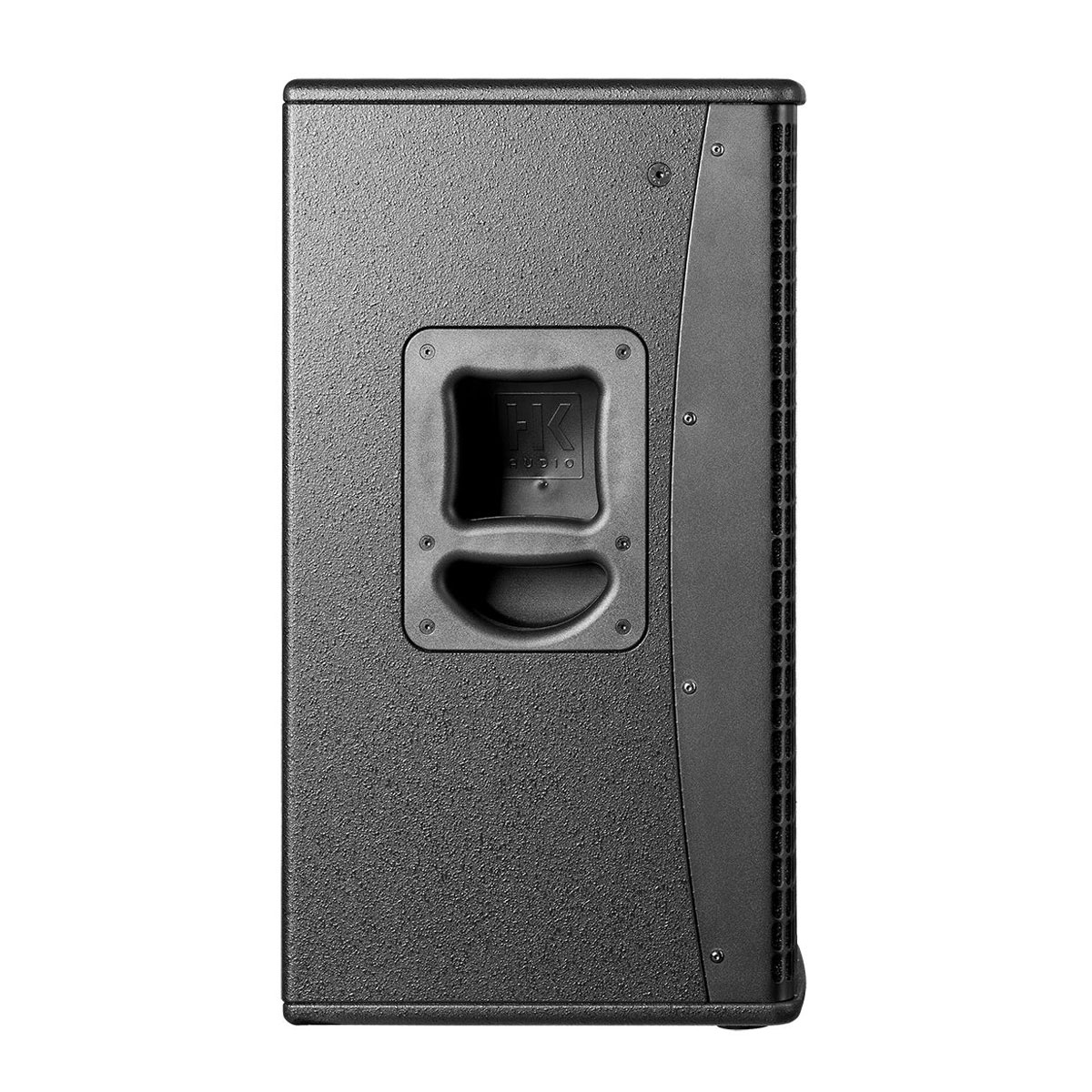

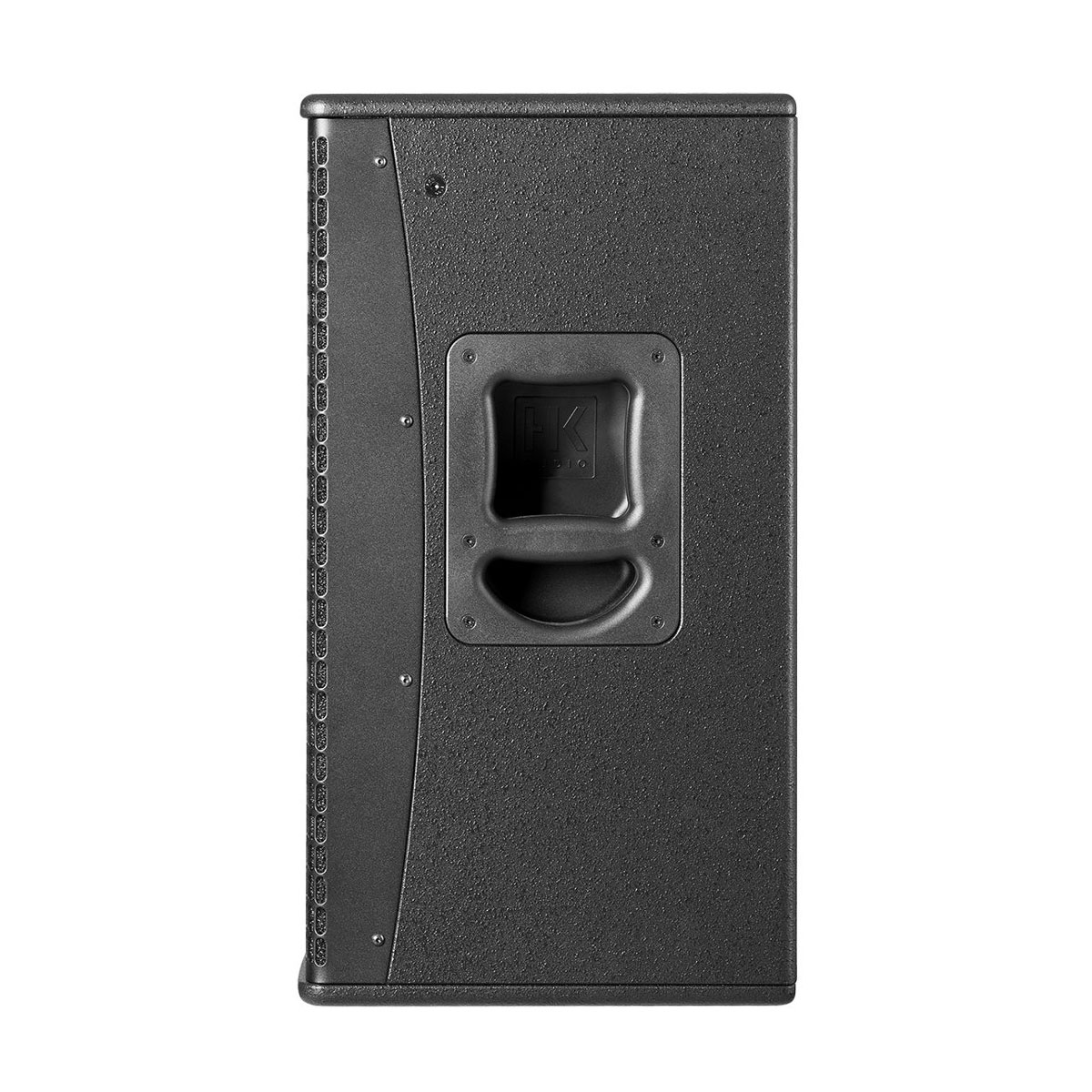

- Carrying handles: 2x MultiGrip
- Housing: 16 mm MDF
- Finish: Black acrylic enamel

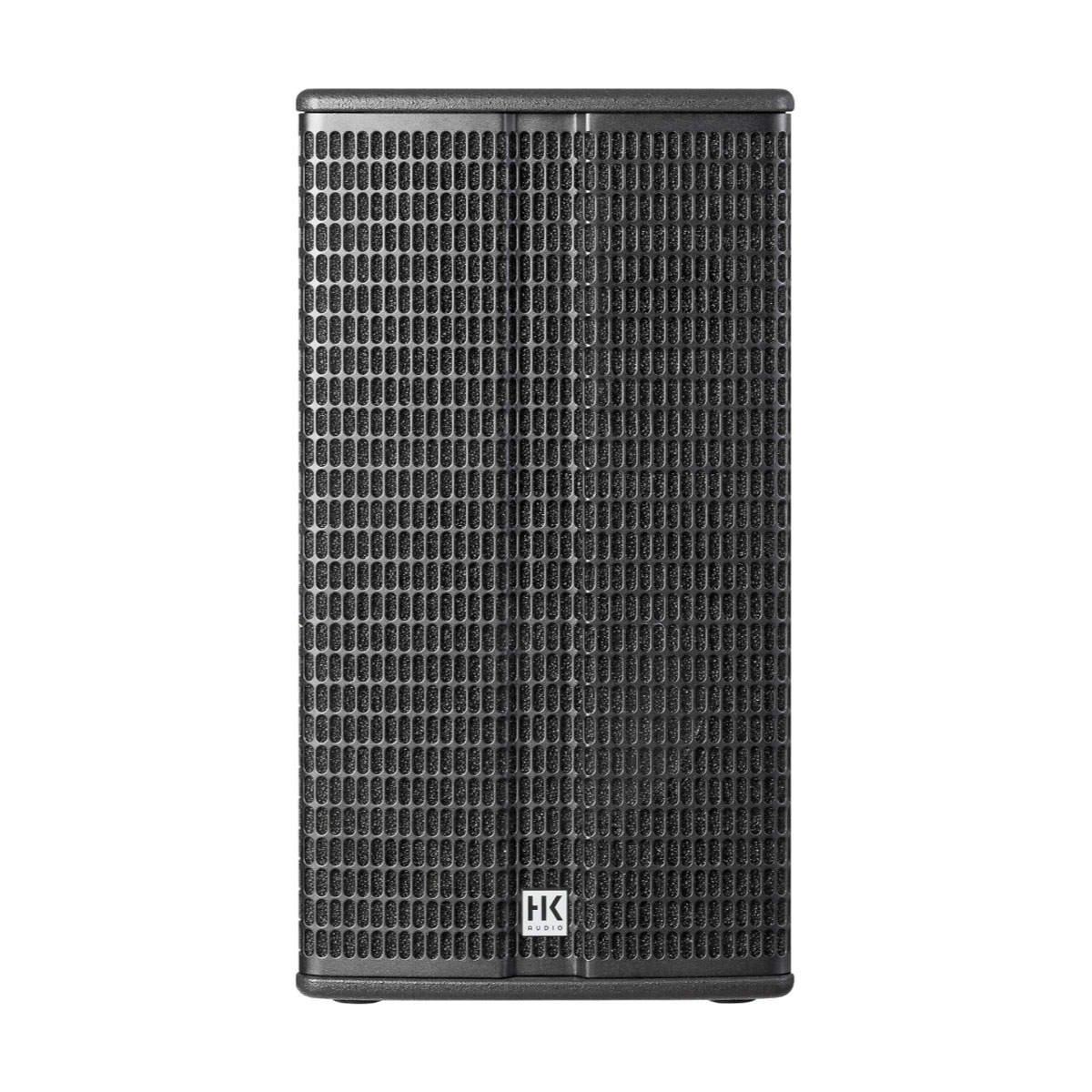

- Front grille: 2 mm metal grille backed with black acoustic foam
- Dimensions: 36 x 66 x 36.7 cm
- Weight: 21.5 kg
-
ManufacturerHK Audio
