Omnitronic PM311P
Omnitronic PM311P
- Compact 3-channel DJ mixer with USB MP3 Player
- 2 Line/Phono channels & 1 USB/Line channel
- Gain, EQ & CUE control on all channels
- Microphone input with Talkover function
- Crossfader for smooth transitions
- Ideal for mobile DJs, events and party setups
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products

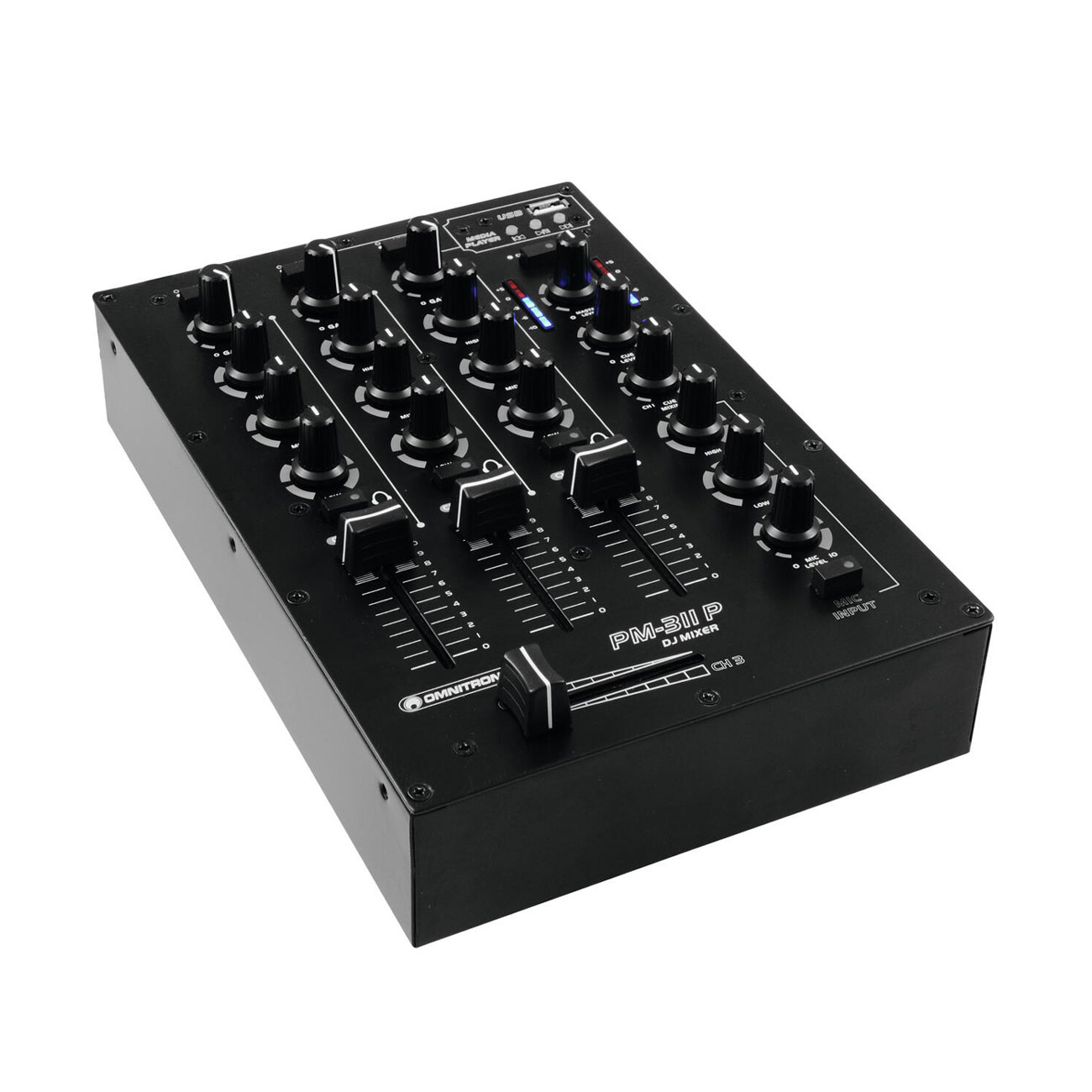

The OMNITRONIC PM311P is a compact 3-channel DJ mixer with an integrated USB MP3 player, designed for mobile DJs, party rooms, events and professional entertainers. It offers flexible management of multiple audio sources, intuitive mixing control and reliable performance in a portable and practical design.
The three input channels feature independent Gain, EQ and CUE functionality, allowing precise preparation of every mix. The first two channels support Line/Phono connections, while the third channel combines a Line input with an integrated USB MP3 player for direct music playback without additional equipment.
The PM311P also features a microphone input with Talkover function, a crossfader for smooth transitions between channels, PFL cue monitoring via headphones and a dedicated record output. Its compact desktop design makes it ideal for portable DJ setups and small installations.

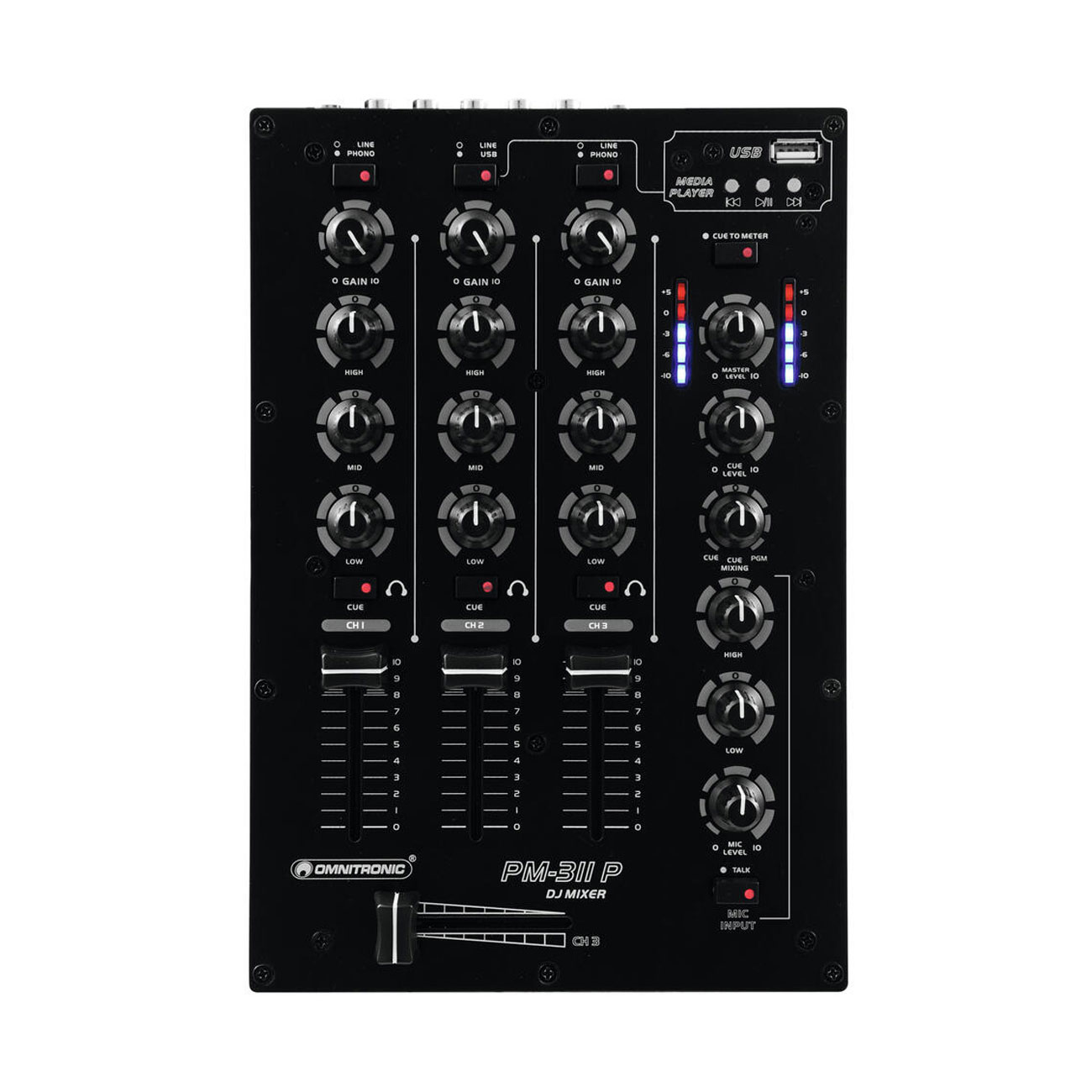

Features
- Compact 3-channel DJ mixer with integrated USB MP3 player
- 3 input channels with Gain, EQ and CUE functionality
- 2 × Stereo Line/Phono inputs via RCA
- 1 × Stereo Line/USB MP3 player channel

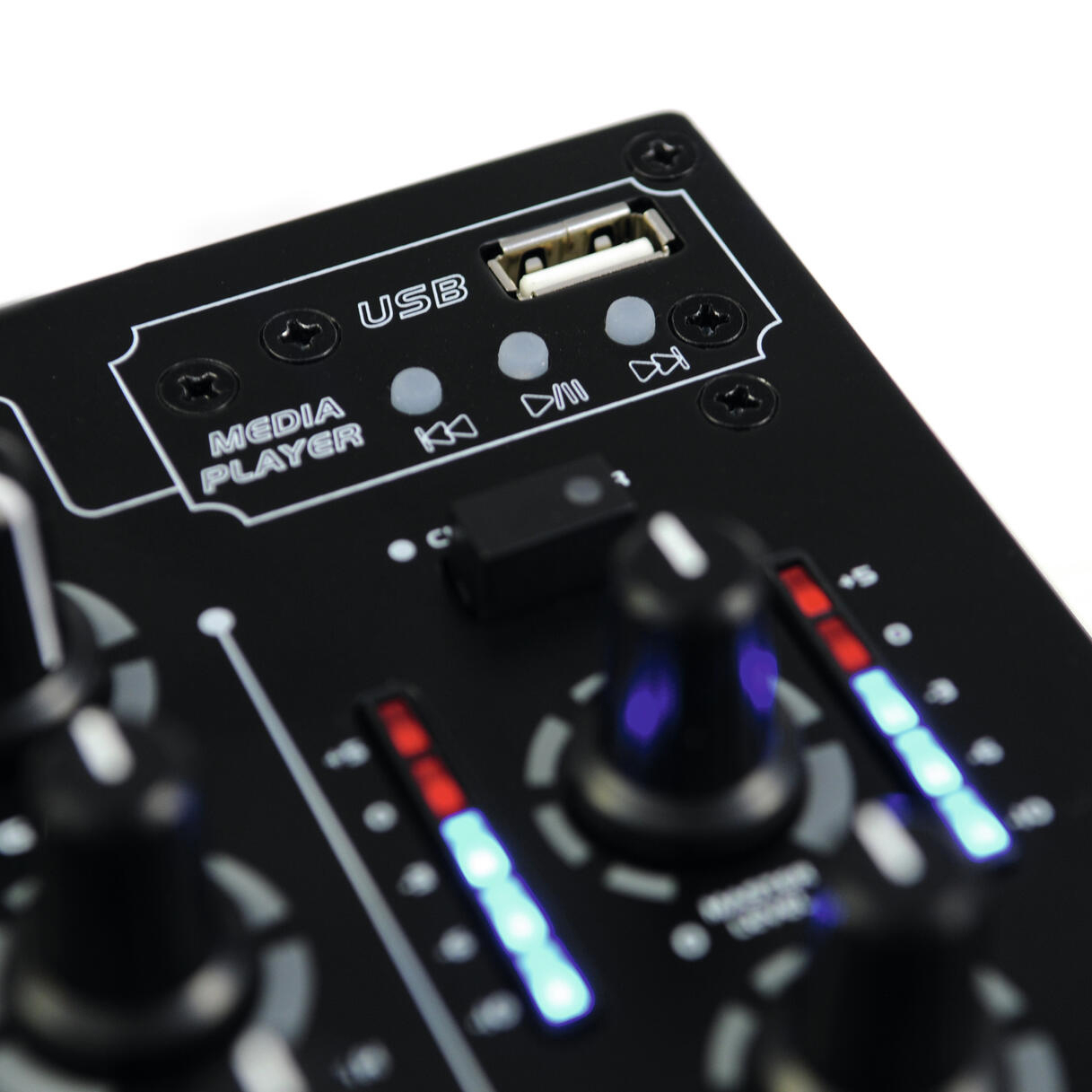

- MP3 and WAV playback via USB
- Microphone input with Talkover function and EQ
- Crossfader for smooth transitions between channels
- PFL cue monitoring of channels and Master output via headphones
- Stereo LED Master/PFL Level Meter
- Dedicated Record output
- Frequency response: 20 Hz – 20 kHz
- Dimensions: 172 × 260 × 78 mm
- Weight: 1.83 kg
Specifications
-
Power Supply230 V AC, 50 Hz / 12 V DC
-
Power Consumption4 W
-
Protection ClassClass III
-
Power ConnectionCoaxial power connector with supplied AC adapter
-
Frequency Response20 Hz – 20 kHz
-
Signal-to-Noise Ratio>75 dB
-
THD<0.07% @ 1 kHz
-
Audio PlayerUSB
-
Housing ColorBlack
-
Control ElementsCrossfader · Source Selector · Talkover · Power Switch
-
Status LEDsSwitchable Master Level Meter · Channel Source · CUE · ON AIR

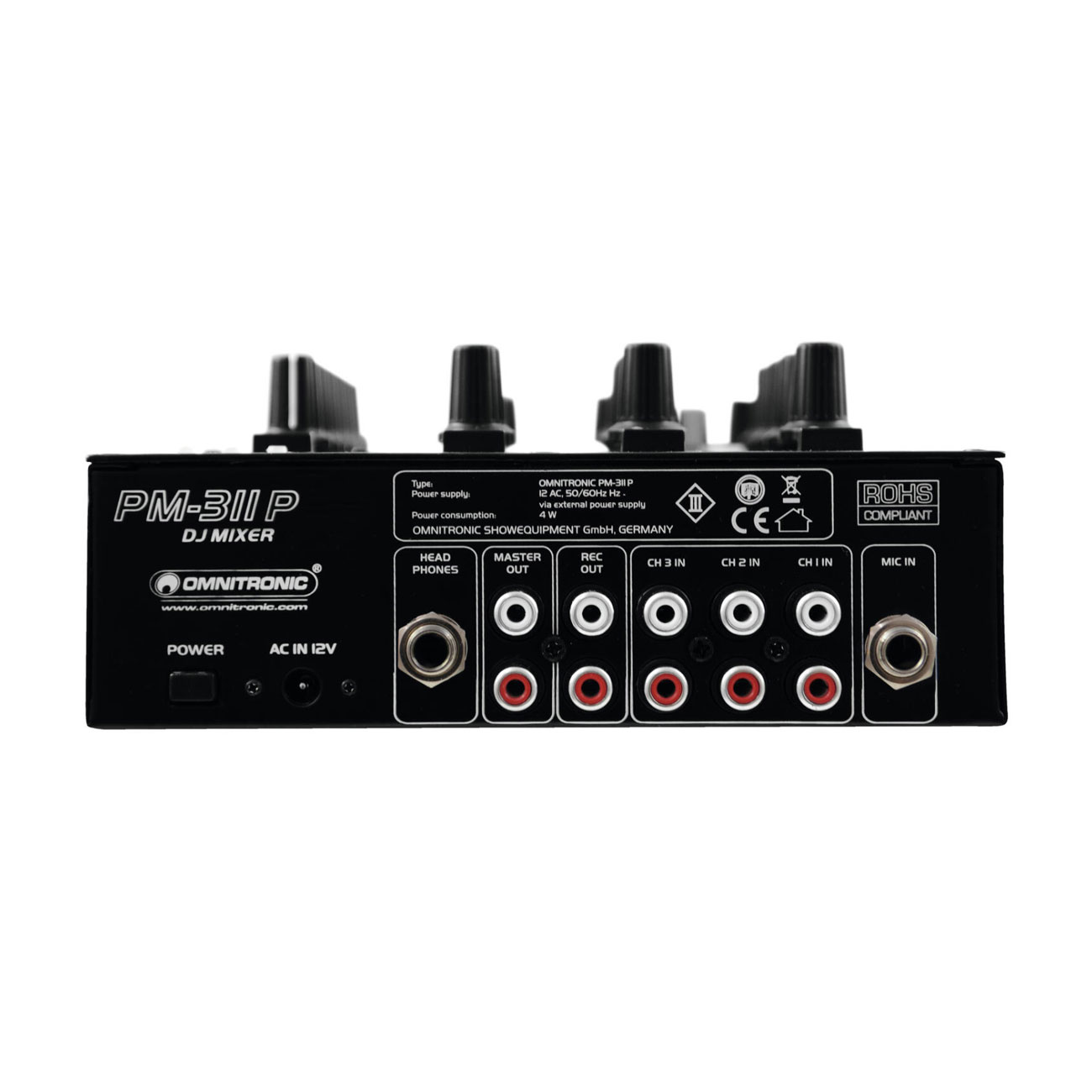

Connections
-
Line/Phono Inputs2 × Stereo RCA
-
Line Input1 × Stereo RCA
-
USB Audio Player Input1 × USB Type-A
-
Microphone Input1 × 6.3 mm Mono Jack
-
Master Output1 × Stereo RCA
-
Record Output1 × Stereo RCA
-
Headphone Output1 × 6.3 mm Stereo Jack
Channels
-
Input Channels2 × Stereo with Line/Phono Selector via RCA, Fader Control, 3-band EQ, Gain Control, CUE Switch & Source Selector
-
Input Channel1 × Stereo with Line/USB Player Selector via RCA, Fader Control, 3-band EQ, Gain Control & CUE Switch
-
Microphone Channel1 × Mono via Jack with Rotary Level Control, 2-band EQ & ON AIR Switch
-
Master OutputStereo RCA with Rotary Level Control & Cue Mix Function
-
Headphone OutputStereo Jack with Rotary Level Control
General
-
Supported Audio FormatsMP3 · WAV
-
USB Storage SupportUSB Devices up to 32 GB (FAT32)
-
USB PortType-A
-
Housing DesignDesktop Console Housing
-
Dimensions17.2 × 26 × 7.8 cm
-
Weight1.83 kg
